22195458 Coolant Pump | Genuine Volvo Penta Part
22195458 Coolant Pump | Genuine Volvo Penta Part
Couldn't load pickup availability
Available on request — contact us
As an authorised Volvo Penta dealer we can source parts through channels not shown online, and check supersession and used options for you
Availability checked daily with Volvo Penta
✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide
🔧 Product Description

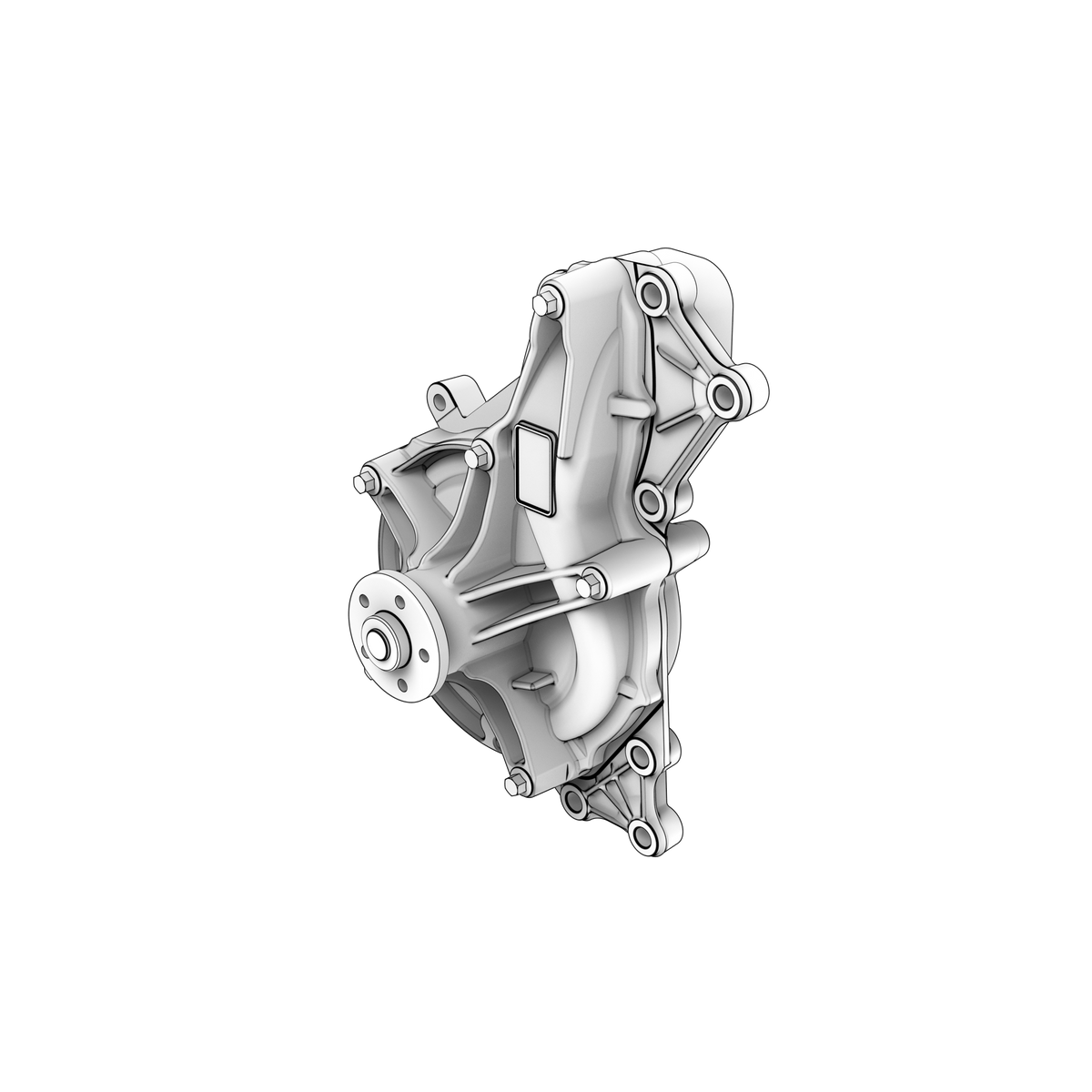

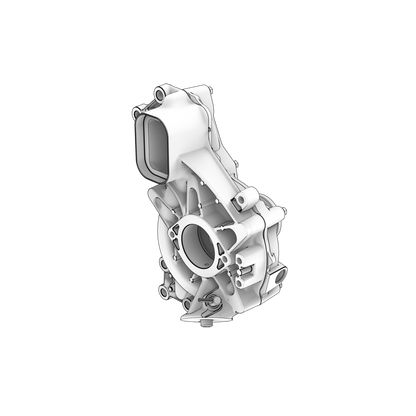

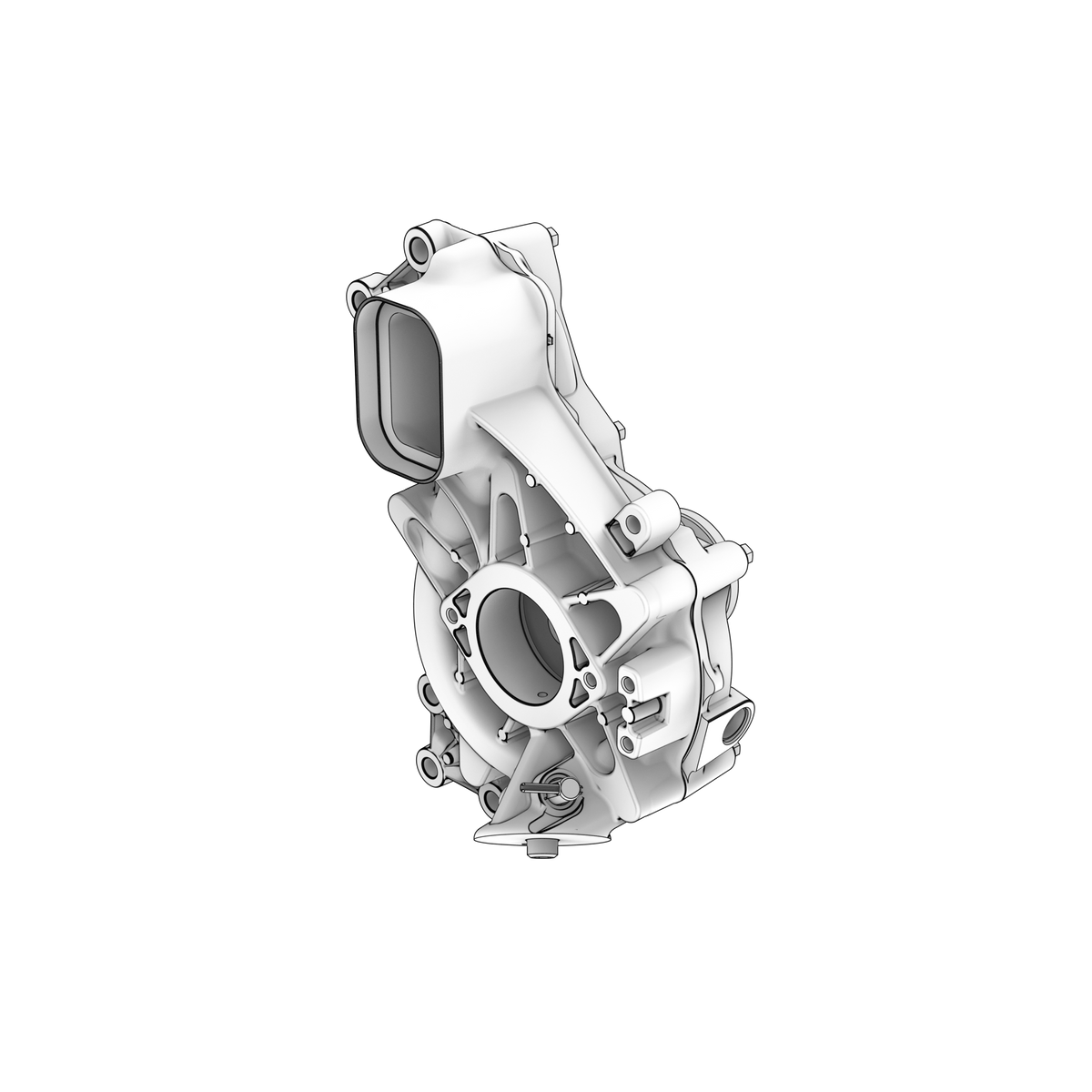

Complete heavy-duty engine coolant pump used across the Volvo D11/D13/D16 family. The approximately 4.89 kg pump provides high-volume circulation through the block, cylinder head, thermostat and external cooling package.
⚙️ Key Features
- Application-matched housing, impeller and drive interface
- Designed for continuous engine-duty coolant or fuel flow
- Correct sealing faces, bearing support and connection geometry
- Must be installed with the specified seals and clean mating surfaces
- Engine model, pump generation and serial number must match
🔌 Function
Circulates coolant through the engine and external cooling package to control operating temperature.
⚠️ Common Signs of Failure
- Coolant leakage from the shaft seal or housing
- Bearing rumble, wobble or pulley/gear play
- Engine overheating or poor heater/cooler flow
- Cavitation or damaged impeller
- Coolant contamination from a failed pump seal
🛠️ Service Notes
- Drain the coolant to below the pump before removal, and catch and dispose of it properly
- Clean the mating face back to bare metal without scoring it, and fit the new gasket or O-ring dry unless the workshop manual for your engine specifies a sealant
- Do not lever or hammer on the pulley or the impeller housing to seat the pump, and check the shaft turns freely by hand once it is bolted up
- Set drive belt tension and check pulley alignment by the procedure for your engine — over-tensioning will wreck the bearing in a new pump
- Refill with coolant of the correct specification and mixture, vent the system fully, then run up and check both for leaks and for a normal temperature rise and fall
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 22195458 → Supersedes 21468473
OEM / Related Numbers
- 20464403 - related OEM comparison numbers
- 20538845 - related OEM comparison numbers
- 20744939 - related OEM comparison numbers
- 20744942 - related OEM comparison numbers
- 20744944 - related OEM comparison numbers
- 21221878 - related OEM comparison numbers
- 21228793 - related OEM comparison numbers
- 21228795 - related OEM comparison numbers
- 21468471 - related OEM comparison numbers
- 21468472 - related OEM comparison numbers
- 22195450 - related OEM comparison numbers
- 85000062-85116653 / 85124621 / 85124623 / 85142304 / 85142305 / 85151109 / 85151110 - Volvo Group reference family
Aftermarket / Verified Equivalents
- Febi / Frimatec-manufactured D11/D13/D16 pump family - verify exact flange and impeller specification
- PAI 801131E - aftermarket water-pump cross-reference
- BESTfit / D&W 167-711-0077 family - aftermarket heavy-duty pump cross-reference
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
