• 22210058 Plug | Genuine Volvo Penta Part
  • 22210058 Plug | Genuine Volvo Penta Part - photo 2 of 2
1 2

22210058 Plug | Genuine Volvo Penta Part

22210058 Plug | Genuine Volvo Penta Part

$52.78 AUD
$52.78 AUD
Sale Sold out
Shipping calculated at checkout.

Available from Volvo Penta international

Typically reaches our store in 10–14 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

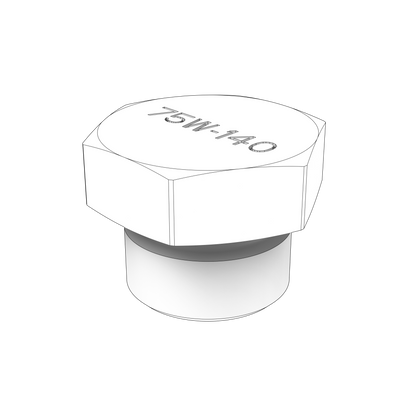

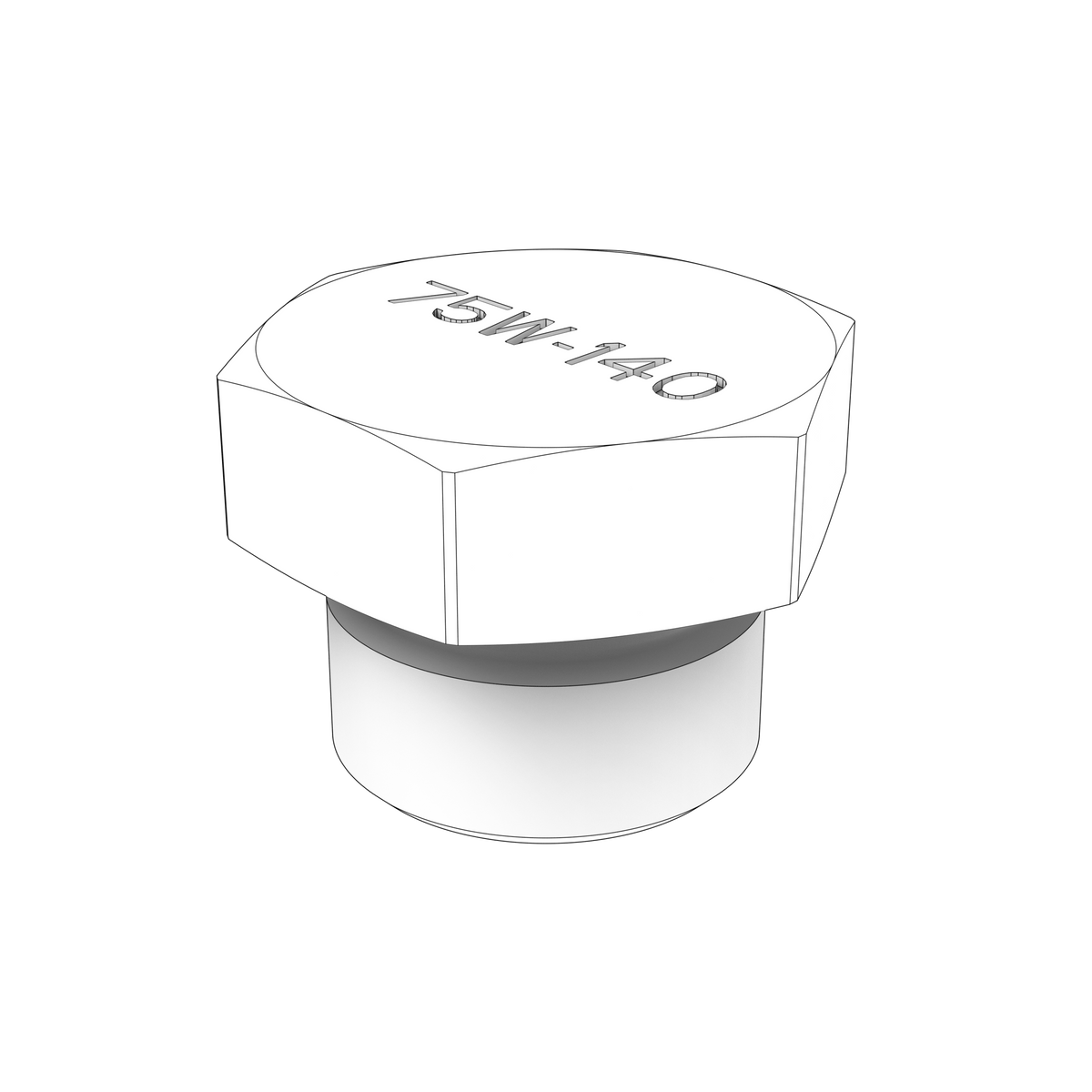

Threaded sealing plug used in the DPH-C/DPH-D/DPR-D/DPH-D1 intermediate housing or centre-tube assembly. It closes a drilled oil/water passage while allowing service access when required.

🚤 Compatibility

Typically suits:

  • Volvo Penta DPH-D1
  • Volvo Penta D6-330A-F
  • Volvo Penta D6-370A-F
  • Volvo Penta D4-260A-F
  • Volvo Penta D4-300A-F
  • Volvo Penta D6-300A-F
  • Volvo Penta D4-225A-F
  • Volvo Penta D6-300A-G
  • Volvo Penta D6-340A-G
  • Volvo Penta D6-380A-G
  • Volvo Penta DPH-E
  • Volvo Penta D6-400A-G
  • Volvo Penta D6-400A-F
  • Volvo Penta D4-150A-G
  • Volvo Penta D4-230A-G
  • Volvo Penta D4-270A-G
  • Volvo Penta D4-300A-G
  • Engine Family: DPH, D
  • HP Range: 150-400 HP

⚙️ Key Features

  • Machined thread and sealing face
  • Uses the specified O-ring or sealing method
  • Corrosion-resistant marine construction
  • Application-specific depth and head geometry
  • Housing and fitment
  • Ratio 1.59:1 (Volvo assembly listing)

🔌 Function

Closes and seals the specified machined passage in the drive housing.

⚠️ Common Signs of Failure

  • Oil or water leakage around the plug
  • Corrosion seizure
  • Incorrect plug protrusion interfering with internal components
  • Water contamination from failed seal

🛠️ Service Notes

  • Clean the threads and the seating face before fitting, and make sure the opening itself is clear of old sealant, swarf and corrosion
  • Renew the sealing washer or O-ring where one is fitted rather than reusing a flattened one, and only use thread sealant where the workshop manual for your engine calls for it
  • Tighten to the figure given in the workshop manual for your engine — plugs in aluminium and other soft castings strip easily, and a plug pulled up hard to cure a leak usually distorts the seat and makes it worse
  • Where the plug closes an oil, fuel or coolant passage, run the engine up to temperature afterwards and check the joint under pressure before signing the job off
  • Keep removed plugs paired with the holes they came out of during a strip-down — plugs of very similar appearance often differ in thread, reach or sealing type

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 22210058 → Supersedes 21659222

OEM / Related Numbers

  • 21659222 earlier number superseded by this part
  • 955972 - associated O-ring
  • 60111159 - associated screw
  • 3887005 - magnetic plug in the same drive family

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
