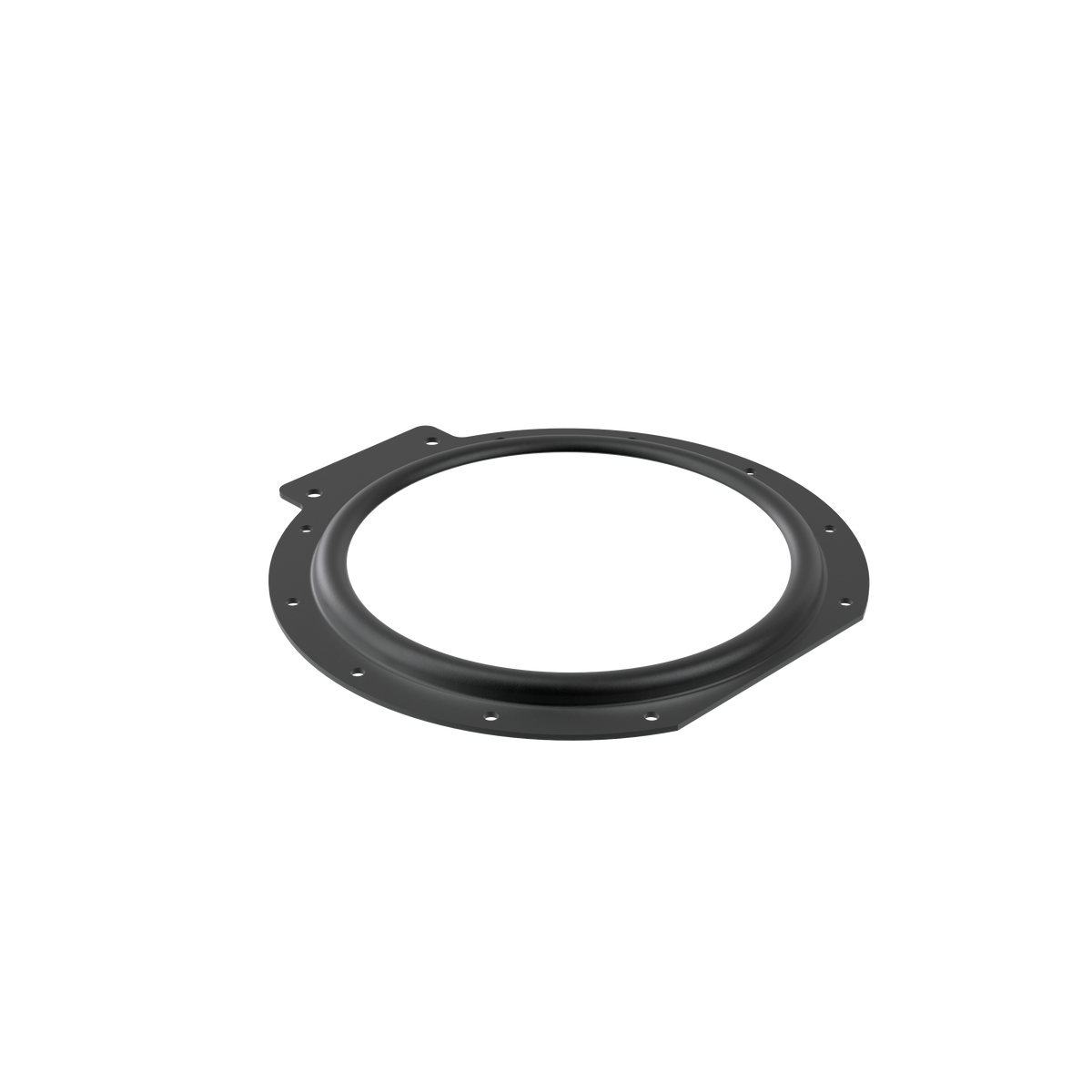

22222853 Clamping Ring | Genuine Volvo Penta Part

🔧 Product Description

Hull-diaphragm clamping ring for Volvo Penta saildrive installations. It replaces earlier clamping-ring references 873126, 3586701, 3856701 and 852734 and secures the rubber hull seal to the saildrive bed.

🚤 Compatibility

Typically suits:

• Volvo Penta D2-40F
• Volvo Penta D2-55F
• Volvo Penta D2-50F
• Volvo Penta D2-75F
• Volvo Penta D2-60F
• Volvo Penta D1-30F
• Volvo Penta 130SR-C
• Volvo Penta 130S-C
• Volvo Penta D1-13F
• Volvo Penta D1-20F
• Volvo Penta 130S-D
• Volvo Penta 130SR-D
• Volvo Penta 150S-D
• Volvo Penta 150SR-D
• Volvo Penta 150S-C
• Volvo Penta 150SR-C

• Engine Family: D
• HP Range: 13-75 HP

⚙️ Key Features

• Saildrive hull-diaphragm retention
• Long OEM supersession chain
• Corrosion-resistant clamping construction
• Fits 110S through 150S and MS25S families where specified
• Critical watertight installation component

🔌 Function

Clamps the saildrive hull diaphragm securely to maintain the watertight seal between saildrive and hull.

⚠️ Common Signs of Failure

• Uneven clamp load
• Water seepage around the diaphragm
• Damage found during diaphragm replacement

🛠️ Service Notes

• Fit a new ring rather than reusing one that has been distorted, stretched or corroded — a ring that no longer pulls square will never seal, whatever you do to the fastener
• Clean both joint faces and check them for damage, then bring the two halves together square and fully engaged before the ring is tightened; do not use the ring to pull a misaligned joint into line
• Tighten evenly and progressively, working the ring round so it seats all the way about rather than pulling it up hard in one go, and stop at the figure given in the workshop manual for your engine
• Do not overtighten to stop a leak — it distorts the ring and the flanges and makes the joint worse
• Bring the engine up to temperature and recheck the ring once it has been through a full heat cycle, since expansion and contraction will settle the joint

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22222853 → Supersedes 3586701 → Supersedes 873126 → Supersedes 852734 → Supersedes 850079

OEM / Related Numbers

• 3586701 earlier number superseded by this part
• 873126 earlier number superseded by this part
• 852734 earlier number superseded by this part
• 850079 earlier number superseded by this part
• 3856701 related reference

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
