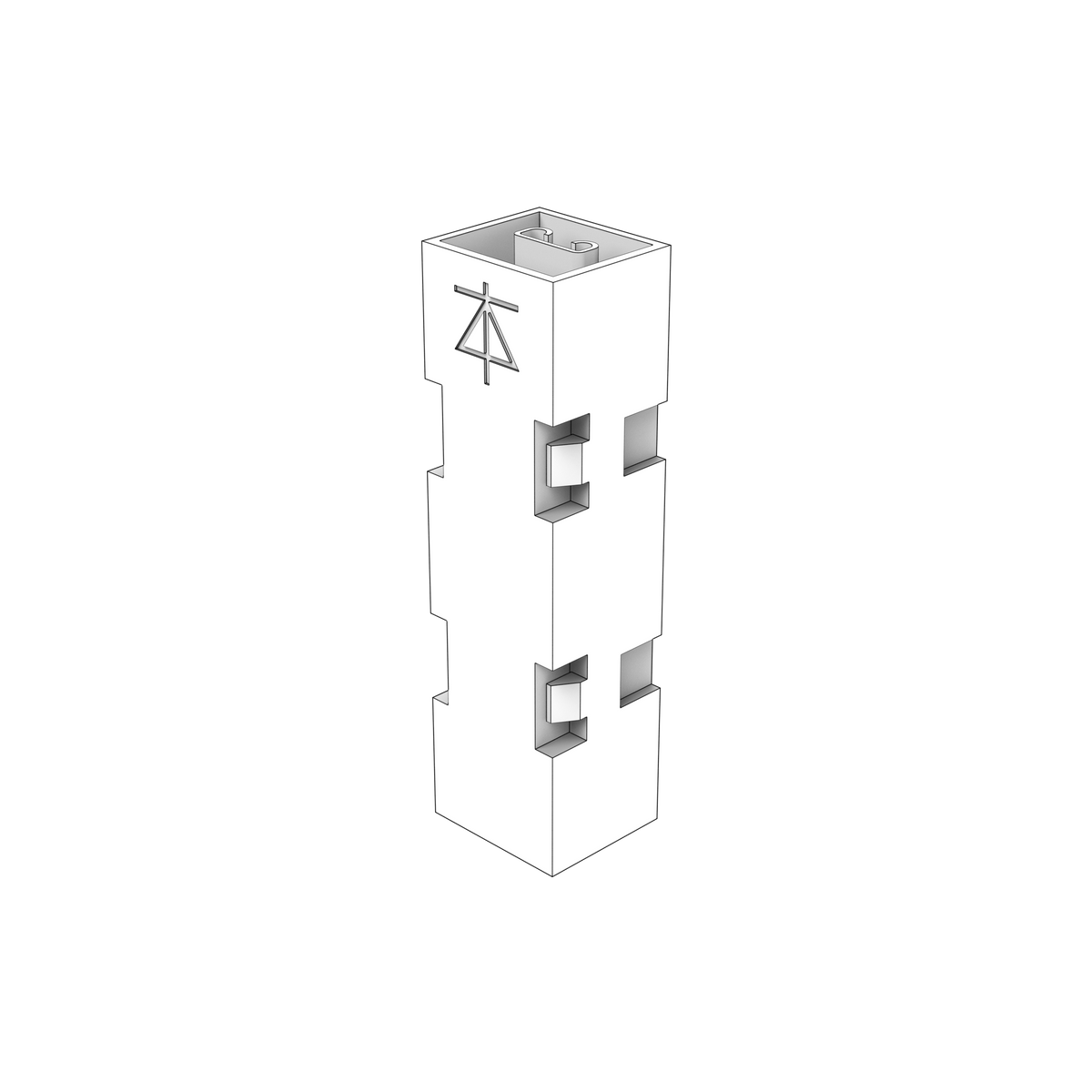

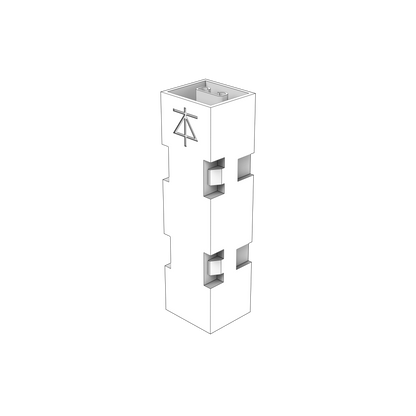

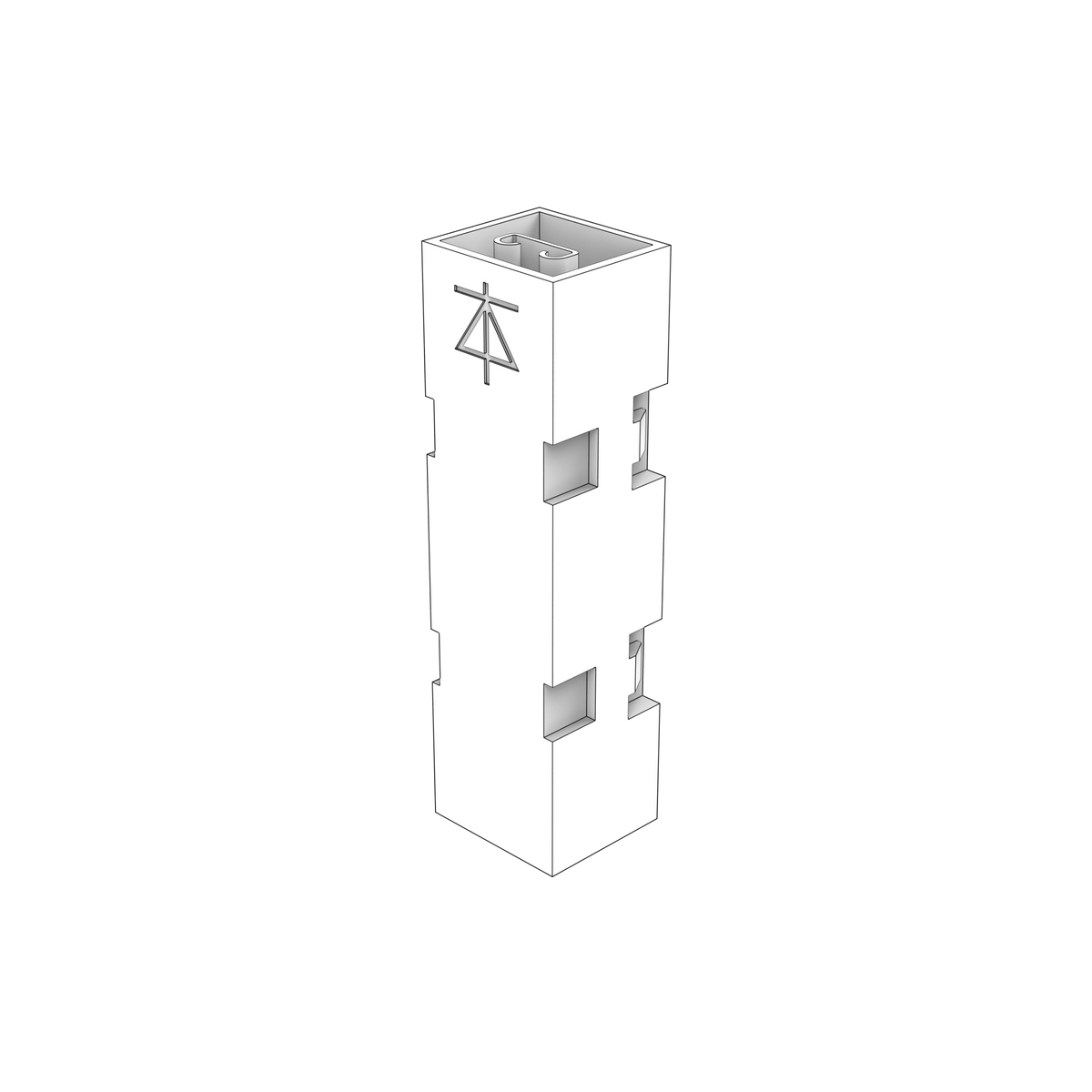

22224171 Diode | Genuine Volvo Penta Part

🔧 Product Description

Power diode used in a Volvo Penta alternator or electrical-protection circuit. It is associated with earlier diode reference 881956 and has a documented Herth+Buss Elparts replacement.

🚤 Compatibility

Typically suits:

• Volvo Penta TAMD75P-A
• Volvo Penta TAMD74P-A
• Volvo Penta TAMD74P-B
• Volvo Penta TAMD74C-A
• Volvo Penta TAMD74C-B
• Volvo Penta TAMD74L-A
• Volvo Penta TAMD74L-B
• Volvo Penta KAMD44P-C
• Volvo Penta KAMD300-A

• Engine Family: TAMD, KAMD

⚙️ Key Features

• One-way current-control device
• Charging and electrical-protection application
• Factory current and voltage rating
• Related earlier diode 881956

🔌 Function

Allows current flow in one direction to protect the charging/control circuit from reverse voltage or inductive current.

⚠️ Common Signs of Failure

• Battery not charging correctly
• Repeated fuse failure
• Reverse-current drain
• Open-circuit or short-circuit diode test
• Overheated terminals

🛠️ Service Notes

• Isolate the batteries before working on the circuit and note which way round the diode is connected — a diode passes current one way only, and fitting it reversed will either stop the circuit working or leave something live that should not be
• Refit it in the original position with the same mounting and insulation, keeping any heat-shedding contact the original had
• Make the connections cleanly and keep the body cool while soldering or crimping, then protect the joint against damp as the original was protected
• Test a suspect diode out of circuit rather than in it, and look for why it failed — a diode usually goes because of a surge, a short or a charging fault elsewhere

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 881956 (earlier diode reference)

OEM / Related Numbers

• 881956 related reference
• Herth+Buss Elparts 50292007

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
