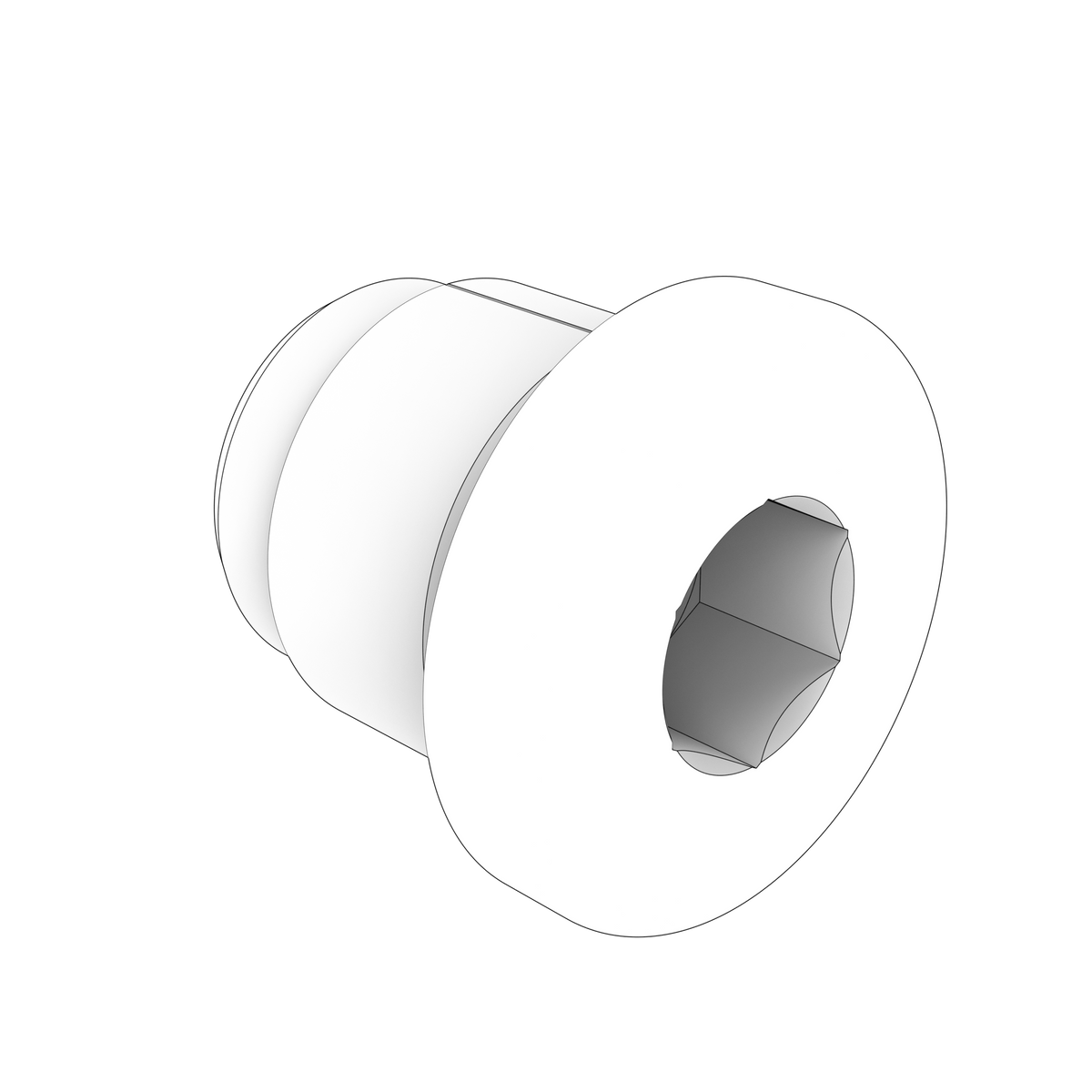

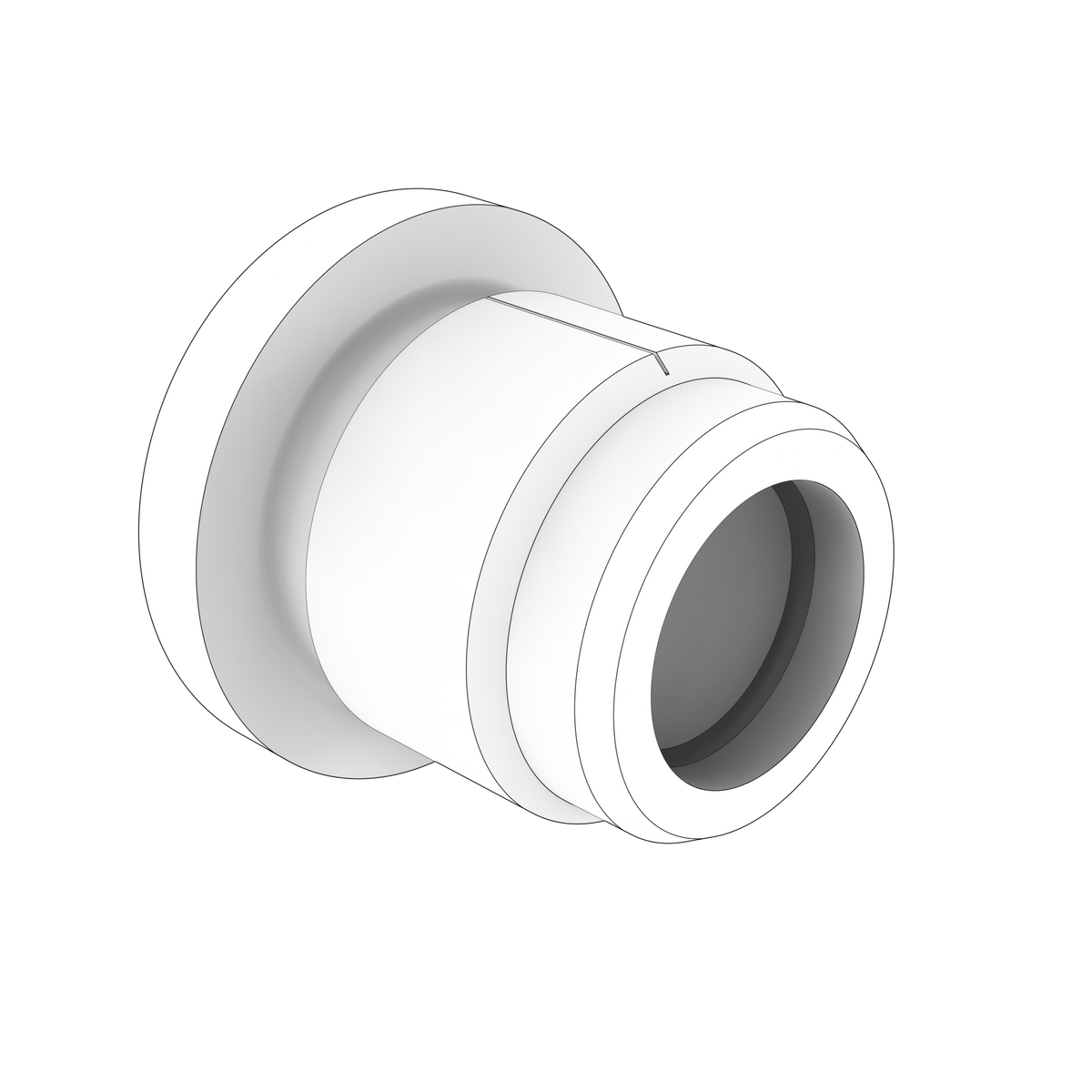

22227227 Magnetic Plug | Genuine Volvo Penta Part

🔧 Product Description

Magnetic drain/inspection plug used in Volvo Penta sterndrive lower gear housings. Its magnet collects ferrous wear debris and provides an important inspection point during gear-oil service.

🚤 Compatibility

• Engine Family: IPS, D
• HP Range: 300-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Magnetic wear-particle collection
• Lower-gear oil drain/inspection point
• Factory thread and sealing interface
• Used across later Aquamatic drives
• Replace the sealing ring at service

🔌 Function

Closes the gear-oil drain passage and captures magnetic wear particles for condition inspection.

⚠️ Common Signs of Failure

• Gear-oil seepage
• Excess metal debris on magnet
• Rounded plug head
• Missing or weakened magnet

🛠️ Service Notes

• Clean the magnet completely at every oil change and read what comes off it — a light grey paste is normal wear, while flakes, chips or bright slivers mean something is breaking up and want investigating before the unit is run on
• Renew the sealing washer or O-ring each time the plug is removed, rather than pulling the plug up harder to cure a weep
• Check the magnet still holds firmly and is sound in its body; one that has weakened, cracked or worked loose collects nothing and can itself go through the system
• Tighten to the figure in the workshop manual for that housing — these plugs go into soft castings and are easily stripped
• Keep the plug and its threads clean of debris so it seats fully on its washer

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22227227 → Supersedes 3847669 → Supersedes 3862303

OEM / Related Numbers

• 3847669 earlier number superseded by this part
• 3862303 earlier number superseded by this part
• 21697493 (related lower gear housing)

OEM Reman Alternatives

• 3801678 (related reman lower gear)

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-B MP, D13C4-B MP, D13C5-B MP, D13C7-B MP, D13C8-B MP
• Volvo Penta D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G
• Volvo Penta D8A2-A MP, D8A4-A MP, D8A8-A MP
• Volvo Penta IPS15-C, IPS15-B, IPS15-A
• Volvo Penta D11C2-A MP, D11C4-A MP
• Volvo Penta IPS10-A, IPS10-B
• Volvo Penta IPS20-E
• Volvo Penta IPS30-E
• Volvo Penta IPS40-A
