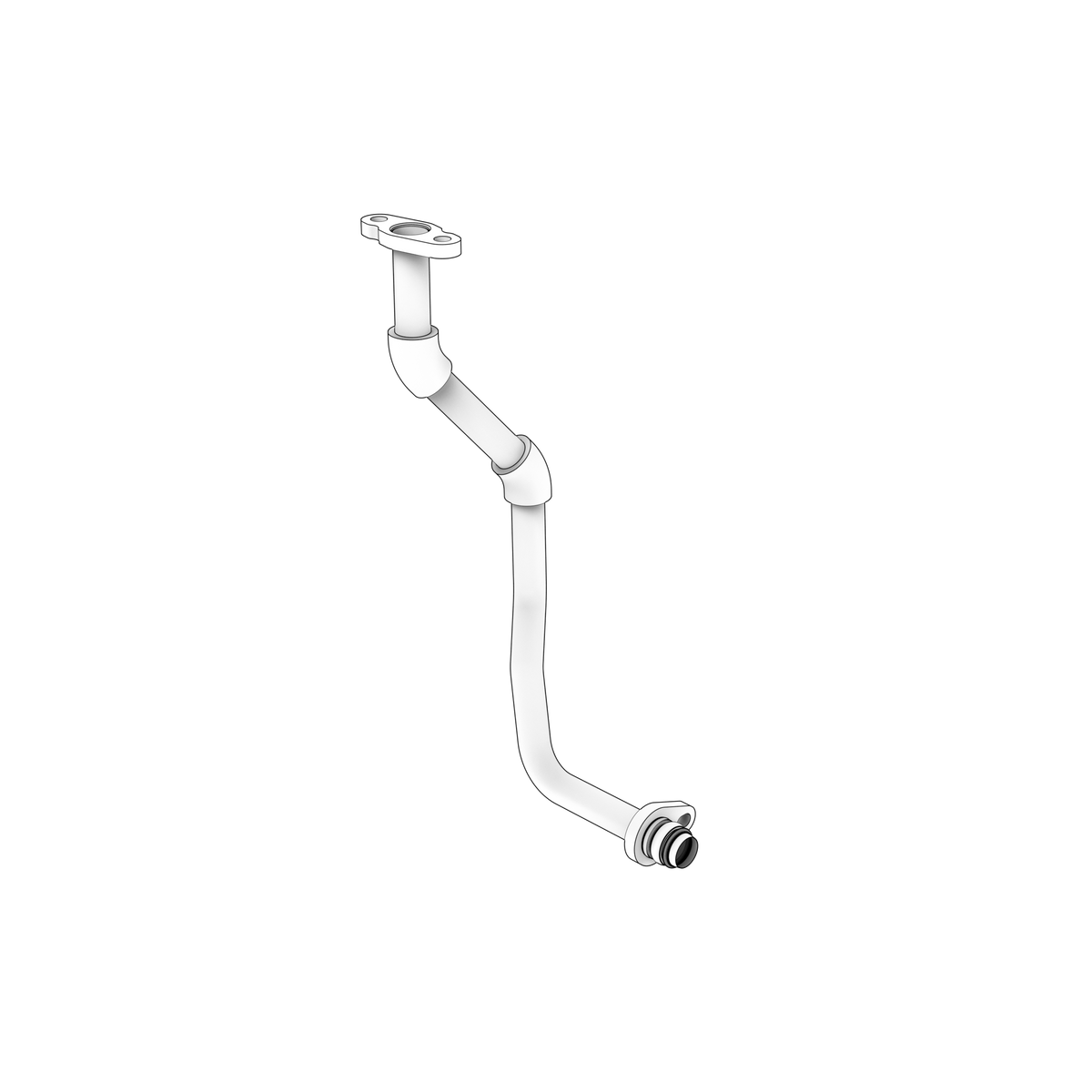

  • 22228856 Oil Return Pipe | Genuine Volvo Penta Part - photo 2 of 2
1 2

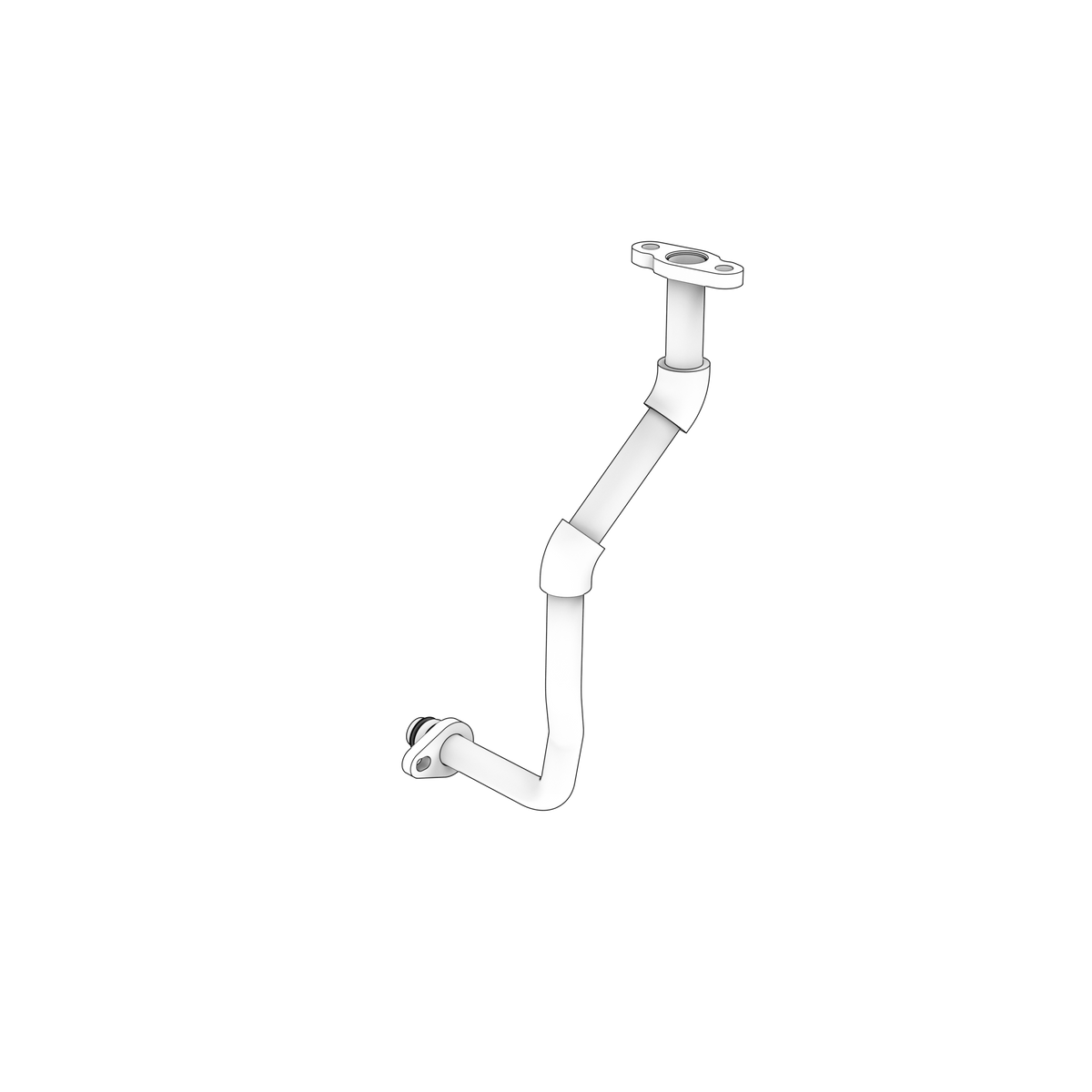

22228856 Oil Return Pipe | Genuine Volvo Penta Part

22228856 Oil Return Pipe | Genuine Volvo Penta Part

$214.38 AUD
$214.38 AUD
Sale Sold out
Shipping calculated at checkout.

Available on request — contact us

As an authorised Volvo Penta dealer we can source parts through channels not shown online, and check supersession and used options for you

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

Rigid gravity-drain pipe returning oil from the turbocharger bearing housing to the crankcase on TAD840-TAD843VE engines. It supersedes return pipe 21545821.

🚤 Compatibility

Typically suits:

  • Volvo Penta TAD840GE
  • Volvo Penta TAD853VE
  • Volvo Penta TAD840-43VE
  • Volvo Penta TAD850-52VE
  • Engine Family: TAD

⚙️ Key Features

  • TAD840-TAD843VE turbocharger oil drain
  • Supersedes 21545821
  • Factory downward drain routing
  • Uses gasket 21615788 and sealing ring 21940615
  • Compatible with several factory turbocharger options
  • Engine type: 6-cylinder turbocharged industrial diesel

🔌 Function

Returns hot lubricating oil from the turbocharger to the engine sump by gravity.

⚠️ Common Signs of Failure

  • Oil leakage at flange or seal
  • Restricted drain causing turbo oil leakage
  • Cracked or distorted pipe
  • Blue smoke or oil in compressor/turbine housing
  • Coked oil inside the drain

🛠️ Service Notes

  • Always fit new gaskets, O-rings or sealing washers — these joints see hot oil and a reused seal rarely holds
  • Check the pipe is clear before it goes back on; if the bore is coked or sludged, renew it rather than trying to clean it out, because a restricted return backs oil up and pushes it past seals
  • Route the pipe so it runs downhill to its outlet with no kinks, sags or strain, and do not spring it into place to make the flanges meet
  • Clean the sealing faces without scoring them, and tighten the flange or union fasteners evenly to the figure in the workshop manual for your engine — these often thread into alloy and strip easily
  • Run the engine up to temperature afterwards and check the joints while hot, since a marginal seal will often only weep once everything has expanded

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 22228856 → Supersedes 21545821

OEM / Related Numbers

  • 21545821 earlier number superseded by this part
  • 21615788 (gasket)
  • 21940615 (sealing ring)
  • 3801631 (related turbochargers)
  • 22259656 (related turbochargers)
  • 3801795 (related turbochargers)
  • 23099979 (related turbochargers)
  • 3801692 (related turbochargers)
  • 22691328 (related turbochargers)
  • 3801796 (related turbochargers)
  • 23099983 (related turbochargers)

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
