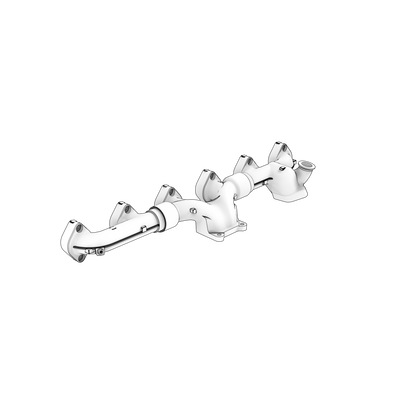

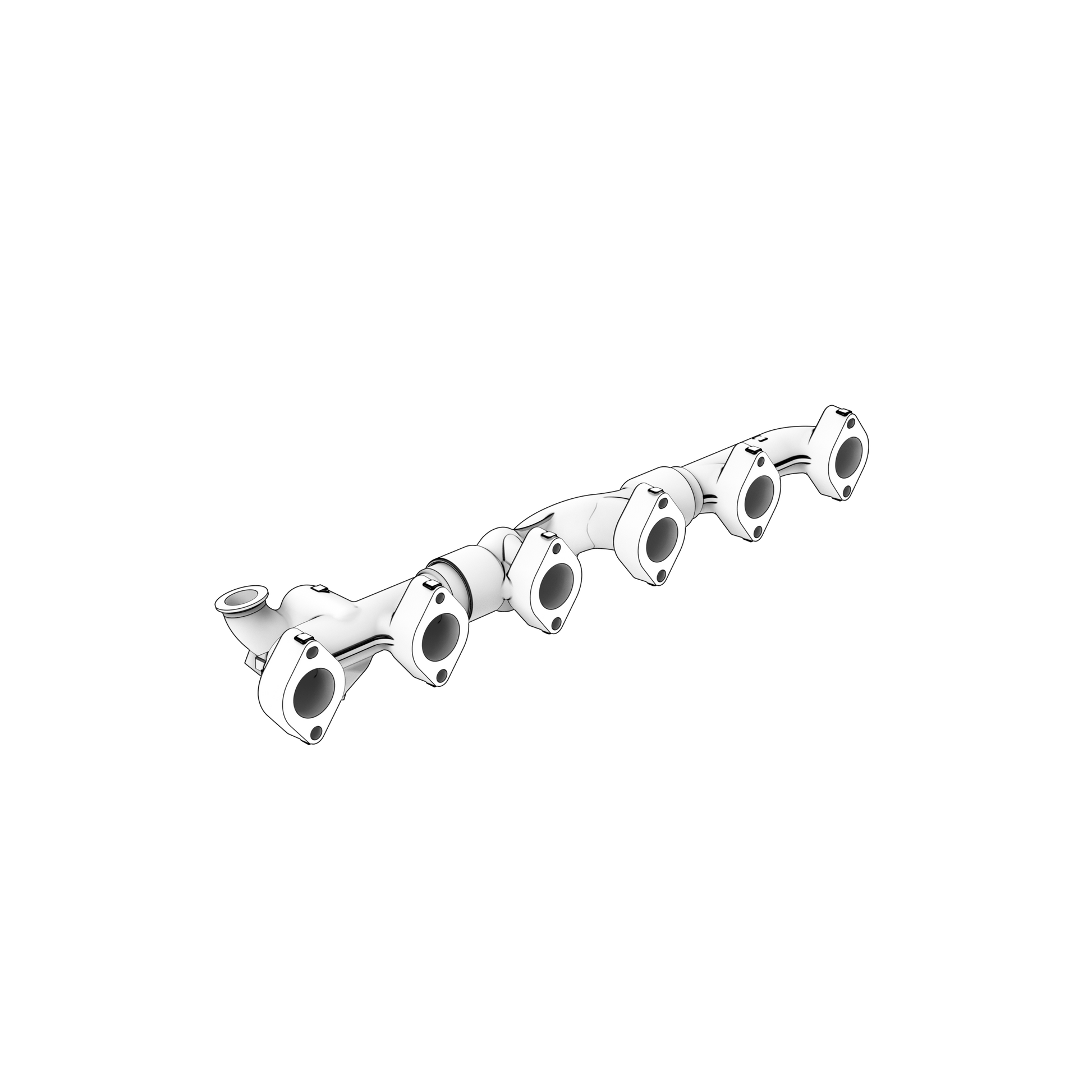

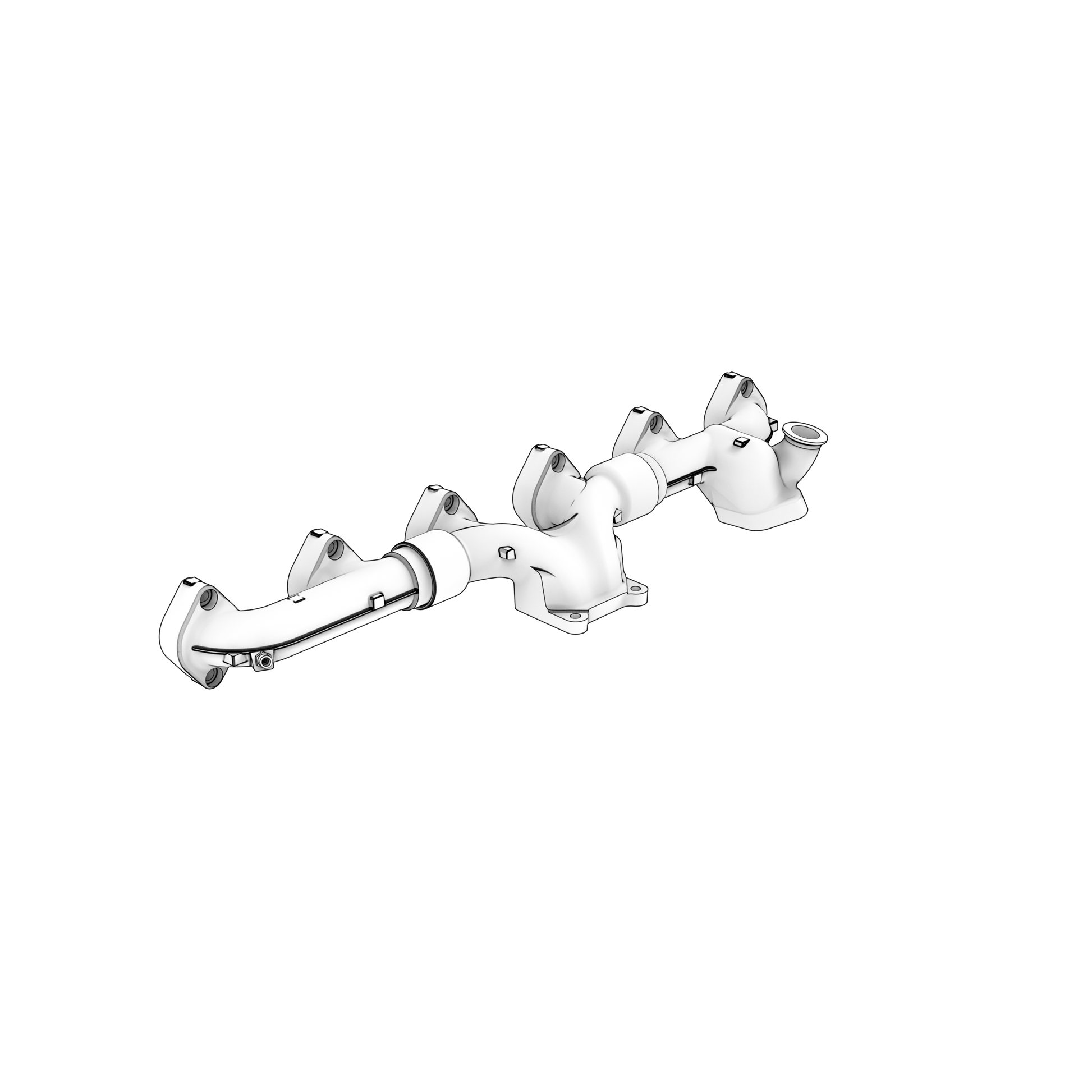

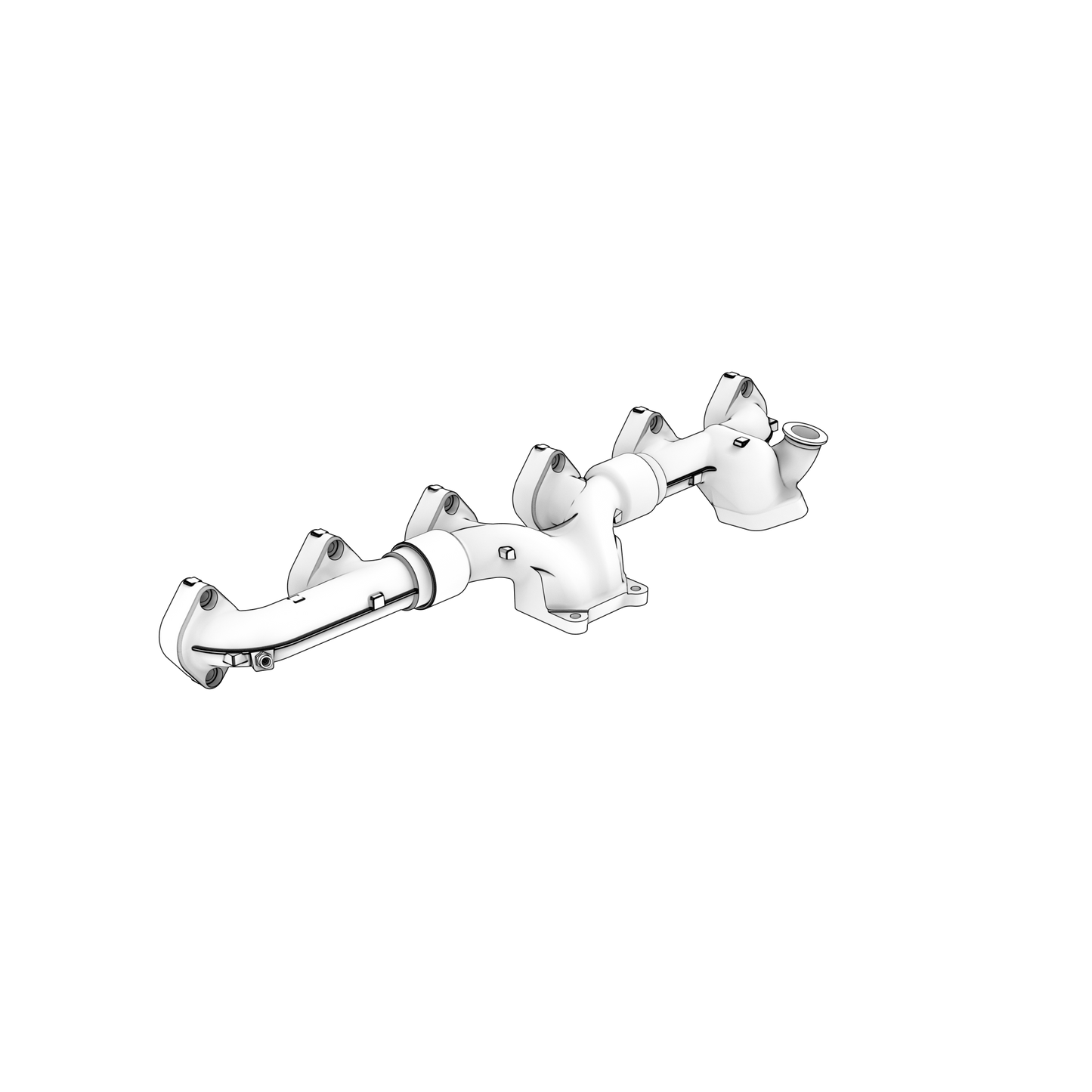

22230075 Exhaust Manifold | Genuine Volvo Penta Part

🔧 Product Description

High-temperature exhaust manifold used on TAD1371-TAD1375VE engines with EGR. It collects exhaust from the cylinder head, supports turbocharger/EGR connections and is related to later manifold 23124473.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD1180-83VE

• Engine Family: TAD

⚙️ Key Features

• TAD13 EGR exhaust application
• Integrated EGR and turbocharger interfaces
• Heavy-duty high-temperature casting
• Uses sealing rings 20883450 and 21433769
• Later related manifold 23124473
• Engine type: 13-litre 6-cylinder turbocharged industrial diesel with EGR

🔌 Function

Collects cylinder exhaust gas and routes it to the turbocharger and EGR system while sealing each exhaust port.

⚠️ Common Signs of Failure

• Soot tracks or exhaust ticking
• Cracked or warped manifold
• High exhaust temperature
• EGR flow faults
• Broken studs or failed sealing rings

🛠️ Service Notes

• Treat the manifold as a wear item on a raw-water-cooled engine: check the water jacket and gas passages for corrosion, scale and cracks whenever it is off, and replace rather than clean up a casting that is heavily wasted
• Check the mating faces against a straightedge, renew all gaskets, and renew any studs, nuts or bolts that are corroded
• Blank off the open ports while the manifold is away so nothing can drop into a cylinder head
• Tighten the fixings in the sequence and to the figures given in the workshop manual for your engine, and re-check for gas and water leaks once the engine has been up to temperature
• Inspect the riser, elbow and exhaust hose at the same time; corrosion is rarely confined to one part of the system

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 23124473 (later/related exhaust manifold)

OEM / Related Numbers

• 23124473 related reference
• 20883450 (sealing rings)
• 21433769 (sealing rings)
• 963947 (nipple)
• 23094587 (related turbocharger)
• 23008969 (oil return pipe)
• 23122882 (V-clamp)

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
