22235952 Hose | Genuine Volvo Penta Part

🔧 Product Description

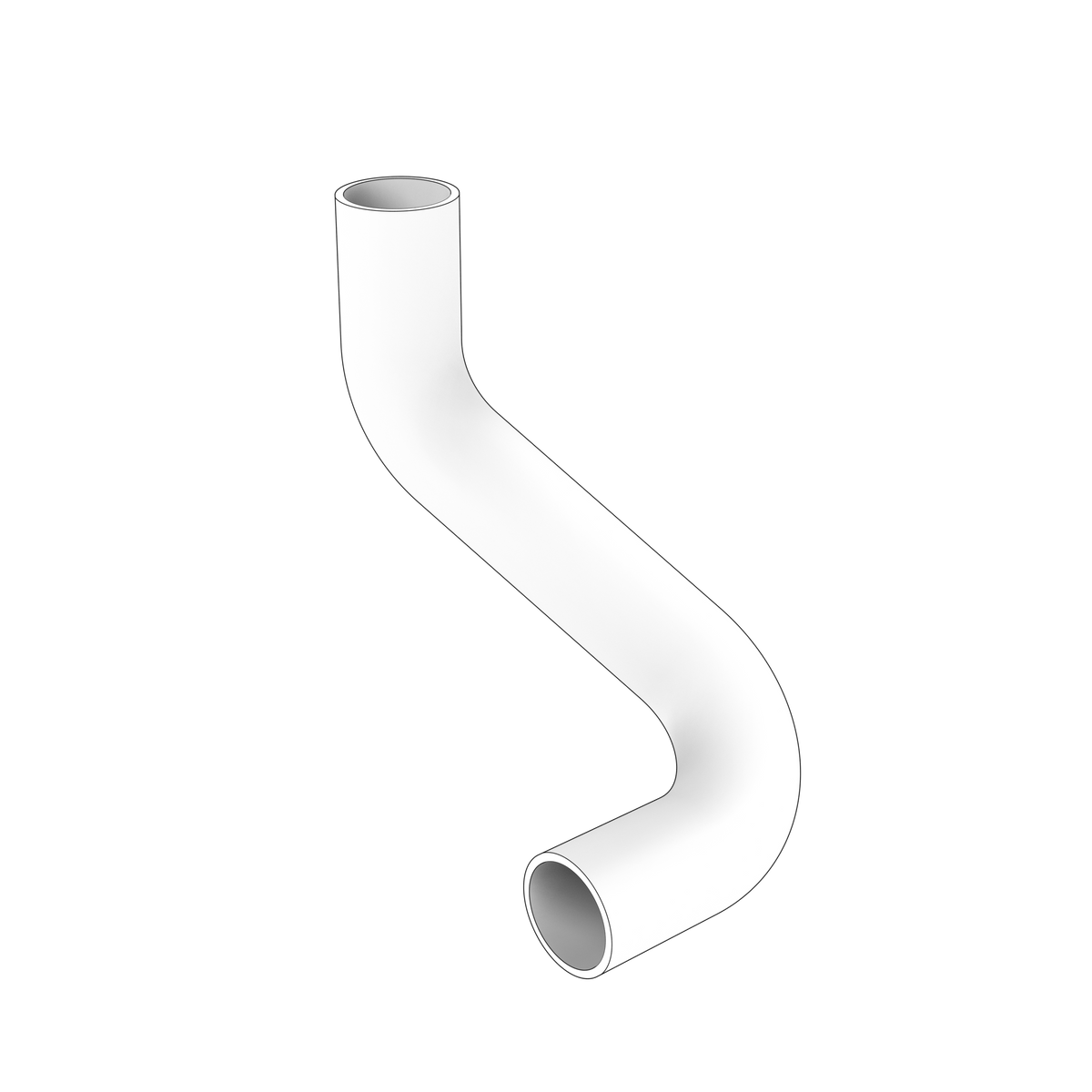

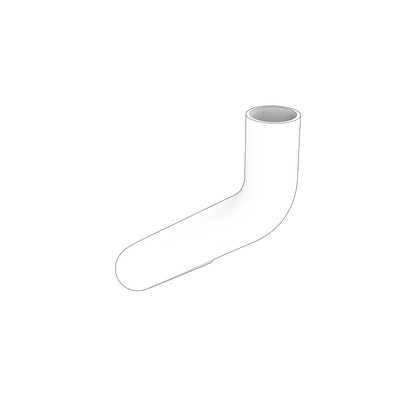

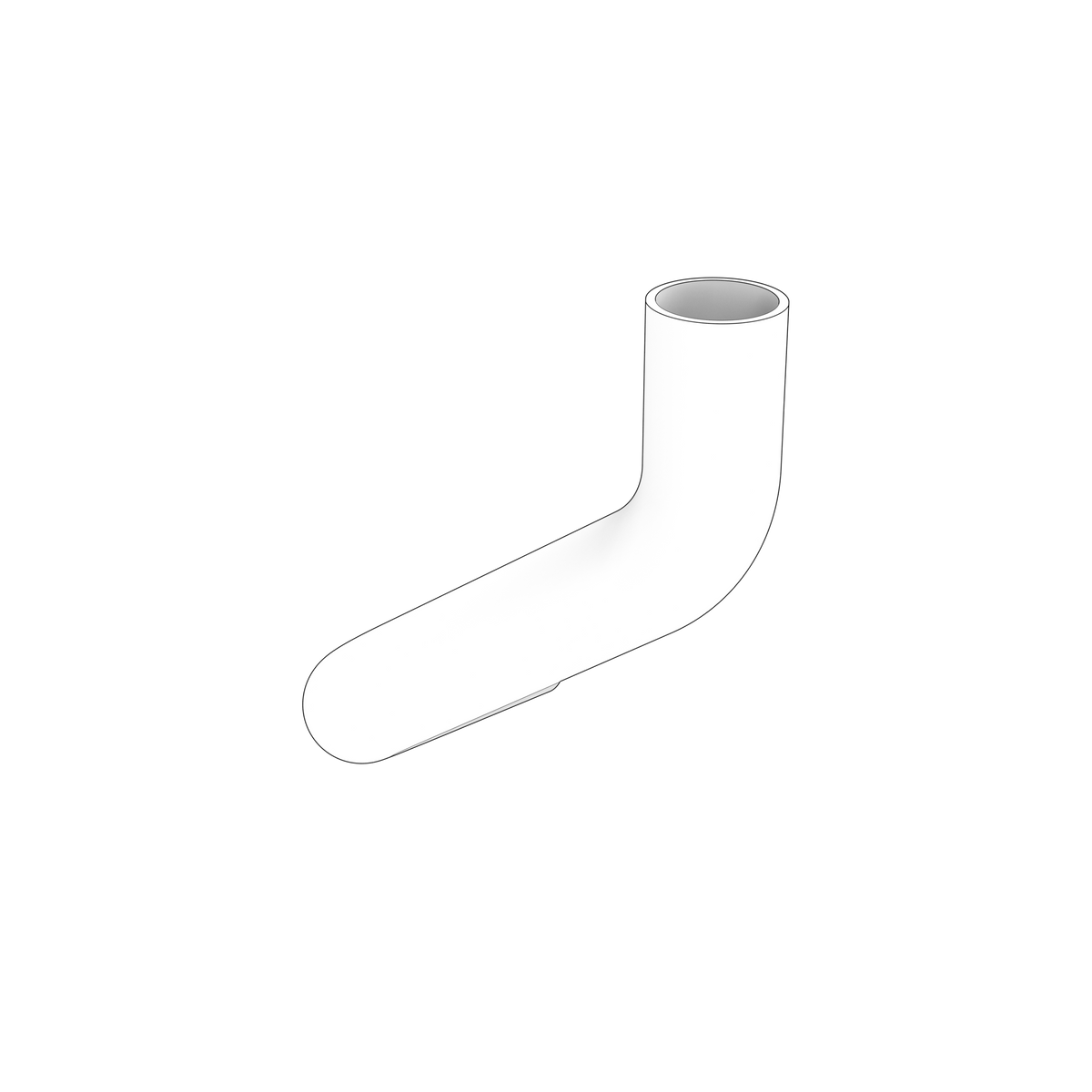

Moulded hose located in the TAD11 charge-air pipe assembly beside pipe 22235858 and charge-air hose 865127. Its specific bends and end sizes maintain the approved routing.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD1180-83VE
• Volvo Penta TAD1170-72VE
• Volvo Penta TAD1150-52VE
• Volvo Penta TAD1140-42VE

• Engine Family: TAD

⚙️ Key Features

• TAD11 cooling/charge-air application
• Factory bend and length
• Works with pipe 22235858
• Secured by clamp 994565
• Pressure- and temperature-resistant hose
• Engine type: 11-litre 6-cylinder turbocharged industrial diesel

🔌 Function

Carries air or coolant through the flexible section of the cooling/charge-air assembly.

⚠️ Common Signs of Failure

• Cracks or softening
• Hose blow-off
• Restriction from collapse
• Chafing against fan or brackets

🛠️ Service Notes

• Fit hoses only to clean, sound spigots — take off old rubber, scale and corrosion, and renew the spigot or pipe if it is pitted, because no clamp will seal a rough sealing face
• Push the hose fully home so the clamp sits behind the bead or barb rather than over the end of the spigot, and fit new clamps whenever a hose is renewed
• Let the hose follow its natural bend with no kinks and no tension on either connection, clear of hot surfaces and moving parts, with chafe protection wherever it passes a bracket, edge or bulkhead
• Use the correct grade of hose for the duty, and clamp to the standard the installation demands — twin clamps are normal practice on seawater and fuel connections below the waterline
• Refill, vent and run the engine, then check every joint hot and cold and recheck the clamps after the first running period as the hose beds down

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 22235858 (charge-air pipe)
• 865127 (related charge-air hose)
• 994565 (hose clamp)

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
