22237994 Gear Ring | Genuine Volvo Penta Part

🔧 Product Description

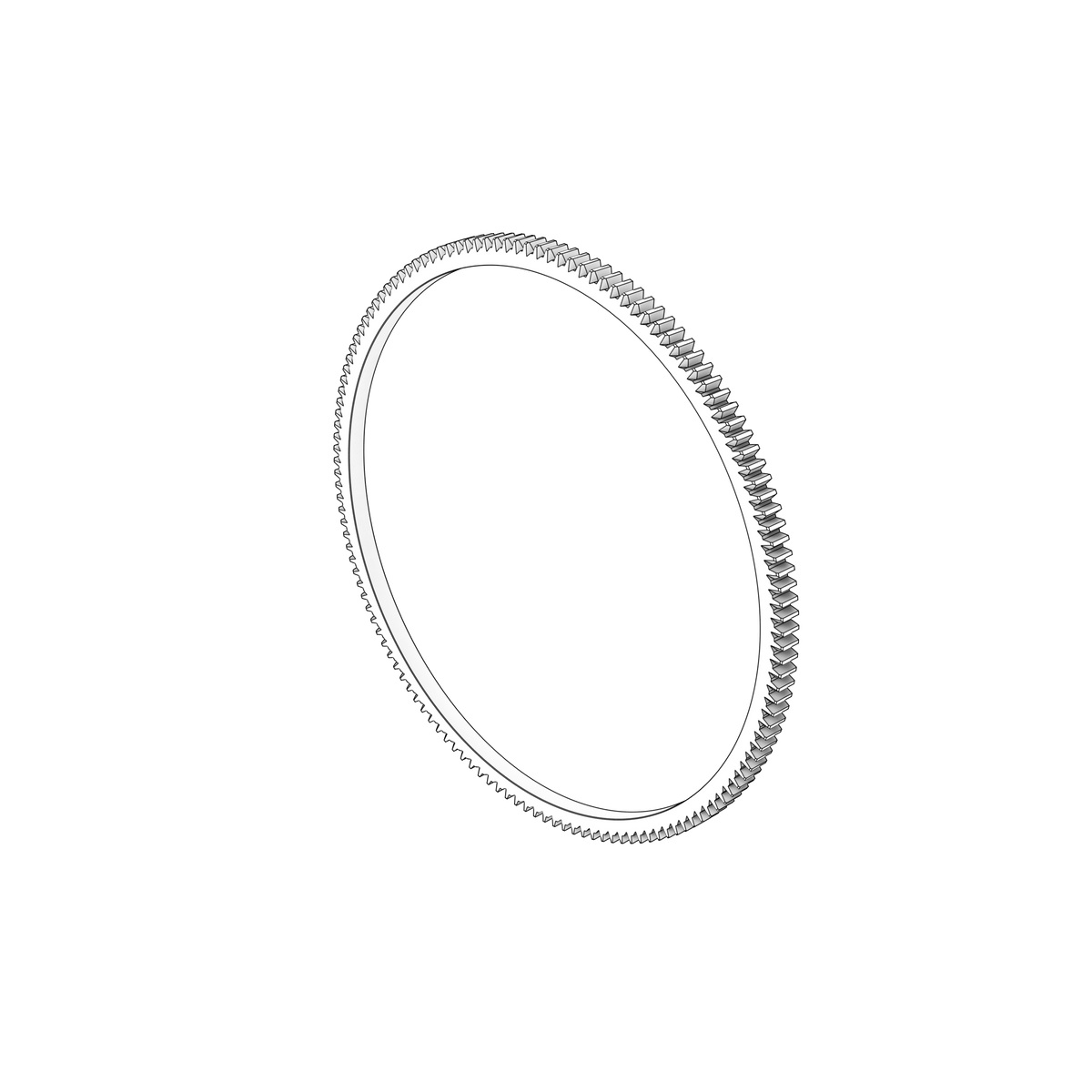

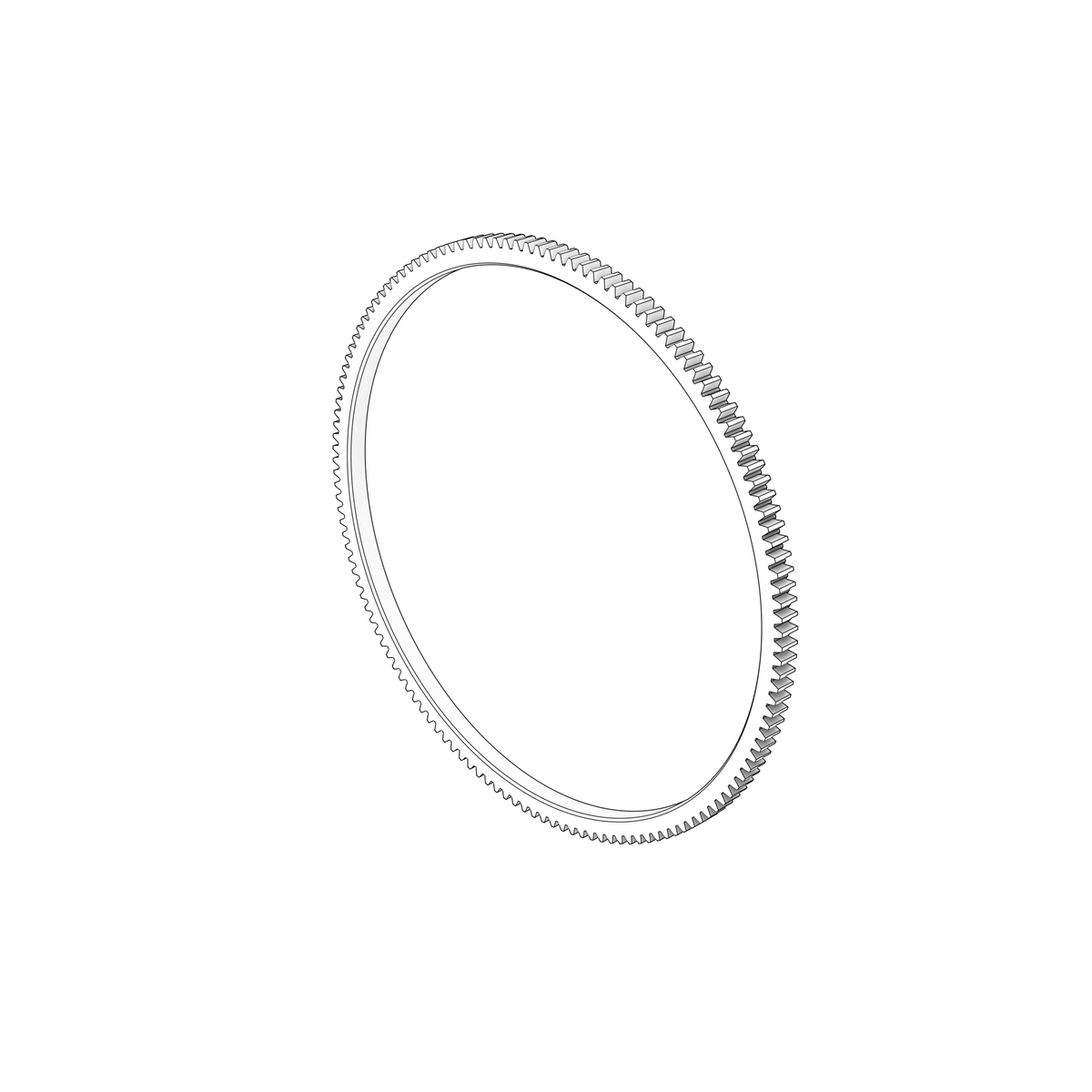

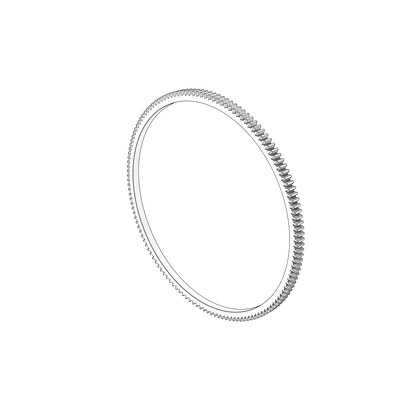

Starter ring gear fitted to a Volvo Penta industrial-engine flywheel. It supersedes related service reference 24188167 and provides the hardened teeth engaged by the starter pinion.

🚤 Compatibility

• Engine Family: TAD, D, TADH

Full model list at the end of this description.

⚙️ Key Features

• Hardened starter-ring teeth
• Flywheel press-fit/shrink-fit installation
• Supersedes 24188167
• Heavy-duty industrial starting application
• Matched to flywheel diameter and tooth count
• Engine type: 4- or 6-cylinder industrial diesel
• Also supersedes Volvo part number 21704781

🔌 Function

Provides the toothed interface the starter motor engages to crank the engine.

⚠️ Common Signs of Failure

• Chipped or rounded teeth
• Starter grinding
• Ring gear loose on flywheel
• Uneven wear at common stopping positions
• No crank despite starter engagement

🛠️ Service Notes

• Compare the new ring with the old for tooth count, tooth form and any chamfer before fitting, and confirm it is the ring specified for your unit's serial number
• Clean the seating shoulder or mounting face completely — dirt, burrs or old thread lock will stop the ring seating square and running true
• Where the teeth are chamfered or leaded on one side, fit that side facing the gear or pinion that engages it, so engagement is not fought
• Where the ring is an interference fit, expand it by even, controlled heating using the method and temperature limit given in the workshop manual, seat it fully against its shoulder and let it cool in air; a torch flame or a quench ruins the tooth hardening
• Inspect the meshing gear or starter pinion at the same time and renew it if its teeth are worn or damaged, then check the ring runs true and meshes correctly by hand before power is applied

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22237994 → Supersedes 24188167

OEM / Related Numbers

• 24188167 earlier number superseded by this part
• 22881115 (related TAD5 flywheel)

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D8A2-A MP, D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A4-A MP, D8A1-A MP, D8A3-A MP
• Volvo Penta TAD840GE, TAD840-43VE, TAD840GE-B, TAD840-43VE-C
• Volvo Penta TAD540-42VE, TAD540-42VE-C
• Volvo Penta TAD550-51VE, TAD550-52VE-C
• Volvo Penta TAD570-72VE, TAD570-71VE-B
• Volvo Penta TAD850-52VE, TAD850-52VE-C
• Volvo Penta TAD880-82GE, TAD880-84VE
• Volvo Penta TADH880-82GE, TADH880-84VE
• Volvo Penta TAD552VE
• Volvo Penta TAD580-83VE
• Volvo Penta TAD841-43GE
• Volvo Penta TAD851-53GE
• Volvo Penta TAD852VE-B
• Volvo Penta TAD853VE
• Volvo Penta TAD870-73VE
