22238765 O-Ring | Genuine Volvo Penta Part

🔧 Product Description

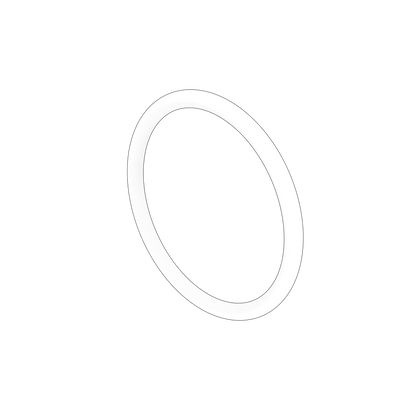

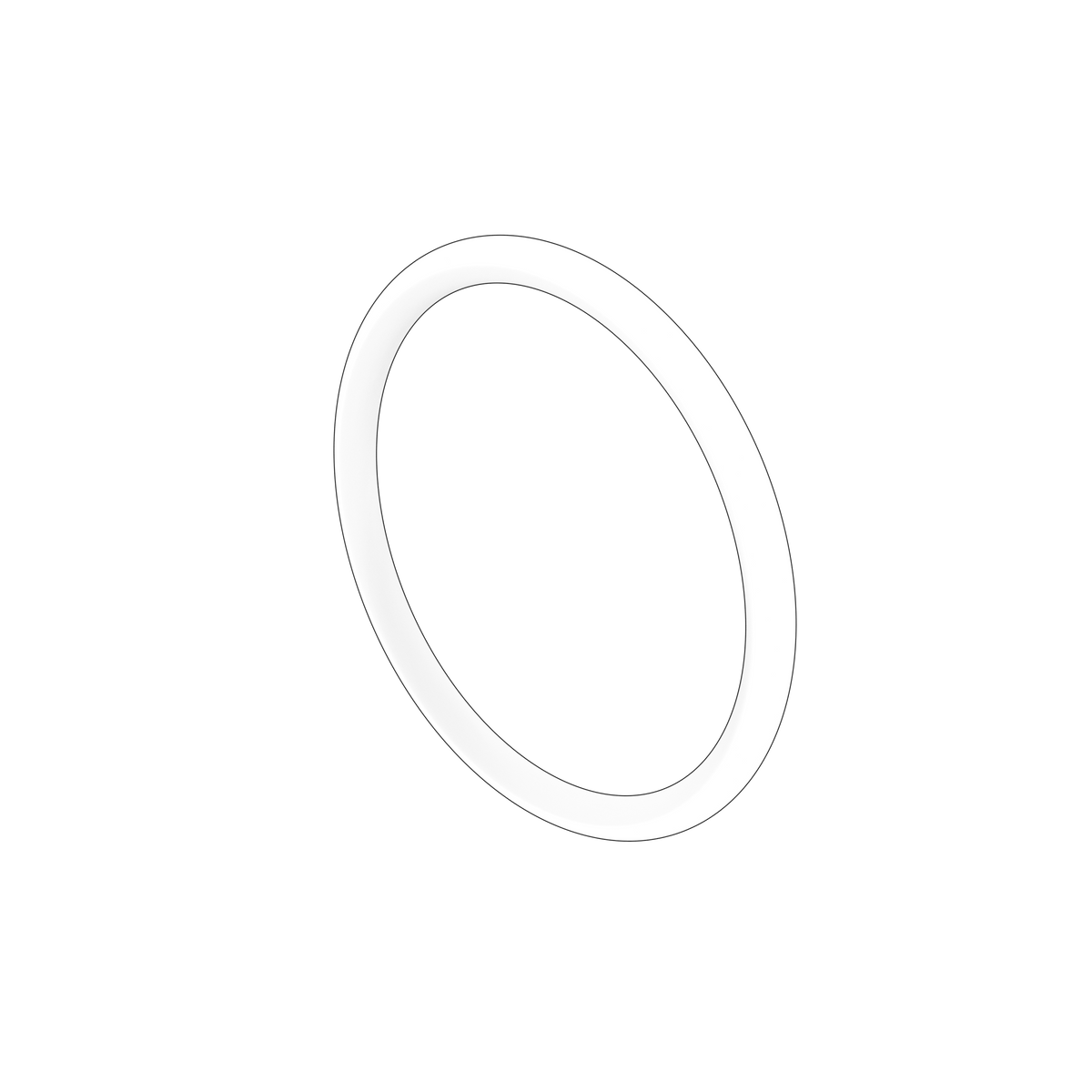

High-temperature O-ring used in the late-generation V6 petrol exhaust-riser and thermostat plumbing. It seals threaded plugs and fittings in the high-rise exhaust assembly and appears at more than one service position.

🚤 Compatibility

• Engine Family: V
• HP Range: 300-430 HP

Full model list at the end of this description.

⚙️ Key Features

• V6 petrol exhaust-riser application
• High-temperature water/exhaust-area elastomer
• Used at multiple plug/fitting positions
• Factory cross-section and diameter
• Replace whenever the sealed fitting is removed
• Engine type: Electronic fuel-injected V6 petrol marine engine
• 4 used per assembly

🔌 Function

Seals the assigned plug or fitting in the water-cooled exhaust-riser assembly.

⚠️ Common Signs of Failure

• Water seepage
• Flattened or hardened O-ring
• Steam or salt deposits
• Seal extrusion
• Repeated leakage after reuse

🛠️ Service Notes

• Always fit a new O-ring — never refit one that has been removed, as it has already taken a set in its groove
• Clean the groove and both sealing faces and check them for nicks, scoring and corrosion pitting; a damaged groove will leak however good the new seal is
• Smear the ring with a little clean lubricant compatible with the fluid it seals, then roll it into place by hand so it sits untwisted and fully in its groove
• Never lever an O-ring over a sharp edge or thread with a screwdriver; use a blunt plastic tool and protect any edge the ring has to pass
• Assemble the joint squarely and tighten to the figure and sequence given in the workshop manual for your engine — over-tightening extrudes the ring and causes the very leak you were curing

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 22560747 (related high exhaust-riser kits)
• 22560743 (related high exhaust-riser kits)
• 22984651 (plug)
• 22389018 (exhaust pipe elbows)
• 22104455 (exhaust pipe elbows)
• 23521142 (thermostat kit)

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S
