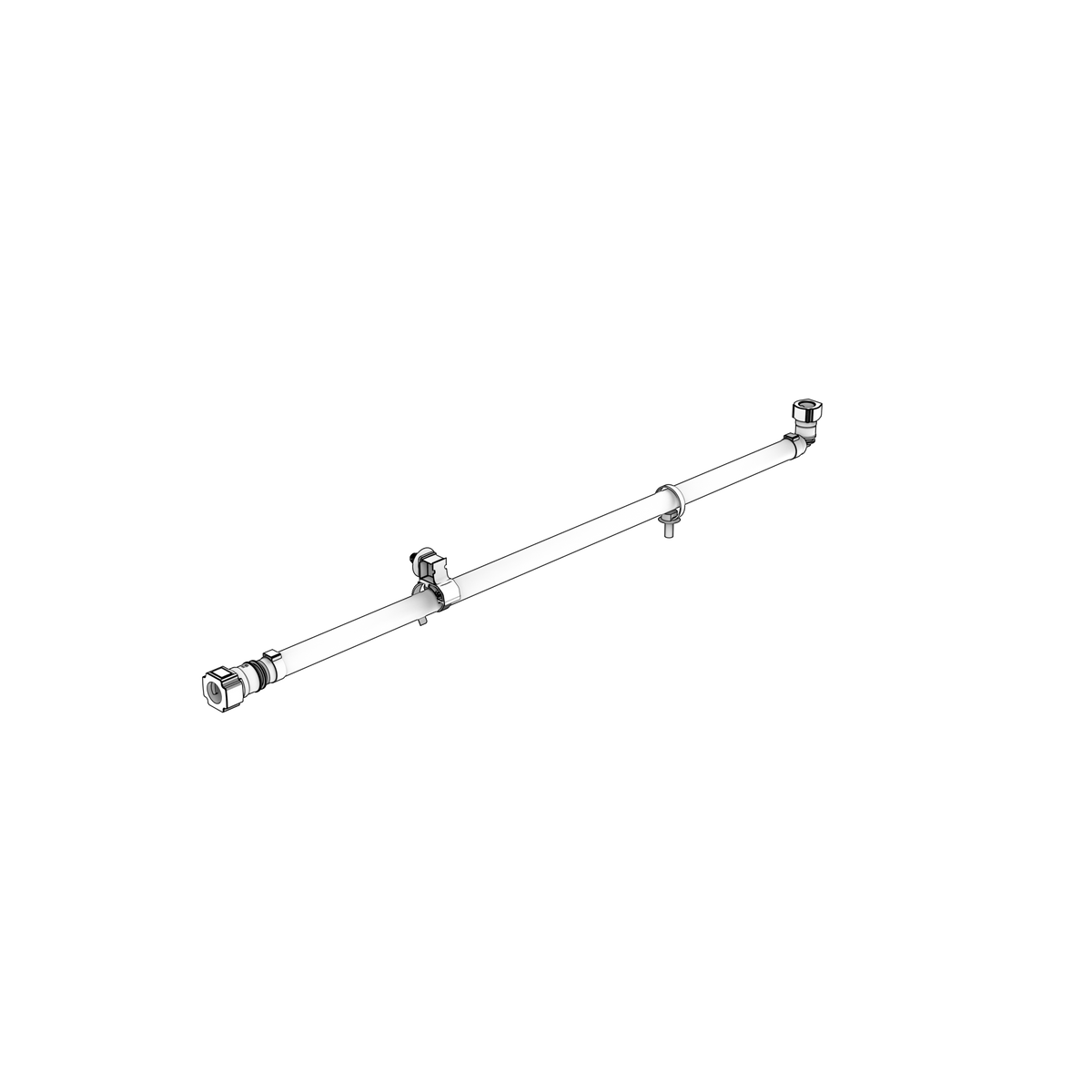

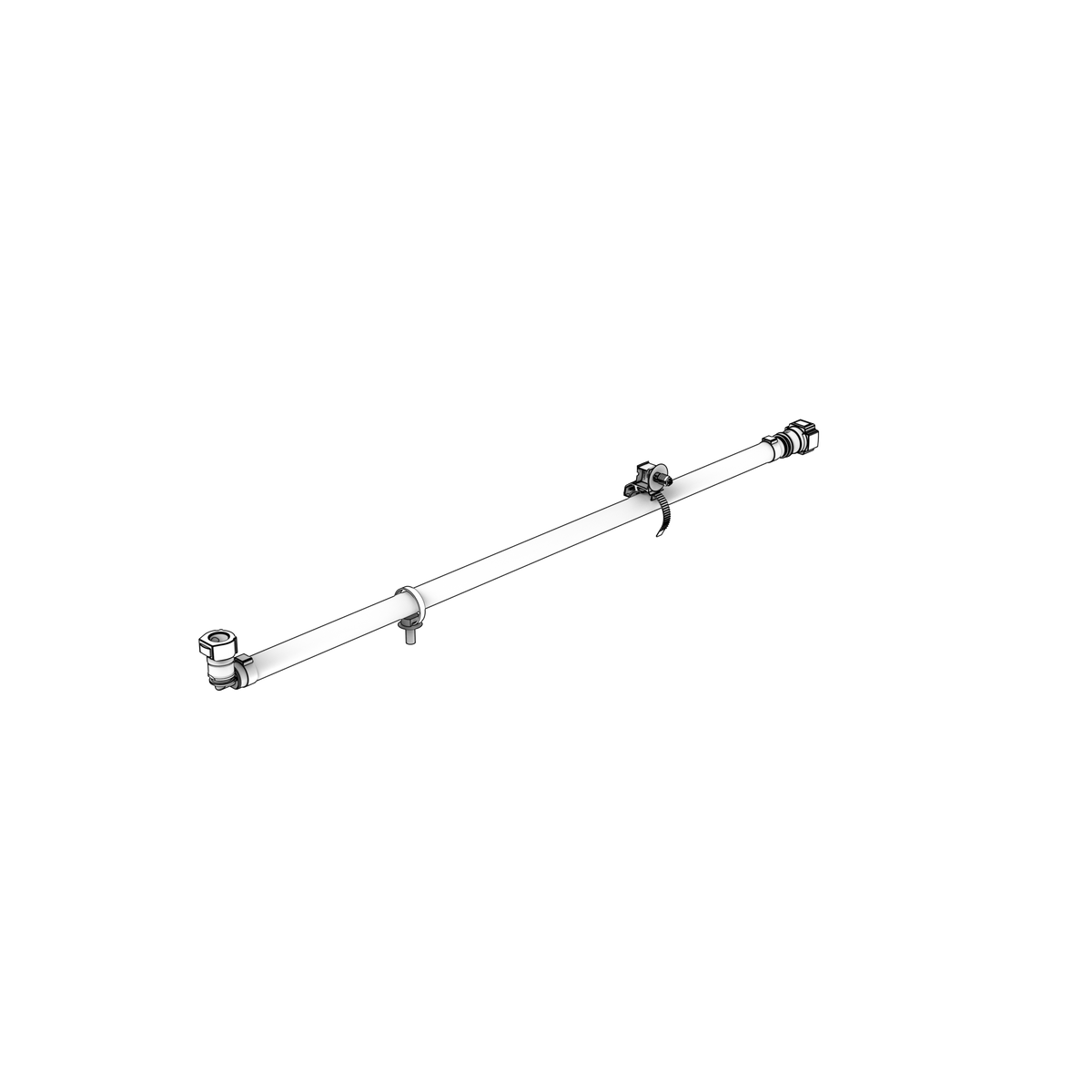

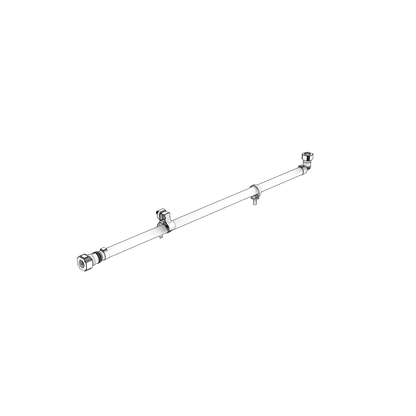

22256105 Fuel Hose | Genuine Volvo Penta Part
22256105 Fuel Hose | Genuine Volvo Penta Part
Couldn't load pickup availability
Available from Volvo Penta international
Typically reaches our store in 10–14 business days
Availability checked daily with Volvo Penta
✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide
🔧 Product Description
Low-pressure fuel hose identified for Step 2 and Step 3 fuel-system configurations. It works with hoses 22687069 and 22687084, pipes 21746511/21746513 and support bracket 22259694.
🚤 Compatibility
Typically suits:
- Volvo Penta TAD552VE
- Volvo Penta TAD550-51VE
- Volvo Penta TAD540-42VE
- Engine Family: TAD
⚙️ Key Features
- Dedicated Step 2 / Step 3 fuel-system routing
- Factory hose length and end fittings
- Diesel- and heat-resistant construction
- Supported by bracket 22259694
- Engine type: 4-cylinder turbocharged common-rail industrial diesel
🔌 Function
Carries low-pressure diesel fuel between the assigned pump, pipe and filter connections without admitting air.
⚠️ Common Signs of Failure
- Diesel smell or visible wetness
- Hard starting from air ingress
- Cracked, swollen or chafed hose
- Low supply pressure
- Leakage at crimped fittings
🛠️ Service Notes
- Renew the sealing washers, O-rings or seals that belong to the connection rather than reusing them, and do not put jointing compound on a fuel union to cure a weep
- Fit the hose without twist, and support and clip it along its run so it cannot chafe or hang its own load on the end fittings
- Keep the hose clear of hot exhaust and moving parts, and cap the open ends while working so nothing gets into the fuel system
- Tighten unions to the figure given in the workshop manual for your engine — overtightening a fuel fitting distorts the seat and makes the leak permanent
- Bleed the fuel system afterwards, then run the engine and check the whole run for weeps under working pressure, with no ignition sources near and a means of containing spilt fuel to hand
🔄 Supersession & Cross Reference
OEM / Related Numbers
- 22687069 (related fuel hoses)
- 22687084 (related fuel hoses)
- 21756473 (bracket)
- 21746511 (fuel pipes)
- 21746513 (fuel pipes)
- 22128302 (fuel hose)
- 22259694 (support bracket)
- 984733 (flange screw)
- 991048 (hollow screw)
- 20852764 (sealing ring)
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
