22256171 Rubber Ring | Genuine Volvo Penta Part
22256171 Rubber Ring | Genuine Volvo Penta Part
Couldn't load pickup availability
In stock — Australian warehouse
Typically reaches our store in 2–3 business days
Availability checked daily with Volvo Penta
✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide
🔧 Product Description

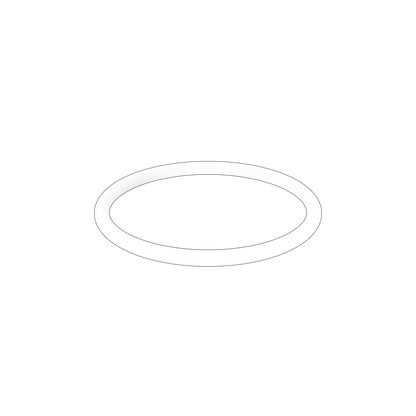

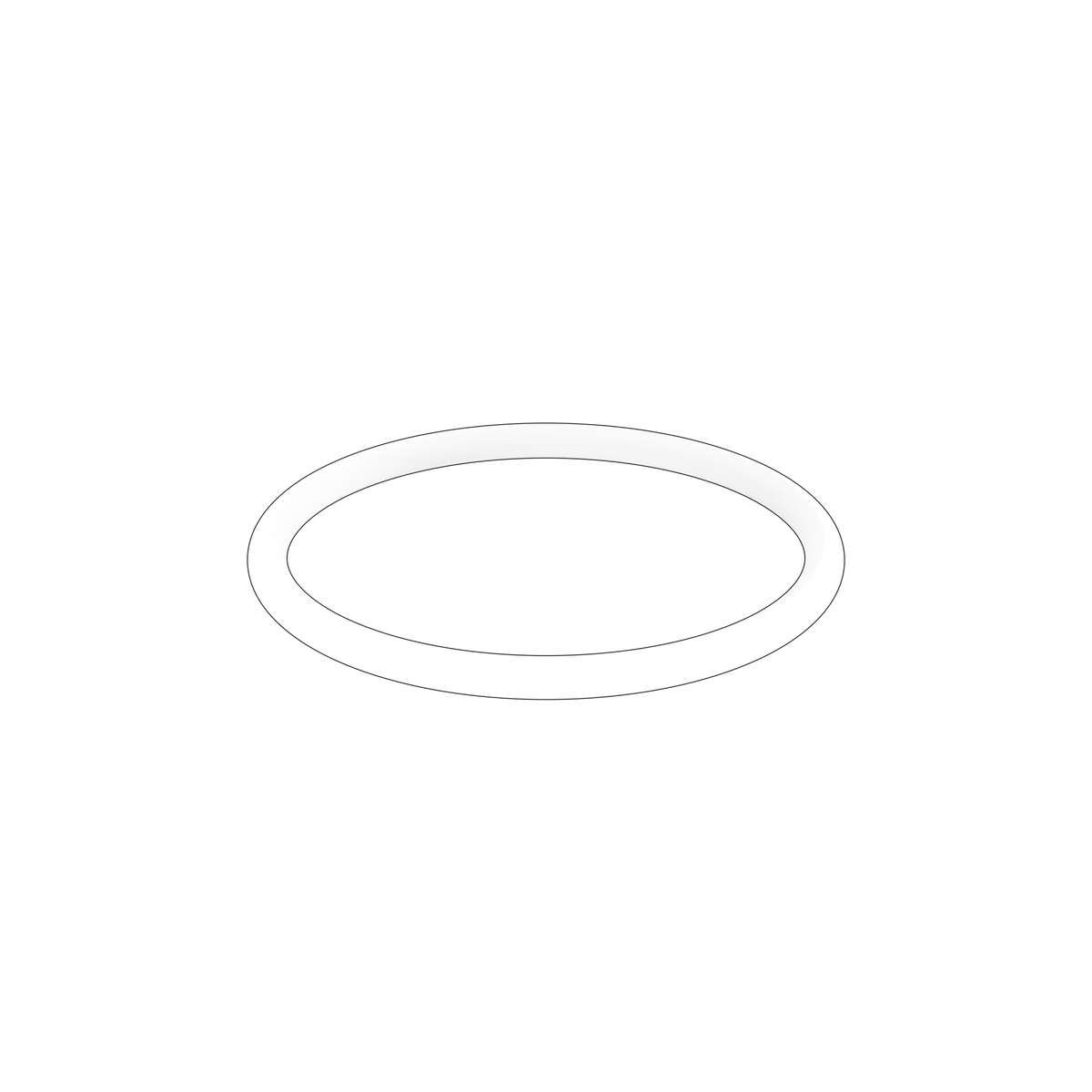

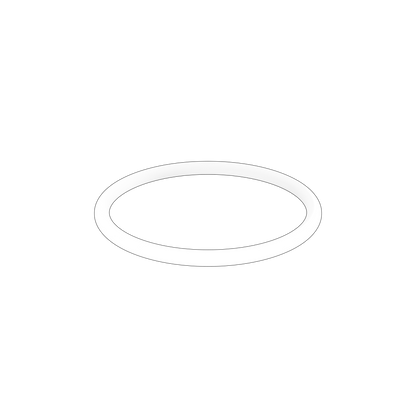

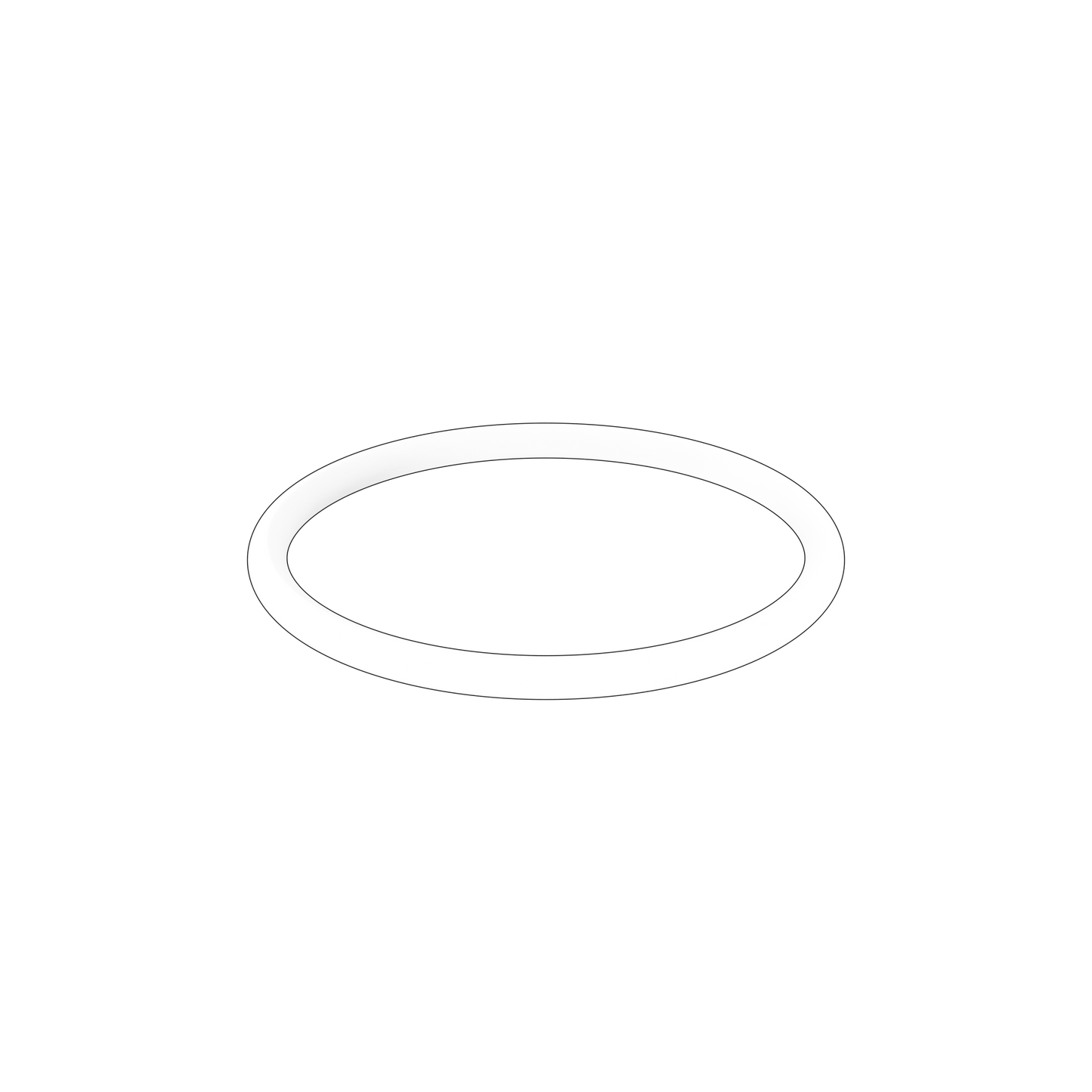

Large rubber clamping and sealing ring used in IPS10-A and IPS10-B gearcase installations. It cross-references earlier IPS ring 3861068 and forms part of the propulsion-unit sealing and mounting interface.
🚤 Compatibility
Typically suits:
- Volvo Penta D6-300D-G
- Volvo Penta D6-340D-G
- Volvo Penta D6-380D-G
- Volvo Penta D6-440D-G
- Volvo Penta D6-480D-G
- Volvo Penta IPS10-A
- Volvo Penta IPS10-B
- Engine Family: D, IPS
- HP Range: 300-480 HP
⚙️ Key Features
- Exact IPS10-A and IPS10-B fitment
- Large resilient gearcase sealing ring
- Cross-reference 3861068
- Supports vibration isolation and sealing
- Used in IPS gearcase service
- Engine type: Volvo Penta IPS marine propulsion
🔌 Function
Provides resilient clamping, sealing and vibration isolation at the IPS gearcase mounting interface.
⚠️ Common Signs of Failure
- Rubber cracking or separation
- Water or oil seepage around the interface
- Ring permanently compressed
- Gearcase movement or vibration
- Damage found during IPS gearcase removal
🛠️ Service Notes
- Fit rubber rings new; one that has been compressed and heat-cycled has taken a set and will neither seal nor grip properly again
- Clean the groove or seat and check it is free of burrs, salt and old sealant before fitting
- Lubricate lightly, using something compatible with the fluid the joint carries — the wrong lubricant swells or hardens rubber
- Ease the ring into place by hand rather than with a screwdriver or pick, as a nicked ring will leak
- Make sure the ring is not twisted, pinched or trapped as the parts come together, and check the joint is dry after a run up to working temperature
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 22256171 → Supersedes 3861068
OEM / Related Numbers
- 3861068 earlier number superseded by this part
- 22490670 (related mounting kit)
- 22490672 (clamping ring)
- 983943 (flange screw)
- 22618333 (lubricant)
- 23559901 (ground terminal)
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
