22259957 Crankshaft | Genuine Volvo Penta Part

🔧 Product Description

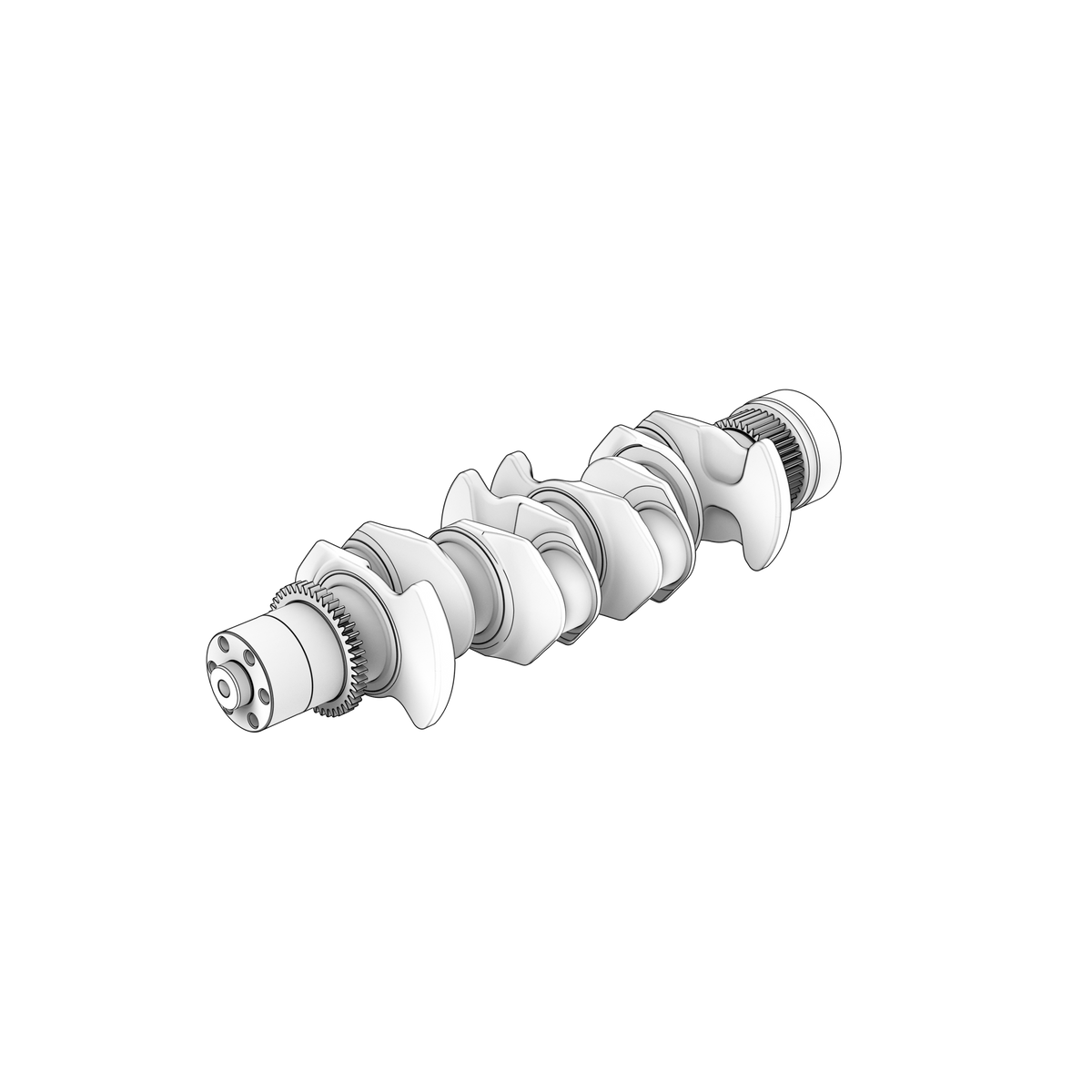

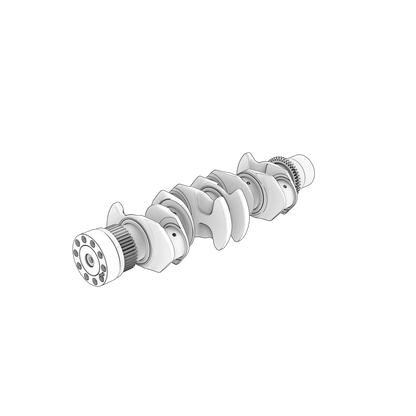

Precision crankshaft for TAD540VE, TAD541VE and TAD542VE engines. It carries the main and connecting-rod journals, internal oil passages, flywheel interface and front timing-drive connection.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD552VE
• Volvo Penta TAD580-83VE
• Volvo Penta TAD570-72VE
• Volvo Penta TAD550-51VE
• Volvo Penta TAD540-42VE

• Engine Family: TAD

⚙️ Key Features

• Exact TAD540-TAD542VE application
• Precision-ground main and big-end journals
• Factory balance and counterweight geometry
• Works with piston/liner and bearing-grade service kits
• Engine type: 4-cylinder turbocharged industrial diesel

🔌 Function

Converts piston force into rotating torque and drives the flywheel, timing gear and accessories.

⚠️ Common Signs of Failure

• Main or connecting-rod bearing knock
• Low oil pressure from journal wear
• Cracked or heat-discoloured journals
• Excessive run-out
• Blocked or damaged internal oil passages

🛠️ Service Notes

• Fitting a crankshaft is a full bottom-end job — the block, bearing housings and oil ways all want checking, and the journals measuring for size, taper and ovality, before anything is assembled
• Wash out every oil way in the new shaft and blow it through; swarf or preservative left in a gallery will destroy the new bearings
• Fit new main and big-end shells and thrust washers, and check running clearance and crankshaft end float against the figures in the workshop manual for your engine rather than assuming they are right
• Oil the shells and journals on assembly, tighten the bearing caps in the sequence and to the tightening figures and angles specified for your engine, and turn the shaft by hand after each cap to confirm nothing binds
• Renew the front and rear crankshaft seals, inspect the flywheel, damper, pulley and their fasteners while the access is good, then prime the lubricating system and confirm oil pressure before the engine is run up under load

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22259957 → Supersedes 22074326 → Supersedes 21736245

OEM / Related Numbers

• 22074326 earlier number superseded by this part
• 21736245 earlier number superseded by this part
• 950545 (locating pin)
• 21877169 (crankshaft seals)
• 22731065 (crankshaft seals)
• 21534886 (vibration damper)
• 21537993 (connecting rod)
• 23526780 (piston/liner kits)
• 23526781 (piston/liner kits)
• 23526770 (piston-ring kit)
• 21230282 (lock ring)
• 22203232 (piston pin)

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
