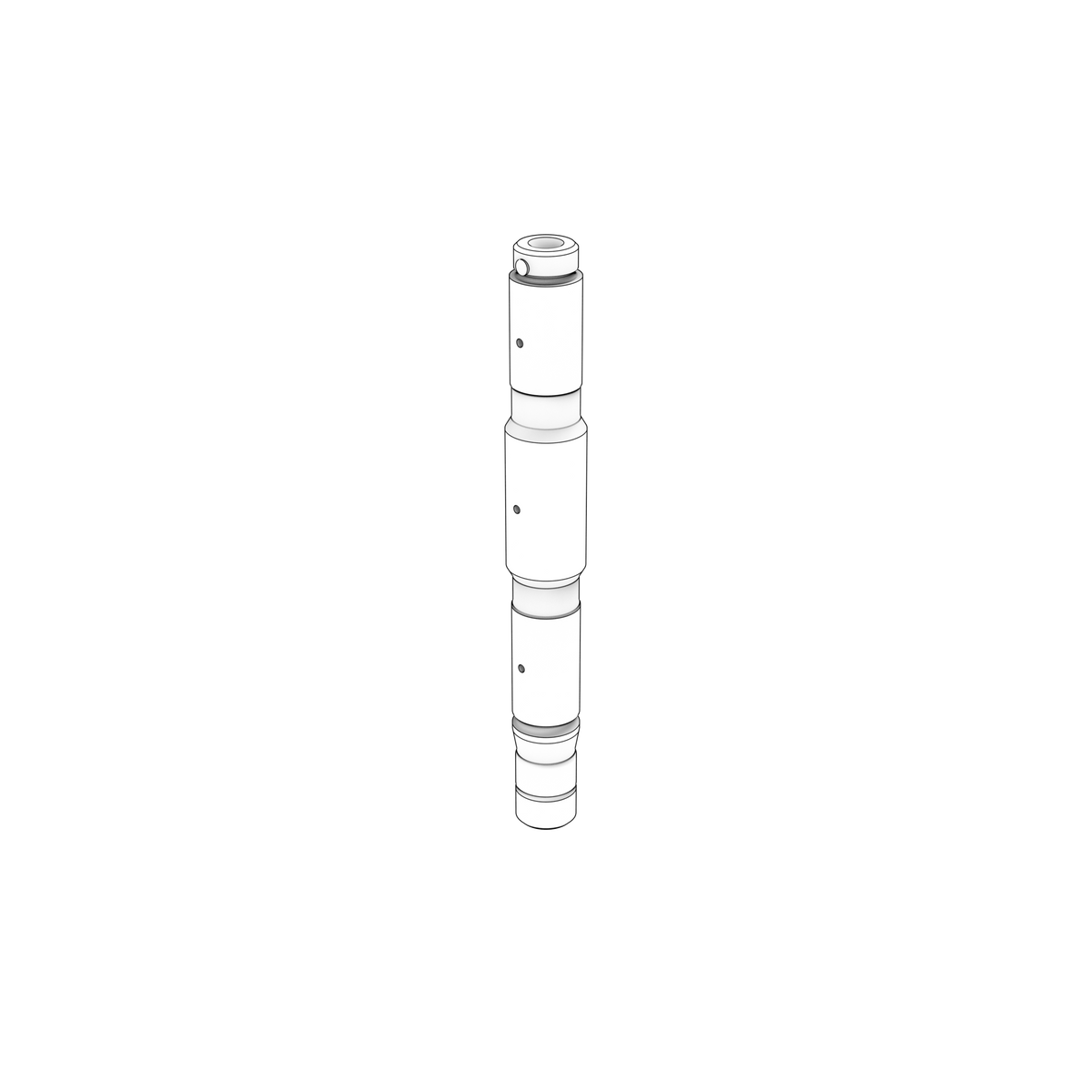

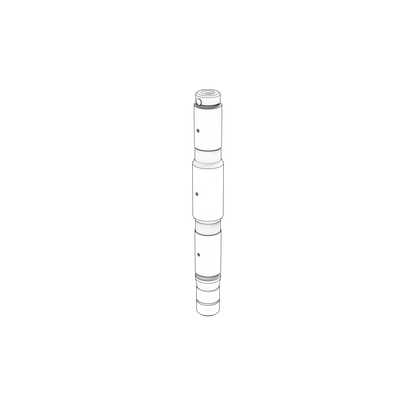

22262547 Shaft | Genuine Volvo Penta Part

🔧 Product Description

Upper-drive shaft used in DPS-B1 OceanX, DPS-B1, FWD-B1 and FWD-B2 propulsion systems. It works with bearing carrier 22240366, gear sets and the matched lower gear housing.

🚤 Compatibility

• Engine Family: V, FWD, DPS
• HP Range: 200-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Confirmed DPS-B1 and FWD-B1/B2 fitment
• Precision gear and bearing journals
• Transfers torque through the upper gear assembly
• Matched to bearing carrier 22240366
• Drive ratio and
• Engine type: Volvo Penta Aquamatic sterndrive propulsion

🔌 Function

Transmits input torque through the upper gear set while supporting the associated bearings and gears.

⚠️ Common Signs of Failure

• Spline or gear wear
• Bearing-journal scoring
• Gear whine or vibration
• Excess shaft run-out
• Metal debris in drive oil

🛠️ Service Notes

• Handle and store the shaft so the bearing journals and seal running surfaces stay unmarked — a nick on a seal track will cause a leak that no new seal will cure
• Remove the protective coating and check the shaft for straightness, scoring, pitting and stepped wear at the journals, splines and seal areas before fitting
• Lubricate journals, splines and seal surfaces with clean oil of the grade specified for the assembly as it goes together, and renew the seals and any single-use nuts or locking devices disturbed on removal
• Draw bearings and couplings on square with a press or drawing tool that loads only the correct race — hammering a bearing onto a shaft marks the races and can distort the shaft
• Set end float, backlash and shim thickness to the values in the workshop manual for your unit, then turn the assembly by hand to confirm it is free before applying power

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 22104457 (related drive)
• 3883621 (gear sets)
• 21722513 (gear sets)
• 22240366 (bearing carrier)
• 22227296 (gear housing)
• 22204760 (countershaft)

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-270-C-B, V8-270-CE-B, V8-300-E-A, V8-300-B, V8-300-E-B, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-320-B, V8-320-E-B, V8-320-CE-A, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-B, V8-225-CE-B, V8-270-B, V8-270-E-B, V8-270-CE-A, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-J, V6-280-CE-N, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta DPS-B1 OX, DPS-B1
• Volvo Penta FWD-B1, FWD-B2
