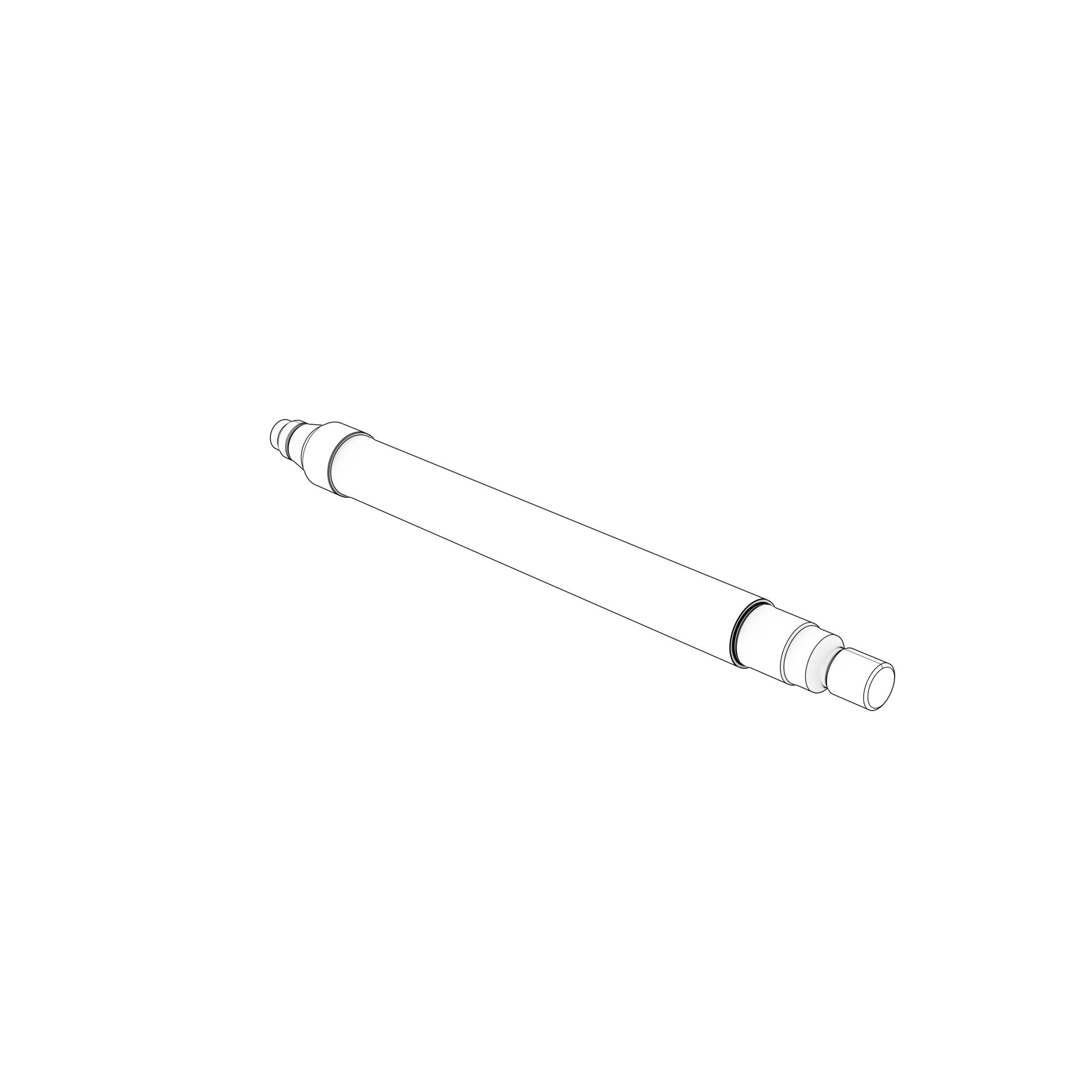

22270262 Shaft | Genuine Volvo Penta Part

🔧 Product Description

Intermediate saildrive shaft used in 120S and 130S propulsion units. It is related to earlier shaft 3808719 and transfers torque through the middle section of the saildrive gear train.

🚤 Compatibility

Typically suits:

• Volvo Penta D2-40F
• Volvo Penta D2-55F
• Volvo Penta D2-50F
• Volvo Penta D1-30F
• Volvo Penta 130SR-C
• Volvo Penta 130S-C
• Volvo Penta D1-13F
• Volvo Penta D1-20F
• Volvo Penta 130S-D
• Volvo Penta 130SR-D

• Engine Family: D
• HP Range: 13-55 HP

⚙️ Key Features

• Confirmed 120S and 130S saildrive fitment
• Related earlier shaft 3808719
• Precision spline and bearing surfaces
• Transfers torque through the vertical gear train
• Matched to gear and bearing version
• Engine type: Volvo Penta saildrive propulsion

🔌 Function

Transfers torque between the upper and lower saildrive gear sections while supporting the related bearings and gears.

⚠️ Common Signs of Failure

• Spline wear
• Bearing-journal scoring
• Gear noise
• Excess shaft play or run-out
• Metal particles in saildrive oil

🛠️ Service Notes

• Handle and store the shaft so the bearing journals and seal running surfaces stay unmarked — a nick on a seal track will cause a leak that no new seal will cure
• Remove the protective coating and check the shaft for straightness, scoring, pitting and stepped wear at the journals, splines and seal areas before fitting
• Lubricate journals, splines and seal surfaces with clean oil of the grade specified for the assembly as it goes together, and renew the seals and any single-use nuts or locking devices disturbed on removal
• Draw bearings and couplings on square with a press or drawing tool that loads only the correct race — hammering a bearing onto a shaft marks the races and can distort the shaft
• Set end float, backlash and shim thickness to the values in the workshop manual for your unit, then turn the assembly by hand to confirm it is free before applying power

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22270262 → Supersedes 3808719

OEM / Related Numbers

• 3808719 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
