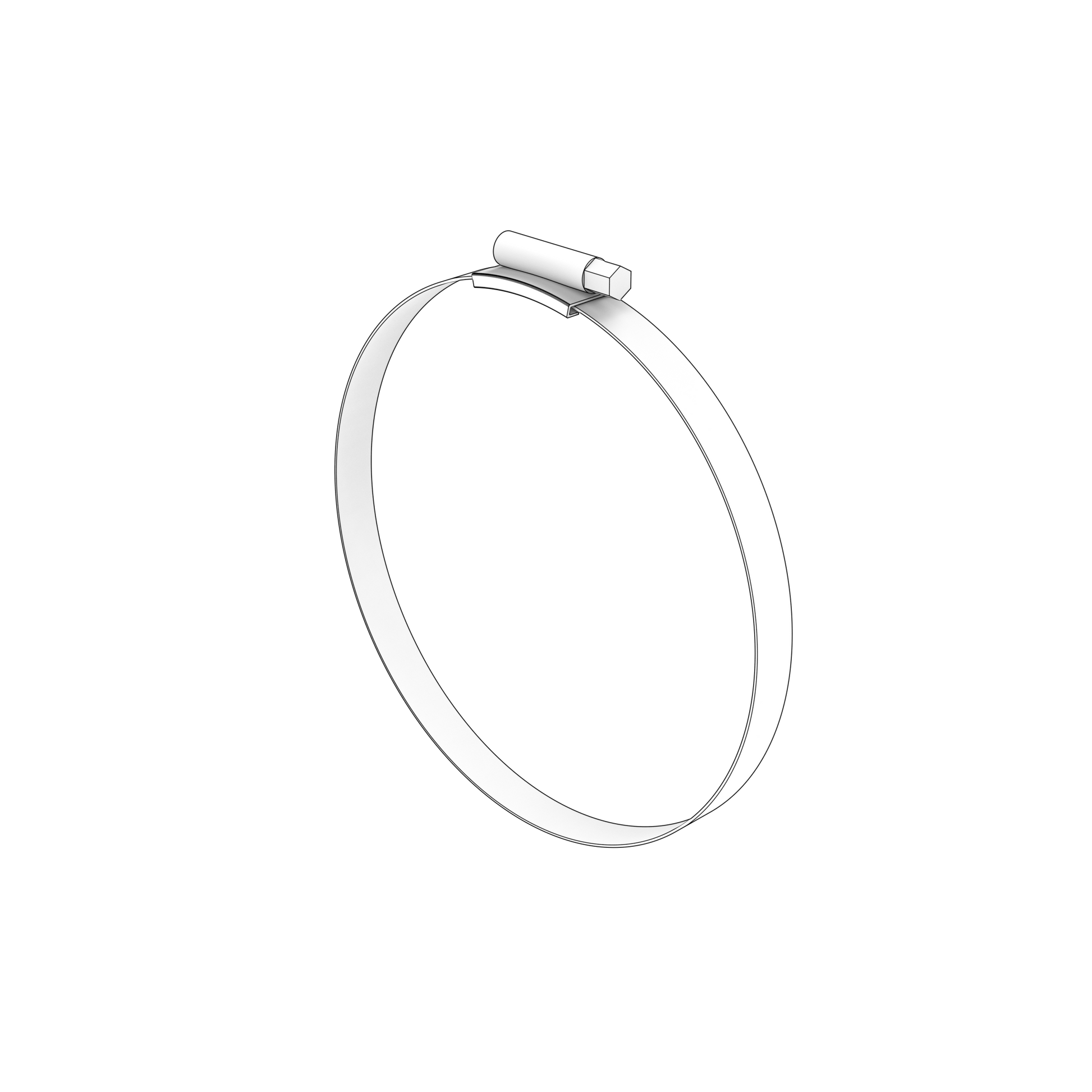

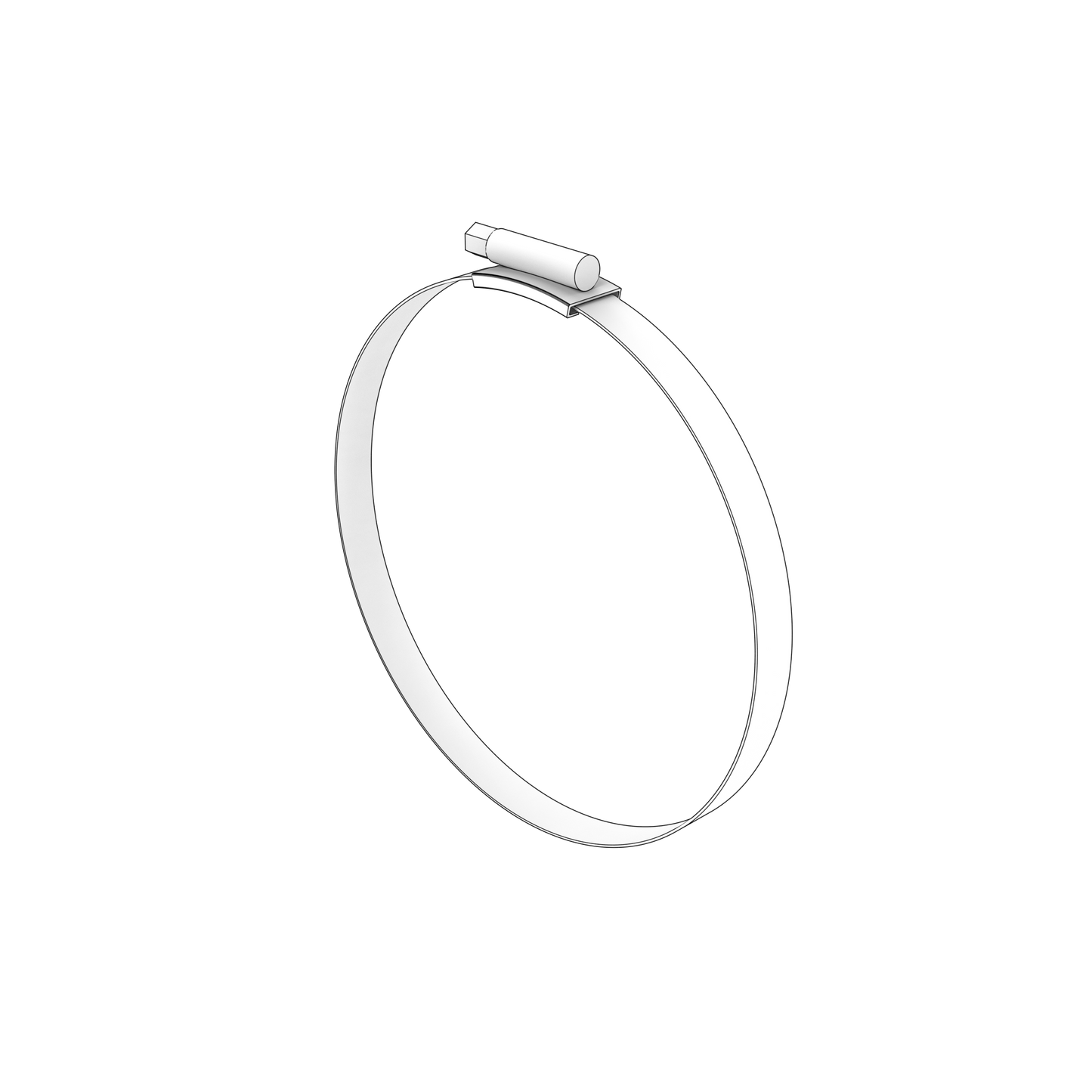

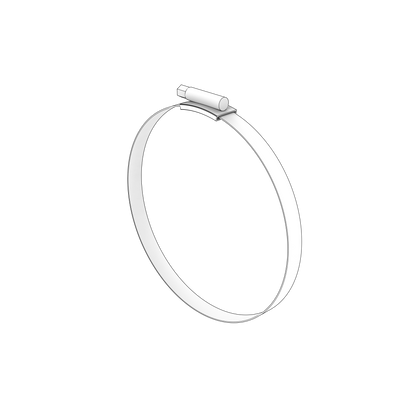

22274888 Hose Clamp | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta large hose clamp weighing 0.057 kg, listed for DPH and DP-D1 drive bellows and exhaust hose connections, where its band diameter and clamping load are matched to the propulsion unit's rubber connection. Volvo Penta's exhaust system table also names it as the recommended stainless steel hose clip for the 102 mm bore wet exhaust hose 1140668, listed in this same run - the largest of the three clips in this group.

🚤 Compatibility

• Engine Family: DPH, D, AD, TMD, DPI, DP, HS, TAMD, KAD, KAMD
• HP Range: 150-440 HP

Full model list at the end of this description.

⚙️ Key Features

• The recommended stainless steel hose clip for wet exhaust hose 1140668, 102 mm bore and 115 mm outside diameter
• Also listed for DPH and DP-D1 bellows and exhaust hose connections
• Large-diameter clamp geometry
• 0.057 kg
• Marine-grade corrosion resistance
• Quantity varies by assembly, most commonly two
• Fits: Rubber exhaust hose 1140668 (102 mm internal diameter)
• Also supersedes Volvo part numbers 804272 and 813959

🔌 Function

Clamps the propulsion bellows or exhaust hose to its mating housing and maintains the watertight and gas-tight seal.

⚠️ Common Signs of Failure

• Water or exhaust leakage at the joint
• Corroded or fractured band
• Clamp will not maintain tension
• Bellows or hose movement on the housing
• Rubber cut or distorted under the clamp

🛠️ Service Notes

• A bellows clamp is a watertight propulsion connection - renew rather than re-tighten a band that has corroded or bitten in
• Confirm whether the joint is a bellows or the 102 mm wet exhaust hose, as the same clip is listed for both

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22274888 → Supersedes 853013 → Supersedes 875827

OEM / Related Numbers

• 853013 earlier number superseded by this part
• 961677 earlier number superseded by this part
• 875827 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330A-F, D6-370A-F, D6-300A-F, D6-300A-G, D6-340A-G, D6-380A-G, D6-400A-G, D6-440A-G, D6-400A-F
• Volvo Penta TAMD31L, TAMD31L-A, TAMD31M, TAMD31M-A, TAMD31P, TAMD31P-A, TAMD31S, TAMD31D, TAMD31P-B
• Volvo Penta D4-260A-F, D4-300A-F, D4-225A-F, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G
• Volvo Penta AD31D, AD31D-A, AD31L-A, AD31P-A, AD31XD
• Volvo Penta TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41P, TAMD41P-B
• Volvo Penta AD41L-A, AD41P-A
• Volvo Penta DPH-D1, DPH-E
• Volvo Penta TMD31D, TMD31L-A
• Volvo Penta D41L-A
• Volvo Penta DP-D1
• Volvo Penta DPI-A
• Volvo Penta HS1A
• Volvo Penta KAD42B
• Volvo Penta KAMD42B
• Volvo Penta TAMD42B
• Volvo Penta TMD41L-A
