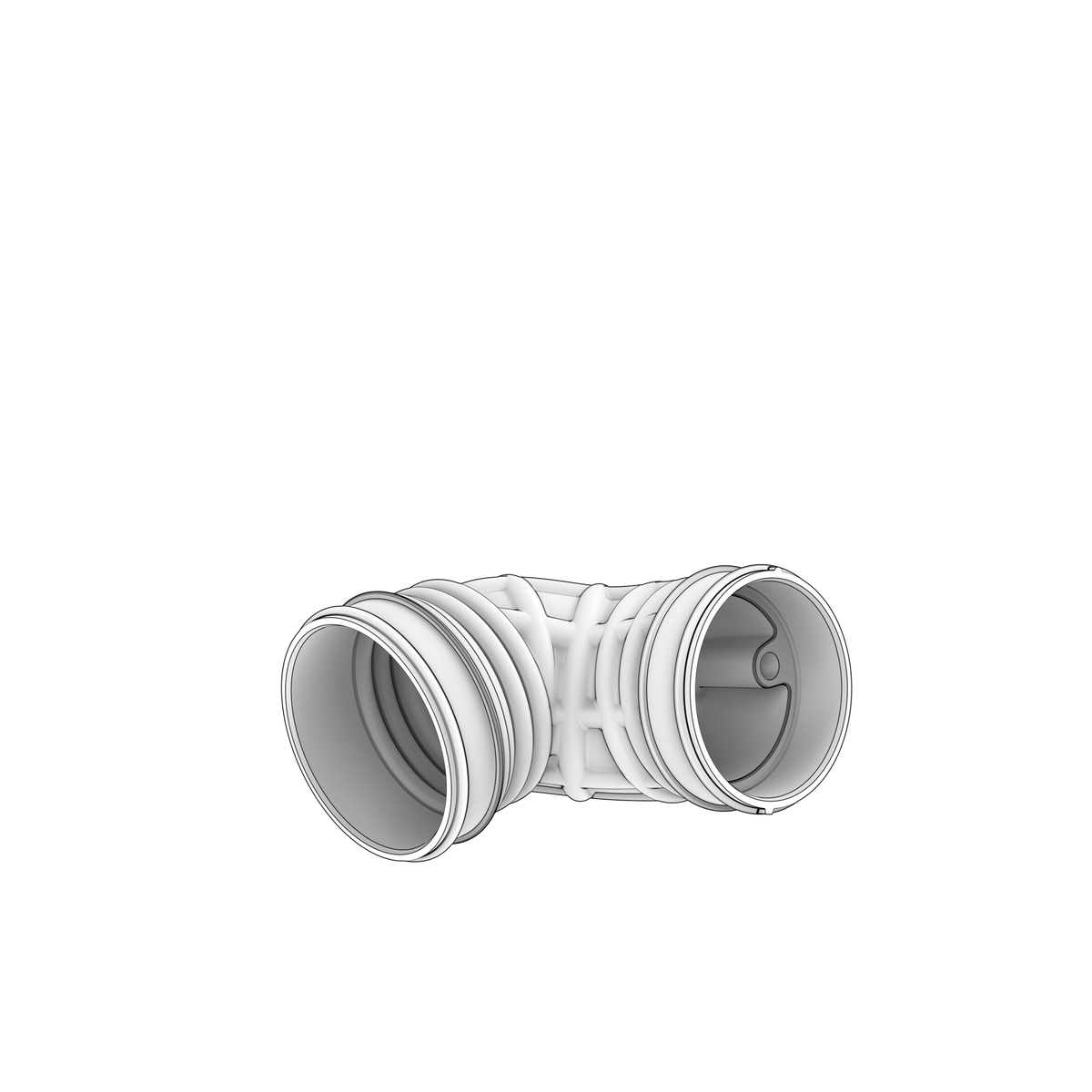

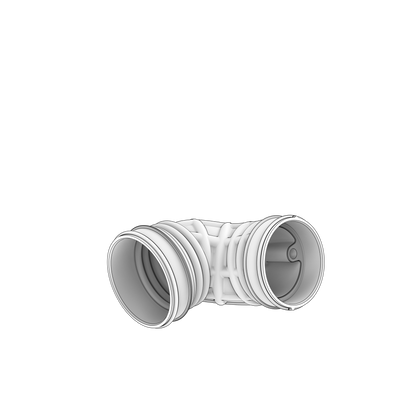

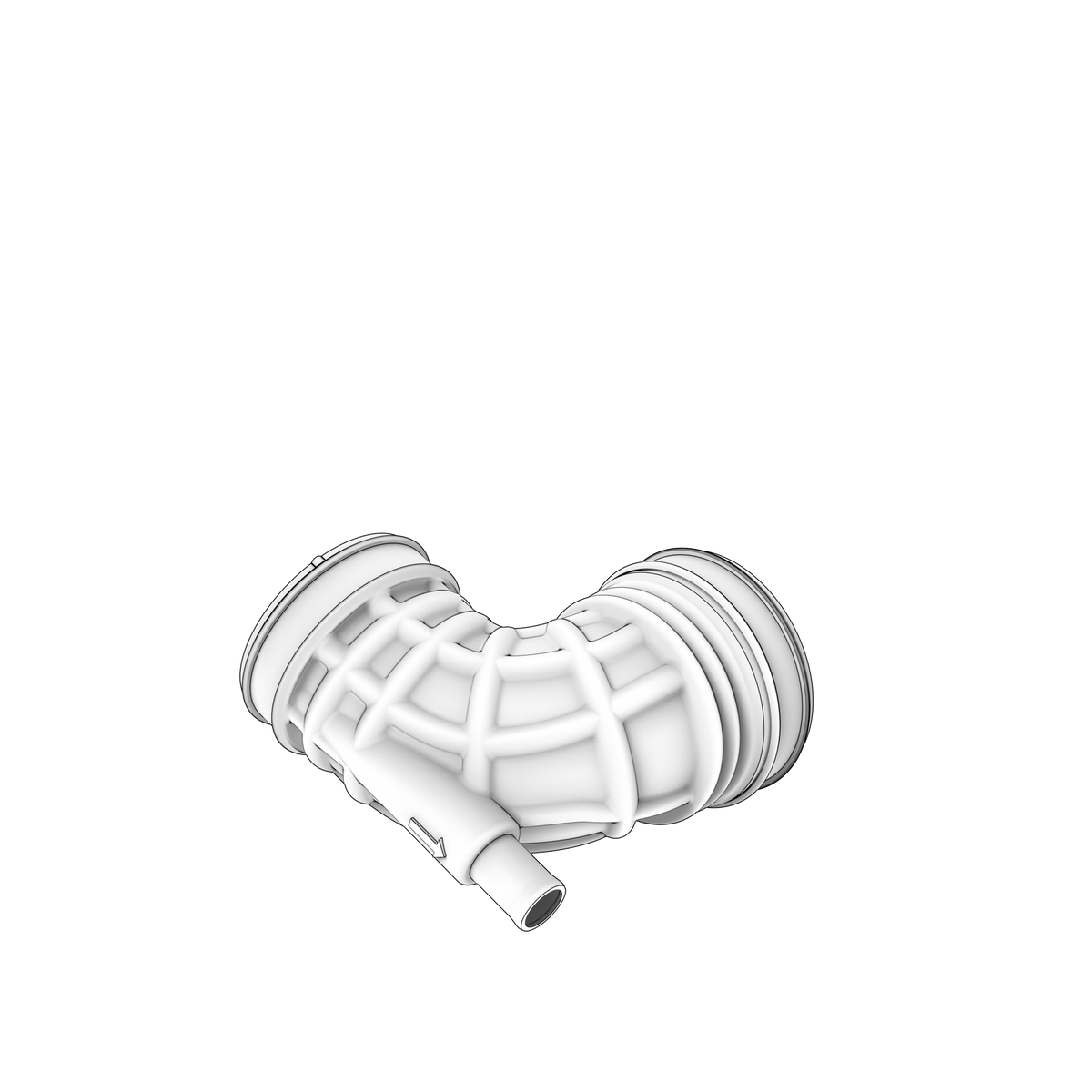

22275097 Elbow | Genuine Volvo Penta Part

🔧 Product Description

Elbow used in the closed crankcase-ventilation separator assembly on TAD570VE-B and TAD571VE-B engines. It connects separator 21719553 to hose 21936366 and breather pipe 22084963.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD580-83VE
• Volvo Penta TAD570-72VE
• Volvo Penta TAD570-71VE-B

• Engine Family: TAD

⚙️ Key Features

• Exact TAD570VE-B/TAD571VE-B fitment
• Closed crankcase-ventilation connection
• Factory elbow angle and hose diameter
• Works with separator 21719553
• Related clamps and support bracket identified
• Engine type: 4-cylinder turbocharged industrial diesel

🔌 Function

Changes the vapour-flow direction between the separator, hose and breather pipe while maintaining a sealed ventilation circuit.

⚠️ Common Signs of Failure

• Oil mist or seepage
• Cracked elbow
• Ventilation restriction

🛠️ Service Notes

• Clean the threads and sealing faces and check the bore is clear before fitting
• Fit new sealing washers, O-rings or gaskets where the original had them, and use thread sealant only where the manual calls for it — never on a joint that seals metal to metal on a cone or a machined face
• Set the elbow so the connection points the way the hose or pipe wants to run, with no strain, kinking or chafing on the line
• Tighten to the figure in the workshop manual for your engine and hold the mating fitting so it cannot turn with it
• Bring the system up to working pressure and temperature, check the joint, then check it again after the first proper run

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22275097 → Supersedes 21827392

OEM / Related Numbers

• 21827392 earlier number superseded by this part
• 21719553 (separator)
• 996675 (clamps)
• 21078879 (clamps)
• 21936366 (hose)
• 22084963 (breather pipe)
• 21792232 (bracket)

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
