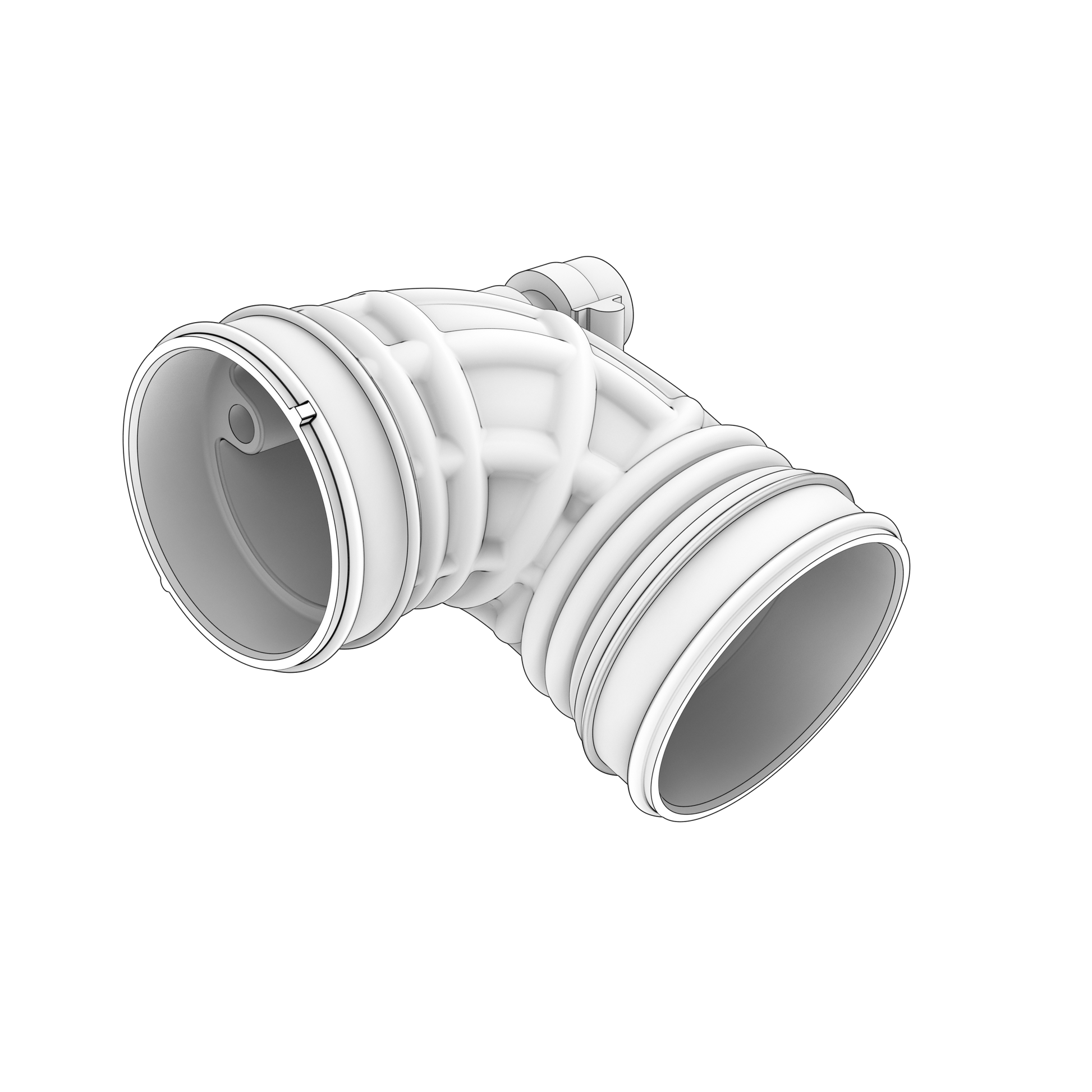

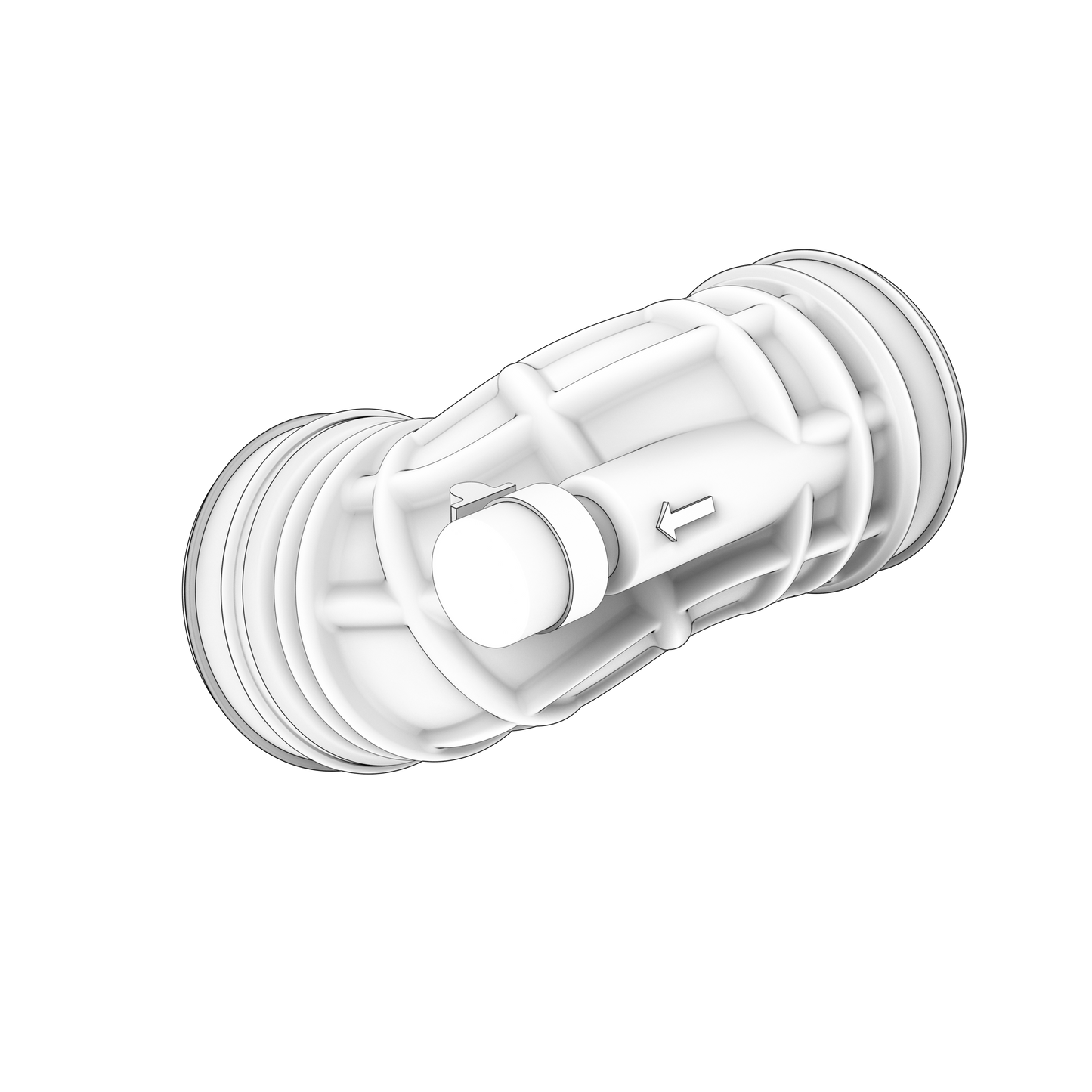

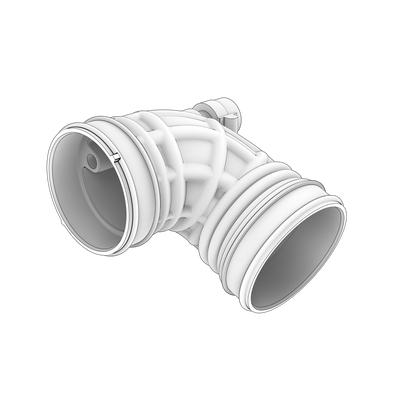

22275100 Elbow | Genuine Volvo Penta Part

🔧 Product Description

Elbow in the TAD570VE-B/TAD571VE-B valve-cover and closed crankcase-ventilation system. It connects rigid pipes 22085017 and 21782713 around separator 21719553.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD580-83VE
• Volvo Penta TAD570-72VE
• Volvo Penta TAD570-71VE-B

• Engine Family: TAD

⚙️ Key Features

• Exact TAD570VE-B/TAD571VE-B fitment
• Valve-cover ventilation connection
• Factory elbow geometry
• Works with separator and two rigid pipes
• Oil-vapour-resistant construction
• Engine type: 4-cylinder turbocharged industrial diesel

🔌 Function

Provides the sealed bend between rigid ventilation pipes at the valve-cover separator system.

⚠️ Common Signs of Failure

• Cracked or hardened elbow
• Loose clamp
• Restricted crankcase ventilation
• Oil mist around the valve cover

🛠️ Service Notes

• Clean the threads and sealing faces and check the bore is clear before fitting
• Fit new sealing washers, O-rings or gaskets where the original had them, and use thread sealant only where the manual calls for it — never on a joint that seals metal to metal on a cone or a machined face
• Set the elbow so the connection points the way the hose or pipe wants to run, with no strain, kinking or chafing on the line
• Tighten to the figure in the workshop manual for your engine and hold the mating fitting so it cannot turn with it
• Bring the system up to working pressure and temperature, check the joint, then check it again after the first proper run

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22275100 → Supersedes 21585267

OEM / Related Numbers

• 21585267 earlier number superseded by this part
• 21719553 (separator)
• 22085017 (pipes)
• 21782713 (pipes)
• 996675 (clamps)
• 21078879 (clamps)
• 984949 (clamp)
• 984733 (flange screw)

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
