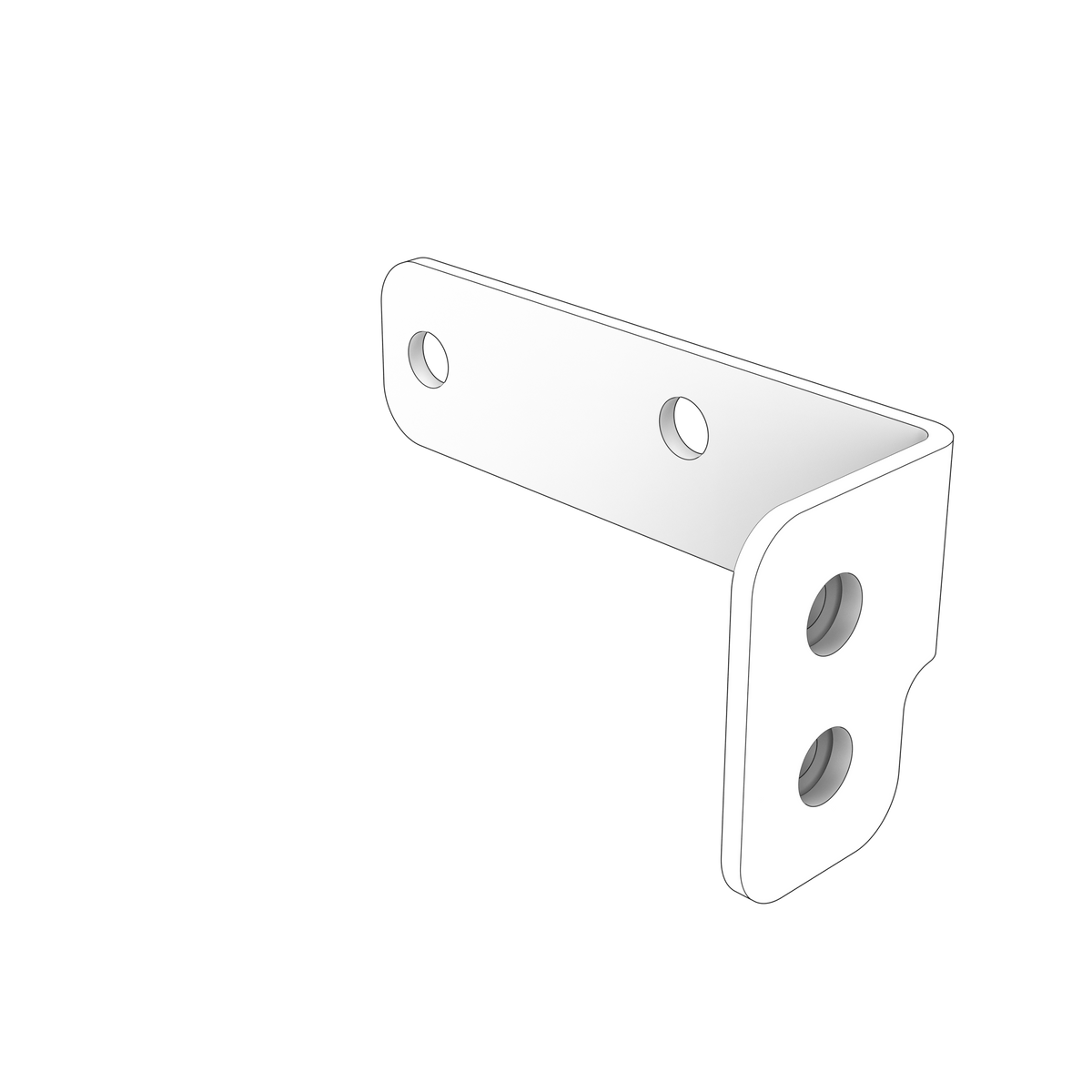

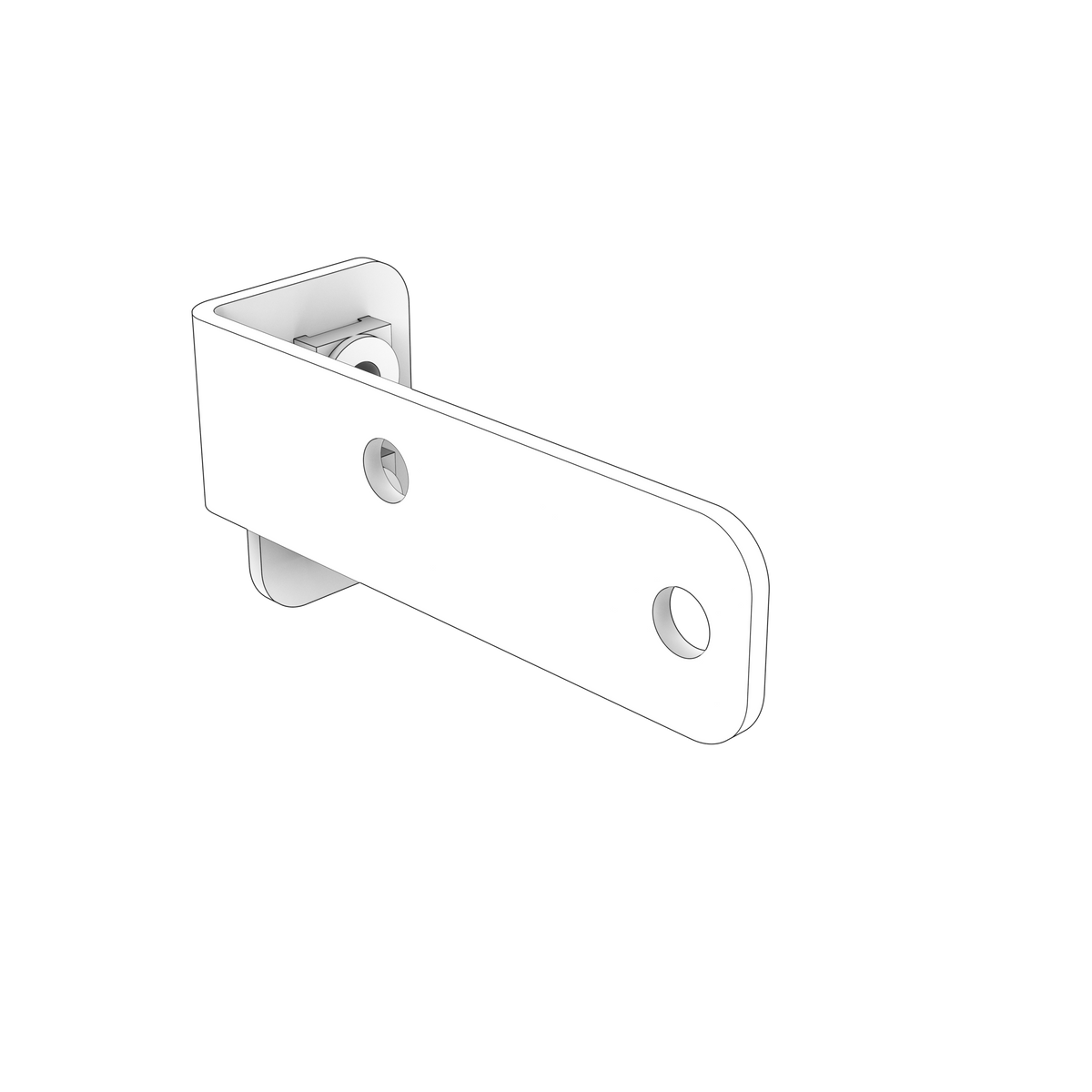

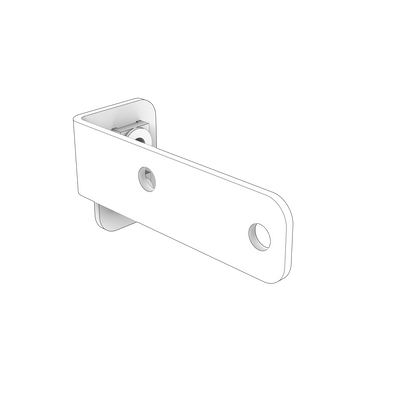

22275749 Bracket | Genuine Volvo Penta Part

🔧 Product Description

Lubrication-system bracket used on TAD1351VE, TAD1352VE and TAD1353VE engines. It supports oil pipe 21186881 and dipstick 20883087 at the correct angle and height.

🚤 Compatibility

• Engine Family: TAD

Full model list at the end of this description.

⚙️ Key Features

• Exact TAD1351-TAD1353VE fitment
• Supports oil pipe and dipstick
• Maintains calibrated dipstick depth
• Uses factory spacer and bracket arrangement
• Prevents pipe vibration and oil leakage
• Engine type: 13-litre 6-cylinder turbocharged industrial diesel

🔌 Function

Supports the oil pipe and dipstick so the fill/measurement components remain sealed, aligned and accessible.

⚠️ Common Signs of Failure

• Loose dipstick tube
• Oil seepage at pipe connection
• Incorrect oil-level reading
• Pipe contact with adjacent components

🛠️ Service Notes

• Offer the bracket up and start every fastener by hand before tightening any of them, so the component is not pulled into a strained position
• Check the mating faces are clean, flat and free of corrosion scale — a bracket that does not sit flat will work loose and let the component move
• Renew self-locking nuts, lock washers, tab washers or thread-locking compound wherever the original assembly used them, and tighten to the figure given in the workshop manual for your engine
• Where the bracket carries a rubber mount or bush, renew that at the same time rather than reusing a perished one
• On brackets in the inlet and exhaust area, never force alignment to make the holes line up — cure the misalignment at its source, or the bracket and the component it holds will both crack

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22275749 → Supersedes 21732335

OEM / Related Numbers

• 21732335 earlier number superseded by this part
• 20441392 (related brackets)
• 20742141 (related brackets)
• 807257 (spacer)
• 21186881 (oil pipe)
• 20883087 (dipstick)
• 969198 (O-ring)
• 984733 (flange screw)

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta TAD1341-43GE-B, TAD1341VE, TAD1341GE
• Volvo Penta TAD1344-45GE-B, TAD1344VE, TAD1344GE
• Volvo Penta TAD1342VE, TAD1342GE
• Volvo Penta TAD1343VE, TAD1343GE
• Volvo Penta TAD1345GE, TAD1345VE
• Volvo Penta TAD1350GE, TAD1350VE
• Volvo Penta TAD1351GE, TAD1351-53VE
• Volvo Penta TAD1340VE
• Volvo Penta TAD1346GE
• Volvo Penta TAD1352GE
• Volvo Penta TAD1353GE
• Volvo Penta TAD1354GE
• Volvo Penta TAD1355GE
• Volvo Penta TAD1360-62VE
• Volvo Penta TAD1363-65VE
• Volvo Penta TAD1371-75VE
• Volvo Penta TAD1380-82GE
• Volvo Penta TAD1381-85VE
• Volvo Penta TAD1384-85VE-IWP
