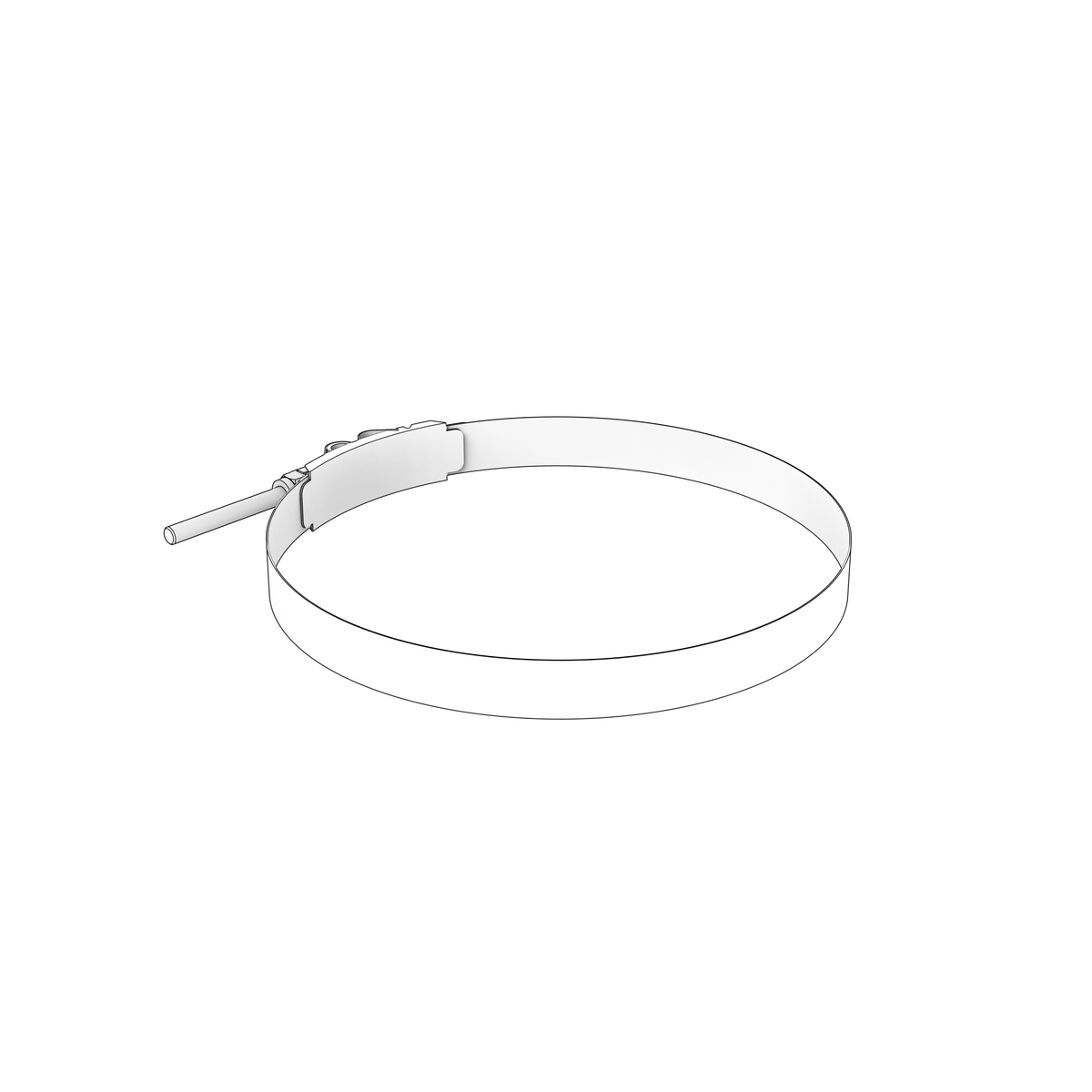

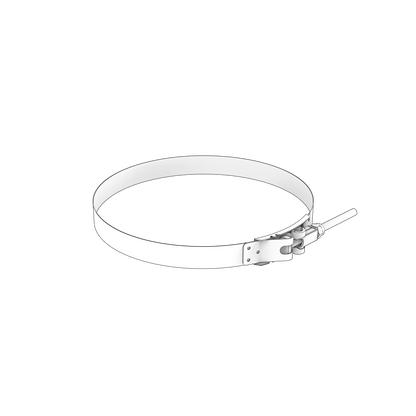

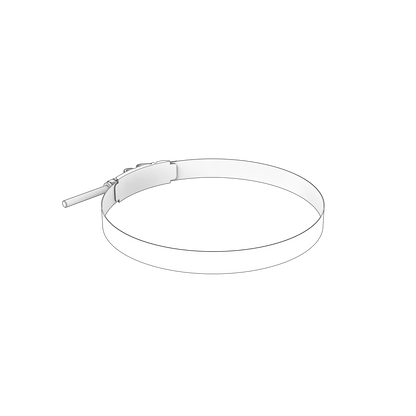

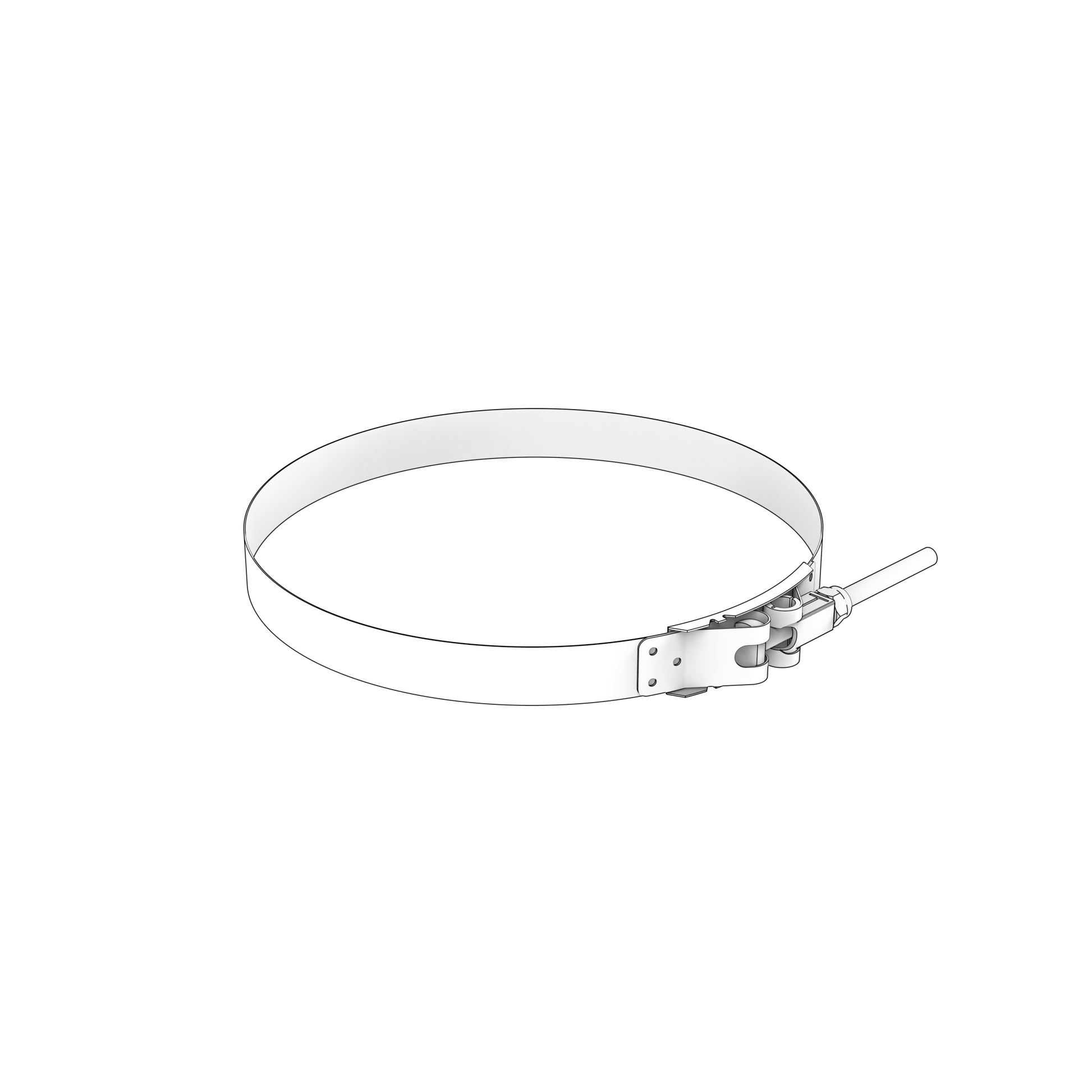

22280026 Hose Clamp | Genuine Volvo Penta Part

22280026 Hose Clamp | Genuine Volvo Penta Part

$39.86 AUD
$39.86 AUD
Sale Sold out
Shipping calculated at checkout.

Available from Volvo Penta international

Typically reaches our store in 10–14 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

Large hose clamp used at the air-cleaner outlet on TAD1351VE, TAD1352VE and TAD1353VE engines. It secures the outlet flange and connecting pipe in the complete air-cleaner assembly.

🚤 Compatibility

Typically suits:

  • Volvo Penta TAD1380-82GE
  • Volvo Penta TAD1381-85VE
  • Volvo Penta TAD1371-75VE
  • Volvo Penta TAD1351-53VE
  • Volvo Penta TAD1384-85VE-IWP
  • Engine Family: TAD

⚙️ Key Features

  • Exact TAD1351-TAD1353VE fitment
  • Air-cleaner outlet connection
  • Matched to outlet flange 22022646
  • Used with connecting pipe 21846741
  • Heavy-duty corrosion-resistant band
  • Engine type: 13-litre 6-cylinder turbocharged industrial diesel

🔌 Function

Clamps the air-cleaner outlet connection so all intake air passes through the filter and into the engine without leakage.

⚠️ Common Signs of Failure

  • Dust bypass
  • Loose outlet hose or pipe
  • Clamp corrosion
  • Band distortion
  • Intake leak or restriction warning

🛠️ Service Notes

  • Match the clamp to the hose outside diameter so the band closes well within its working range rather than at the very end of its travel
  • Position it over the spigot behind the bead or barb, with the screw where a driver or spanner can still reach it once everything is refitted
  • Tighten to seal, not to crush — an over-tightened worm-drive clamp cuts into soft hose and starts the leak you were trying to stop
  • Renew clamps when a hose is changed rather than reusing them, and keep band, housing and screw all marine-grade stainless so the clamp does not corrode against itself
  • Where two clamps are fitted to one connection, stagger the screw heads and recheck both after the first running period

🔄 Supersession & Cross Reference

OEM / Related Numbers

  • 21753983 (air cleaner)
  • 21810844 (housing)
  • 21810900 (cover)
  • 21716424 (filter element)
  • 21961494 (tension lock)
  • 22022646 (outlet flange)
  • 21846741 (connecting pipe)
  • 21732478 (rubber collar)
  • 20560843 (vacuum switches)
  • 22996281 (vacuum switches)
  • 23307414 (vacuum switches)
  • 22092074 (retainer)
  • 22166196 (rain cap)

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
