22281824 Oil Filler Pipe | Genuine Volvo Penta Part

🔧 Product Description

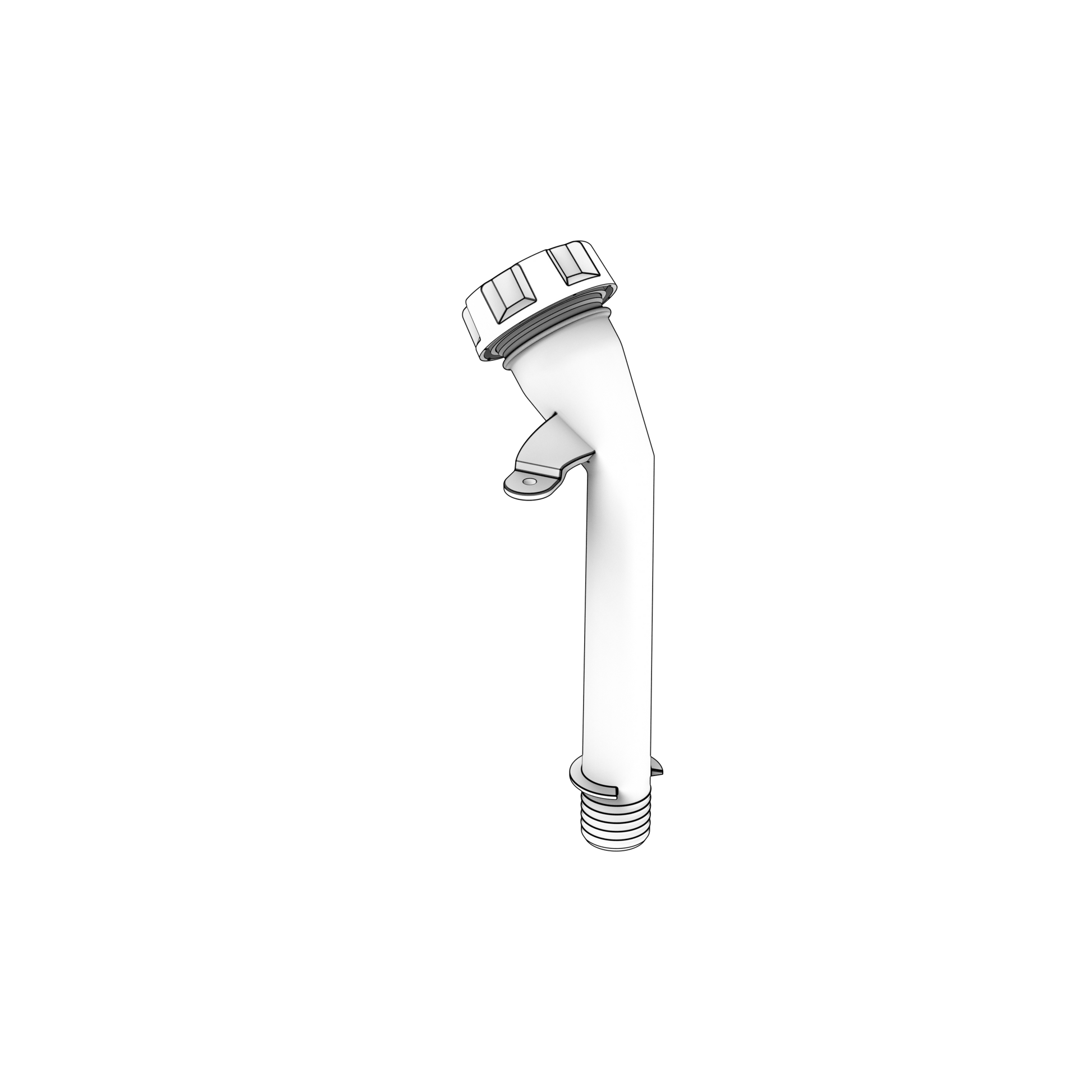

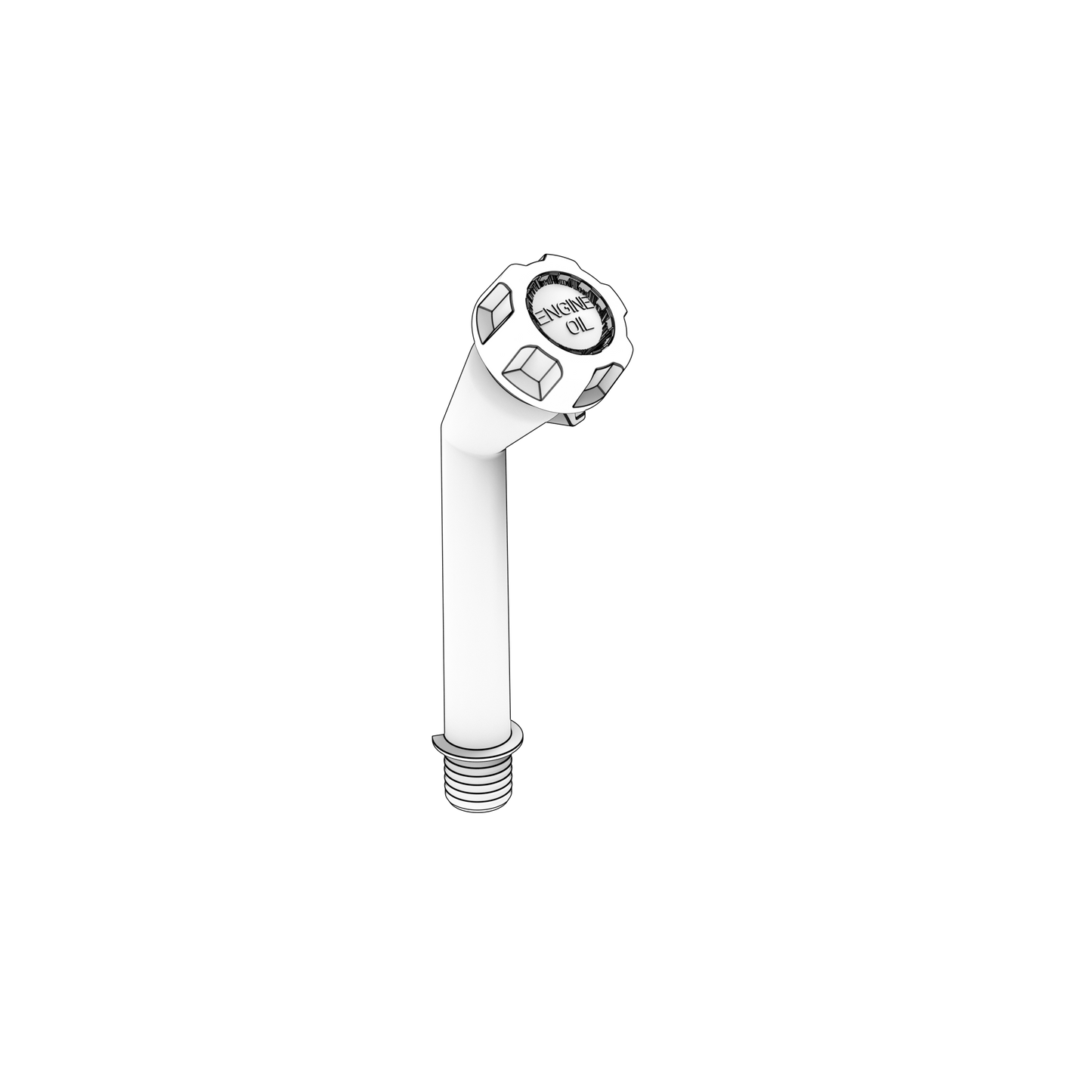

Rigid remote oil-filler pipe used on a Volvo Penta heavy-duty diesel installation. It positions the oil-fill point away from the crankcase and must be matched to the sump, valve-cover and installation orientation.

⚙️ Key Features

• Remote engine-oil fill connection
• Factory pipe length and mounting geometry
• Oil- and temperature-resistant construction
• Maintains accessible service position
• Fitment controlled by sump and installation orientation
• Engine type: Volvo Penta heavy-duty turbocharged diesel

🔌 Function

Routes added engine oil from an accessible filler point into the engine crankcase or sump.

⚠️ Common Signs of Failure

• Oil seepage at joints
• Cracked or loose pipe
• Restricted or slow filling
• Broken support bracket
• Incorrect filler position after installation

🛠️ Service Notes

• Renew the O-ring, seal or grommet where the pipe enters the block or cover, and lubricate it with clean engine oil to fit; a dry seal tears or rolls as the pipe is pushed home
• Check the pipe is clear inside and free of sludge or debris before fitting, and make sure nothing can drop down it while it is open
• Refit the securing bracket or clip in its original position so the pipe cannot flex or rub against surrounding components
• Check the filler cap and its seal at the same time — a filler that does not seal at the top lets oil mist and crankcase fumes into the engine space
• Run the engine afterwards and check the joint at the block or cover for weeping once it is warm

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22281824 → Supersedes 20808092 → Supersedes 8149086

OEM / Related Numbers

• 20808092 earlier number superseded by this part
• 8149086 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
