🔧 Product Description

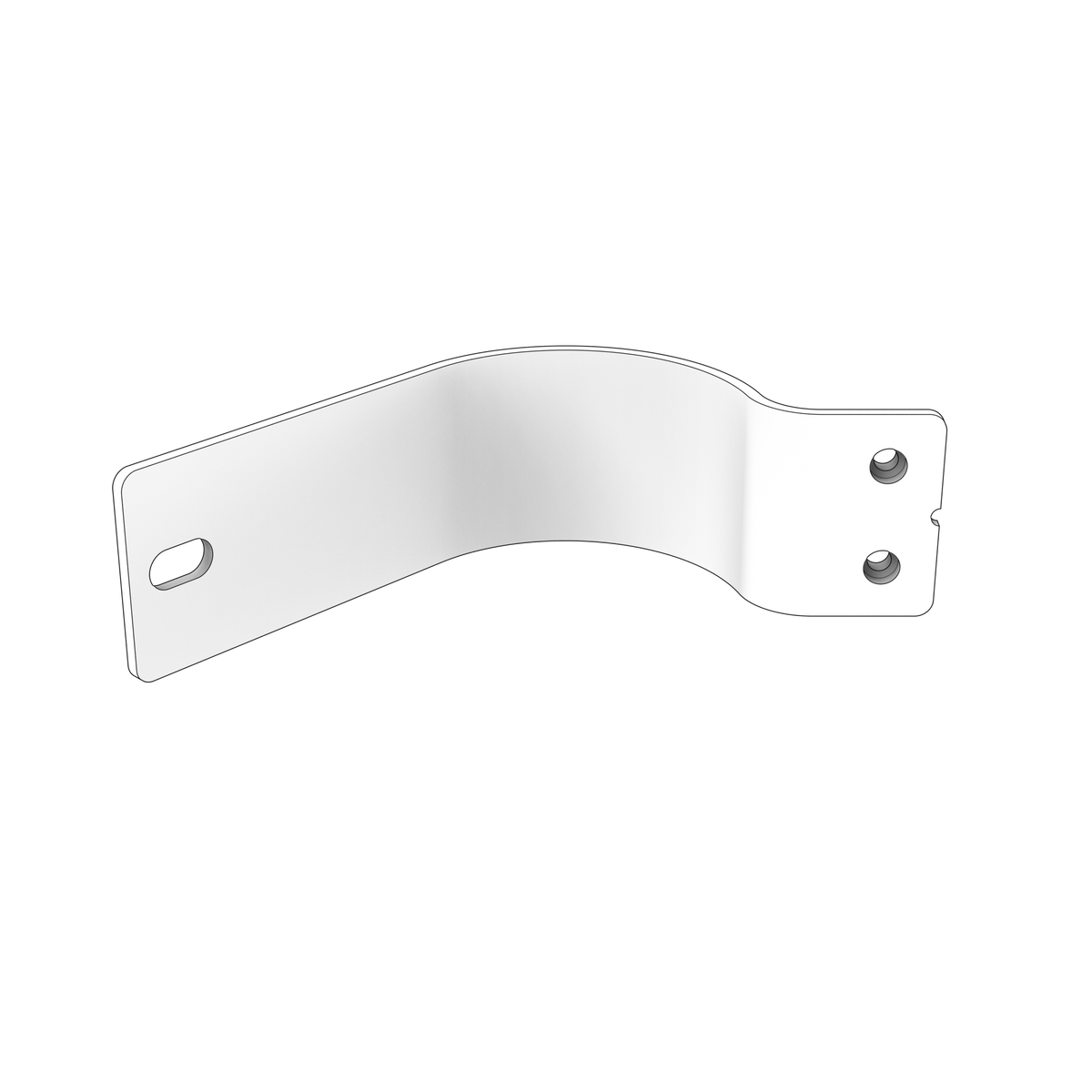

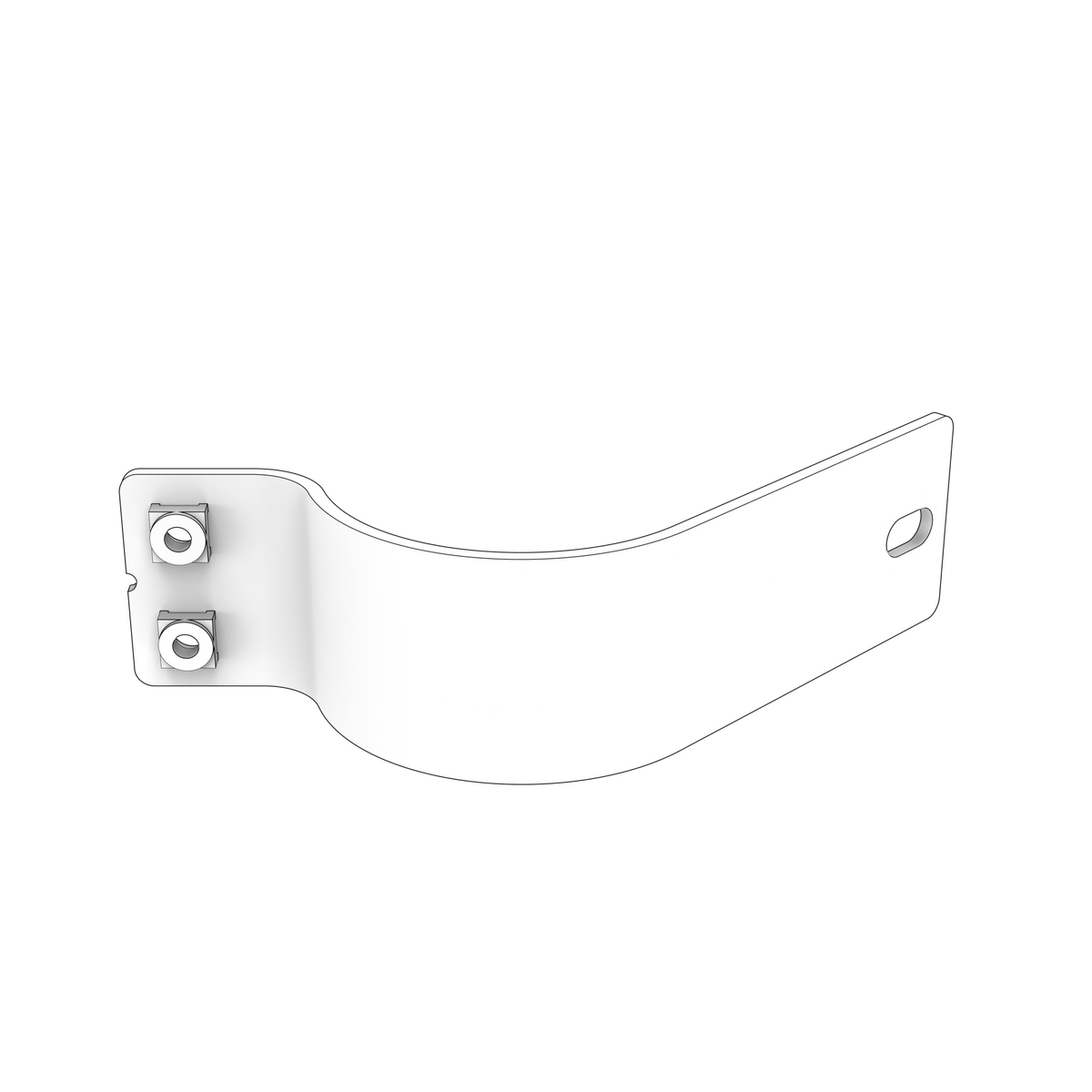

Genuine Volvo Penta D16 Cooling-Package Clamping Brace - Upper/Secondary Cooling-Package Position - Part Number: 22285225 Clamping brace used at the upper/secondary cooling-package position on the TAD1640GE-B, TAD1641GE-B and TAD1642GE-B heavy-duty cooling package. It secures radiator, fan-ring, hose or charge-air components against vibration.
🚤 Compatibility
Typically suits:
- Volvo Penta TAD1650VE-B/51VE
- Volvo Penta TAD1643VE-B
- Volvo Penta TAD1640-42GE-B
- Volvo Penta TAD1640GE
- Volvo Penta TAD1640VE-B
- Volvo Penta TAD1641VE-B
- Volvo Penta TAD1642VE-B
- Volvo Penta TAD1641GE
- Volvo Penta TAD1642GE
- Volvo Penta TAD1641VE
- Volvo Penta TAD1642VE
- Volvo Penta TAD1643VE
- Volvo Penta TAD1650GE
- Volvo Penta TAD1651GE
- Volvo Penta TAD1650VE
- Volvo Penta TAD1660-62VE
- Volvo Penta TAD1662VE EU5
- Volvo Penta TAD1670-72VE
- Volvo Penta TAD1640-42VE-C
- Engine Family: TAD
⚙️ Key Features
- Exact TAD1640-TAD1642GE-B application
- Heavy-duty cooling-package retention
- Factory brace geometry and clamp load
- Works with expansion tank and fan-ring hardware
- Controls vibration and component movement
- Engine type: 16-litre 6-cylinder turbocharged generator diesel
- Quantity varies by assembly, most commonly two
🔌 Function
Clamps and supports the assigned cooling-package component so vibration and weight do not damage hoses, frames or heat exchangers.
⚠️ Common Signs of Failure
- Cracked or distorted brace
- Loose cooling component
- Uneven clamp load
- Hose or pipe chafing
- Vibration fatigue
🛠️ Service Notes
- This is the upper/secondary-position brace of the pair — 22285230 is the primary-position brace for the same TAD1640-1642GE-B cooling package, and at 0.515 kg it is measurably heavier than the 0.479 kg primary brace, so do not swap them by feel alone
- It supersedes 22496578 and, before that, 21888843 — a cooling package built against either earlier number takes this brace now
- Two braces are normally fitted per package, so check the other clamping point at the same time if one has cracked or its fixings have corroded
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 22285225 → Supersedes 22496578 → Supersedes 21888843
OEM / Related Numbers
- 22496578 earlier number superseded by this part
- 21888843 earlier number superseded by this part
- 23122125 (heavy-duty cooling package)
- 23275232 (expansion tank)
- 21888852 (hoses)
- 21888849 (hoses)
- 3827612 (fan ring)
- 3828963 (fans)
- 3828964 (fans)
- 3829537 (fan hubs)
- 21418129 (fan hubs)
- 3838792 (charge-air hose)
- 22185615 (charge-air pipe)
- 22546256 (related brace)
- 22036724 (bracket)
- 22118112 (fan guard)
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
