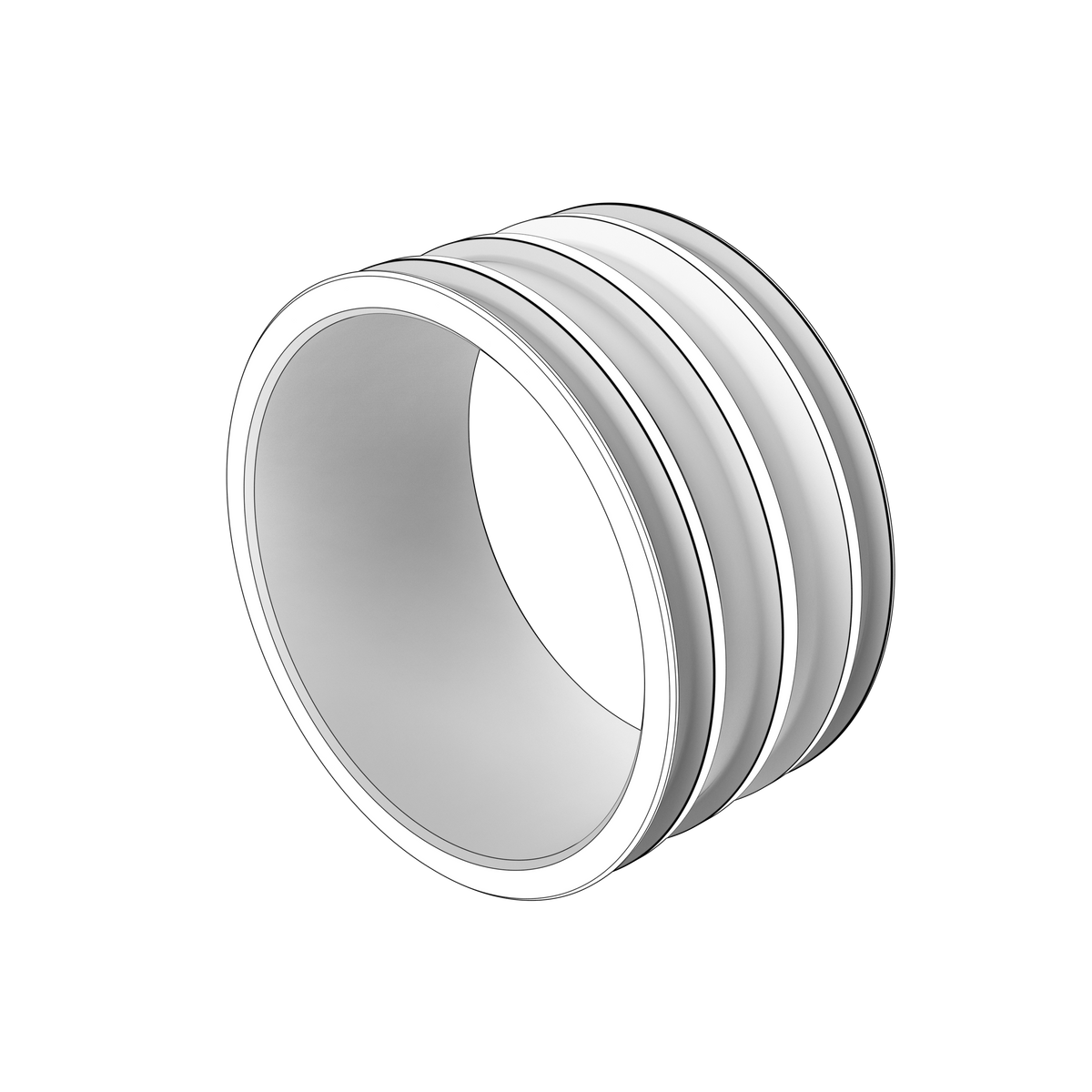

22288438 Connector | Genuine Volvo Penta Part

🔧 Product Description

Connector used in the TWD1643GE inlet-heater/starter-element assembly. It interfaces with starter element 3886863 and the related adapters, seals and gaskets in the inlet system.

🚤 Compatibility

• Engine Family: D, TWD

Full model list at the end of this description.

⚙️ Key Features

• Exact TWD1643GE fitment
• Inlet-heater/starter-element connection
• Works with starter element 3886863
• Complete related seal and adapter references
• Engine type: 16-litre 6-cylinder turbocharged generator diesel
• Quantity varies by assembly, most commonly one

🔌 Function

Provides the sealed electrical/mechanical connection at the inlet-air heater or starter element.

⚠️ Common Signs of Failure

• Air leakage
• Heater does not operate
• Burnt or loose electrical connection
• Seal leakage

🛠️ Service Notes

• Compare the new connector against the old one for size, form and number of ways before fitting; connectors that look alike are frequently not interchangeable
• Renew any seal, gasket or O-ring that belongs with the connector rather than reusing the old one, and check the mating faces are clean, dry and undamaged
• Support the connector and the line or harness running into it so the joint carries no weight or side load, and keep the original routing and clips clear of hot and moving parts
• Push or thread the connector fully home until it seats or locks, then confirm the lock has engaged rather than assuming it has
• Prove the joint before closing up the access — check it for leaks or for correct operation, whichever applies to that position, with the engine run up

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22288438 → Supersedes 3808387

OEM / Related Numbers

• 3808387 earlier number superseded by this part
• 3886863 (starter element)
• 20938964 (sealing kit)
• 21695684 (sealing ring)
• 20784537 (gaskets)
• 21352841 (gaskets)
• 3979639 (gaskets)
• 3819105 (adapters)
• 23116796 (adapters)
• 21944536 (O-ring)

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C2-A MP, D13C4-A MP, D13B-A MP, D13B-H MP, D13B-G MP, D13B-L MP, D13B-K MP, D13B-B MP, D13B-D MP, D13B-J MP, D13B-M MP, D13B-C MP, D13C6-A MP, D13C5-A MP
• Volvo Penta D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta TWD1643GE
• Volvo Penta TWD1644-45GE
• Volvo Penta TWD1663GE
• Volvo Penta TWD1672-1673GE
• Volvo Penta TWD1682-83GE
• Volvo Penta TWD1683VE
• Volvo Penta TWD1744GE
