22297683 Oil Pan | Genuine Volvo Penta Part

🔧 Product Description

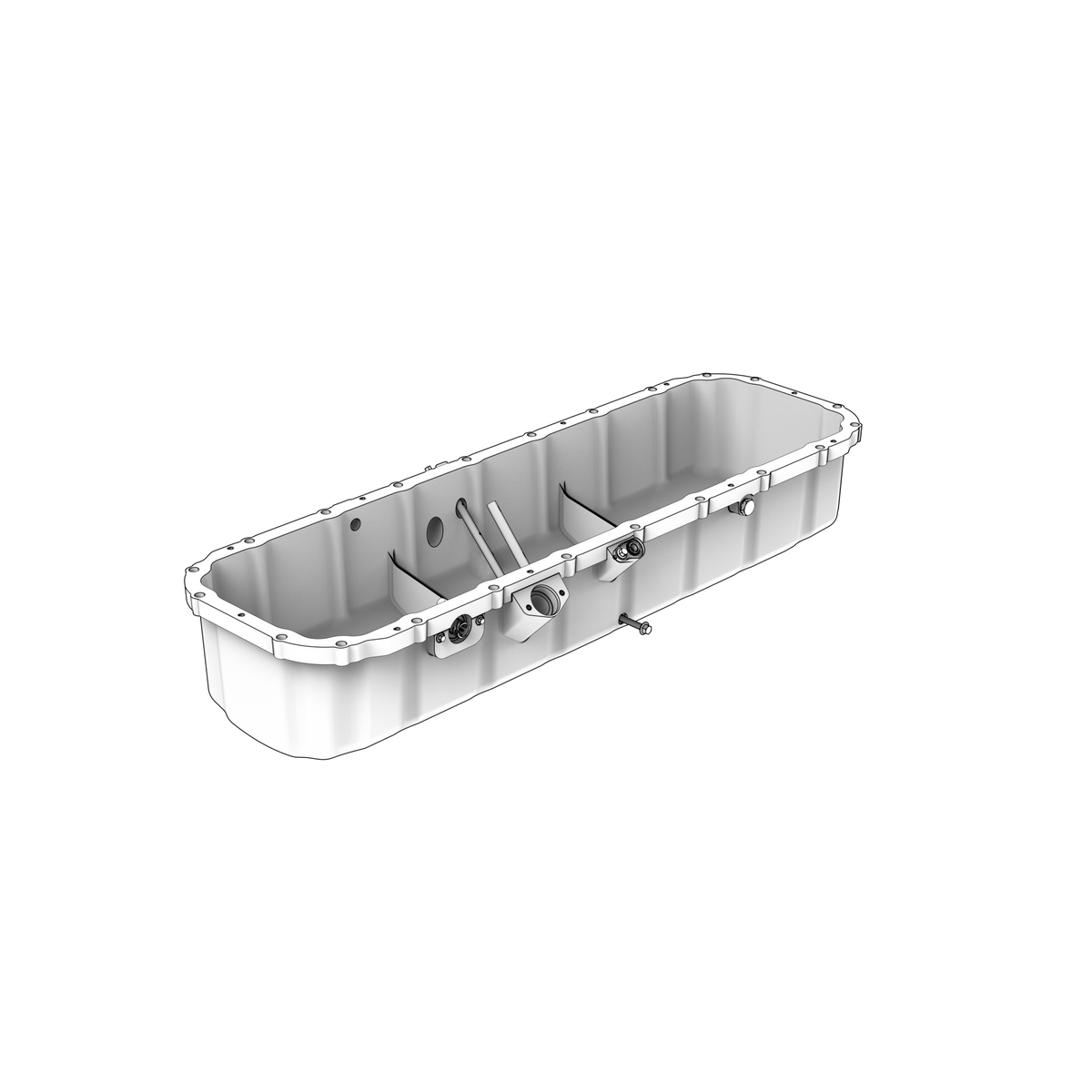

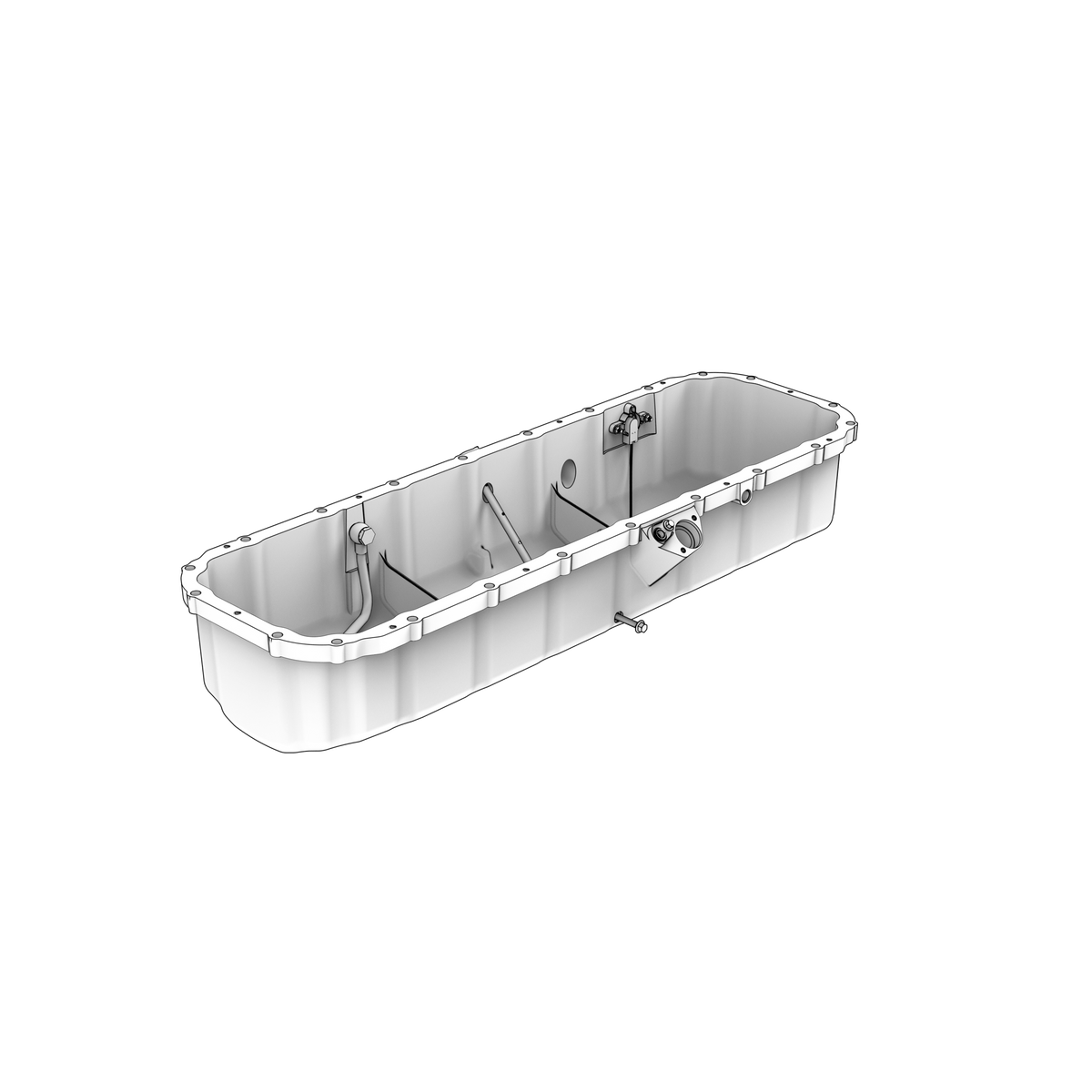

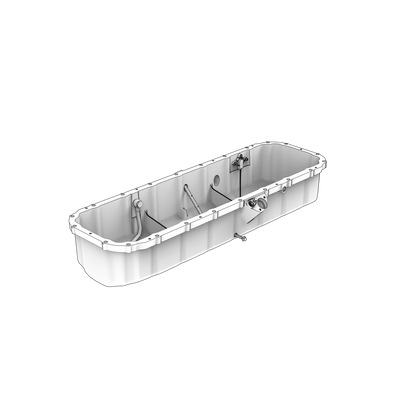

Shallow engine oil pan used on D13B-N MH and D13C2-A MH marine-commercial engines. It supersedes oil pan 21854670 and forms the lower oil reservoir for shallow-sump installations.

🚤 Compatibility

• Engine Family: D, TAD

Full model list at the end of this description.

⚙️ Key Features

• Exact D13B-N MH and D13C2-A MH fitment
• Supersedes 21854670
• Shallow marine sump configuration
• Related oil-fill and hose hardware identified
• Factory sealing flange and drain geometry
• Engine type: 13-litre 6-cylinder turbocharged marine-commercial diesel

🔌 Function

Stores the engine-oil supply below the crankshaft and supports the pickup, drain and fill connections.

⚠️ Common Signs of Failure

• Cracked or corroded sump
• Damaged drain threads
• Distorted gasket flange
• Oil-pickup interference

🛠️ Service Notes

• Clean both faces down to bare metal and remove every trace of old gasket or sealant; a hardened ridge will hold the pan off its face and leak
• Check the flange for distortion around the bolt holes — pans are routinely pulled out of shape by over-tightening and will not seal until the flange is flat again
• Fit a new gasket, or apply sealant only where the manual for your engine specifies it; where sealant is used, assemble and tighten within its working time and let it cure before adding oil
• Tighten evenly in stages, working out from the centre, to the figures and sequence in the workshop manual — even tightening matters far more here than force
• Renew the drain plug sealing washer, clean the pickup and strainer while the pan is off, and refill with the grade and quantity specified for your engine before starting

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22297683 → Supersedes 21854670 → Supersedes 3593504

OEM / Related Numbers

• 21854670 earlier number superseded by this part
• 3593504 earlier number superseded by this part
• 21173620 (pipe)
• 3889662 (bracket)
• 21364974 (hoses)
• 3837463 (hoses)
• 4881246 (elbow nipple)

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C3-B MH, D13C1-B MH, D13C4-B MH, D13C2-B MP, D13C1-A MP, D13C2-A MP, D13C3-A MP, D13C4-A MP, D13B-E MH, D13B-E MH (FE), D13B-N MH, D13B-N MH (FE), D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C5-A MP, D13C7-B MP, D13C8-B MP, D13C9-A MP
• Volvo Penta TAD1351-53VE
• Volvo Penta TAD1371-75VE
• Volvo Penta TAD1380-82GE
• Volvo Penta TAD1381-85VE
• Volvo Penta TAD1384-85VE-IWP
