22307636 Kit | Genuine Volvo Penta Part

🔧 Product Description

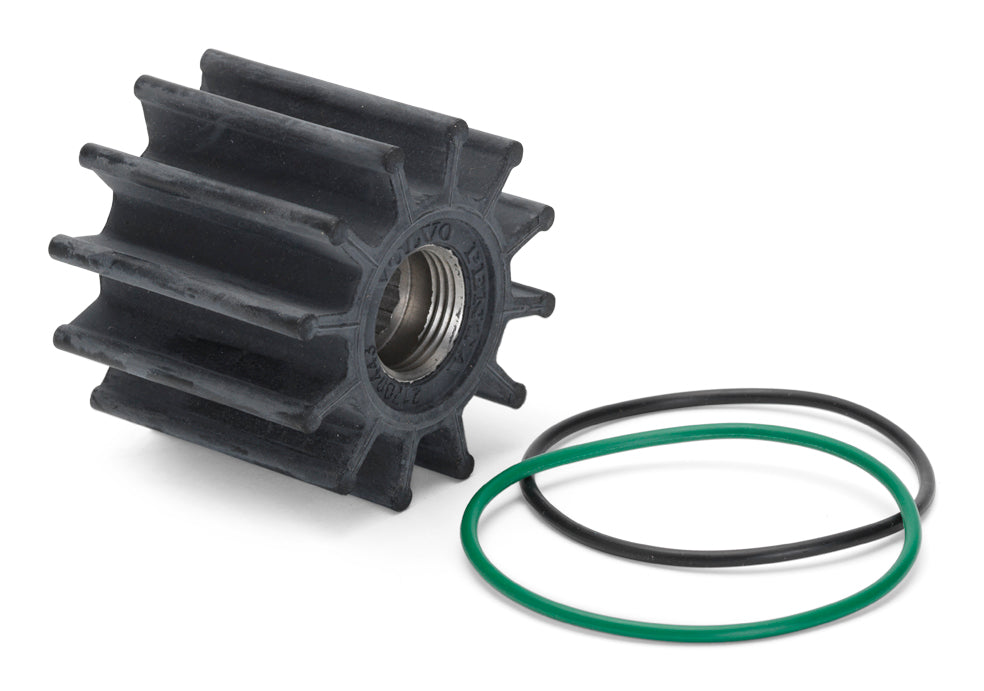

Flexible impeller service kit weighing 0.170 kg, with a twelve-blade impeller approximately 57.2 mm in diameter and 49.2 mm wide. It is the most widely listed petrol impeller kit in the maintenance schedule, covering the 3.0GLP D, E and J, the 3.0GXi-J and GXiC-J, the 4.3GL-J, GXi-J and OSi-J, the 4.3GXi-G and OSi-G, the 5.0GL-J, GXi-J and OSi-J, the 5.0GXi-G and OSi-G, the 5.7Gi300-J, OSi-J, GXi-J and OSXi-J, the 5.7Gi-F, GXi-G and OSi-E, the 8.1Gi-J, GXi-J and OSi-J, the 8.1Gi-H, GXi-G and OSi-D, and the Gen 1+ V6-200 and V6-225 and V8-225 to V8-320. It replaces earlier kit references used with pump assemblies 21213664, 21212799 and 21212800.

🚤 Compatibility

• Year Range: Approximately mid-2000s onward; pump part number controls fitment

⚙️ Key Features

• The common impeller kit across the 3.0, 4.3, 5.0, 5.7 and 8.1 petrol engines and the Gen 1+ V6 and V8
• Twelve-blade impeller approximately 57.2 mm by 49.2 mm
• 0.170 kg
• Used with pump assemblies 21213664, 21212799 and 21212800
• The Gen 5 V6 and V8 engines take impeller kit 21700445 instead
• Genuine Volvo Penta Part, designed and manufactured to ensure original fit, safety and performance
• Role: Impeller kit
• Fits: V6-200/225 (Gen 1+); V8-225/270/300/320 (Gen 1+); 3.0GLP-C/D/E/J (D/E/J); 3.0GXi-J, 3.0GXiC-J; 4.3GL-J/JF, GXi-J/JF, OSi-J/JF; 4.3GXi-G/GF, OSi-G/GF; 5.0GL-J/JF, GXi-J/JF, OSi-J/JF; 5.0GXi-G/GF, OSi-G/GF; 5.7Gi300-J/JF, 5.7OSi-J/JF, 5.7GXi-J/JF, 5.7OSXi-J/JF; 5.7Gi-F/FF, GXi-G/GF, OSi-E/EF; 8.1Gi-J/JF, GXi-J/JF, OSi-J/JF; 8.1Gi-H/HF, 8.1GXi-G/GF, 8.1OSi-D/DF

📋 Kit Contents

• Flexible 12-blade seawater-pump impeller - supplied under kit number 22307636 - quantity 1; no separate Volvo service number confirmed
• Pump-cover O-ring / sealing components - supplied within kit 22307636 - quantity 1 set; separate internal numbers are not published
• Impeller lubricant and installation instructions may be supplied according to package revision; no separate kit-item numbers are published

🔌 Function

The flexible impeller draws seawater through the drive or hull intake and supplies the engine heat exchanger or cooling passages.

⚠️ Common Signs of Failure

• Engine overheats or raw-water flow is reduced
• Impeller blades cracked, missing or permanently bent
• Pump will not prime
• Water leakage at the pump cover
• Incorrect impeller width or pump model selected

🛠️ Service Notes

• Because one kit covers so many engines, confirm the pump assembly number rather than assuming a change of engine means a change of impeller
• Volvo Penta lists a small glycerine impeller lubricant for rubber impellers and O-rings, and the impeller should never be run dry
• Always refer to the operator's manual for the recommended maintenance and service intervals for your engine and drive
• Listed against more than one engine or drive family - check the qualifier that applies to your own engine or drive

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22307636 → Supersedes 21213664 → Supersedes 21951354 → Supersedes 21212794

OEM / Related Numbers

• 21213664 earlier number superseded by this part
• 3842786 earlier number superseded by this part
• 21951354 earlier number superseded by this part
• 21212794 related reference
• 21212799 related pump assembly
• 21212800 related pump assembly

Aftermarket / Verified Equivalents

• Sierra: 18-3306

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
