22307941 Exhaust Pipe Elbow | Genuine Volvo Penta Part

🔧 Product Description

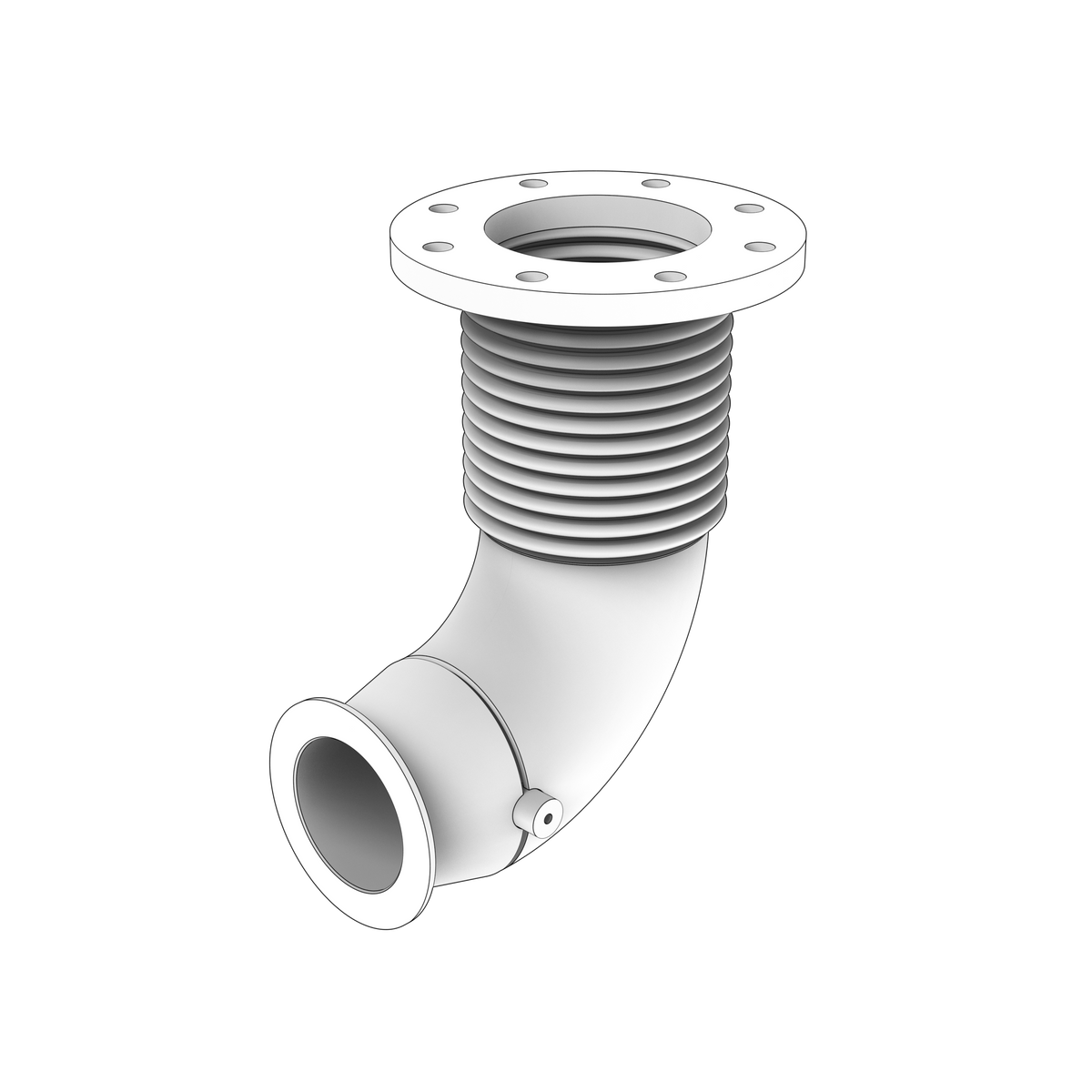

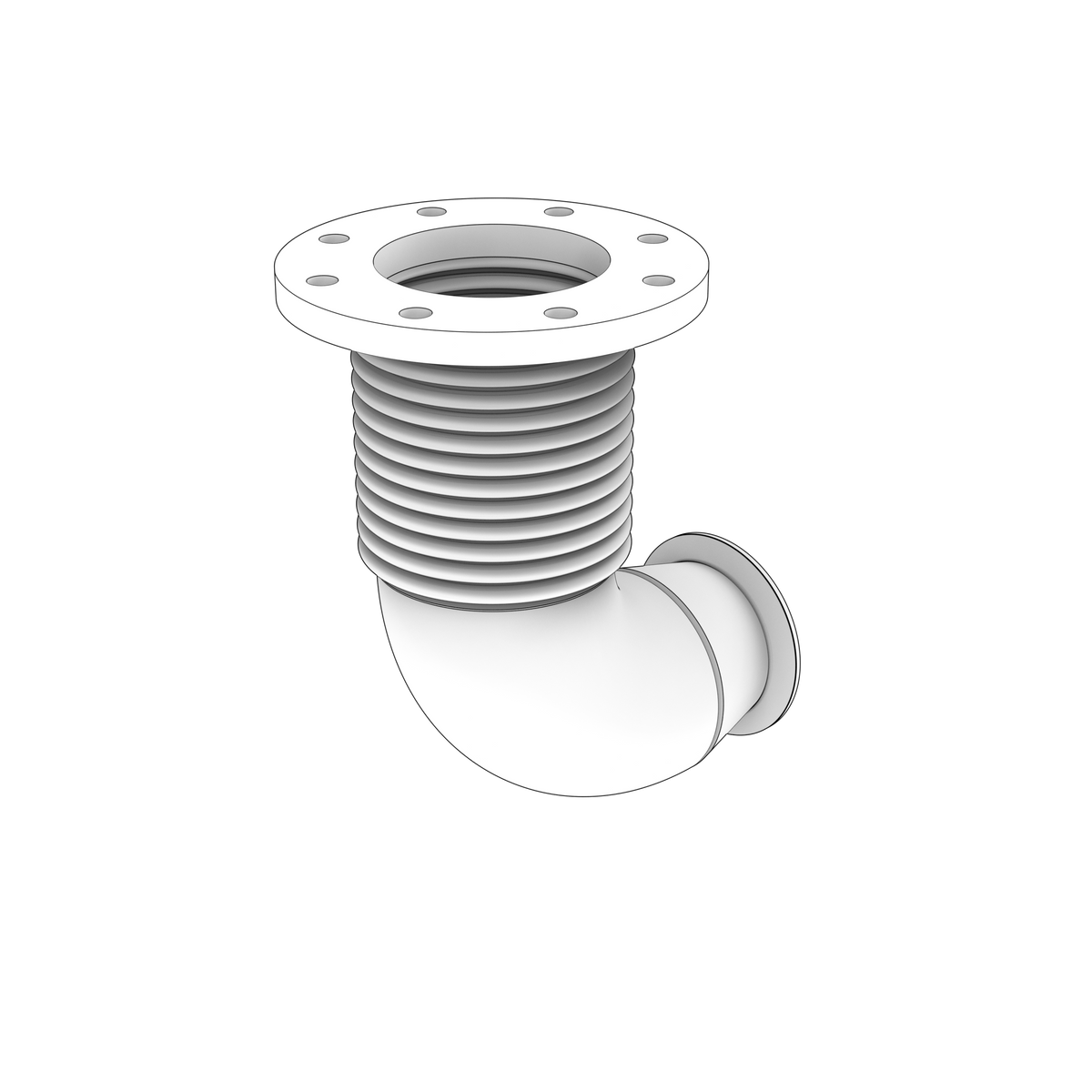

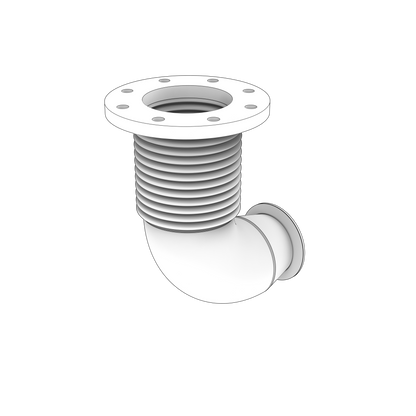

Dry-exhaust outlet elbow for Volvo Penta D6 engines configured with external keel cooling. It connects the engine exhaust outlet to the dry pipe and uses V-clamp 21325767.

🚤 Compatibility

• Engine Family: D
• HP Range: 280-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Exact D6 external-keel-cooling application
• Dry-exhaust elbow geometry
• Uses V-clamp 21325767
• Plug 20555025 and gasket 969011 identified
• Heavy-duty high-temperature construction
• Engine type: 6-cylinder turbocharged marine diesel

🔌 Function

Routes dry exhaust from the engine outlet into the vessel's downstream exhaust system.

⚠️ Common Signs of Failure

• Cracked or warped elbow
• Loose V-clamp
• High exhaust back pressure
• Heat damage nearby

🛠️ Service Notes

• Renew the gaskets and seals at both joint faces and clean the faces back to bare metal; an exhaust joint will not seal on old gasket remains
• Look through the elbow before fitting and clear any carbon or scale, and where the elbow carries cooling water check its water passages for salt build-up and internal corrosion
• Check the flange faces for flatness and cracking, and check the studs and nuts — heat-cycled exhaust fasteners are often stretched or wasted and are best renewed
• Tighten evenly and progressively across the flange to the figure given in the workshop manual for your engine, then re-check once the engine has been hot and cooled again
• Where the elbow meets exhaust hose, use sound hose and the specified clamping arrangement, and keep the run rising and falling as designed so water cannot track back to the engine

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 21325767 (V-clamp)
• 20555025 (plug)
• 969011 (gasket)

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-330I-D, D6-310I-B, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E, D6-310I-D, D6-435I-D, D6-310I-E, D6-280I-A, D6-310I-A, D6-300I-F, D6-370I-A, D6-370I-B, D6-330I-B, D6-330I-C, D6-370I-C, D6-370I-D, D6-310I-C, D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-330I-F, D6-370I-F, D6-435I-A, D6-435I-C, D6-435I-E, D6-435I-F, D6-330I-E, D6-370I-E
