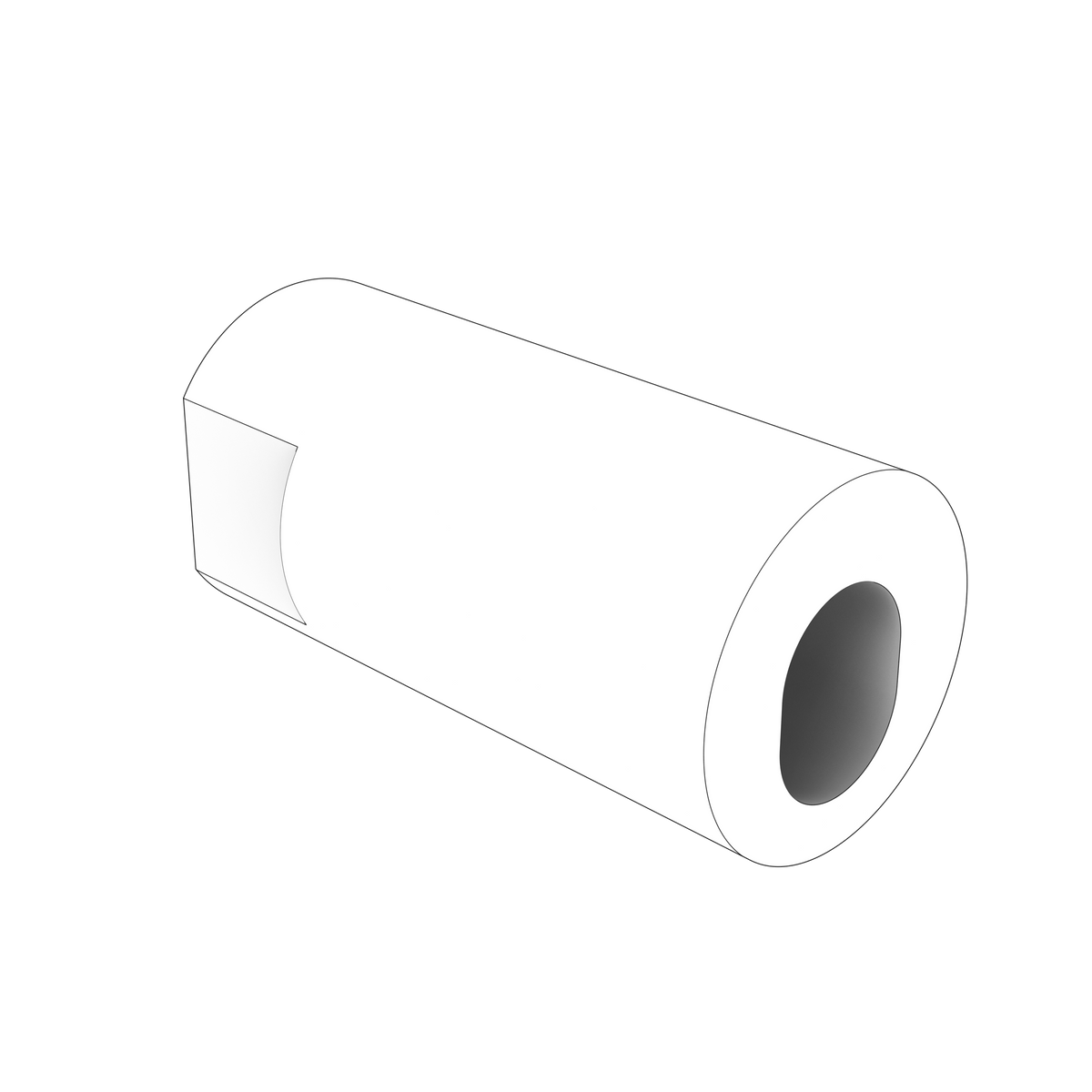

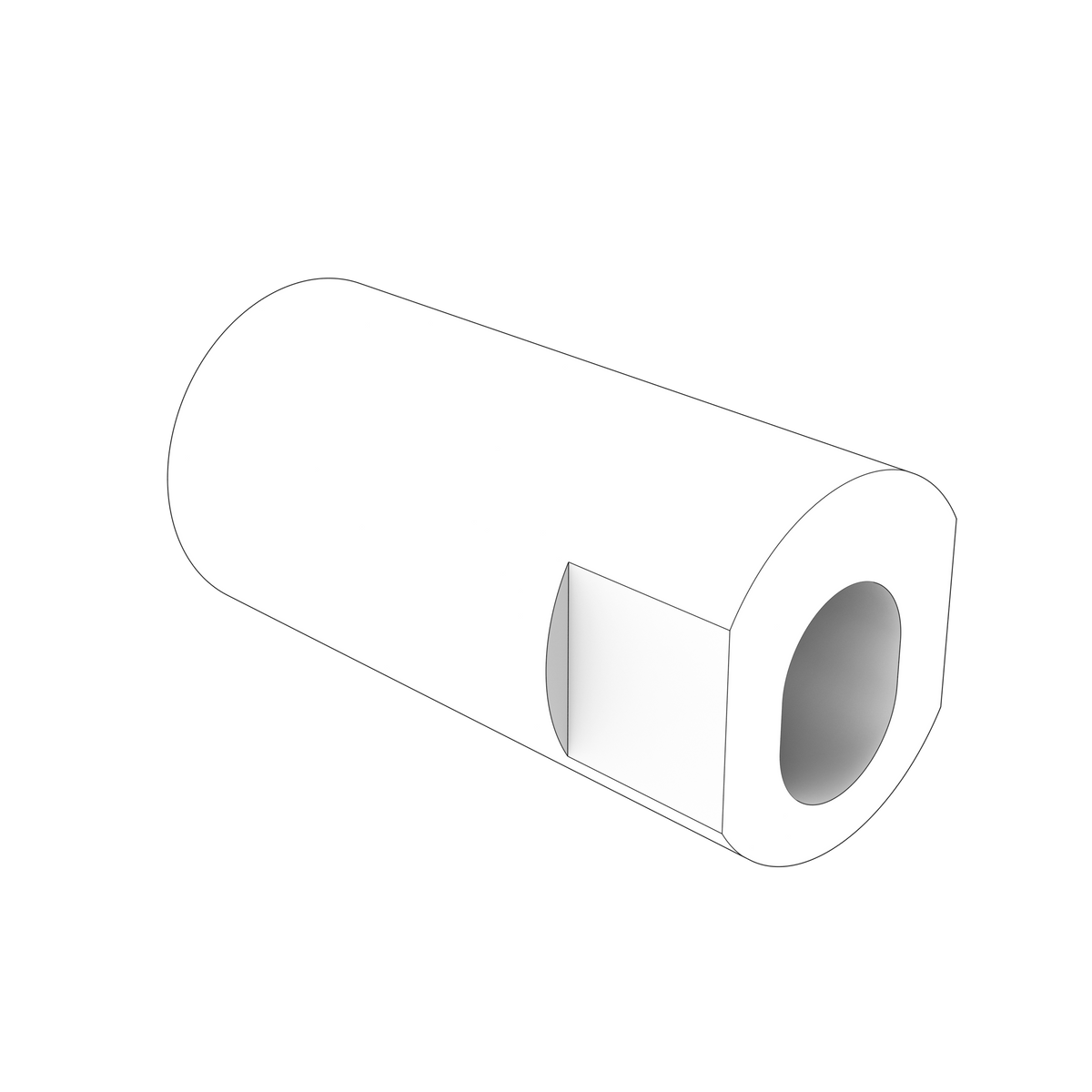

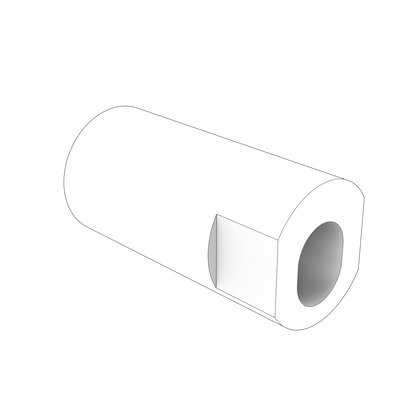

22320333 Sleeve | Genuine Volvo Penta Part

🔧 Product Description

A heavy-duty OEM sleeve used in a Volvo Penta exhaust-pipe support and joint assembly. It provides the correct diameter, support length and mating geometry for the adjoining exhaust pipe and clamp hardware, helping the hot exhaust connection remain aligned without fretting or gas leakage. This is an installation-specific structural sleeve, not an engine cylinder liner.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD1380-82GE
• Volvo Penta TAD1381-85VE
• Volvo Penta TAD1371-75VE
• Volvo Penta TAD1351-53VE
• Volvo Penta TAD1384-85VE-IWP

• Engine Family: TAD

⚙️ Key Features

• Genuine Volvo Penta exhaust-system component
• Manufactured for the original exhaust pipe diameter and support arrangement
• Supports alignment across a hot, vibration-loaded joint
• Designed to work with the specified V-clamp, bracket and fastener arrangement
• Approximate component weight: 0.077 kg
• Sleeve only; adjoining pipe, clamp, brackets and fasteners are separate service parts

🔌 Function

Supports and locates the adjoining exhaust-pipe section while allowing the specified clamp and bracket system to maintain a secure, gas-tight joint.

⚠️ Common Signs of Failure

• Soot staining or exhaust smell around the sleeve joint
• Rattling, fretting or movement at the exhaust support
• Cracking, heat distortion or corrosion
• Damaged clamp seating surface
• Misalignment that repeatedly damages the V-clamp or adjoining pipe

🛠️ Service Notes

• Check which way round the sleeve goes before the old one comes out — sleeves are rarely symmetrical, and one end is usually chamfered or stepped to lead into the bore
• Clean and inspect the bore it seats in; a sleeve takes its final shape and fit from that bore, so corrosion, scoring or an oval bore will spoil a new part
• Draw or press the sleeve in square with the correct tool rather than driving it in — a sleeve started crooked will nip, and the material displaced by a hammer blow never fully recovers
• Renew any O-ring, seal or gasket that seats against the sleeve while it is out, and lubricate on assembly as the manual for your engine specifies
• Confirm the sleeve is fully home to the depth or flush condition the workshop manual gives before reassembling anything on top of it

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22320333 → Supersedes 78467303 → Supersedes 22301039 → Supersedes 22007847

OEM / Related Numbers

• 78467303 earlier number superseded by this part
• 22301039 earlier number superseded by this part
• 22007847 earlier number superseded by this part
• 21308849 – Associated exhaust pipe
• 21211715 – Associated V-clamp
• 952050 – Associated spring pin
• 994441 – Associated flange screws
• 994390 – Associated flange screws
• 984749 – Associated flange screws
• 990950 – Associated flange lock nut

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
