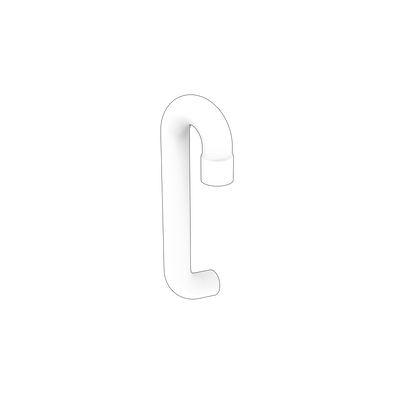

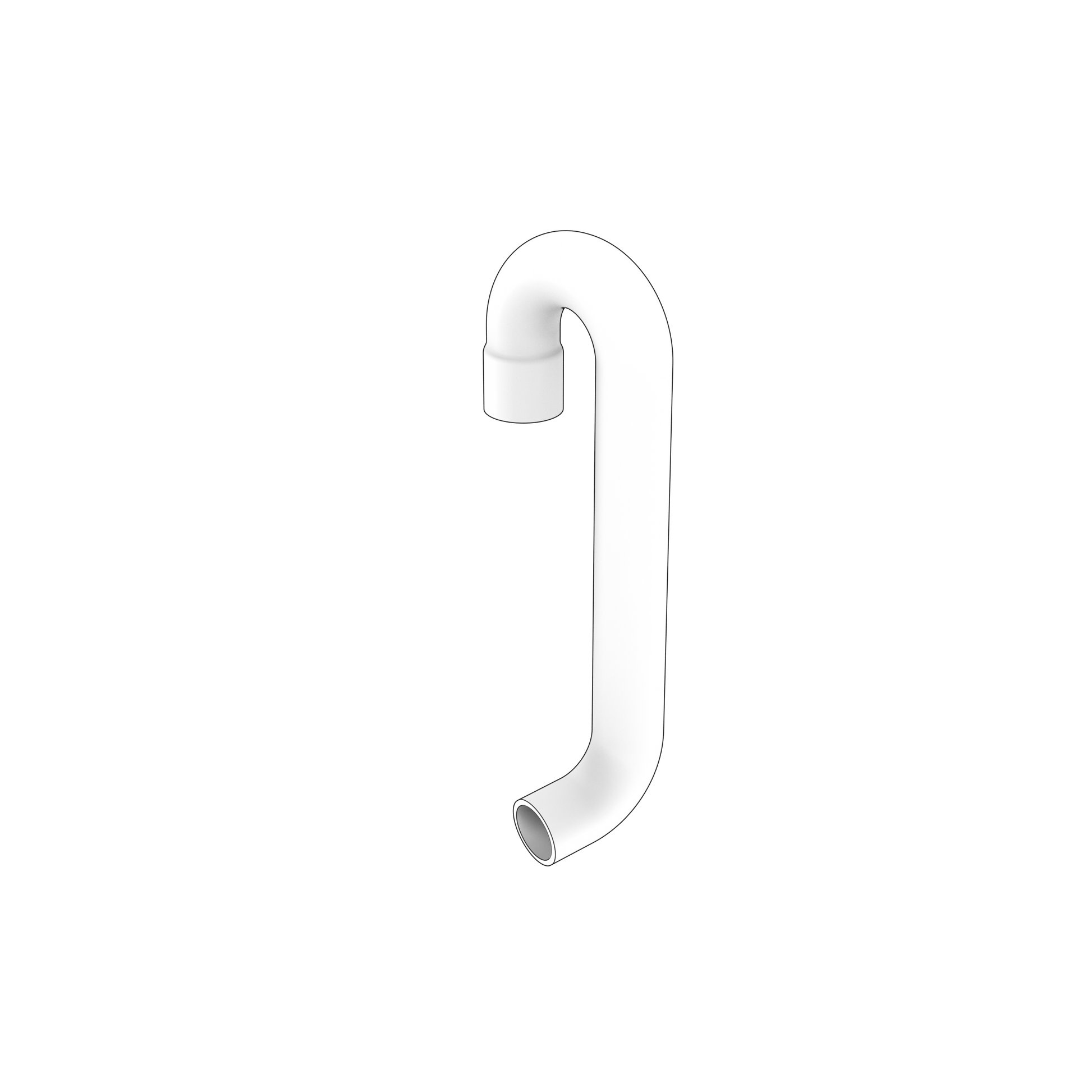

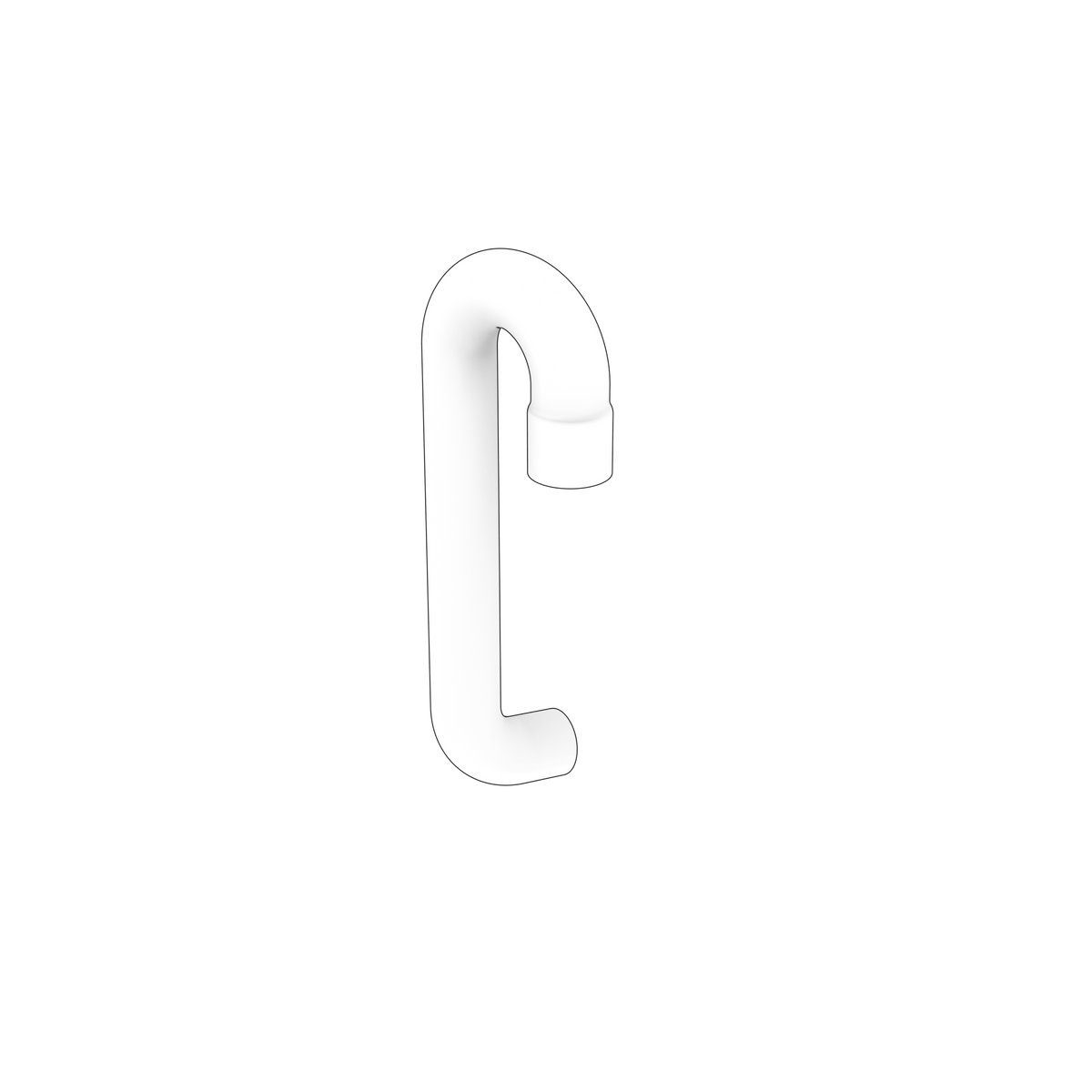

22320922 Hose | Genuine Volvo Penta Part

🔧 Product Description

A moulded coolant hose used in the external keel-cooling circuit of the Volvo Penta D6-280A-A. Its bend profile, internal diameter and connection length are matched to the original cooling layout so coolant can circulate without kinking, rubbing or restriction.

🚤 Compatibility

• Engine Family: D
• HP Range: 280-400 HP

Full model list at the end of this description.

⚙️ Key Features

• Catalogued for the D6-280A-A external keel-cooling system
• Correct bend radius and hose-end dimensions
• Designed for engine-coolant temperature and pressure
• Helps maintain unrestricted flow through the keel cooler
• Hose only; clamps and flange fasteners are separate service items

🔌 Function

Carries closed-circuit engine coolant between the engine and the external keel cooler, allowing heat to be transferred through the vessel-mounted cooler.

⚠️ Common Signs of Failure

• Coolant seepage or dried residue at the hose ends
• Cracking, hardening, swelling or blistering
• Chafing against brackets or structure
• Hose collapse or internal delamination
• Rising coolant temperature or repeated coolant loss

🛠️ Service Notes

• Fit hoses only to clean, sound spigots — take off old rubber, scale and corrosion, and renew the spigot or pipe if it is pitted, because no clamp will seal a rough sealing face
• Push the hose fully home so the clamp sits behind the bead or barb rather than over the end of the spigot, and fit new clamps whenever a hose is renewed
• Let the hose follow its natural bend with no kinks and no tension on either connection, clear of hot surfaces and moving parts, with chafe protection wherever it passes a bracket, edge or bulkhead
• Use the correct grade of hose for the duty, and clamp to the standard the installation demands — twin clamps are normal practice on seawater and fuel connections below the waterline
• Refill, vent and run the engine, then check every joint hot and cold and recheck the clamps after the first running period as the hose beds down

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 969354 - Associated clamp
• 984733 - Associated flange screw
• 994564 - Associated hose clamp
• 994563 - Associated hose clamp

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-370A-C, D6-350A-A, D6-350A-B, D6-330A-D, D6-330A-F, D6-370A-F, D6-330A-C, D6-370A-D, D6-330A-E, D6-370A-E, D6-300A-F, D6-310A-B, D6-280A-C, D6-310A-C, D6-310A-A, D6-280A-D, D6-310A-D, D6-280A-E, D6-310A-E, D6-280A-A, D6-280A-B, D6-400A-E, D6-400A-F, D6-330A-B, D6-370A-B
