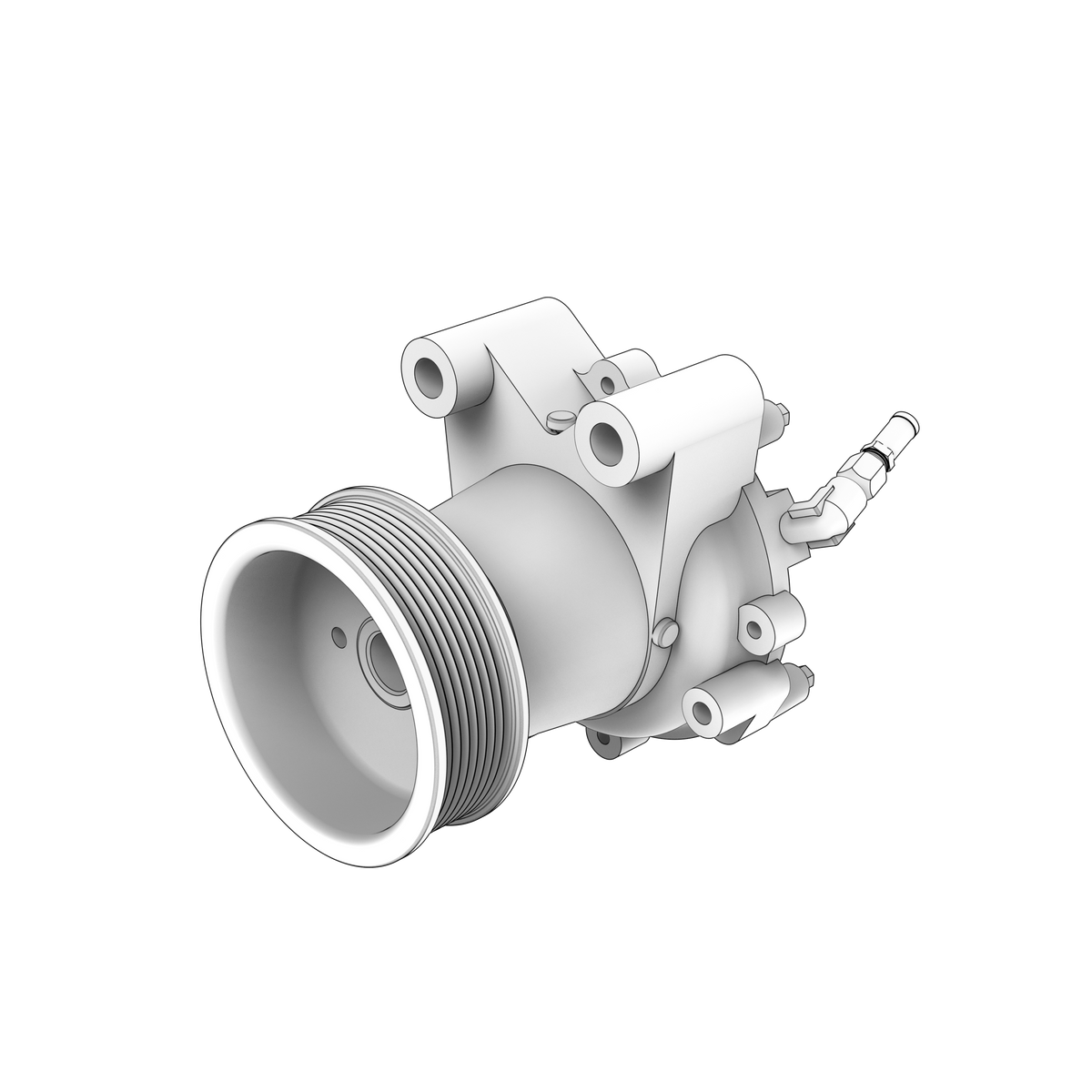

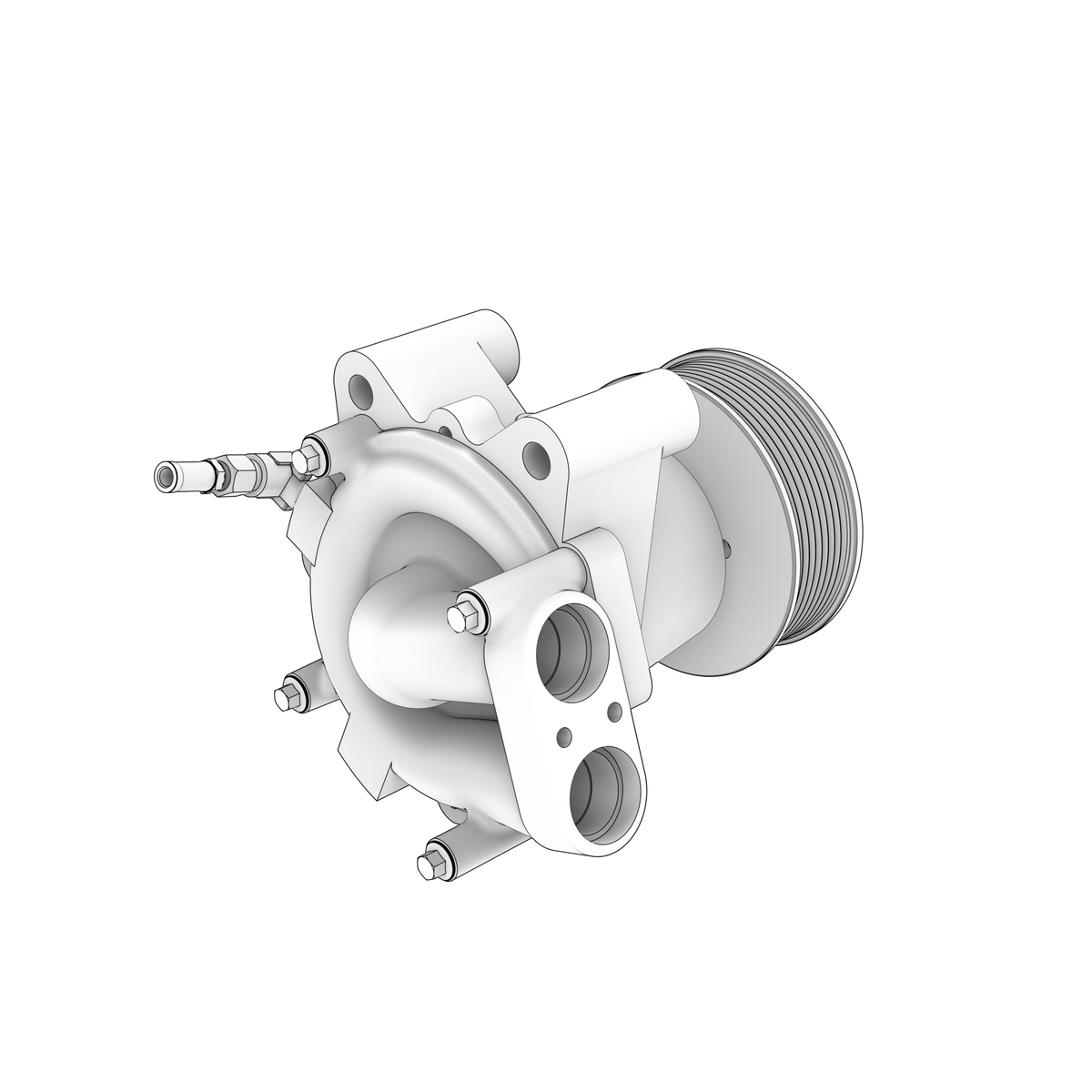

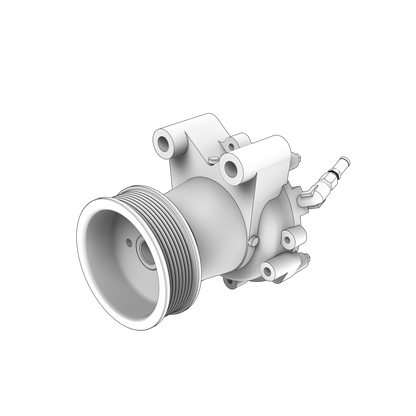

22331121 Water Pump | Genuine Volvo Penta Part

🔧 Product Description

A complete genuine coolant pump used on the Volvo Penta TWD1643GE dual-circuit cooling system. The pump circulates coolant through the engine and associated radiator circuit and applies from serial number 2016080036 on the documented TWD1643GE arrangement.

🚤 Compatibility

Typically suits:

• Volvo Penta TWD1643GE
• Volvo Penta TWD1652GE
• Volvo Penta TWD1653GE
• Volvo Penta TWD1644-45GE
• Volvo Penta TWD1663GE
• Volvo Penta TWD1682-83GE
• Volvo Penta TWD1683GE-B
• Volvo Penta TWD1672-1673GE
• Volvo Penta TWD1744GE

• Engine Family: TWD

⚙️ Key Features

• Genuine Volvo Penta complete engine water pump
• Catalogued for the TWD1643GE dual cooling circuit
• Documented application from serial number 2016080036
• Correct shaft, bearing, impeller and mounting geometry
• Works with the original water-pump bracket and pulley
• Pump installation requires a clean cooling system and correct coolant mixture

🔌 Function

Circulates engine coolant through the cylinder block, cylinder head and radiator circuit to control combustion and component temperatures.

⚠️ Common Signs of Failure

• Coolant leakage from the shaft seal or housing
• Bearing rumble, squeal or excessive shaft play
• Engine overheating or poor coolant circulation
• Pulley wobble or repeated belt misalignment
• Cavitation damage or corroded impeller
• Coolant contamination around the weep passage
• Intermittent overheating at high load

🛠️ Service Notes

• Drain coolant to below the pump, and note the belt routing and hose positions before the old pump comes off
• Clean the mounting face back to bare metal without scoring it, and fit new gaskets or O-rings — a pump will not seal onto old gasket remains
• Turn the new pump by hand before fitting to confirm it runs smooth and free, and handle it by the housing rather than by the impeller or shaft
• Tighten the mounting bolts evenly to the figure in the workshop manual, then set belt tension by the procedure for your engine; an overtensioned belt is the usual reason a pump has a short life
• Refill and vent the cooling system, run the engine to temperature, and check for coolant at the weep hole and around the mounting face

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 22333499 - Associated water-pump bracket
• 3830051 - Associated pulley
• 984817 - Associated mounting screws
• 984735 - Associated mounting screws
• 11030155 - Associated plastic plug

Aftermarket / Verified Equivalents

• SRP: WP-31121

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
