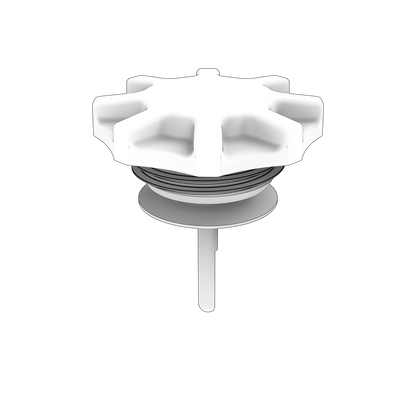

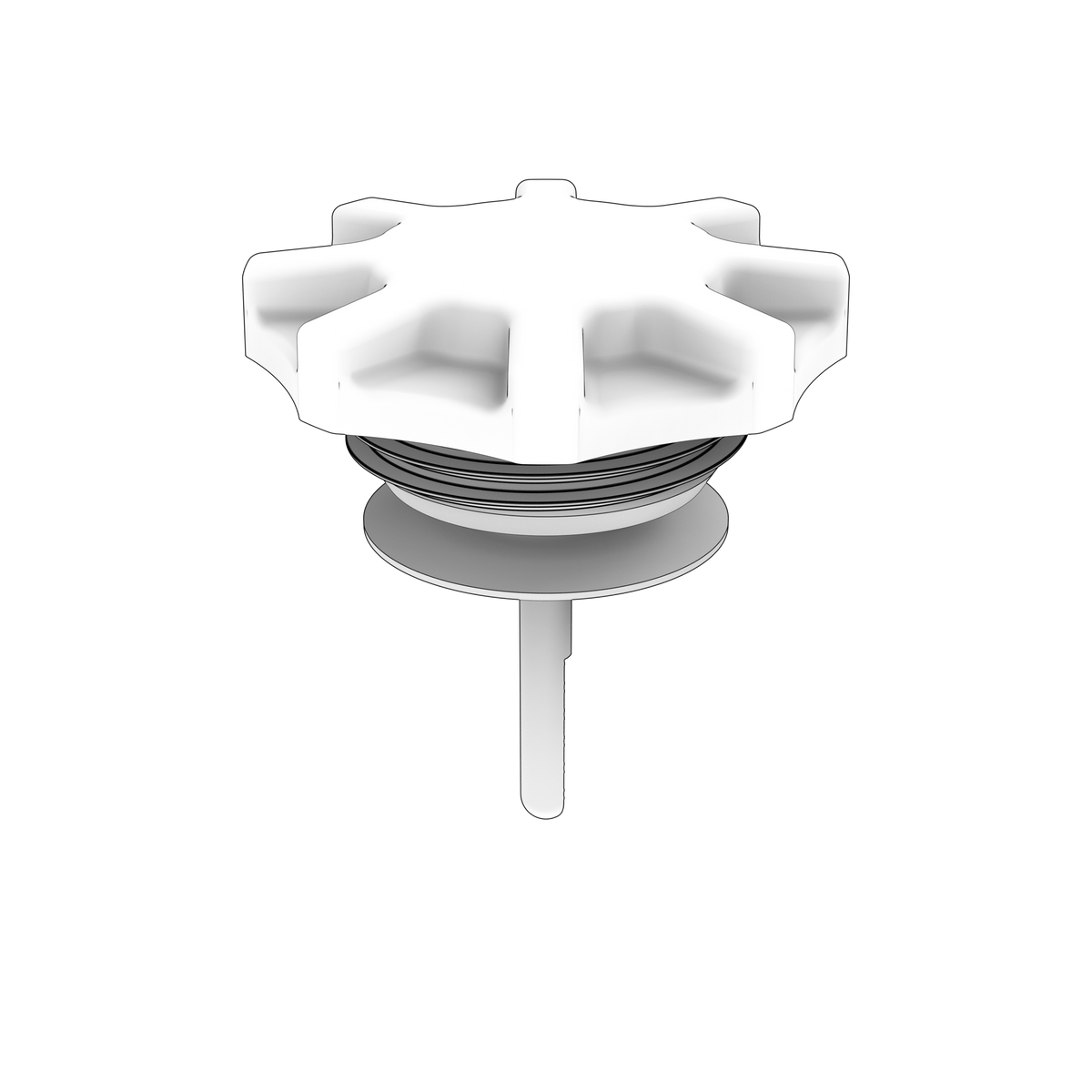

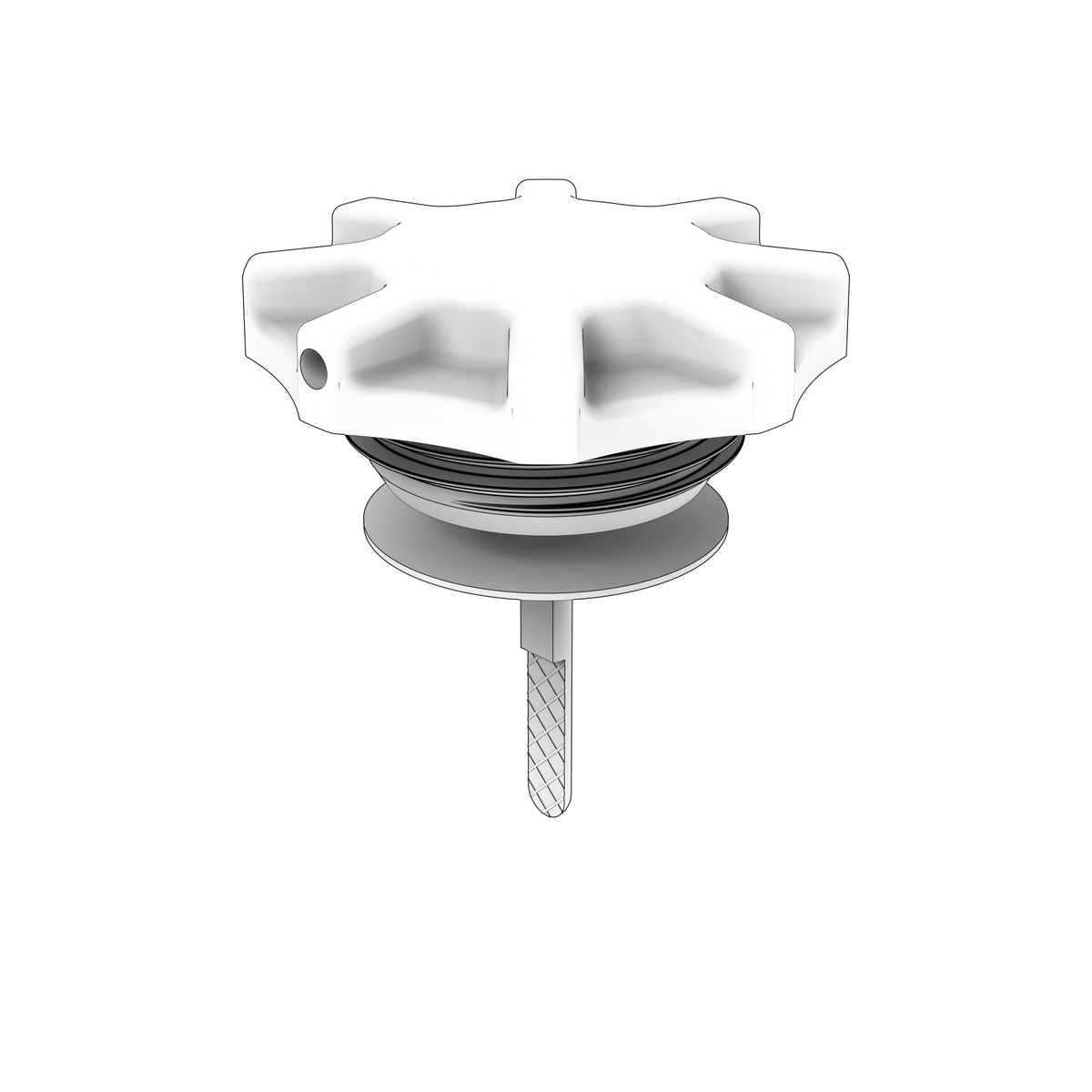

22340054 Cap | Genuine Volvo Penta Part

🔧 Product Description

A genuine service cap used on a Volvo Penta oil-filter or lubrication-system housing. The cap closes the filter access or service opening and provides the correct thread, sealing groove and tightening interface for the original housing.

🚤 Compatibility

• Engine Family: V
• HP Range: 200-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta lubrication-system cap
• Used in an oil-filter or oil-housing service assembly
• Correct thread and sealing-ring groove
• Designed for hot engine oil and crankcase pressure
• Allows proper filter access and housing closure
• Cap only; O-ring, filter element and housing are separate unless supplied

🔌 Function

Seals the filter-housing service opening so engine oil remains contained and flows through the intended filtration path.

⚠️ Common Signs of Failure

• Oil leakage around the cap
• Cracked cap or damaged tightening feature
• Stripped or cross-threaded cap
• Flattened, cut or missing O-ring
• Cap will not seat to the specified stop

🛠️ Service Notes

• Clean and inspect the seating face on the housing as well as the cap — most leaks past a cap are the seat or the seal rather than the cap body
• Renew any separate O-ring or gasket that goes with the cap, and lubricate rubber seals lightly with clean oil or grease so they slide home instead of rolling or tearing
• Do not over-tighten a cap into a plastic or aluminium housing; it seals on its gasket or O-ring, not on force, and stripped threads mean a much bigger repair
• Where a cap blanks a port during a repair, keep it fitted right up to the moment of assembly so nothing enters the opening
• Check the cap is fully home and that any retaining clip, lanyard or locking tab is secure before returning the boat to service

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
