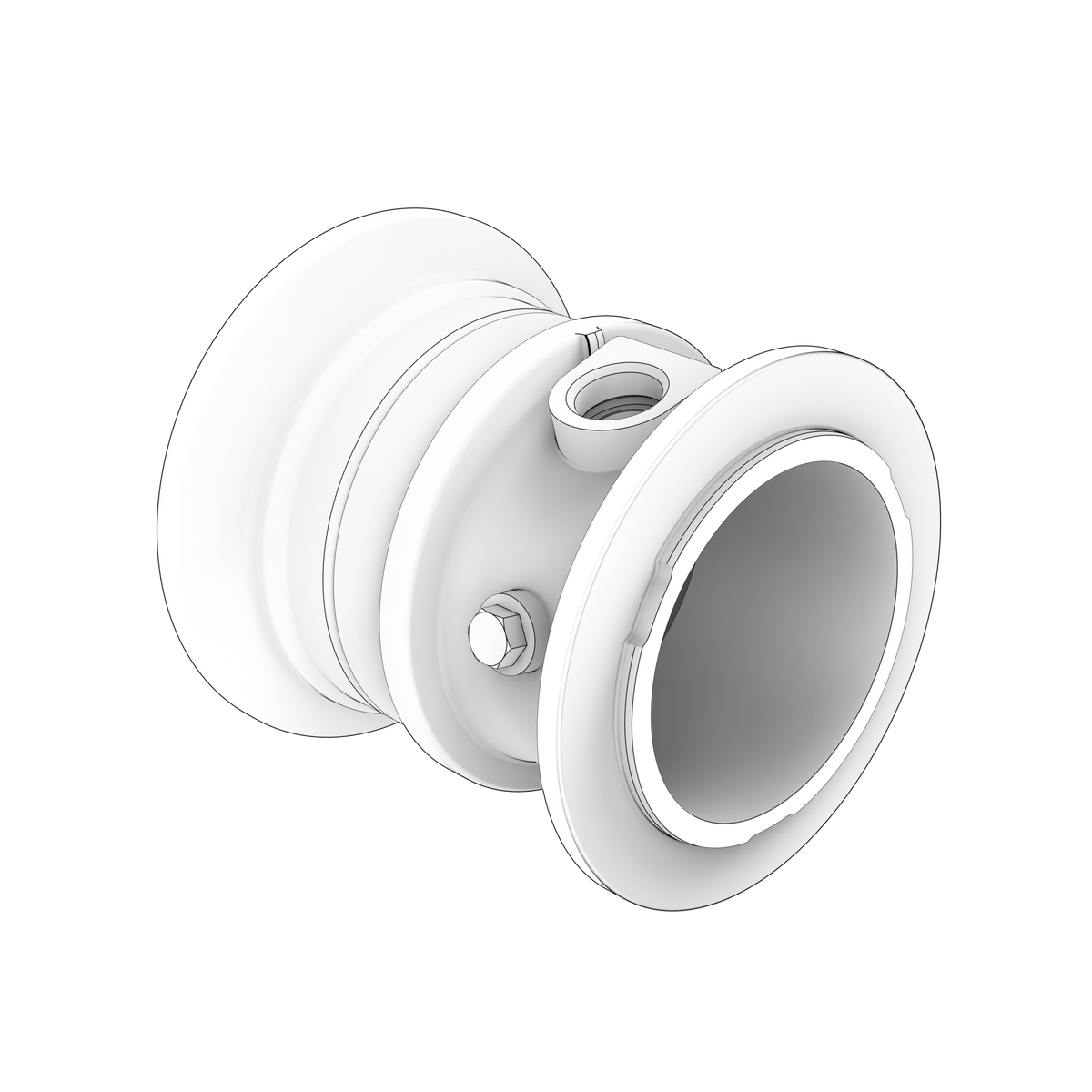

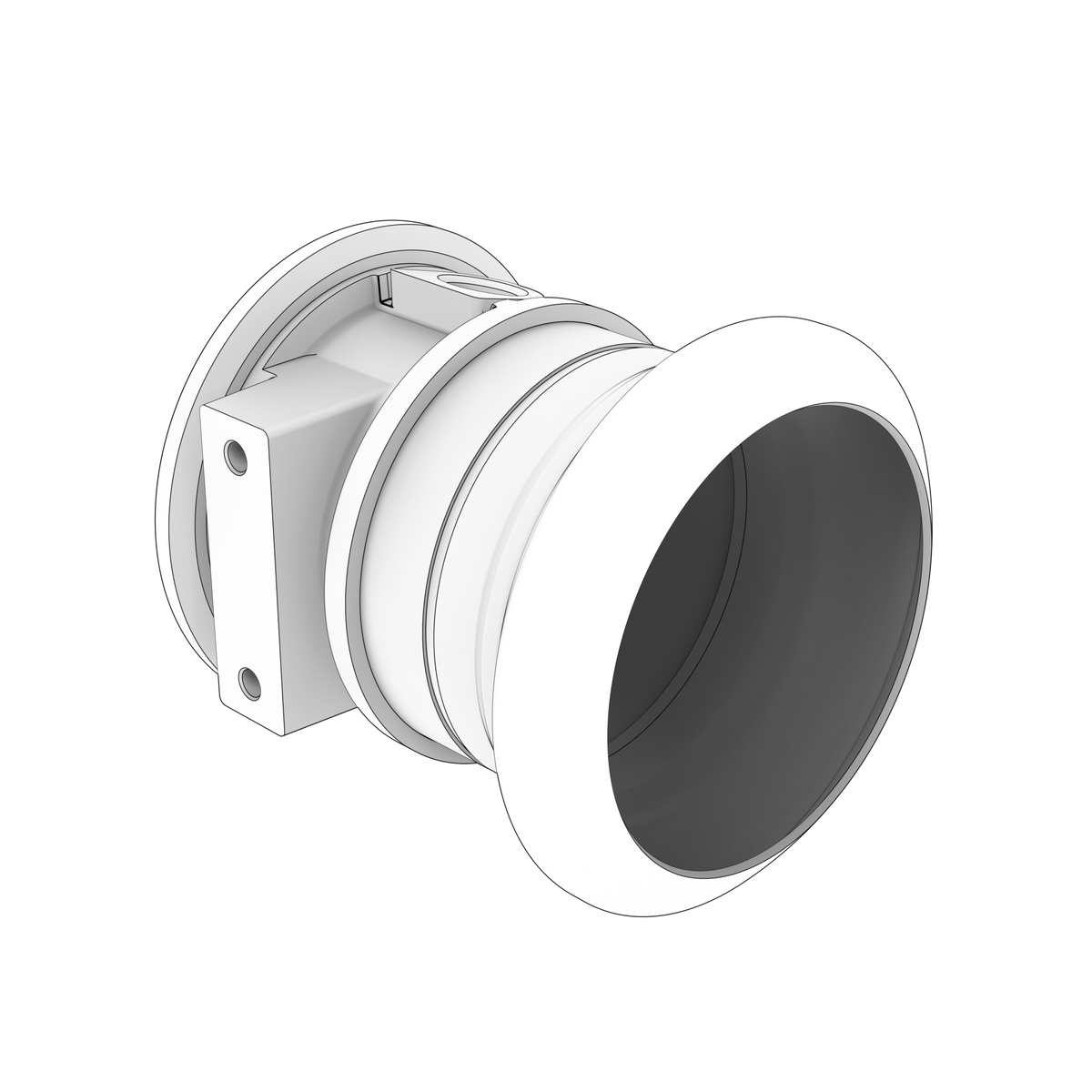

22344961 Exhaust Pipe | Genuine Volvo Penta Part

🔧 Product Description

A genuine formed exhaust pipe used in selected Volvo Penta industrial inlet and exhaust installations. It connects the engine-side exhaust components to downstream pipes or silencer hardware and retains the correct flange geometry and gas-flow diameter.

🚤 Compatibility

Typically suits:

• Volvo Penta TAD570-72VE
• Volvo Penta TAD570-71VE-B
• Volvo Penta TAD870-73VE

• Engine Family: TAD

⚙️ Key Features

• Genuine Volvo Penta hot-side exhaust pipe
• Used in an industrial engine inlet and exhaust system
• Precision-formed route and clamp ends
• Designed for high exhaust temperature and vibration
• Maintains the specified exhaust bore and back pressure
• Pipe only; V-clamps, gaskets, supports and muffler are separate

🔌 Function

Carries hot exhaust gas between the engine outlet and the downstream silencer or exhaust system.

⚠️ Common Signs of Failure

• Soot staining or exhaust smell
• Cracks at welds, bends or clamp ends
• Heat distortion or corrosion
• Rattling from failed support
• Loss of power caused by restriction or leakage

🛠️ Service Notes

• Fit new gaskets and seals at every joint you disturb; exhaust gaskets take a set once they have been heat-cycled and will not seal a second time
• Clean the flange faces back to bare, flat metal and check them for distortion and pitting — a warped face will blow out a new gasket however hard it is pulled up
• Renew corroded studs and nuts, use a high-temperature anti-seize on the threads, and tighten in the sequence and to the figures in the workshop manual for your engine; recheck once the engine has been run up to temperature and allowed to cool, because the joint relaxes over the first few heat cycles
• Support the pipe on its own mountings so nothing hangs on the flange and no hose pull is taken through the joint, and keep the specified clearance to hoses, wiring and glassfibre
• On water-cooled sections, check the cooling passages are clear and the water connections sound before running — a restricted jacket will cook the pipe and the hose behind it

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22344961 → Supersedes 22395222 → Supersedes 22175307

OEM / Related Numbers

• 22395222 earlier number superseded by this part
• 22175307 earlier number superseded by this part
• 22338248 - Associated reducer flange
• 22338252 - Associated pipes
• 22344991 - Associated pipes
• 22344993 - Associated pipes
• 20828465 - Associated V-clamps
• 20828464 - Associated V-clamps

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
