• 22347418 Hose Connection | Genuine Volvo Penta Part
1 1

22347418 Hose Connection | Genuine Volvo Penta Part

22347418 Hose Connection | Genuine Volvo Penta Part

$1,033.54 AUD
$1,033.54 AUD
Sale Sold out
Shipping calculated at checkout.

Available from Volvo Penta international

Typically reaches our store in 10–14 business days

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

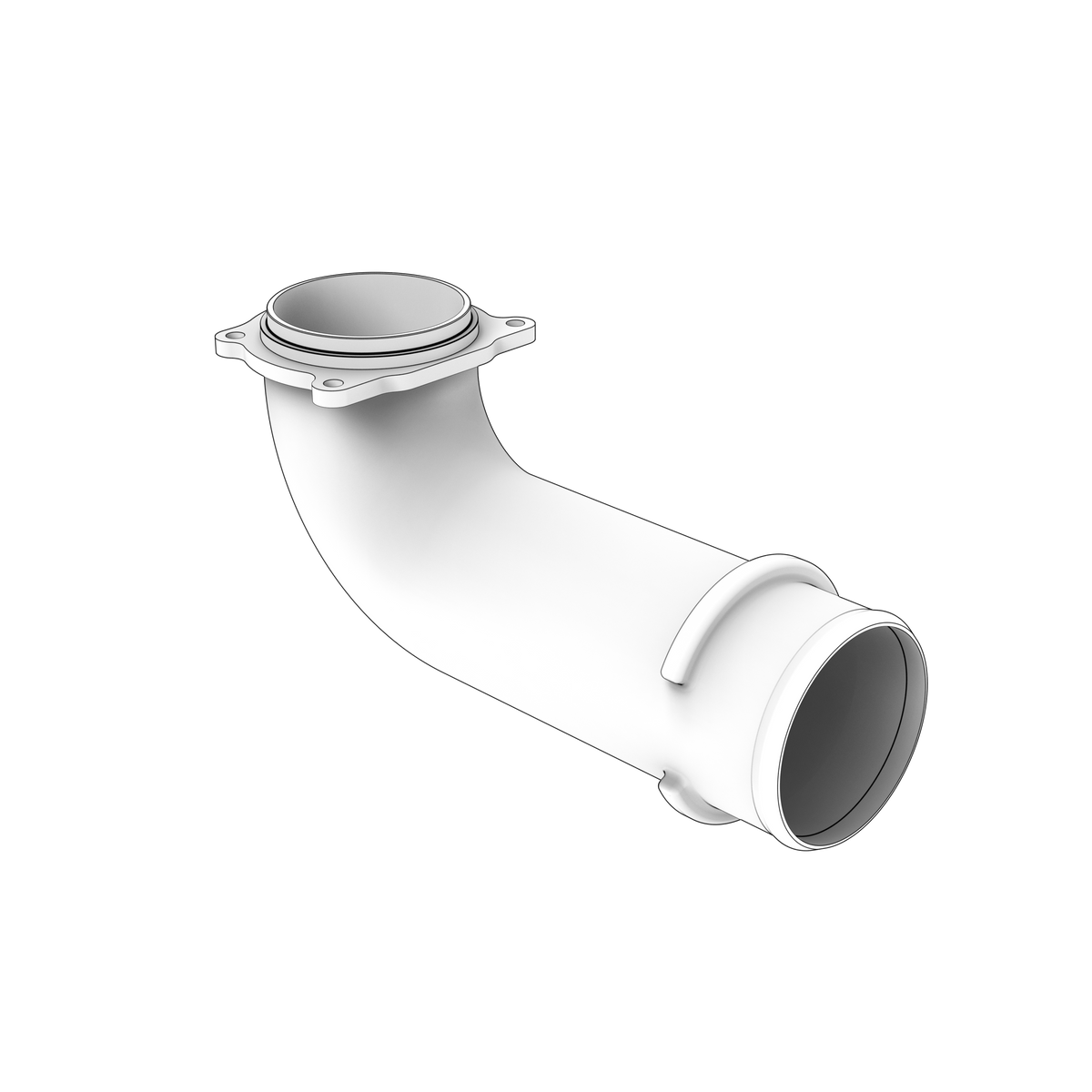

A genuine hose-connection body used in Volvo Penta TWD16 generator cooling packages. It provides the formed outlet, mounting interface and sealing locations between the radiator/tank assembly and external coolant hose.

🚤 Compatibility

Typically suits:

  • Volvo Penta D16C-A MG
  • Volvo Penta TWD1643GE
  • Volvo Penta TWD1652GE
  • Volvo Penta TWD1653GE
  • Volvo Penta TWG1663GE
  • Volvo Penta D16C1-E MG
  • Volvo Penta D16C1-F MG
  • Volvo Penta D16C2-E MG
  • Volvo Penta D16C2-F MG
  • Volvo Penta D16C-D MH
  • Volvo Penta TWD1644-45GE
  • Volvo Penta TWD1663GE
  • Volvo Penta D16C1-F MH
  • Volvo Penta D16C2-E MH
  • Volvo Penta D16C2-F MH
  • Volvo Penta TWD1682-83GE
  • Volvo Penta TWD1683GE-B
  • Volvo Penta TWD1672-1673GE
  • Volvo Penta TWD1744GE
  • Engine Family: D, TWD, TWG

⚙️ Key Features

  • Genuine Volvo Penta cooling hose connection
  • Catalogued for TWD1643GE, TWD1652GE and TWD1653GE
  • Correct hose neck and mounting geometry
  • Works with the specified tank, pipe, O-ring and plug
  • Designed for hot pressurised engine coolant
  • Connection only; hose, clamps, seals and tank are separate

🔌 Function

Connects the coolant tank or radiator assembly to the external hose while providing a rigid, sealed flow path.

⚠️ Common Signs of Failure

  • Coolant leakage around the O-ring or hose neck
  • Cracked or corroded connection body
  • Damaged hose bead or sealing groove
  • Loose hose caused by distortion
  • Restricted passage or overheating

🛠️ Service Notes

  • Check the connection and the hose bore are clean and undamaged, and push the hose fully onto the spigot past the bead before clamping
  • Position the clamp on the parallel part of the spigot behind the bead, and tighten it enough to seal without cutting into the hose
  • Renew the O-ring, gasket or sealing washer where the connection screws or bolts into a housing, and check the thread and the seat are clean and dry
  • Support the pipework so the joint is not carrying the load or the pull of the hose — a connection loaded sideways will weep
  • Fill, vent and pressurise the system, then check the joint cold and again at operating temperature, retightening the clamp if it has taken up

🔄 Supersession & Cross Reference

OEM / Related Numbers

  • 22347419 - Associated tank
  • 22347423 - Associated pipes
  • 22347416 - Associated pipes
  • 22347426 - Associated O-ring
  • 22347425 - Associated plug
  • 22075210 - Associated seals
  • 22075211 - Associated seals
  • 22075120 - Associated seals

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
