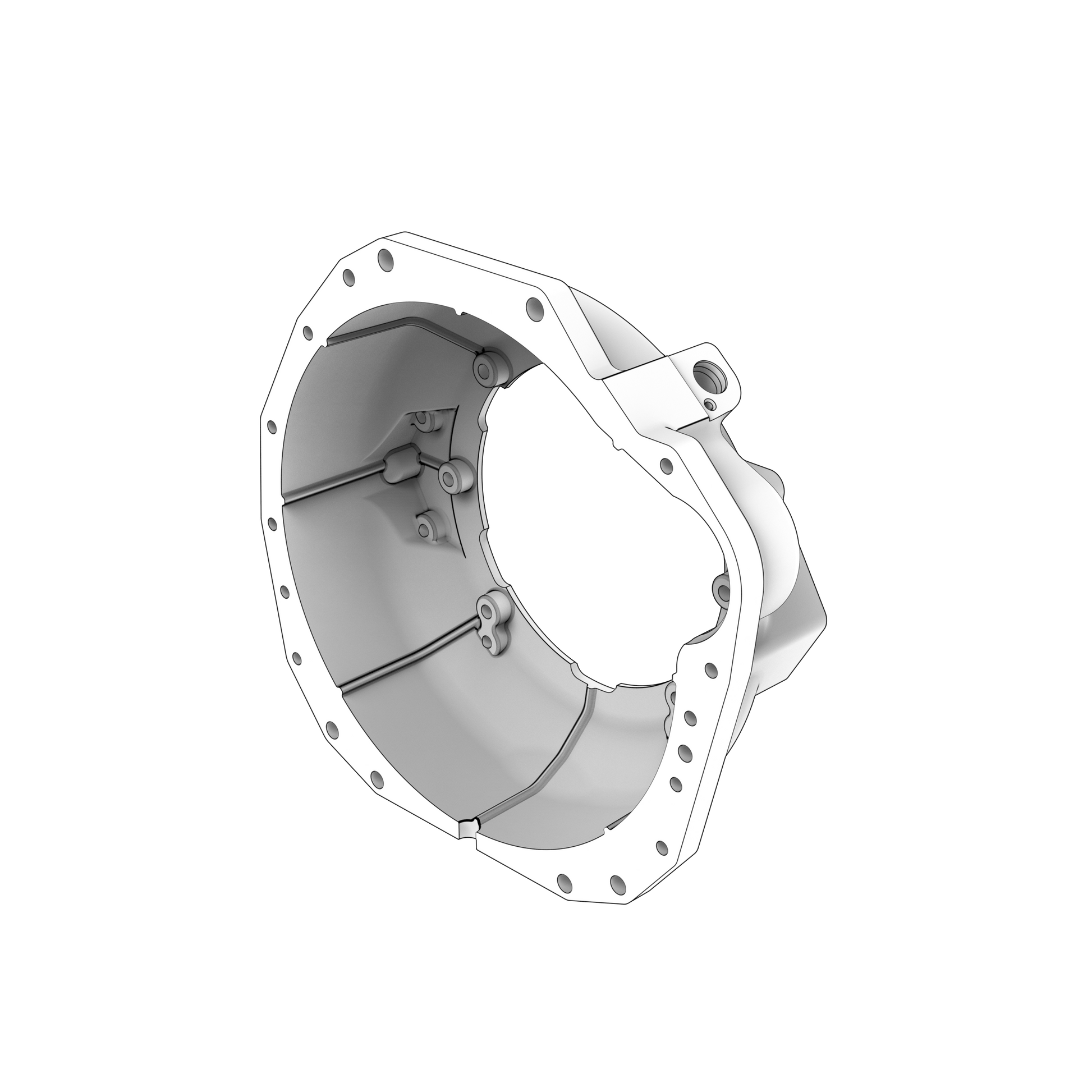

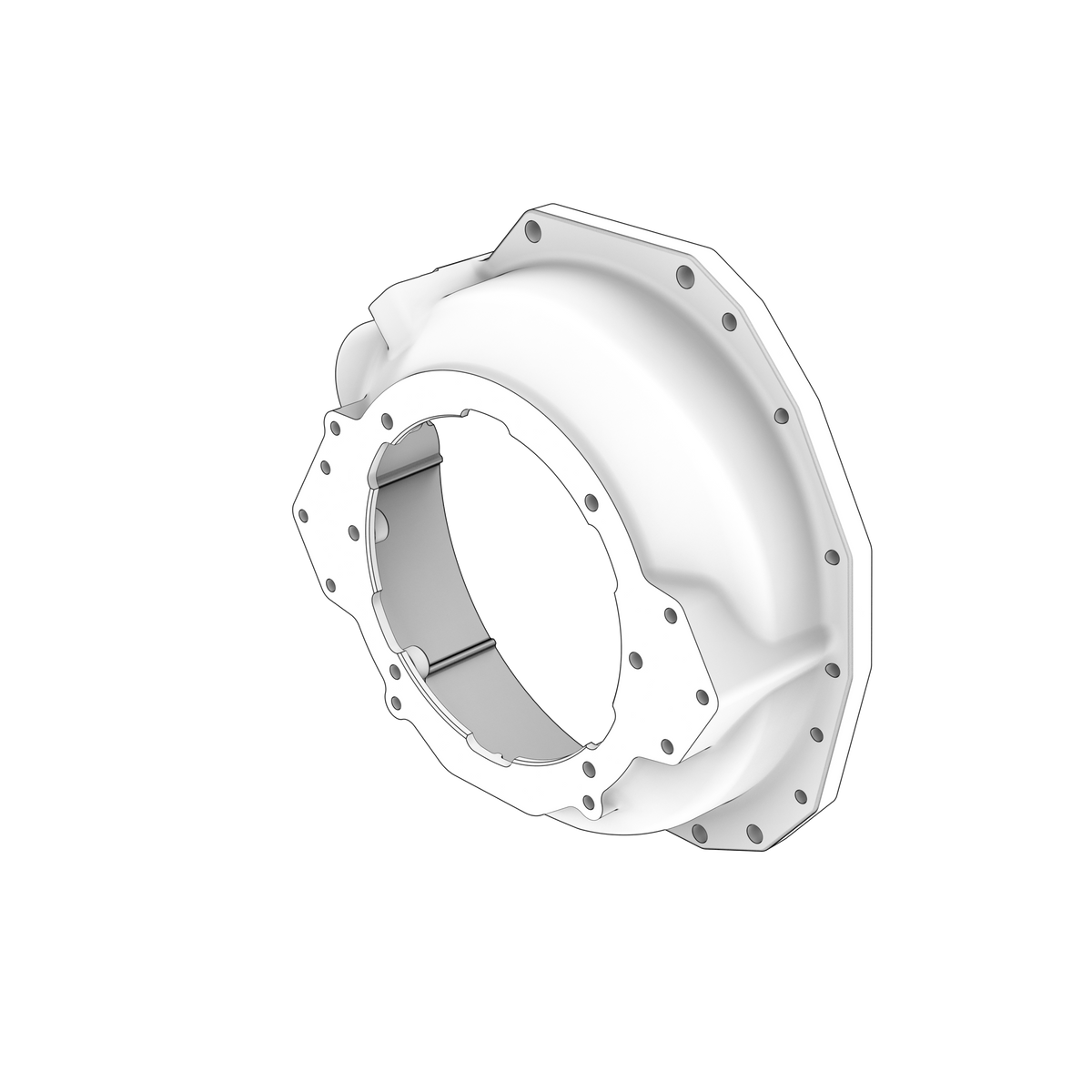

22351268 Flywheel Housing | Genuine Volvo Penta Part

🔧 Product Description

A genuine Volvo Penta flywheel housing for D2-series four-cylinder marine diesel engines, manufactured for the 20 mm engine-speed sensor arrangement. It encloses the flywheel, maintains alignment between the engine and transmission/reversing gear, supports associated mounting geometry and provides the correct speed-sensor bore.

🚤 Compatibility

Typically suits:

• Volvo Penta D2-55
• Volvo Penta D2-55B
• Volvo Penta D2-55C
• Volvo Penta D2-55D
• Volvo Penta D2-55E
• Volvo Penta D2-55F
• Volvo Penta D2-50F
• Volvo Penta D2-75
• Volvo Penta D2-75B
• Volvo Penta D2-75C
• Volvo Penta D2-75F
• Volvo Penta D2-60F

• Engine Family: D
• HP Range: 50-75 HP

⚙️ Key Features

• D2-series flywheel housing with 20 mm speed-sensor opening
• Maintains engine-to-transmission concentric alignment
• Protects the flywheel and ring gear
• Provides original mounting and sensor geometry
• Must be distinguished from the 24 mm sensor-bore housing
• Engine type: Four-cylinder naturally aspirated or turbocharged marine diesel, installation-dependent
• Also supersedes Volvo part number 3583725

🔌 Function

Forms the structural enclosure around the flywheel and ring gear, aligns the engine with the connected transmission or reversing gear, supports mounting interfaces and locates the 20 mm engine-speed sensor at the correct distance from the rotating target.

⚠️ Common Signs of Failure

• Cracked casting or damaged mounting flange
• Oil or contamination entering the flywheel area
• Abnormal vibration from engine-to-transmission misalignment
• Damaged speed-sensor bore or unreliable engine-speed signal
• Stripped mounting threads
• Ring-gear or flywheel contact marks inside the housing

🛠️ Service Notes

• Clean both faces back to bare metal and remove every trace of old gasket and sealant before offering the housing up; trapped debris on this joint causes both leaks and misalignment
• Locate the housing on its dowels and pull it down evenly, working outwards from the centre, in the sequence and to the figures in the workshop manual for your engine
• Seal the joints where the housing meets the block and the sump exactly as the manual specifies — those corners are a common source of oil weeps
• Renew the crankshaft rear seal while the access is open rather than refitting an old one, and check its running surface at the same time
• Confirm the housing bore and face run true to the crankshaft before hanging a gearbox or drive on it; a housing out of alignment will destroy couplings and bearings

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22351268 → Supersedes 3587360

OEM / Related Numbers

• 3587360 - related earlier/alternative housing with 24 mm sensor bore; not directly interchangeable without confirming the sensor arrangement

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
