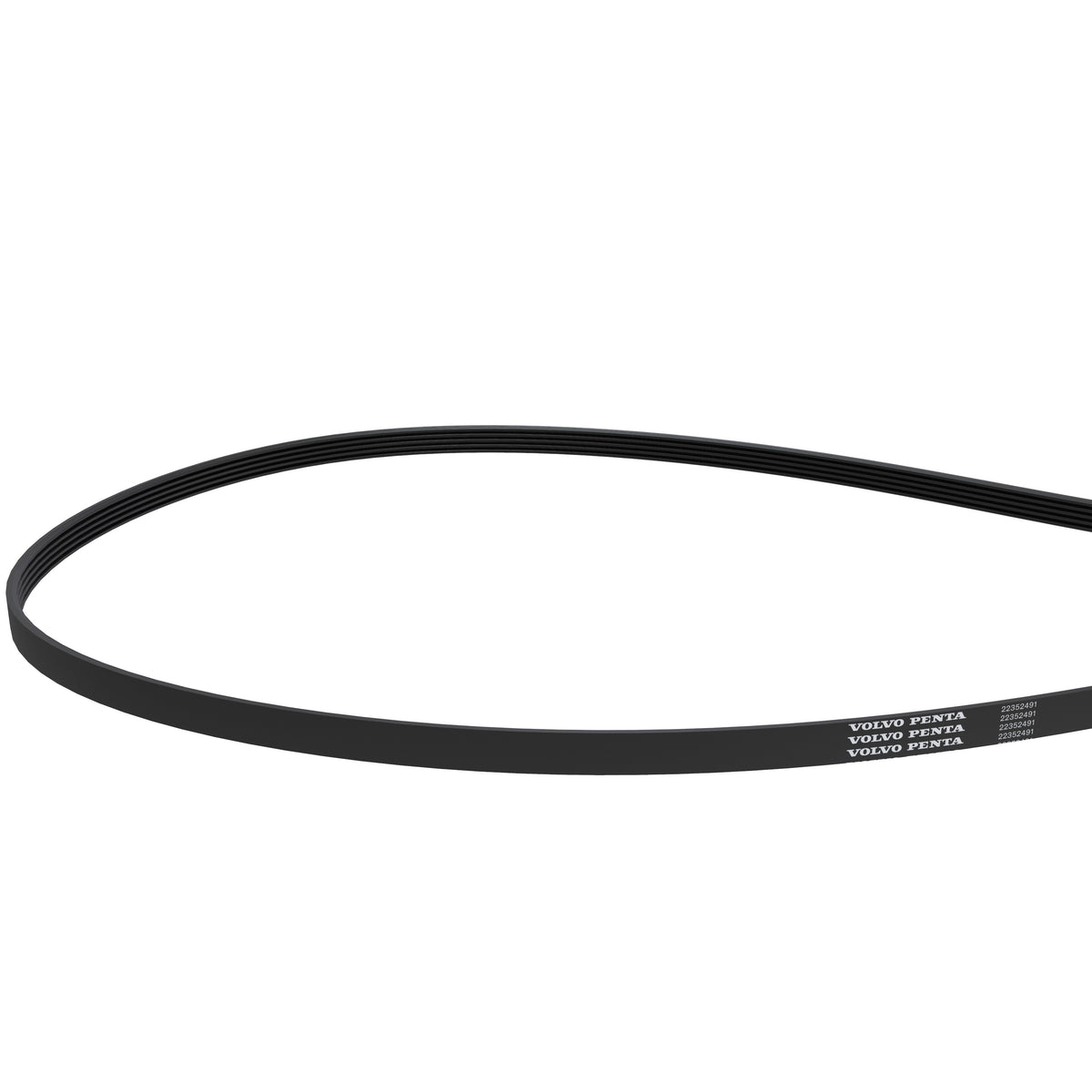

22352491 V-Ribbed Belt | Genuine Volvo Penta Part

🔧 Product Description

A genuine multi-rib accessory drive belt used on later Volvo Penta D3 marine diesel installations equipped with hydraulic power steering. The belt transfers crankshaft drive to the power-steering pump and is manufactured to the correct rib profile, length and load rating for the factory pulley layout.

🚤 Compatibility

• Engine Family: D
• HP Range: 110-220 HP

Full model list at the end of this description.

⚙️ Key Features

• Factory-profile multi-rib belt for the D3 power-steering drive
• Maintains correct grip and pulley tracking under marine engine loads
• Designed for the later D3 steering arrangement
• Direct replacement for the earlier Volvo Penta belt reference
• Correct belt tension and pulley alignment are essential during installation
• Engine type: 2.4-litre, five-cylinder common-rail marine diesel

🔌 Function

Drives the hydraulic power-steering pump from the engine accessory pulley system so steering assistance remains available throughout the operating range.

⚠️ Common Signs of Failure

• Cracks, glazing or missing material on the belt ribs
• Fraying at the belt edges or visible belt dust around the pulleys
• Squealing or chirping during start-up, steering load or rapid acceleration
• Intermittent or reduced hydraulic steering assistance
• Belt wandering caused by pulley wear, misalignment or incorrect tension

🛠️ Service Notes

• Fit the belt over the pulleys by hand and let the tensioner take it up — never lever a ribbed belt on with a screwdriver, which cracks the rib flanks and shortens its life
• Check that every rib sits in its pulley groove and that the belt runs central on each pulley before cranking the engine
• Inspect the tensioner and every pulley face while the belt is off; a rough bearing, a rusty tensioner arm or a scored pulley will destroy a new belt
• Note the routing before removal, then turn the engine over by hand once the new belt is on and re-check the run and tension following the procedure for your engine
• Keep oil, fuel and coolant off the belt, and renew a contaminated belt rather than trying to clean it

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22352491 → Supersedes 21210222

OEM / Related Numbers

• 21210222 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D3-140A-D, D3-170A-D, D3-200A-D, D3-220A-D, D3-140I-D, D3-140A-E, D3-170A-E, D3-200A-E, D3-220A-E, D3-140I-E, D3-140A-F, D3-170A-F, D3-200A-F, D3-220A-F, D3-140I-F, D3-140A-G, D3-170A-G, D3-200A-G, D3-220A-G, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-140A-H, D3-170A-H, D3-200A-H, D3-220A-H
