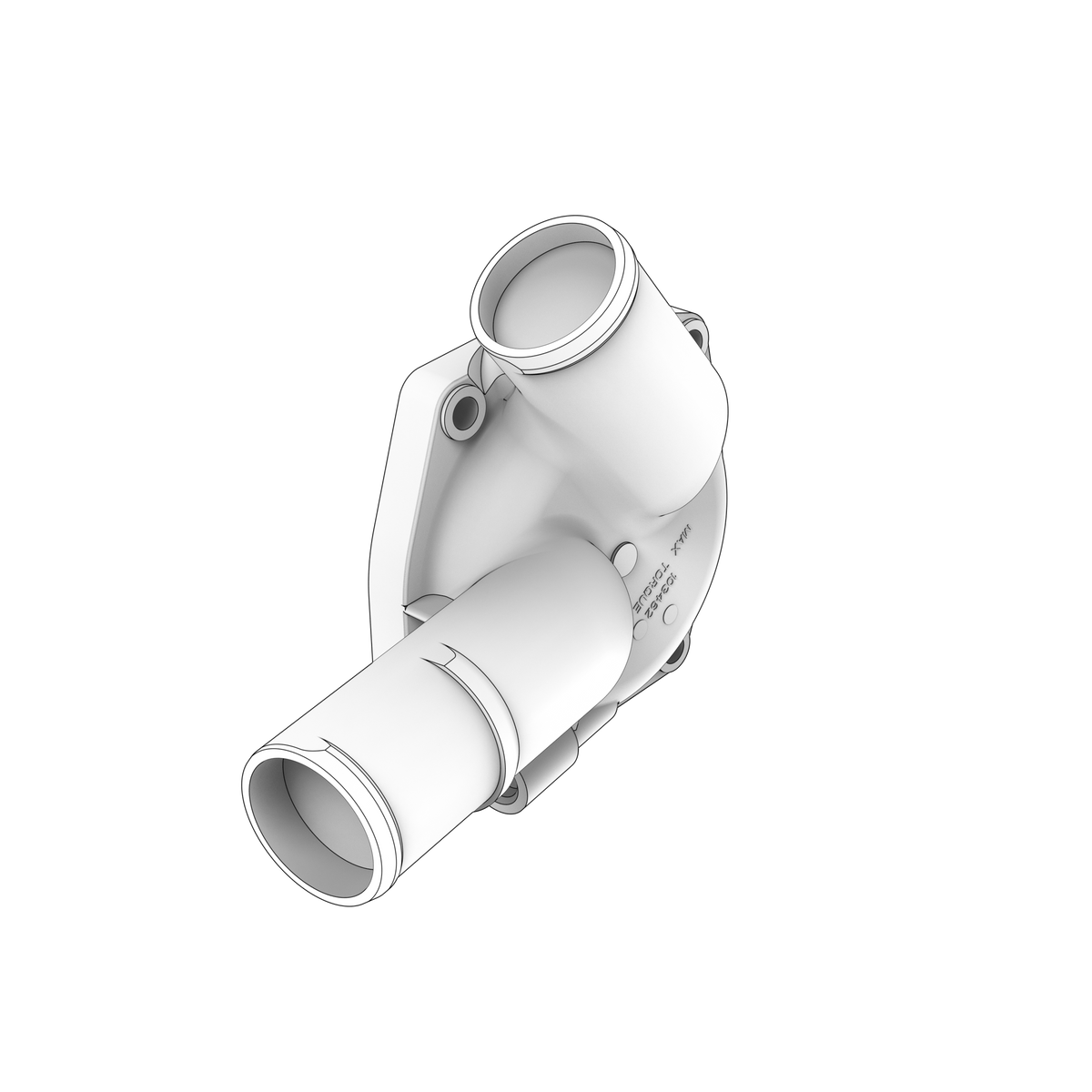

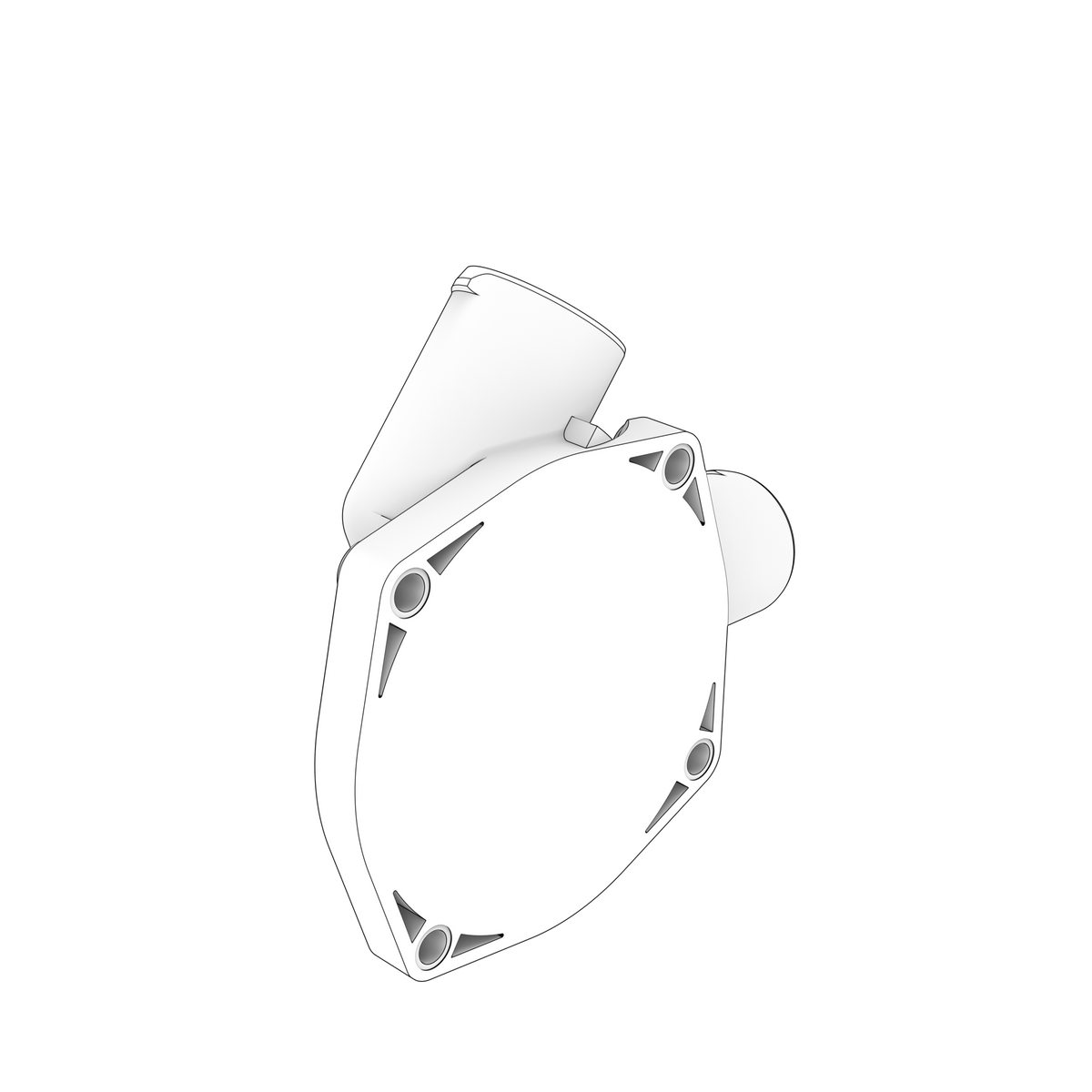

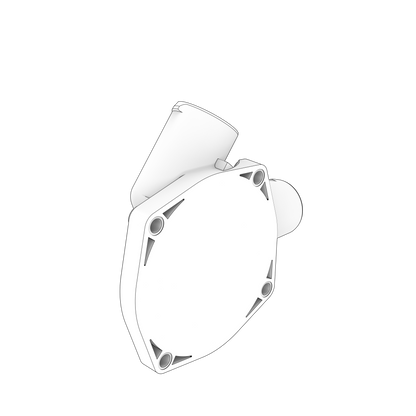

22369744 End Cover | Genuine Volvo Penta Part

🔧 Product Description

This genuine Volvo Penta oil-cooler / heat-exchanger end cover is used in the following application: Volvo Penta D4 and D6 marine oil-cooler / heat-exchanger assemblies. Closes the end of the cooler core and directs coolant or raw water through the correct passages. Its sealing face prevents external leakage and cross-leakage around the cooler bundle.

🚤 Compatibility

• Engine Family: D
• HP Range: 145-480 HP

Full model list at the end of this description.

⚙️ Key Features

• Corrosion-resistant cooler end-cover construction
• Correct coolant-port and bolt pattern
• Restores sealing at the cooler end face
• Suitable for raw-water and coolant-side marine service as catalogued
• Renew the associated gasket or sealing ring during installation

🔌 Function

Closes the end of the cooler core and directs coolant or raw water through the correct passages. Its sealing face prevents external leakage and cross-leakage around the cooler bundle.

⚠️ Common Signs of Failure

• Green/white corrosion or pitting around the water passages
• Coolant or seawater leakage at the end cover
• Repeated gasket or O-ring failure
• Distorted sealing face or damaged bolt holes
• Internal erosion reducing wall thickness
• Oil contamination or coolant loss where the cooler assembly has also failed

🛠️ Service Notes

• Drain the relevant side of the system before slackening the cover, and expect seawater still in the space even with the seacock shut
• Clean the sealing faces carefully without scoring them, and always fit new gaskets and O-rings — this joint is what keeps seawater out of the freshwater side
• Inspect what the cover was hiding while it is off: tube ends, debris, scale, and any sacrificial anode in that space
• Refit the cover square and pull the fasteners down evenly and progressively to the manual figures, and never rely on sealant to make up for a distorted or corroded cover
• Refill, vent and check for external leaks and for any sign of one side of the system finding its way into the other

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22369744 → Supersedes 3595407 → Supersedes 3583640

OEM / Related Numbers

• 3595407 earlier number superseded by this part
• 3583640 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D6-340I-G, D6-380I-G, D6-440I-G, D6-480I-G, D6-300A-G, D6-340A-G, D6-380A-G, D6-440I-WJ-G, D6-480I-WJ-G, D6-300D-G, D6-340D-G, D6-380D-G, D6-440D-G, D6-480D-G, D6-400A-G, D6-440A-G, D6-300I-G, D6-480A-G
• Volvo Penta D4-175I-G, D4-230I-G, D4-270I-G, D4-320I-G, D4-300I-G, D4-150A-G, D4-230A-G, D4-270A-G, D4-320A-G, D4-300A-G, D4-145I-G, D4-175 VG
