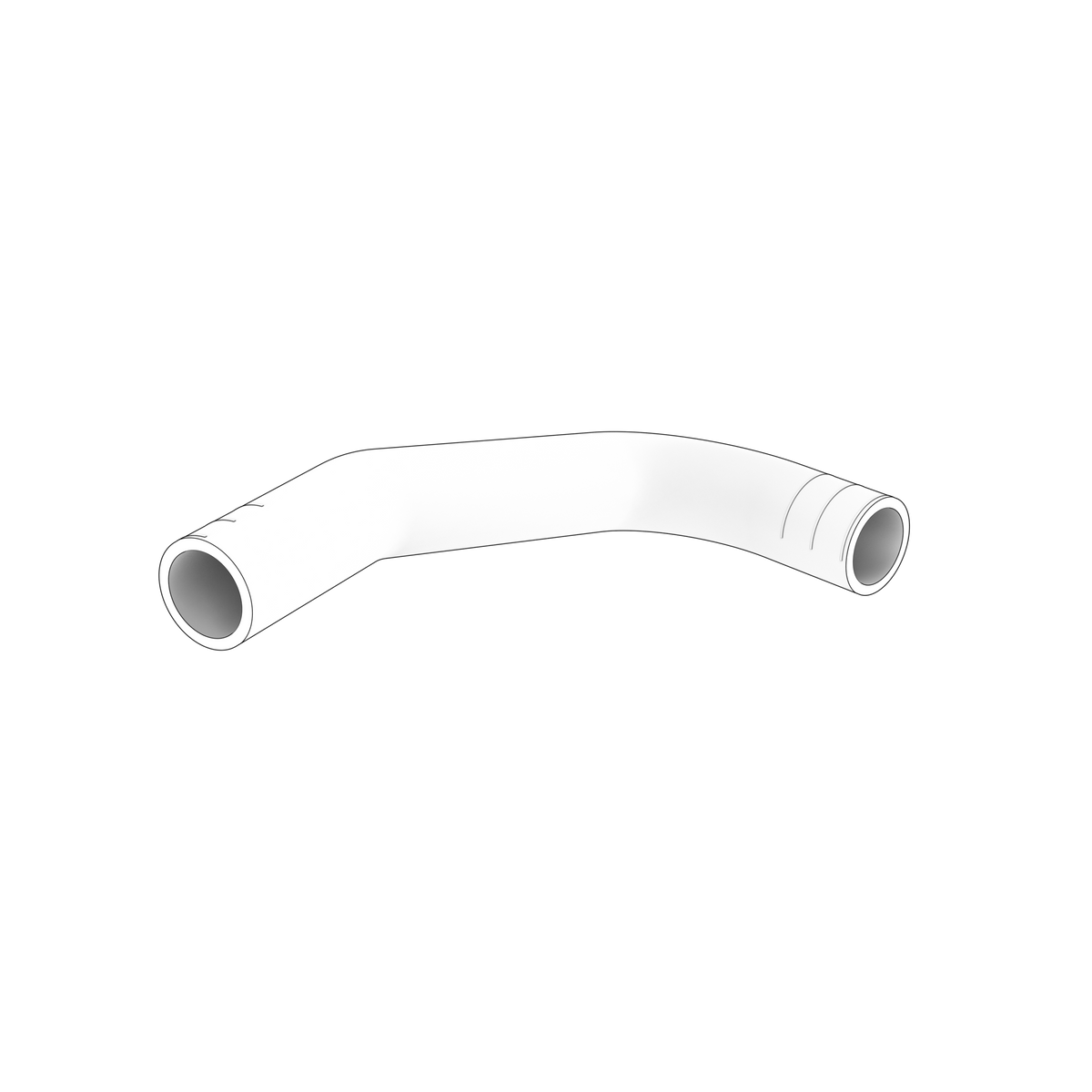

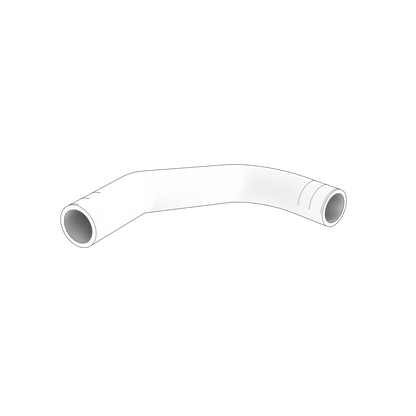

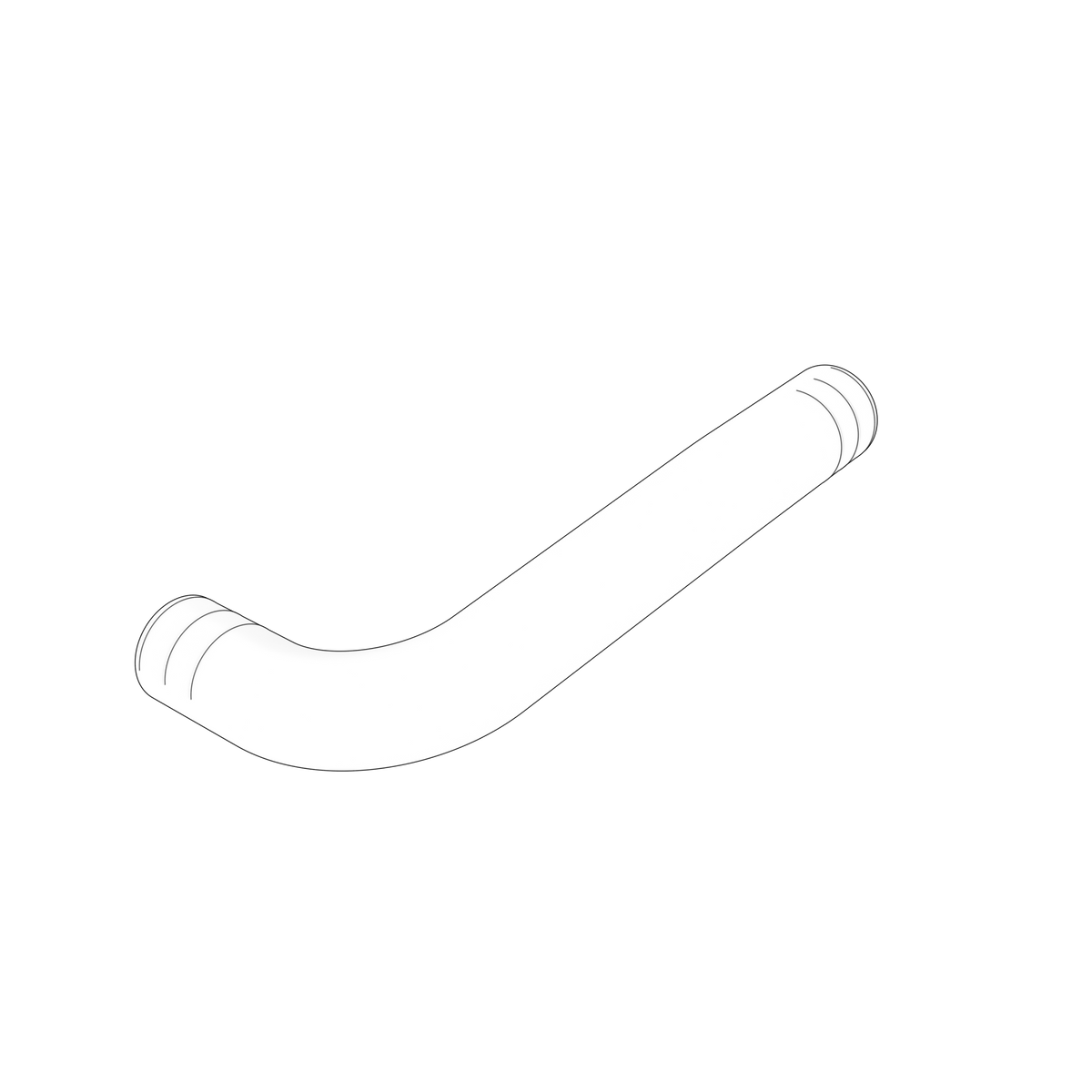

22371868 Hose | Genuine Volvo Penta Part

🔧 Product Description

This genuine Volvo Penta oil-cooler cooling hose is used in the following application: Volvo Penta D3 oil-cooler cooling branches. Carries coolant through the oil-cooler branch so engine oil temperature remains controlled under sustained load.

🚤 Compatibility

• Engine Family: D
• HP Range: 110-220 HP

Full model list at the end of this description.

⚙️ Key Features

• Moulded hose for the oil-cooler cooling branch
• Correct bend profile and connection diameter
• Designed for hot engine coolant service
• Maintains clearance from belts and rotating parts
• Inspect oil-cooler nipples and clamps during replacement

🔌 Function

Carries coolant through the oil-cooler branch so engine oil temperature remains controlled under sustained load.

⚠️ Common Signs of Failure

• Coolant seepage near the oil cooler
• Hose hardening from heat exposure
• Bulging or softening caused by oil contamination
• Restricted or collapsed hose increasing oil temperature
• Chafing against brackets or belt-drive components
• Engine coolant loss or oil-temperature warning

🛠️ Service Notes

• Fit hoses only to clean, sound spigots — take off old rubber, scale and corrosion, and renew the spigot or pipe if it is pitted, because no clamp will seal a rough sealing face
• Push the hose fully home so the clamp sits behind the bead or barb rather than over the end of the spigot, and fit new clamps whenever a hose is renewed
• Let the hose follow its natural bend with no kinks and no tension on either connection, clear of hot surfaces and moving parts, with chafe protection wherever it passes a bracket, edge or bulkhead
• Use the correct grade of hose for the duty, and clamp to the standard the installation demands — twin clamps are normal practice on seawater and fuel connections below the waterline
• Refill, vent and run the engine, then check every joint hot and cold and recheck the clamps after the first running period as the hose beds down

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22371868 → Supersedes 21285072

OEM / Related Numbers

• 21285072 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D3-220I-G, D3-140I-D, D3-140I-E, D3-140I-F, D3-140I-G, D3-110I-D, D3-150I-D, D3-170I-D, D3-200I-D, D3-220I-D, D3-110I-E, D3-150I-E, D3-170I-E, D3-200I-E, D3-220I-E, D3-110I-F, D3-150I-F, D3-170I-F, D3-200I-F, D3-220I-F, D3-110I-G, D3-150I-G, D3-170I-G, D3-200I-G, D3-110I-H, D3-150I-H, D3-170I-H, D3-200I-H, D3-220I-H, D3-140I-H
