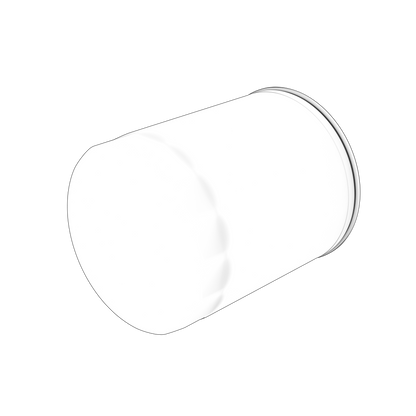

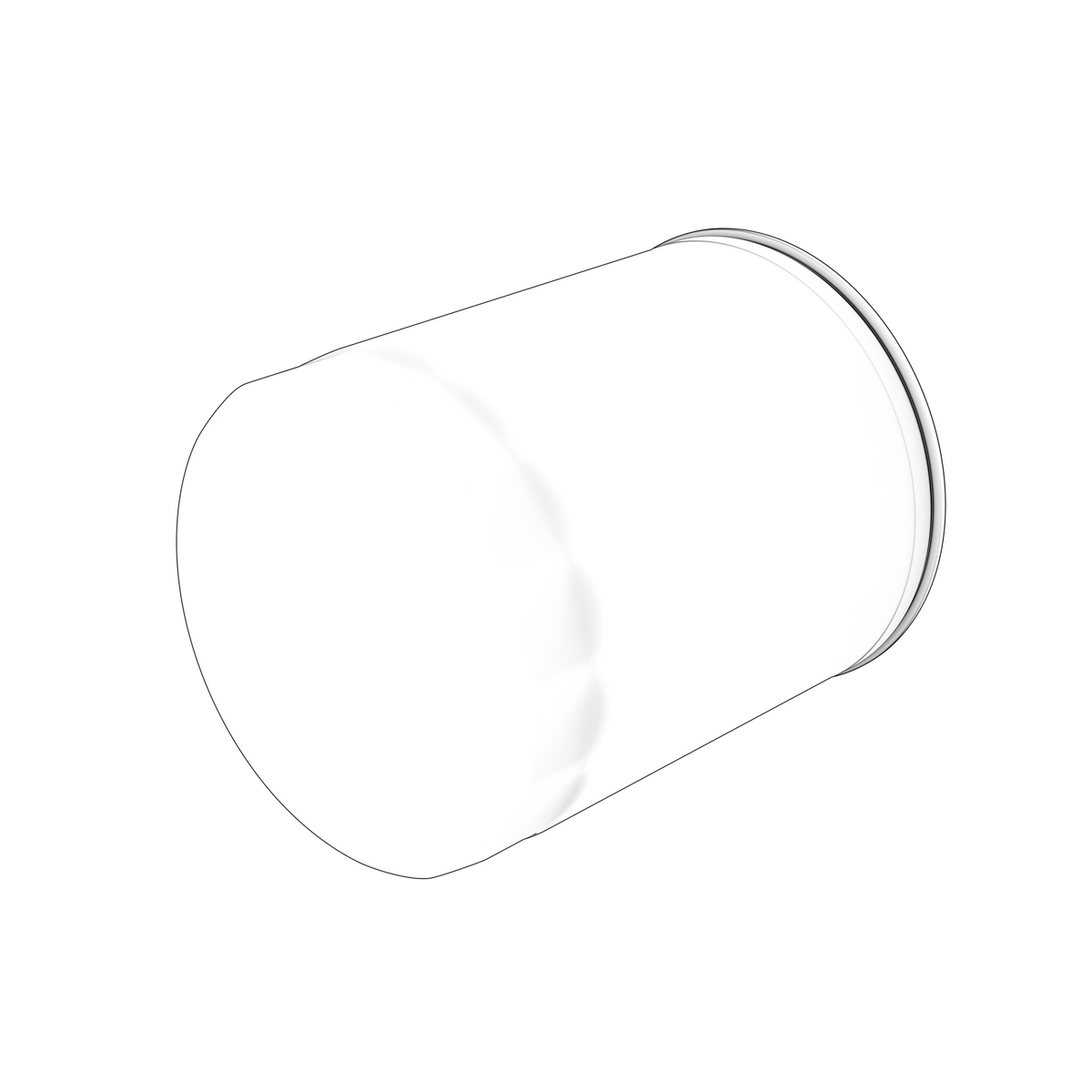

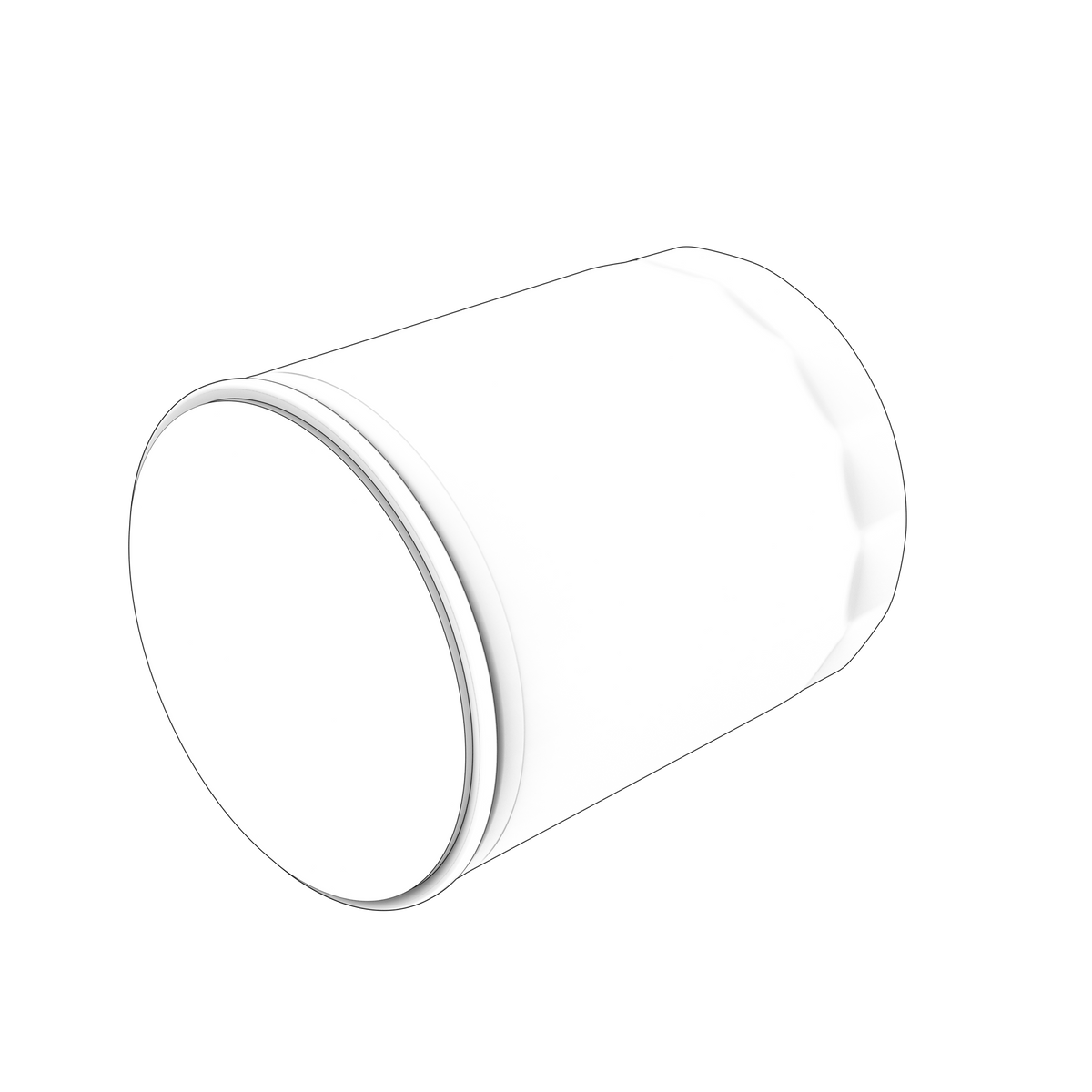

22377272 Fuel Filter | Genuine Volvo Penta Part

🔧 Product Description

This genuine Volvo Penta spin-on diesel fuel filter is used in the following application: Volvo Penta D8, D9, D11, D12, D13 and D16 diesel fuel systems. Removes particles from diesel fuel before they reach the injection pump and unit/common-rail injectors, protecting precision fuel-system clearances from wear and seizure.

🚤 Compatibility

• Engine Family: D

Full model list at the end of this description.

⚙️ Key Features

• High-efficiency spin-on diesel fuel filter for heavy-duty electronic injection systems
• Approximate outside diameter 108-111 mm and height 143-144 mm
• 1-12 UN mounting thread as catalogued for the direct replacements
• Removes fine abrasive contamination before the high-pressure pump and injectors
• Use clean fuel to prefill only where the engine service procedure permits
• Renew at the specified service interval and whenever contaminated fuel is suspected
• Also supersedes Volvo part number 3817516

🔌 Function

Removes particles from diesel fuel before they reach the injection pump and unit/common-rail injectors, protecting precision fuel-system clearances from wear and seizure.

⚠️ Common Signs of Failure

• Low fuel-pressure fault or fuel starvation
• Uneven running at higher demand
• Dark or heavily contaminated removed filter
• Repeated blockage indicating tank or fuel contamination
• Injector or pump wear associated with poor filtration

🛠️ Service Notes

• Work clean — cap or cover open connections and keep dirt out of the housing, because contamination introduced at a filter change goes straight to the injection equipment
• Where the design allows it, fill the new filter with clean fuel before fitting, and smear the sealing ring with clean fuel rather than grease
• Renew every seal supplied with the filter and tighten to the marking on the filter or the figure in the workshop manual for your engine; over-tightening distorts the seal and causes leaks
• Prime and bleed the system by the procedure for your engine before cranking, then run up and check the sealing faces for weeps
• Drain and inspect any water trap at the same time and note what comes out — water or dark sludge means the tank and pre-filter need attention too

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22377272 → Supersedes 3888460 → Supersedes 3885572

OEM / Related Numbers

• 3888460 earlier number superseded by this part
• Sakura SK-48674

Other-Brand OEM Numbers

• Fleetguard FF5855
• MANN-FILTER WK 1144

Aftermarket / Verified Equivalents

• HIFI FILTER SN 30049

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D13C4-B MH, D13C1-B MH, D13C2-B MP, D13C3-A MP, D13C4-A MP, D13B-L MP, D13B-E MG, D13B-E MG (FE), D13B-E MH, D13B-E MH (FE), D13B-F MG, D13B-F MG (FE), D13B-N MH, D13B-N MH (FE), D13B-D MP, D13B-M MP, D13B-C MP, D13C4-B MP, D13C5-B MP, D13C6-A MP, D13C1-A MH, D13C2-A MH, D13C1-B MG, D13C3-B MG, D13C2-B MG, D13C4-B MG, D13C5-A MP, D13C2-A MG, D13C1-A MG, D13C7-B MP, D13C8-B MP, D13C9-A MP
• Volvo Penta D16C-A MG, D16C-A MH, D16C-B MH, D16C-C MH, D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta D12D-A MG, D12D-B MH, D12D-C MH, D12D-C MP, D12D-D MP, D12D-E MG, D12D-E MH, D12D-E MP, D12D-F MP, D12D-G MH, D12D-G MP, D12D-H MP
• Volvo Penta D8A5-A MH, D8A6-A MH, D8A5-A MG, D8A6-A MG, D8A4-A MP, D8A3-A MP, D8A7-A MP, D8A8-A MP
• Volvo Penta D11C3-A MP, D11C4-A MP, D11B3-A MP, D11B4-A MP
• Volvo Penta D9A2L MH, D9A2A, D9A2C
