22381259 Pump | Genuine Volvo Penta Part
22381259 Pump | Genuine Volvo Penta Part
Couldn't load pickup availability
Available on request — contact us
As an authorised Volvo Penta dealer we can source parts through channels not shown online, and check supersession and used options for you
Availability checked daily with Volvo Penta
✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide
🔧 Product Description

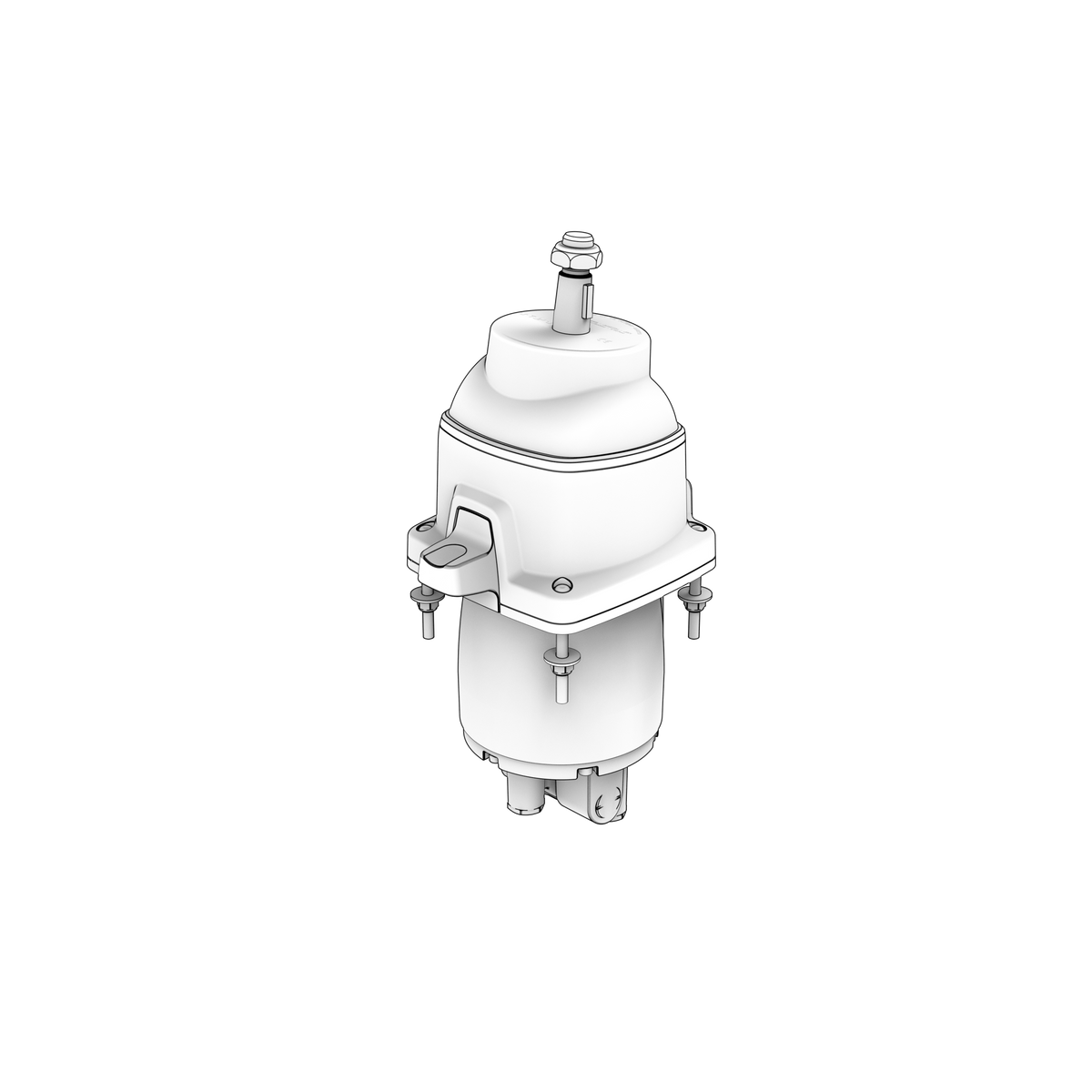

This genuine Volvo Penta tilt hydraulic steering helm pump is used in the following application: Volvo Penta hydraulic steering systems using an adjustable tilt helm. Generates bidirectional hydraulic flow for vessel steering while integrating with the adjustable tilt steering-column assembly.
🚤 Compatibility
Typically suits:
- Volvo Penta D6-300A-G
- Volvo Penta D6-340A-G
- Volvo Penta D6-380A-G
- Volvo Penta D6-400A-G
- Volvo Penta D4-150A-G
- Volvo Penta D4-230A-G
- Volvo Penta D4-270A-G
- Volvo Penta D4-320A-G
- Volvo Penta D4-300A-G
- Volvo Penta VMM-A
- Volvo Penta D6-480A-G
- Engine Family: D, VMM
- HP Range: 150-480 HP
⚙️ Key Features
- Tilt-helm hydraulic pump assembly
- Original steering-port and mounting geometry
- Provides bidirectional steering flow
- Integrates with the adjustable helm arrangement
- Requires complete system bleeding after installation
🔌 Function
Generates bidirectional hydraulic flow for vessel steering while integrating with the adjustable tilt steering-column assembly.
⚠️ Common Signs of Failure
- Hydraulic fluid around the helm or tilt assembly
- Steering drift or excessive wheel movement
- Uneven steering effort
- Tilt mechanism movement affecting steering response
- Air that cannot be fully bled from the system
- Internal bypass causing poor pressure in one direction
🛠️ Service Notes
- Establish why the old pump failed before the new one goes on — debris, a blocked strainer, a starved supply or a dry run will take out the replacement just as quickly
- Fit new gaskets, O-rings and seals on the pump's joint faces and drive, with the faces clean, and use only the sealant the workshop manual for your engine specifies
- Check the drive and the shaft it runs on — coupling, gear, key, belt or drive dog — while access is good, and renew anything doubtful
- Prime or fill the pump as the manual for your engine directs, bleed the system afterwards, and confirm it is actually delivering before the boat leaves
- Tighten mounting and cover fasteners evenly to the manual's figures; pump housings distort easily, and a distorted housing either leaks or binds
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 22381259 → Supersedes 21349964 → Supersedes 888155
OEM / Related Numbers
- 21349964 earlier number superseded by this part
- 888155 earlier number superseded by this part
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
