22382554 Support | Genuine Volvo Penta Part

🔧 Product Description

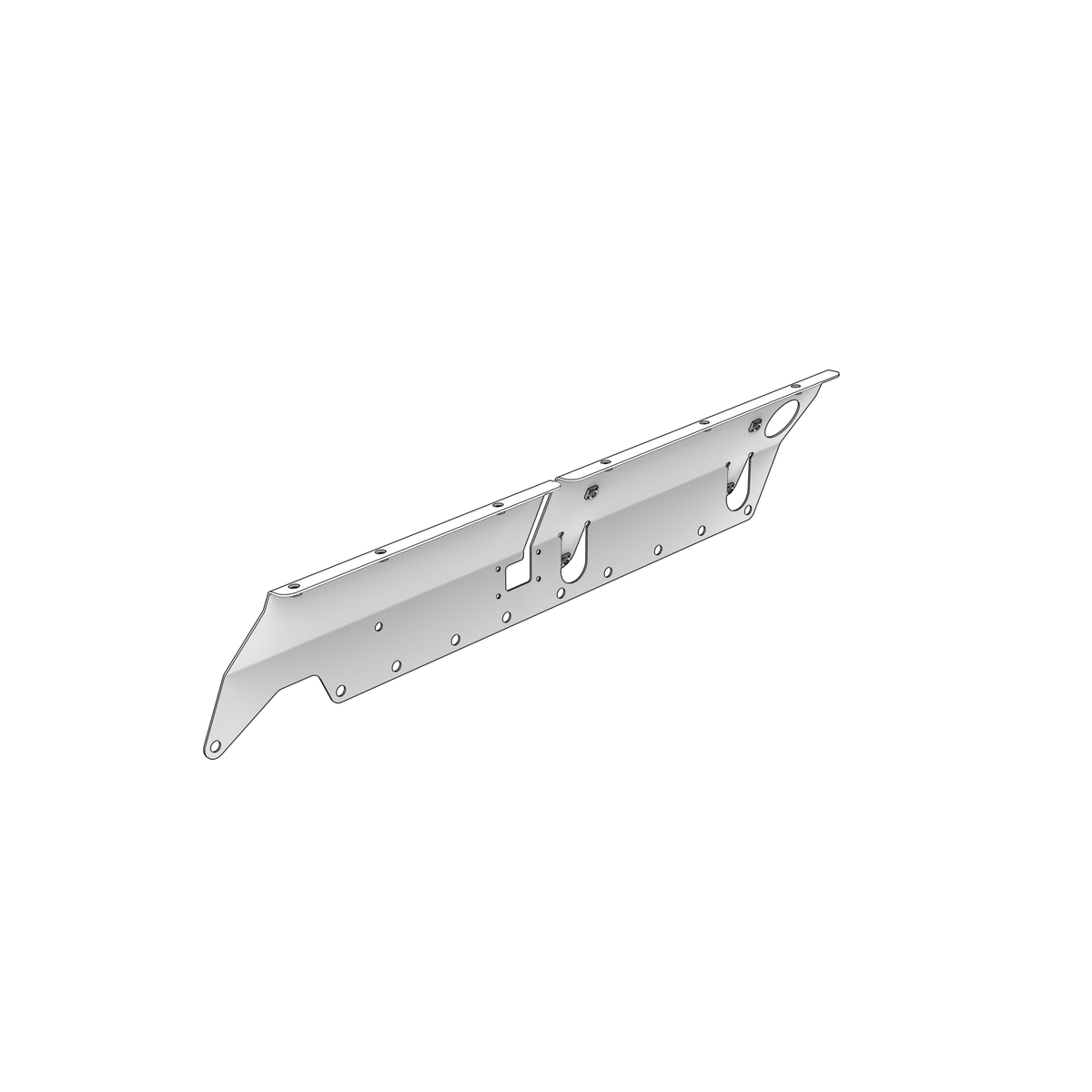

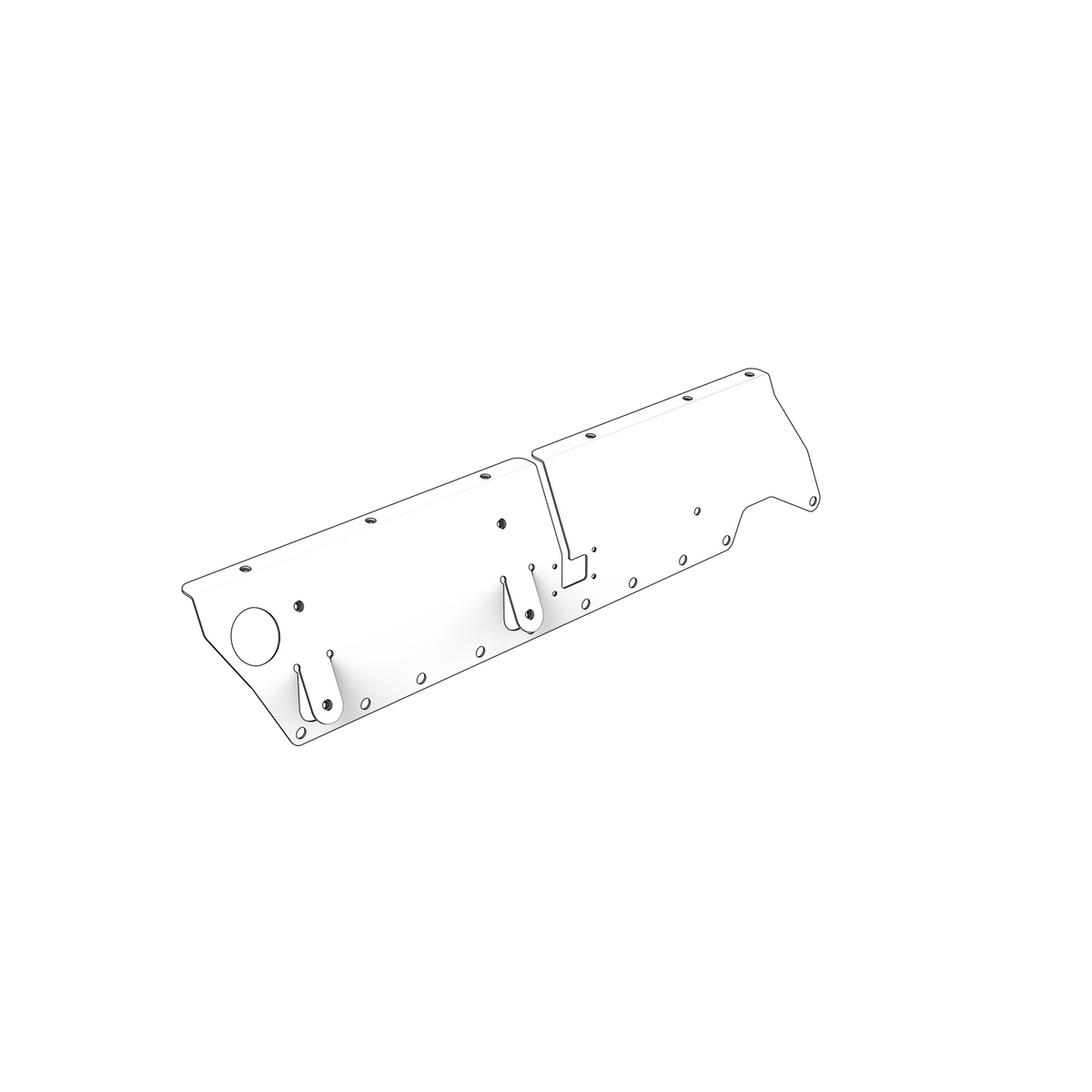

This genuine Volvo Penta fuel-system protective-cover support is used in the following application: Volvo Penta D6 F-generation fuel-system protective-cover assemblies. Supports and aligns the protective cover over the fuel system, helping prevent vibration damage, accidental contact and interference with fuel pipes or wiring.

🚤 Compatibility

Typically suits:

• Volvo Penta D6-330A-F
• Volvo Penta D6-370A-F
• Volvo Penta D6-330D-F
• Volvo Penta D6-370D-F
• Volvo Penta D6-300A-F
• Volvo Penta D6-300D-F
• Volvo Penta D6-300I-F
• Volvo Penta D6-330I-F
• Volvo Penta D6-370I-F
• Volvo Penta D6-435D-F
• Volvo Penta D6-400A-F
• Volvo Penta D6-435I-F

• Engine Family: D
• HP Range: 300-435 HP

⚙️ Key Features

• Original support for the D6 fuel-system protective / outer cover
• Maintains cover alignment and clearance over high-pressure fuel components
• Reduces vibration and panel contact
• Correct mounting geometry for F-generation D6 installations
• Support only; protective cover, cushions and fasteners are separate
• Inspect adjoining supports because cover systems can use more than one bracket style

🔌 Function

Supports and aligns the protective cover over the fuel system, helping prevent vibration damage, accidental contact and interference with fuel pipes or wiring.

⚠️ Common Signs of Failure

• Cover rattles or sits out of alignment
• Cracked support or broken mounting tab
• Cover contacting fuel pipes, harnesses or engine components
• Elongated fastener holes
• Missing isolator or companion support
• Damage caused by overtightening or incorrect cover installation

🛠️ Service Notes

• Offer the support up and get both ends aligned with the fasteners finger-tight before tightening anything down — forcing a bracket into place leaves the component and the support permanently in strain
• Check the mating faces are clean and flat and that the support sits fully home without packing or shimming unless the workshop manual for your engine calls for it
• Inspect the old support, and the casting or panel it bolts to, for cracks around the bolt holes and elongated or worn holes; a support that has been working loose has usually damaged its seat as well
• Renew any locking fasteners and tighten to the figure given in the manual for your engine, then support the component so it is not left hanging on hoses, wiring or pipework
• Recheck the fasteners after the first period of running, and confirm the supported item still has clearance from moving parts and hot surfaces

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22382554 → Supersedes 21702903

OEM / Related Numbers

• 21702903 earlier number superseded by this part
• 21522292 - associated engine/fuel-system cover
• 21956262 - associated support in applicable D6 configurations
• 21954848 - associated support in applicable D6 configurations
• 3588528 - associated protective cover
• 3843860 - alternate protective-cover reference in related configurations
• 3586068 - associated bracket
• 3584091 - associated support

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
