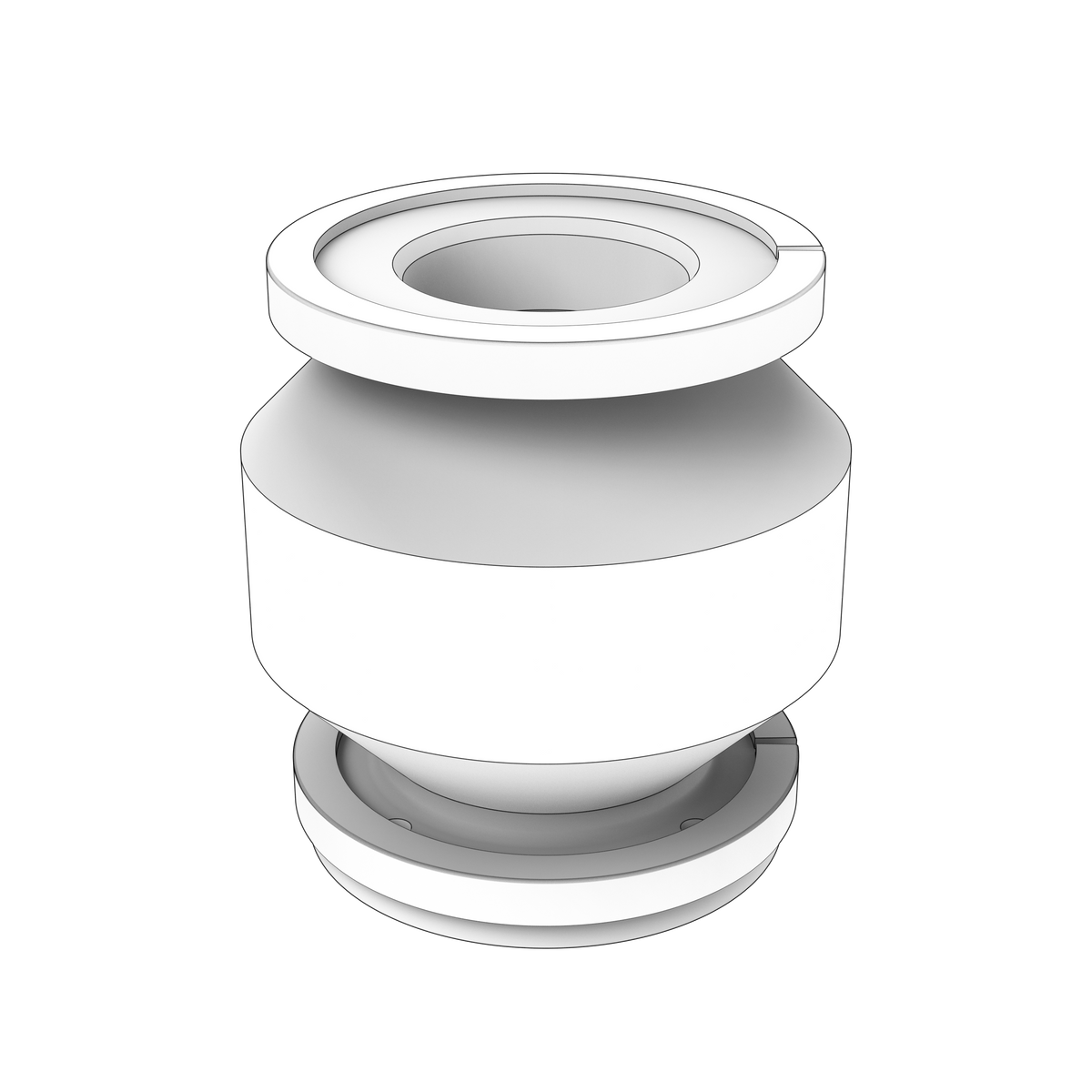

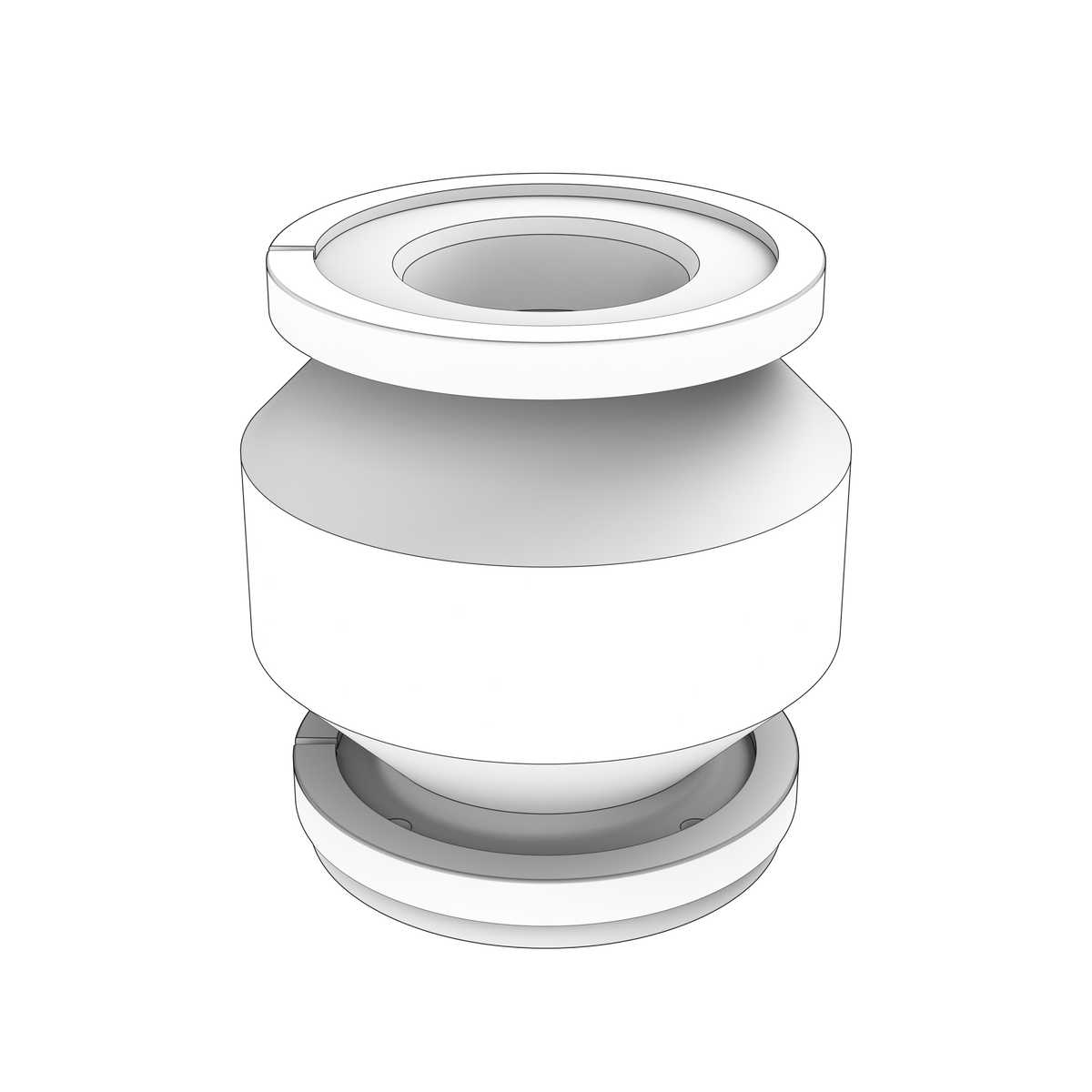

22389691 Propeller Bushing | Genuine Volvo Penta Part

🔧 Product Description

This genuine Volvo Penta duoprop k-series rear propeller hub bushing is used in the following application: Volvo Penta Forward Drive Duoprop K-series rear propellers. Bonds the rear propeller body to its splined hub, transmitting normal drive torque while absorbing shock loads that could otherwise damage the propeller or driveline.

🚤 Compatibility

• Engine Family: V, FWD
• HP Range: 200-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Genuine resilient hub bushing for the rear propeller in the Volvo Penta K-series forward-drive Duoprop set
• Transfers propeller torque while cushioning impact and driveline shock
• Correct spline/hub interface and rubber compliance for the catalogued rear propellers
• Rear-propeller component; not interchangeable with front bushing 22389695
• Professional press equipment and correct support tooling are recommended for replacement
• Inspect the propeller hub bore, splines and surrounding blade structure before installation
• Stainless steel

🔌 Function

Bonds the rear propeller body to its splined hub, transmitting normal drive torque while absorbing shock loads that could otherwise damage the propeller or driveline.

⚠️ Common Signs of Failure

• Engine speed rises without corresponding vessel acceleration
• Propeller hub slips under load
• Burnt rubber smell or rubber debris
• Visible separation between hub and propeller body
• Clunking when engaging gear
• Propeller does not hold specified torque during bench testing

🛠️ Service Notes

• This is the rear-hub bushing in the K-series Duoprop set; the front position is 22389695 and the two are not interchangeable
• Stainless bushing at 2.034 kg — press-fit onto the splined hub with proper support tooling rather than driving it on by hand
• Inspect the hub bore, splines and surrounding blade structure for wear before pressing in the replacement

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 22389695 - corresponding front-propeller hub bushing; separate position and not interchangeable

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-300-E-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-B, V8-225-CE-B, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-C-N, V6-200-CE-N, V6-240-C-M, V6-240-CE-M, V6-280-C-M, V6-280-CE-M, V6-280-CE-J, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-C-N, V6-240-CE-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-J, V6-280-CE-N, V6-200-C-M, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta FWD-D2 OX, FWD-D1, FWD-D2, FWD-D1 OX, FWD-B1, FWD-B2, FWD-E1 TCC, FWD-E2 TCC, FWD-F TCC, FWD-F, FWD-F2, FWD-F2 TCC
