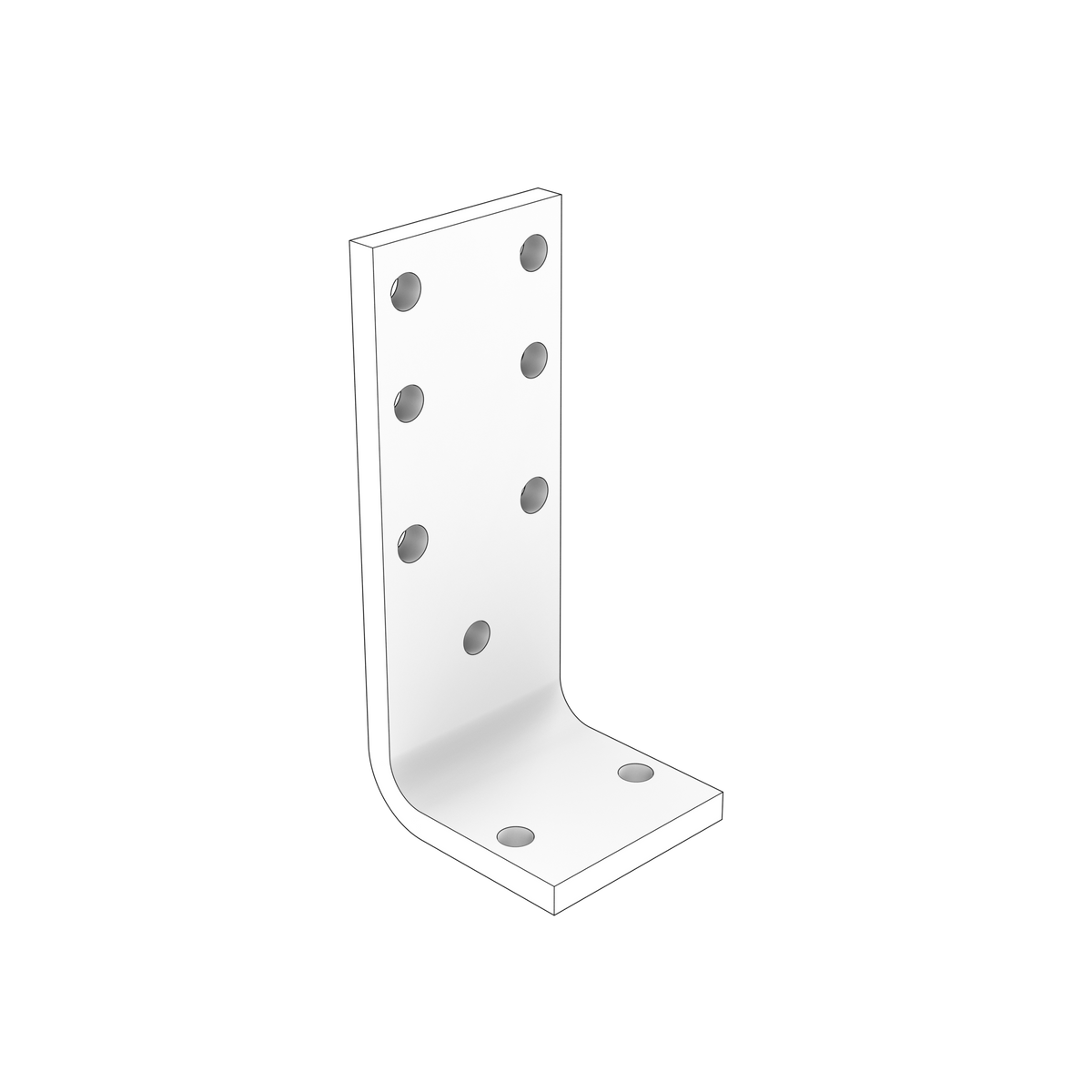

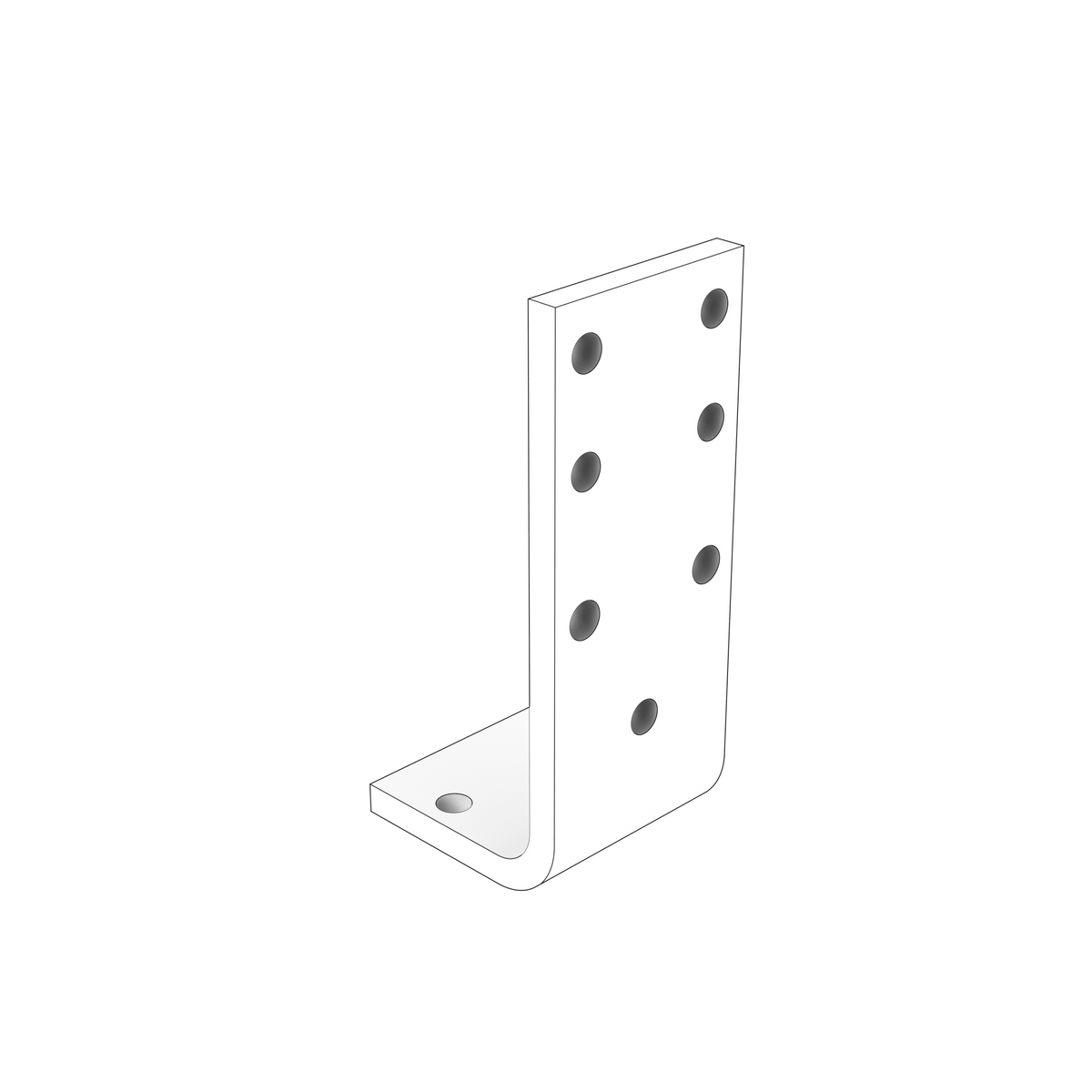

22394232 Engine Bracket | Genuine Volvo Penta Part

🔧 Product Description

This genuine Volvo Penta engine mounting bracket is used in the following application: Volvo Penta TAD16 generator engine mounting systems. Transfers engine weight and torque into the generator base while maintaining alignment and working with the rubber cushion to isolate vibration.

🚤 Compatibility

Typically suits:

• Volvo Penta TWD1643GE
• Volvo Penta TAD1640-42GE-B
• Volvo Penta TAD1640GE
• Volvo Penta TAD1641GE
• Volvo Penta TAD1642GE
• Volvo Penta TAD1641VE
• Volvo Penta TAD1642VE
• Volvo Penta TAD1643VE
• Volvo Penta TAD1650GE
• Volvo Penta TAD1651GE
• Volvo Penta TAD1660-62VE
• Volvo Penta TAD1662VE EU5

• Engine Family: TWD, TAD

⚙️ Key Features

• Heavy-duty structural engine bracket
• Correct geometry for the TAD16 generator mounting system
• Maintains engine and generator alignment
• Transfers static, torque and vibration loads
• Bracket only; anchorage, rubber cushion, cross member and fasteners are separate
• 2 used per assembly

🔌 Function

Transfers engine weight and torque into the generator base while maintaining alignment and working with the rubber cushion to isolate vibration.

⚠️ Common Signs of Failure

• Loose fasteners or elongated holes
• Collapsed rubber cushion
• Generator alignment movement
• Excessive transmitted vibration
• Fretting or metal-to-metal contact at the mount

🛠️ Service Notes

• Start all the fasteners by hand and get the bracket sitting flat on clean mating faces before tightening anything, so nothing is pulled into strain
• Renew self-locking nuts, lock washers and thread-locking compound where the original assembly used them, and tighten to the figure given in the workshop manual for your engine
• Inspect the bracket for cracks around the holes and weld lines before fitting, and do not attempt to straighten or weld a distorted engine bracket back into service
• Where the bracket forms part of the engine mounting, recheck engine alignment and shaft or drive coupling alignment after the work, following the procedure for your installation
• Renew any flexible mount, bush or shim pack that is disturbed and found perished, corroded or crushed

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 3826669 - opposite/associated engine bracket
• 3828707 - associated anchorage
• 862347 - associated rubber cushion
• 22468224 - associated crossmember
• 865549 - associated washer
• 994510 - associated screw

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
