22402749 Bracket | Genuine Volvo Penta Part
22402749 Bracket | Genuine Volvo Penta Part
Couldn't load pickup availability
Available on request — contact us
As an authorised Volvo Penta dealer we can source parts through channels not shown online, and check supersession and used options for you
Availability checked daily with Volvo Penta
✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide
🔧 Product Description

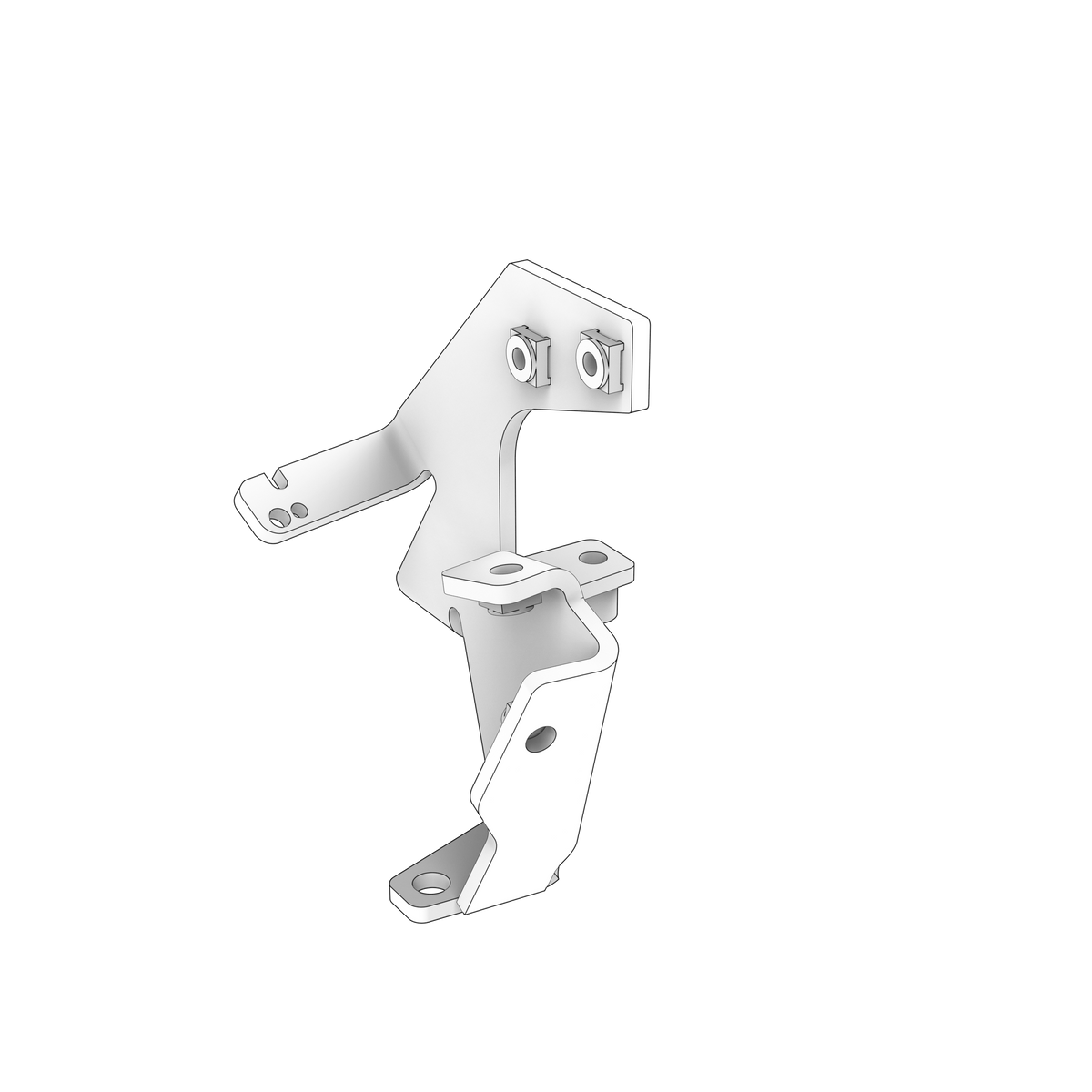

A genuine Volvo Penta bracket for the TAD1140VE, TAD1141VE and TAD1142VE lubricating-system service arrangement. It supports the oil-filler pipe and cap assembly so the filler neck remains accessible, correctly aligned and protected from vibration.
🚤 Compatibility
Typically suits:
- Volvo Penta TAD1180-83VE
- Volvo Penta TAD1170-72VE
- Volvo Penta TAD1150-52VE
- Volvo Penta TAD1140-42VE
- Engine Family: TAD
⚙️ Key Features
- OEM support bracket for the TAD1140-42VE oil-filler arrangement
- Maintains correct oil-filler-pipe position
- Works with the original spacer sleeve and mounting hardware
- Reduces vibration load on the filler pipe and crankcase connection
- Provides factory clearance from surrounding engine components
- Robust formed construction for industrial engine service
🔌 Function
The bracket secures the oil-filler neck to the engine. Stable support prevents fatigue cracks, oil leaks and contact between the filler pipe and nearby hot or moving parts.
⚠️ Common Signs of Failure
- Loose or vibrating filler neck
- Oil seepage where the filler pipe enters the engine
- Missing or corroded mounting hardware
- Filler cap difficult to access or align
🛠️ Service Notes
- Offer the bracket up and start every fastener by hand before tightening any of them, so the component is not pulled into a strained position
- Check the mating faces are clean, flat and free of corrosion scale — a bracket that does not sit flat will work loose and let the component move
- Renew self-locking nuts, lock washers, tab washers or thread-locking compound wherever the original assembly used them, and tighten to the figure given in the workshop manual for your engine
- Where the bracket carries a rubber mount or bush, renew that at the same time rather than reusing a perished one
- On brackets in the inlet and exhaust area, never force alignment to make the holes line up — cure the misalignment at its source, or the bracket and the component it holds will both crack
🔄 Supersession & Cross Reference
OEM Supersession Chain
- 22402749 → Supersedes 21831781
OEM / Related Numbers
- 21831781 earlier number superseded by this part
- Related oil filler pipe/cap assembly: 20808091
Aftermarket / Verified Equivalents
- Related spacer sleeve: 845988
📦 Condition
- Genuine Volvo Penta part
- Brand new
- Supplied in original or equivalent packaging
