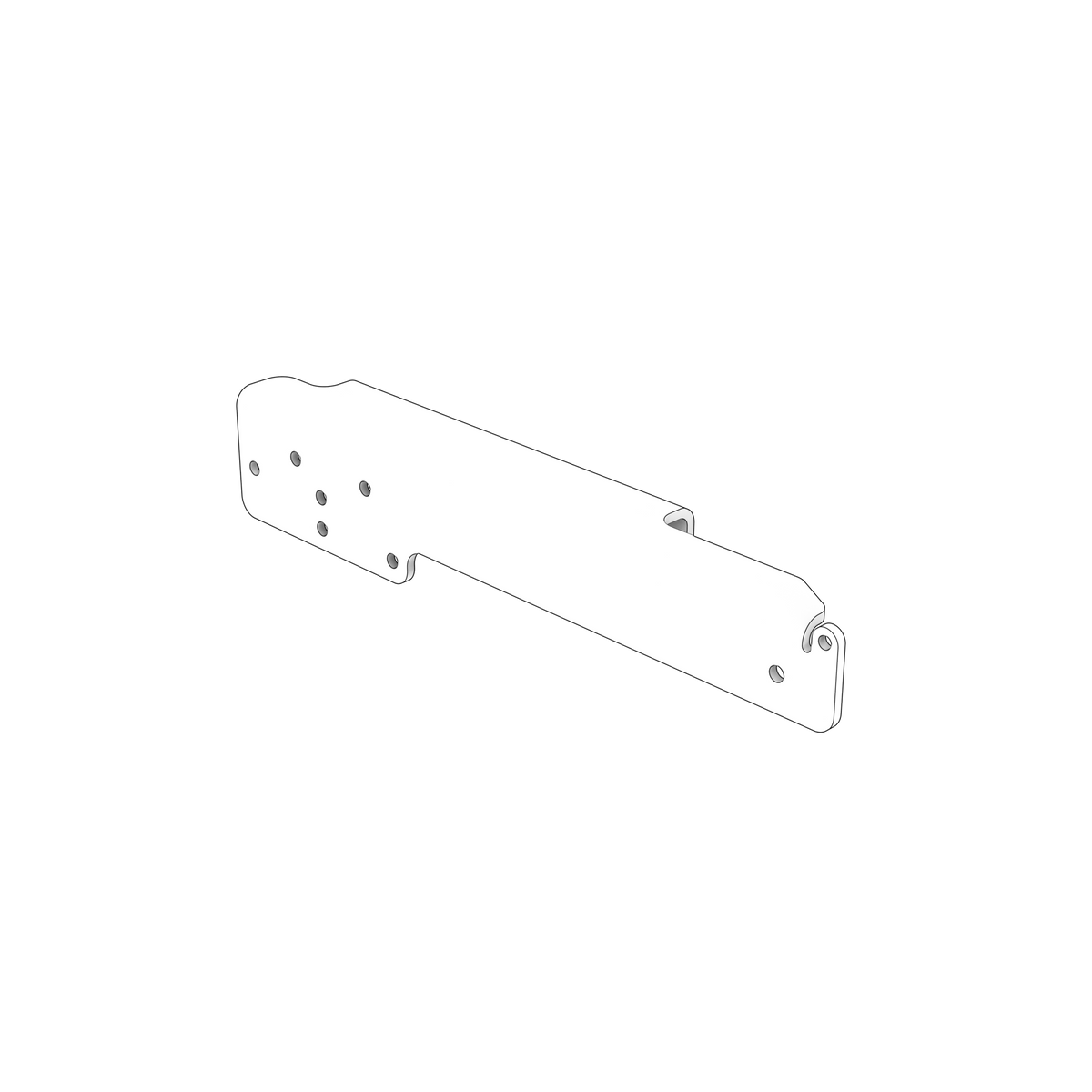

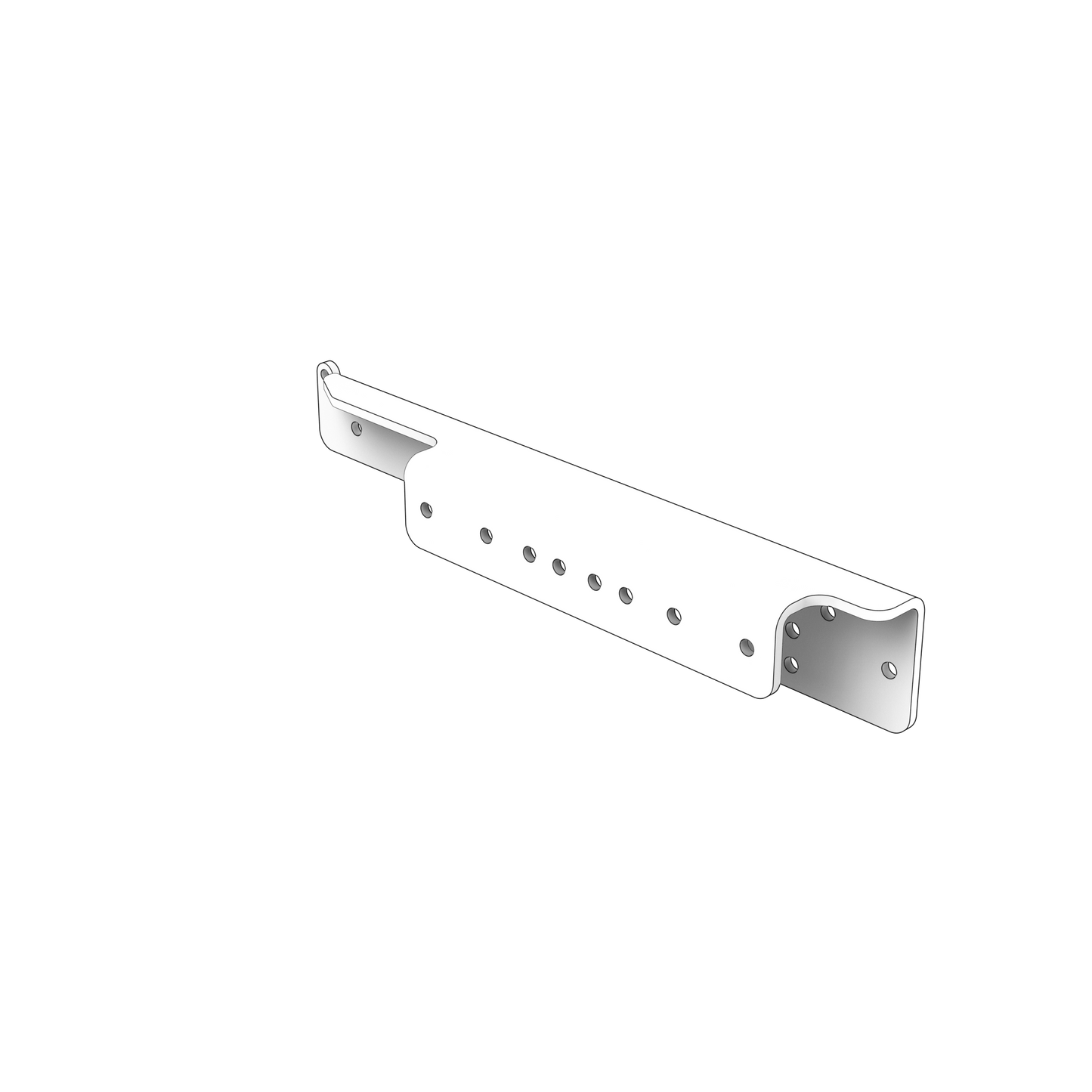

22410166 Engine Bracket | Genuine Volvo Penta Part

🔧 Product Description

Application-specific genuine engine mounting bracket for the Volvo Penta D1-13B. The bracket forms a structural connection between the engine and its matched mounting system, helping maintain correct installed height, driveline alignment and vibration control. This bracket is catalogued with engine mounting kit 22410368; its exact mounting position must be matched to the complete engine designation, installation arrangement and product serial number.

🚤 Compatibility

Typically suits:

• Volvo Penta D2-40
• Volvo Penta D2-40B
• Volvo Penta D2-40F
• Volvo Penta D1-30
• Volvo Penta D1-30B
• Volvo Penta D1-30F
• Volvo Penta D1-13B
• Volvo Penta D1-13F
• Volvo Penta D1-20
• Volvo Penta D1-20B
• Volvo Penta D1-20F

• Engine Family: D
• HP Range: 13-40 HP

⚙️ Key Features

• Catalogued for the D1-13B engine installation
• Associated with Volvo Penta mounting kit 22410368
• Machined and drilled for the matched engine-mount geometry
• Helps preserve engine, coupling and propeller-shaft alignment
• Application-specific bracket variant; not interchangeable solely by visual appearance
• Engine type: Compact inline marine diesel engine

🔌 Function

Supports the engine on its resilient mounts, transfers engine weight and operating loads into the hull structure, and maintains the alignment required between the engine, transmission and driveline.

⚠️ Common Signs of Failure

• Cracking around fastener holes or welded transitions
• Corrosion, pitting or coating failure
• Distortion that changes engine height or alignment
• Elongated mounting holes or loose fasteners
• Abnormal engine movement or increased vibration
• Repeated coupling, shaft or alignment problems

🛠️ Service Notes

• Start all the fasteners by hand and get the bracket sitting flat on clean mating faces before tightening anything, so nothing is pulled into strain
• Renew self-locking nuts, lock washers and thread-locking compound where the original assembly used them, and tighten to the figure given in the workshop manual for your engine
• Inspect the bracket for cracks around the holes and weld lines before fitting, and do not attempt to straighten or weld a distorted engine bracket back into service
• Where the bracket forms part of the engine mounting, recheck engine alignment and shaft or drive coupling alignment after the work, following the procedure for your installation
• Renew any flexible mount, bush or shim pack that is disturbed and found perished, corroded or crushed

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 22410368 - related engine mounting kit

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging
