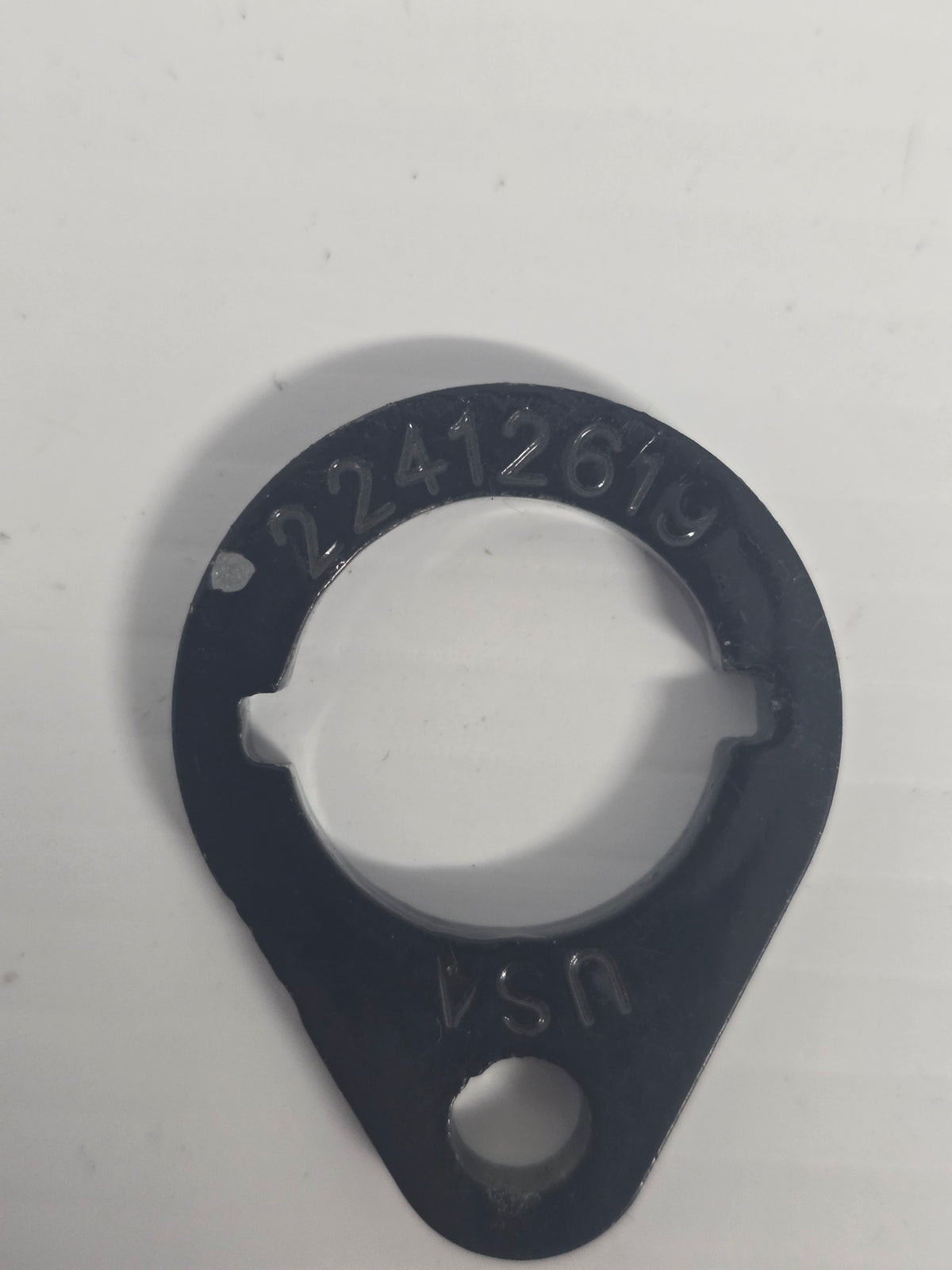

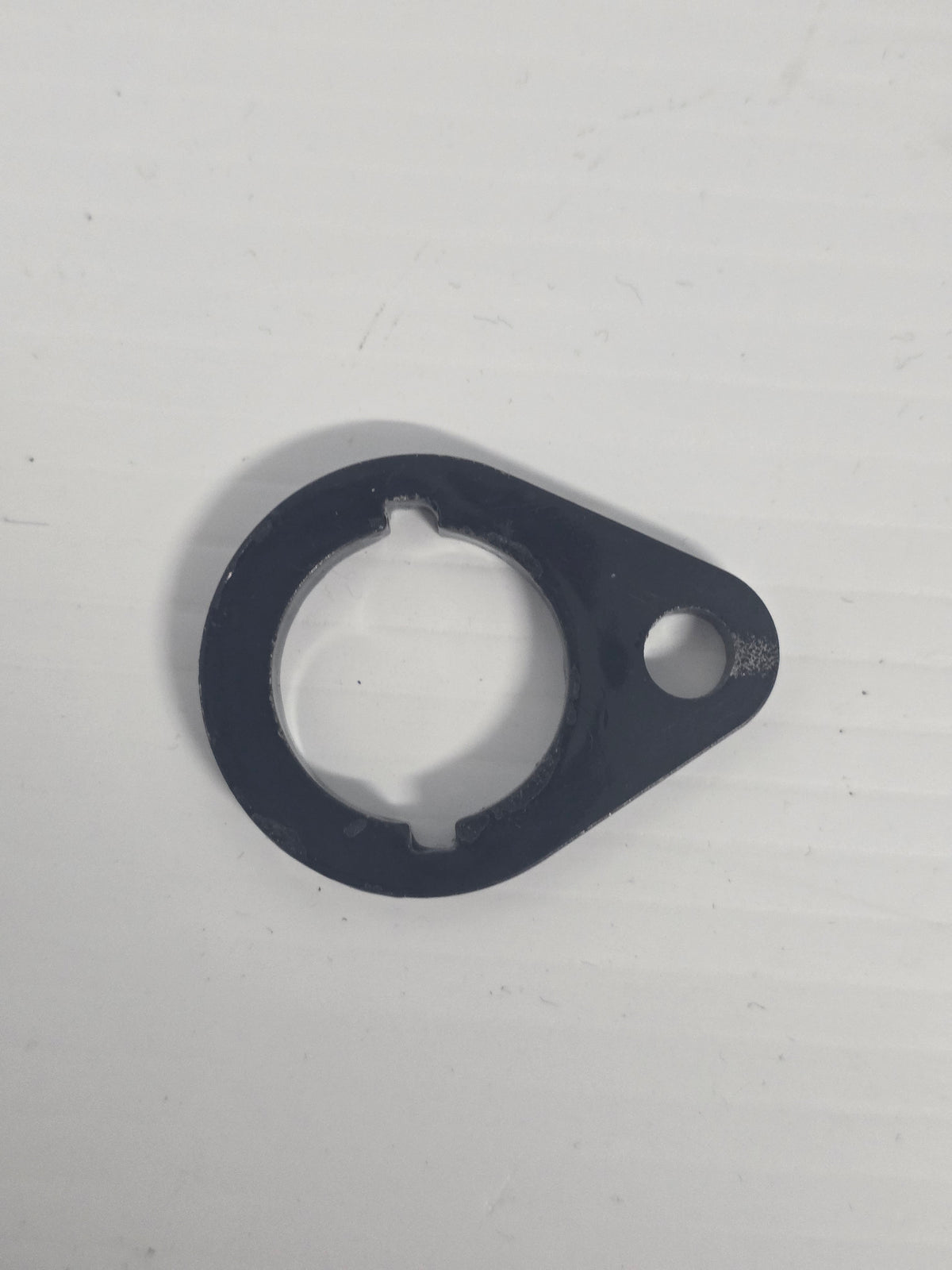

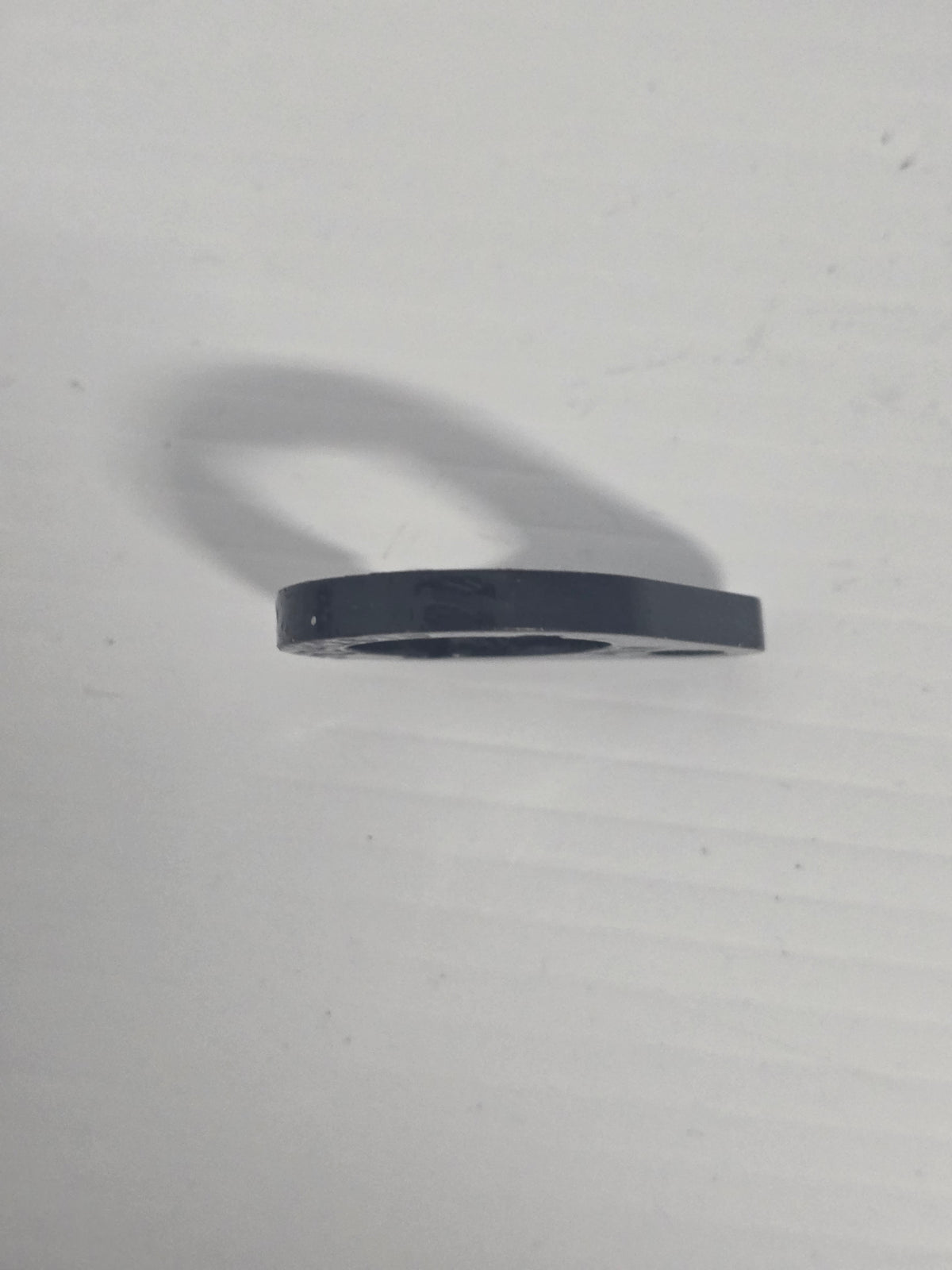

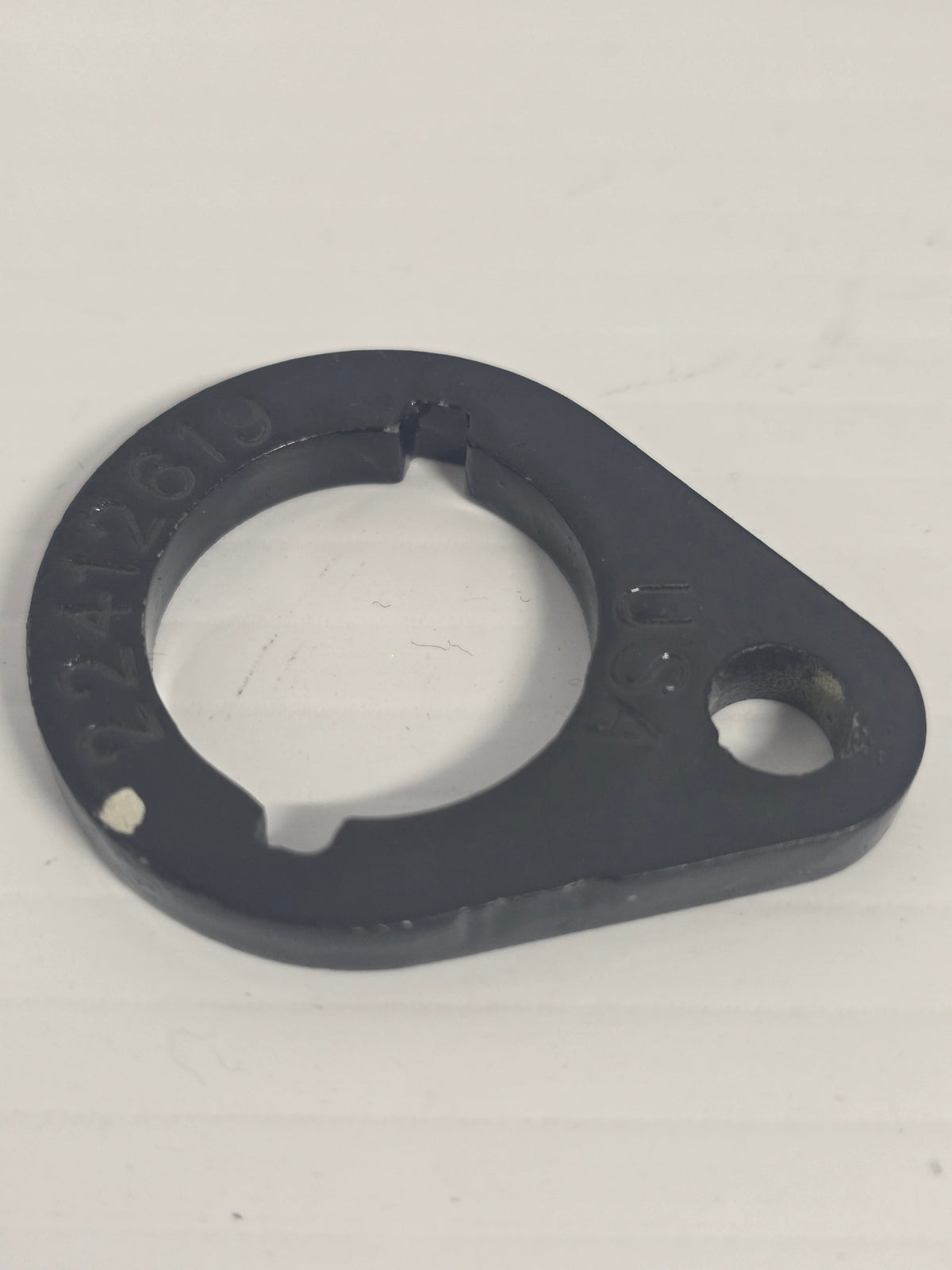

22412619 Bracket | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta support bracket for selected late-generation V6 and V8 gasoline exhaust-riser arrangements. It locates and supports the riser-side fittings and connected hardware so exhaust-system vibration and hose loads are not carried solely by the riser casting or threaded connections. The bracket is also catalogued as a component of standard riser kit 22560740.

🚤 Compatibility

• Engine Family: V
• HP Range: 200-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta exhaust-system support component
• Supports and locates exhaust-riser fittings and connected plumbing
• Reduces vibration loading on threaded fittings and cast components
• Application-specific geometry for standard or raised riser layouts
• Included in selected riser kit 22560740
• Must be matched to engine model, riser height and installation side
• Engine type: Electronically controlled V6 and V8 gasoline marine engine

🔌 Function

Provides a rigid mounting point for riser-associated fittings and pipework, controlling vibration and maintaining the intended position and load path of the exhaust-system connections.

⚠️ Common Signs of Failure

• Cracking or distortion of the bracket
• Loose riser-side fittings or repeated fastener loosening
• Exhaust-system vibration or rattling
• Chafing or movement of supported hoses and fittings
• Corrosion around mounting points
• Stress damage to the riser or connected fittings

🛠️ Service Notes

• Offer the bracket up and start every fastener by hand before tightening any of them, so the component is not pulled into a strained position
• Check the mating faces are clean, flat and free of corrosion scale — a bracket that does not sit flat will work loose and let the component move
• Renew self-locking nuts, lock washers, tab washers or thread-locking compound wherever the original assembly used them, and tighten to the figure given in the workshop manual for your engine
• Where the bracket carries a rubber mount or bush, renew that at the same time rather than reusing a perished one
• On brackets in the inlet and exhaust area, never force alignment to make the holes line up — cure the misalignment at its source, or the bracket and the component it holds will both crack

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 22560740 - related standard exhaust-riser kit
• 22375193 - fitting
• 977751 - gasket
• 960632 - plug
• 22029570 - gasket
• 22375145 - plug
• 60113378 - flange screw
• 22463244 - exhaust riser
• 22238765 - O-ring, quantity 2
• 22984651 - plug
• 3889967 - support sleeve
• 23166907 - fitting
• 23136990 - plug

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S
• Volvo Penta V6-200-N, V6-200-C-N, V6-200-CE-N, V6-240-M, V6-240-C-M, V6-240-CE-M, V6-280-M, V6-280-C-M, V6-280-CE-M, V6-280-J, V6-280-CE-J, V6-280-G, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-N, V6-240-C-N, V6-240-CE-N, V6-280-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-G, V6-200-G, V6-200-J, V6-200-C-J, V6-280-CE-N, V6-200-M, V6-200-C-M, V6-250-O, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-G, V6-240-J, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
