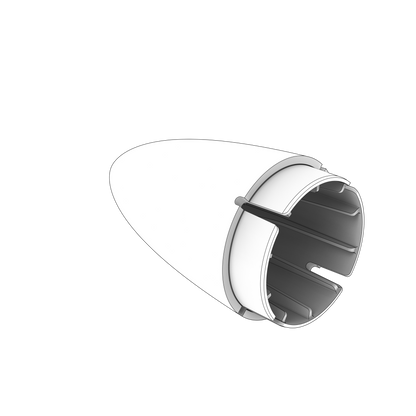

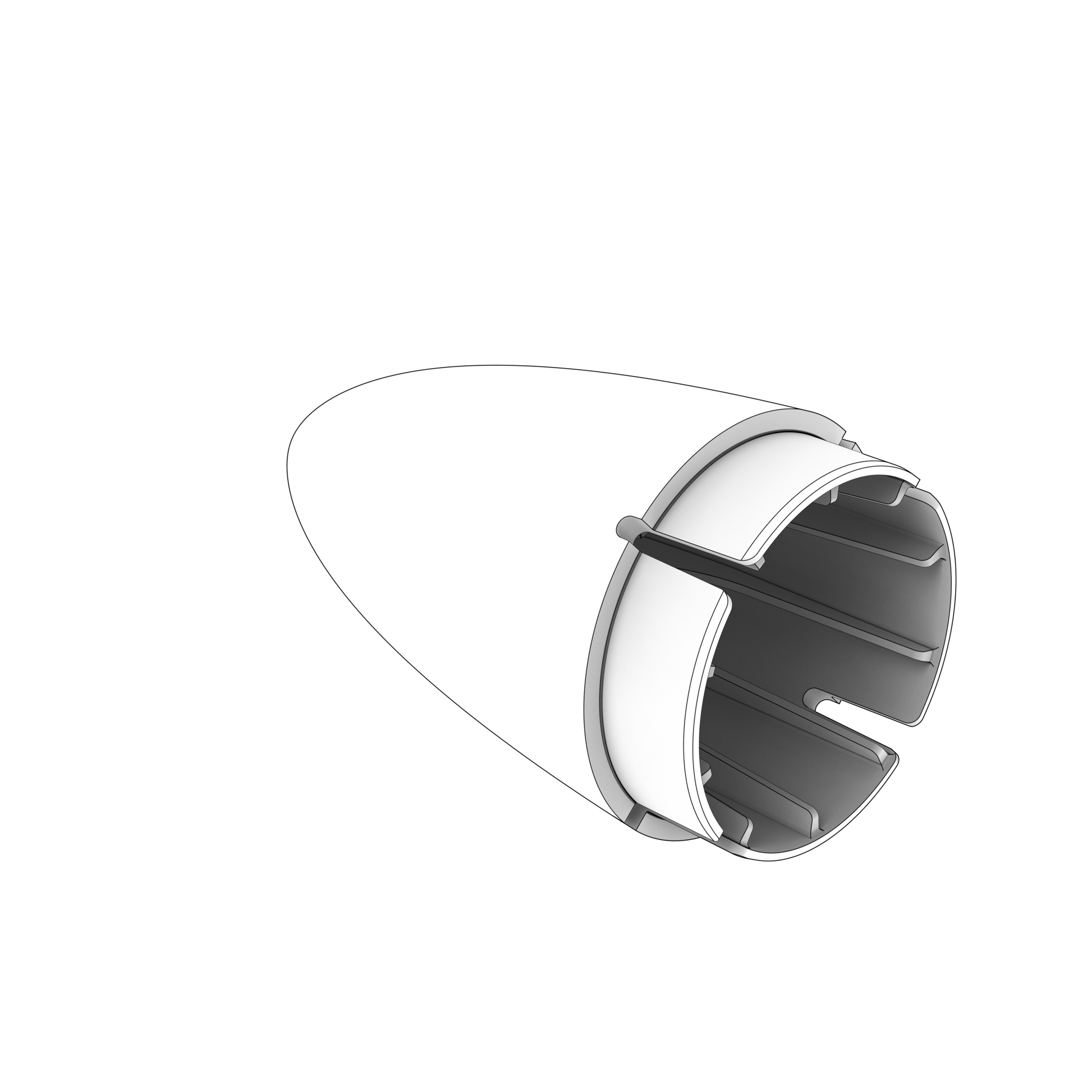

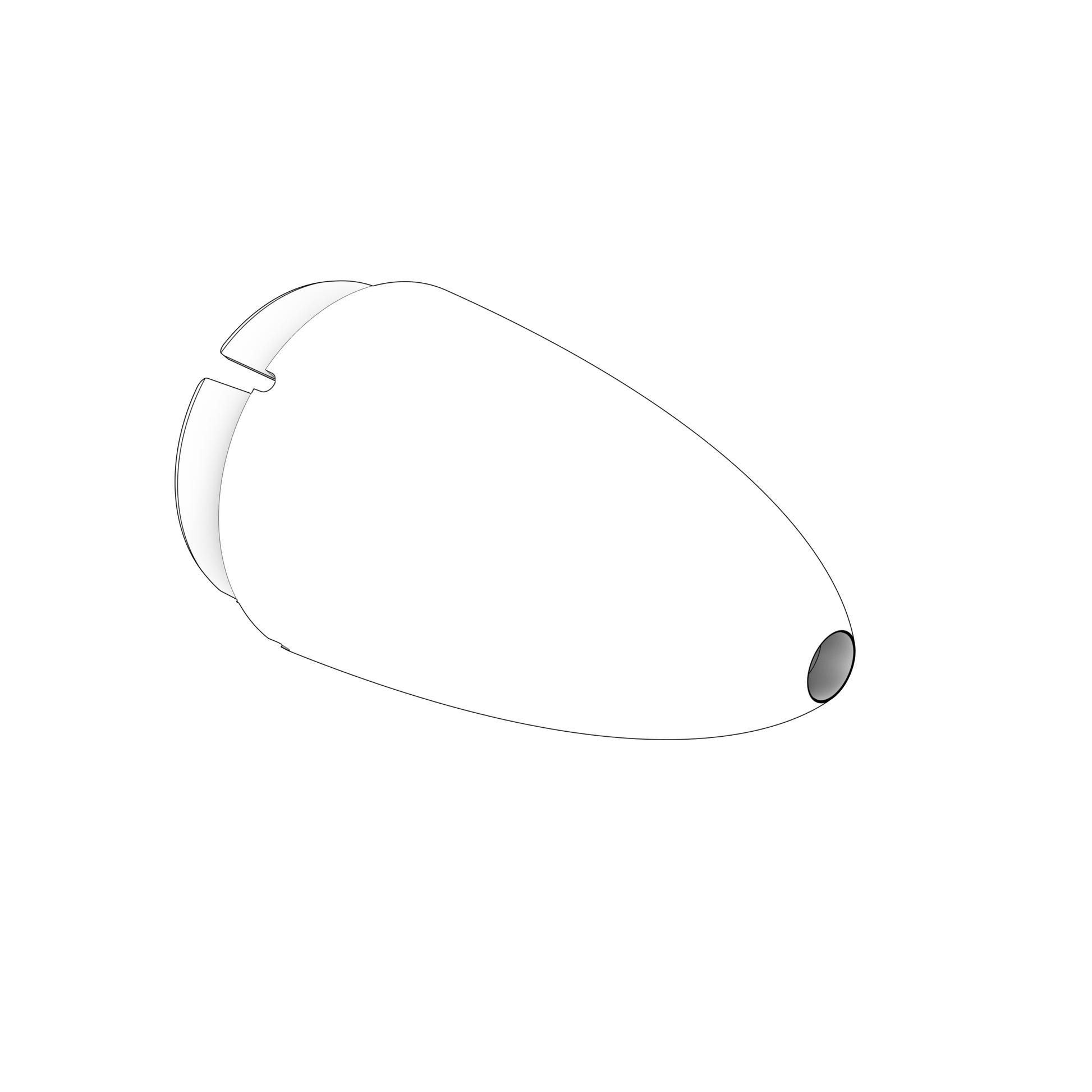

22413546 Spinner | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta propeller cone. The folder lists it as installation hardware, Duoprop type K, Forward Drive.

🚤 Compatibility

• Engine Family: V, FWD
• HP Range: 200-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Genuine Volvo Penta Forward Drive Type K propeller cone
• Streamlined shape reduces disturbance around the aft propeller hub
• Protects propeller nuts, fasteners and exposed threads
• Forms part of the matched counter-rotating Duoprop hardware
• Included in Volvo Penta hardware kit 22592621
• Requires correct installation torque and matched retaining screws
• Engine type: Forward Drive counter-rotating stainless-steel Duoprop system
• Propeller cone.
• Installation hardware, Duoprop type K, Forward Drive.

🔌 Function

Covers and secures the aft end of the propeller fastening arrangement, protects the threads and nuts, and creates a smooth hydrodynamic transition at the rear of the propeller hub.

⚠️ Common Signs of Failure

• Damaged or stripped retaining threads
• Impact deformation or cracks in the cone
• Corrosion or seized retaining screws
• Cone looseness after operation
• Water, fishing line or debris entering around the hub hardware
• Abnormal propeller vibration following incorrect seating

🛠️ Service Notes

• The cone is part of the propeller assembly, so only work on it with the drive shut down and the propellers safely immobilised, and ideally with the boat out of the water
• Clean the shaft, the cone seat and the threads, and check the seat and any bushing or ring for wear, cracking or corrosion before fitting
• Fit the cone with all of its original small parts — washer, ring and nut arrangement — in the correct order, renewing anything damaged or corroded
• Tighten the retaining nut to the figure and by the locking method given in the workshop manual for your drive, and confirm the lock is properly engaged before the boat goes back in
• Check the cone for security at each haul-out, and look over the anodes and shaft seals while you have it apart

🔄 Supersession & Cross Reference

OEM / Related Numbers

• 22592621 - Type K propeller hardware kit
• 60111646 - hex socket screw supplied in the kit
• 963683 - hex socket screw supplied in the kit
• 22477740 - front propeller nut supplied in the kit
• 22477738 - rear propeller nut supplied in the kit
• 22410560 - related Type K propeller bushing ring
• 22417005 - K2 through K7 propeller sets
• 22417006 - K2 through K7 propeller sets
• 22417007 - K2 through K7 propeller sets
• 22417008 - K2 through K7 propeller sets
• 22417009 - K2 through K7 propeller sets
• 22417010 - K2 through K7 propeller sets

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-300-E-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-B, V8-225-CE-B, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-C-N, V6-200-CE-N, V6-240-C-M, V6-240-CE-M, V6-280-C-M, V6-280-CE-M, V6-280-CE-J, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-C-N, V6-240-CE-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-J, V6-280-CE-N, V6-200-C-M, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta FWD-D2 OX, FWD-D1, FWD-D2, FWD-D1 OX, FWD-B1, FWD-B2, FWD-E1 TCC, FWD-E2 TCC, FWD-F TCC, FWD-F, FWD-F2, FWD-F2 TCC
