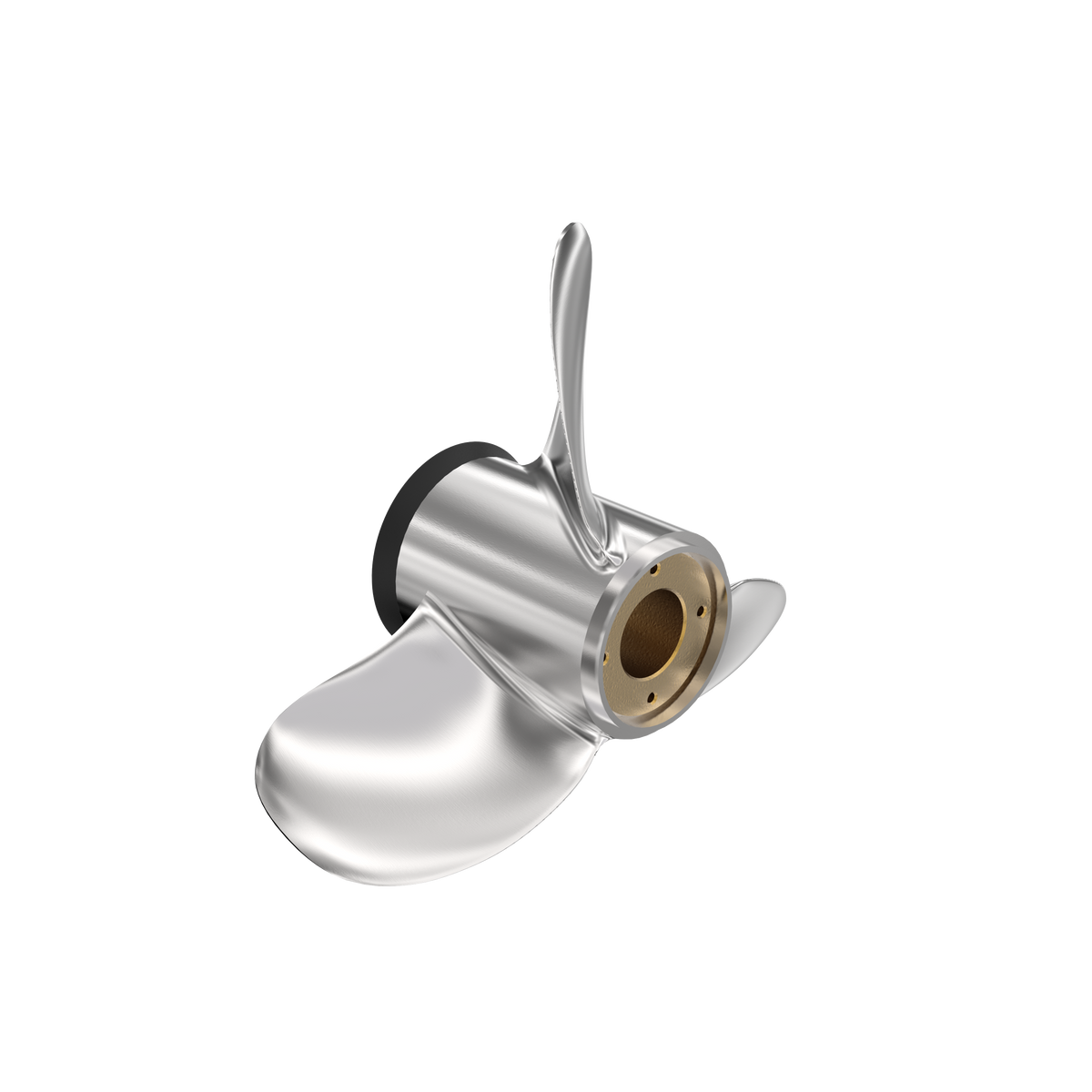

22414387 Propeller | Genuine Volvo Penta Part

🔧 Product Description

Type K is the stainless steel Duoprop range designed specifically for the Volvo Penta Forward Drive. The propellers are made of a strong and durable stainless steel to provide excellent acceleration and top speed, and the patented bushing, made of a naval brass, reduces vibrations and stress on the drivetrain components while galvanically isolating the stainless steel propeller from the aluminium drive casting. This is the K6 rear propeller; the matching front propeller is 22414381, and the pair is also listed as set 22417009. Every set of Duoprop propellers is designed, tested and manufactured together, so the front and rear propellers of a dimension belong to each other.

🚤 Compatibility

• Engine Family: V, FWD
• HP Range: 200-430 HP

Full model list at the end of this description.

⚙️ Key Features

• K6 dimension, rear position
• Built for the Volvo Penta Forward Drive
• Stainless steel with a patented naval-brass bushing
• 7.257 kg
• Matching front is 22414381, complete set is 22417009
• Listed for 126 applications across the V6, V8 and Forward Drive ranges
• Includes flow deflector to reduce shaft seal wear
• Specifically designed for the Volvo Penta Forward Drive.
• Strong and durable stainless steel for excellent acceleration and top speed.
• Patented bushing reduces vibrations and stress on the drivetrain.
• Galvanic isolation protects the drive from corrosion caused by the propellers.
• Patented flow deflector minimizes pressure and wear on the propeller shaft seals.
• Three-blade front propeller and three-blade rear propeller.
• Material: stainless steel
• Fits: FWD (Forward Drive)
• Type: K6
• Set contains: set 22417009, front 22414381

🔌 Function

The trailing propeller of a counter-rotating Duoprop pair, turning the opposite way in the front propeller's wash and recovering the swirl left in it as extra thrust, which is what gives a Duoprop its grip and straight tracking.

⚠️ Common Signs of Failure

• Vibration through the hull that worsens with speed
• Blade edges chipped, bent or eroded
• Loss of top speed, or slow to plane, at the same engine rpm
• Engine over-revving under load, pointing to a slipped hub
• Pitting or corrosion across the blade faces

🛠️ Service Notes

• Order by the K6 code marked on the propeller rather than by weight: only 23 grams separate it from the K7 rear 22414388; the same 7.257 kg is published for the J6 kit 21924266, the J7 kit 21924267, the J8 kit 21924268, the J9 kit 21924269 among the propellers listed here
• Front and rear must always share the same K dimension - mixing dimensions upsets the load split between the two propellers
• Check the propeller shaft seals and clear the hub of fishing line whenever a propeller is off
• Installation hardware, type K: propeller hardware kit 22592621 (containing propeller cone 22413546, hex socket screws 60111646 and 963683, front propeller nut 22477740 and rear propeller nut 22477738), plus flow deflector 22436582.

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-300-E-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-B, V8-225-CE-B, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-C-N, V6-200-CE-N, V6-240-C-M, V6-240-CE-M, V6-280-C-M, V6-280-CE-M, V6-280-CE-J, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-C-N, V6-240-CE-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-J, V6-280-CE-N, V6-200-C-M, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta FWD-D2 OX, FWD-D1, FWD-D2, FWD-D1 OX, FWD-B1, FWD-B2, FWD-E1 TCC, FWD-E2 TCC, FWD-F TCC, FWD-F, FWD-F2, FWD-F2 TCC
