22417009 Propeller | Genuine Volvo Penta Part

🔧 Product Description

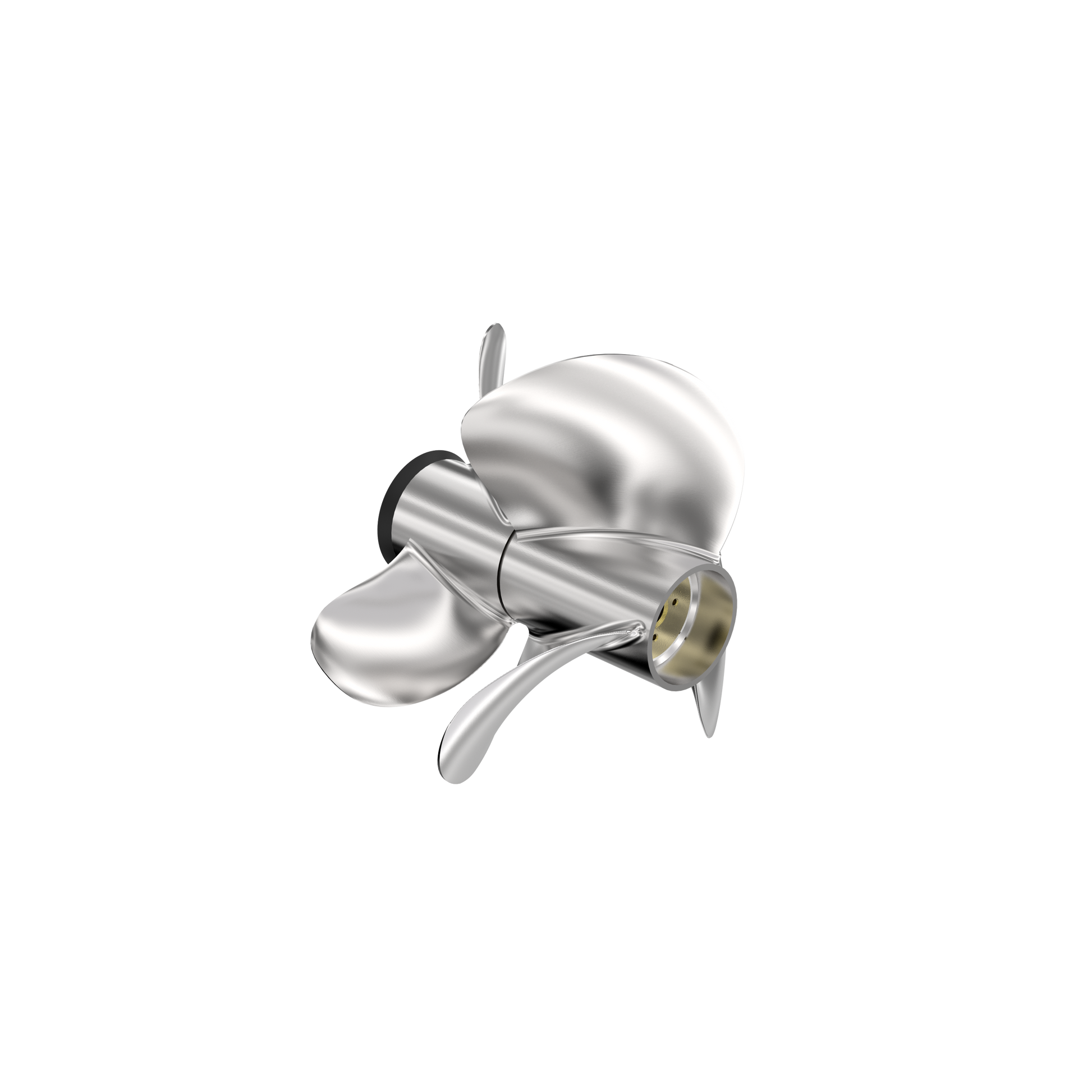

Type K is the stainless steel Duoprop range designed specifically for the Volvo Penta Forward Drive. The propellers are made of a strong and durable stainless steel to provide excellent acceleration and top speed, and the patented bushing, made of a naval brass, reduces vibrations and stress on the drivetrain components while galvanically isolating the stainless steel propeller from the aluminium drive casting. This number supplies the complete K6 pair, front propeller 22414381 and rear propeller 22414387. Every set of Duoprop propellers is designed, tested and manufactured together, so the front and rear propellers of a dimension belong to each other.

🚤 Compatibility

• Engine Family: V, FWD
• HP Range: 200-430 HP

Full model list at the end of this description.

⚙️ Key Features

• Duoprop Type K, dimension K6
• Matched front and rear set
• Stainless steel, for the Volvo Penta Forward Drive
• Naval brass bushing galvanically isolates it from the aluminium drive
• 15.422 kg
• 126 V and FWD applications
• Includes flow deflector to reduce shaft seal wear
• Specifically designed for the Volvo Penta Forward Drive.
• Strong and durable stainless steel for excellent acceleration and top speed.
• Patented bushing reduces vibrations and stress on the drivetrain.
• Galvanic isolation protects the drive from corrosion caused by the propellers.
• Patented flow deflector minimizes pressure and wear on the propeller shaft seals.
• Three-blade front propeller and three-blade rear propeller.
• Material: stainless steel
• Fits: FWD (Forward Drive)
• Type: K6
• Set contains: front 22414381, rear 22414387

🔌 Function

Supplies both halves of the counter-rotating Duoprop pair in one dimension, so front and rear are matched to each other and the thrust is split the way the drive was designed for.

⚠️ Common Signs of Failure

• Vibration through the drive that rises with boat speed
• Blade edges chipped, bent or eroded
• Loss of top speed, or the engine over-revving against no load
• Fishing line or weed wound round the propeller hubs
• Hub or splines worn, letting the propeller slip under load

🛠️ Service Notes

• Bought singly the same dimension is front 22414381 and rear 22414387
• Front and rear must always share the same K dimension - mixing dimensions upsets the load split between the propellers
• Check the propeller shaft seals and clear both hubs of fishing line while the propellers are off
• Installation hardware, type K: propeller hardware kit 22592621 (containing propeller cone 22413546, hex socket screws 60111646 and 963683, front propeller nut 22477740 and rear propeller nut 22477738), plus flow deflector 22436582.

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta V8-350-C-R, V8-350-CE-R, V8-380-C-R, V8-380-CE-R, V8-430-C-R, V8-300-C-M, V8-300-CE-M, V8-350-C-M, V8-350-CE-M, V8-300-C-N, V8-300-CE-N, V8-350-C-N, V8-350-CE-N, V8-380-C-M, V8-380-CE-M, V8-300-E-A, V8-300-C-B, V8-320-C-B, V8-320-CE-B, V8-300-CE-B, V8-380-C-D, V8-380-CE-D, V8-430-CE-D, V8-350-C-D, V8-350-CE-D, V8-380-CE-J, V8-380-C-J, V8-430-CE-J, V8-430-C-J, V8-350-C-H, V8-350-CE-H, V8-350-C-J, V8-350-CE-J, V8-300-C-R, V8-300-CE-R, V8-430-CE-R, V8-430-C-M, V8-430-CE-M, V8-300-C-K, V8-300-CE-K, V8-350-C-K, V8-350-CE-K, V8-380-C-K, V8-380-CE-K, V8-430-C-K, V8-430-CE-K, V8-300-C-P, V8-300-CE-P, V8-350-C-P, V8-350-CE-P, V8-380-C-P, V8-380-CE-P, V8-430-C-P, V8-300-CE-G, V8-300-C-G, V8-300-C-H, V8-300-CE-H, V8-300-C-J, V8-300-CE-J, V8-350-C-G, V8-350-CE-G, V8-225-C-B, V8-225-CE-B, V8-380-C-N, V8-380-CE-N, V8-430-C-N, V8-430-CE-N, V8-430-CE-P, V8-300-C-S, V8-300-CE-S, V8-350-C-S, V8-350-CE-S, V8-400-CE-R
• Volvo Penta V6-200-C-N, V6-200-CE-N, V6-240-C-M, V6-240-CE-M, V6-280-C-M, V6-280-CE-M, V6-280-CE-J, V6-280-C-G, V6-280-CE-G, V6-280-C-J, V6-240-C-N, V6-240-CE-N, V6-280-C-N, V6-240-CE-K, V6-280-CE-K, V6-200-P, V6-200-C-P, V6-200-CE-P, V6-250-P, V6-250-C-P, V6-250-CE-P, V6-280-P, V6-280-C-P, V6-280-CE-P, V6-200-C-J, V6-280-CE-N, V6-200-C-M, V6-250-C-O, V6-250-CE-O, V6-240-C-G, V6-240-CE-G, V6-240-CE-J, V6-240-C-J, V6-200-R, V6-200-C-R, V6-250-R, V6-250-C-R, V6-250-CE-R, V6-280-R, V6-280-C-R, V6-280-CE-R
• Volvo Penta FWD-D2 OX, FWD-D1, FWD-D2, FWD-D1 OX, FWD-B1, FWD-B2, FWD-E1 TCC, FWD-E2 TCC, FWD-F TCC, FWD-F, FWD-F2, FWD-F2 TCC
