22427251 Wiring Harness | Genuine Volvo Penta Part

22427251 Wiring Harness | Genuine Volvo Penta Part

$2,521.98 AUD
$2,521.98 AUD
Sale Sold out
Shipping calculated at checkout.

Available on request — contact us

As an authorised Volvo Penta dealer we can source parts through channels not shown online, and check supersession and used options for you

Availability checked daily with Volvo Penta

✓ Authorised Volvo Penta Dealer · Genuine Volvo Penta parts · Ships Australia-wide

🔧 Product Description

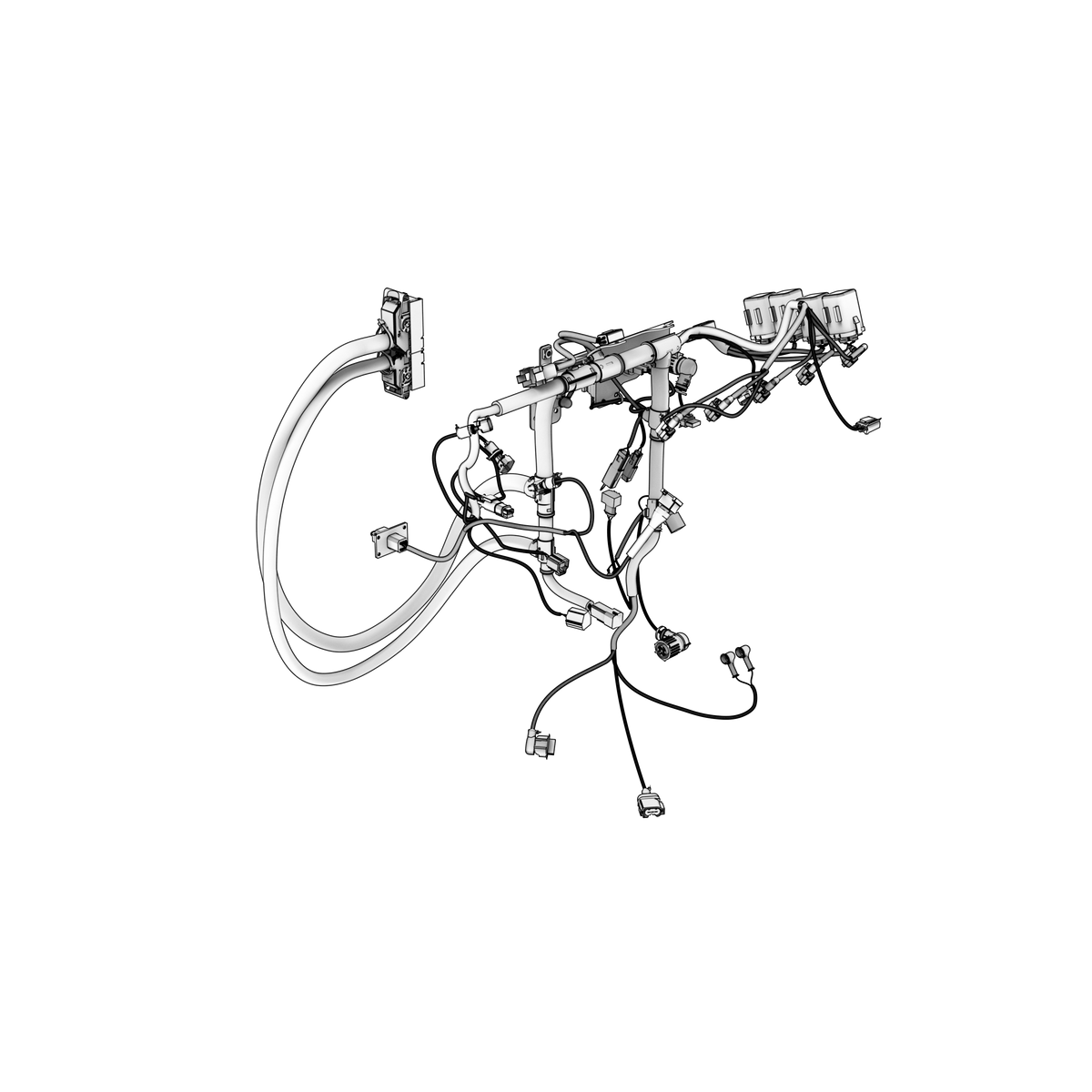

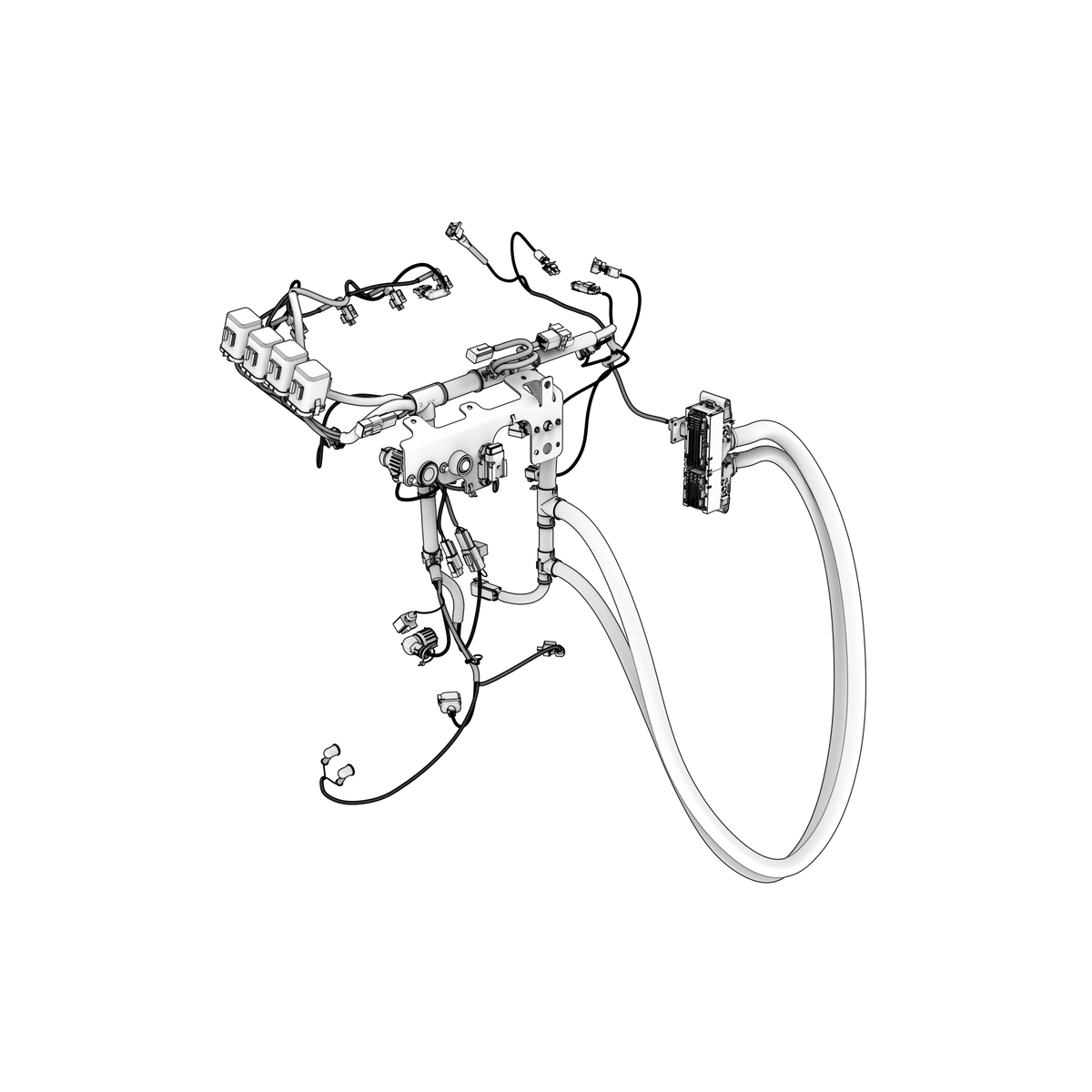

Genuine Volvo Penta engine loom for D series installations, weighing 4.060 kg and listed for 20 D series applications. It replaces part number 21685902, so an engine still carrying that older loom takes this one as its service replacement. At this weight it is a full multi-branch engine harness with the branches and connectors already made up, not a short link lead.

🚤 Compatibility

Typically suits:

  • Volvo Penta D3-220I-G
  • Volvo Penta D3-140A-G
  • Volvo Penta D3-170A-G
  • Volvo Penta D3-200A-G
  • Volvo Penta D3-220A-G
  • Volvo Penta D3-140I-G
  • Volvo Penta D3-110I-G
  • Volvo Penta D3-150I-G
  • Volvo Penta D3-170I-G
  • Volvo Penta D3-200I-G
  • Volvo Penta D3-110I-H
  • Volvo Penta D3-140A-H
  • Volvo Penta D3-170A-H
  • Volvo Penta D3-200A-H
  • Volvo Penta D3-220A-H
  • Volvo Penta D3-150I-H
  • Volvo Penta D3-170I-H
  • Volvo Penta D3-200I-H
  • Volvo Penta D3-220I-H
  • Volvo Penta D3-140I-H
  • Engine Family: D
  • HP Range: 110-220 HP

⚙️ Key Features

  • Replaces 21685902
  • 4.060 kg
  • Listed for 20 D series applications
  • Full multi-branch engine loom rather than a link lead

🔌 Function

Distributes battery supply, earth and sensor signalling around the engine on one made-up loom, so each branch reaches its own connector along the route the installation was designed for.

⚠️ Common Signs of Failure

  • Warning lamps or stored codes that come and go with vibration
  • Several unrelated circuits reporting faults at the same time
  • Green or white corrosion inside a connector shell
  • Outer sheath chafed or heat-hardened where the loom crosses a bracket or a hot pipe
  • Broken core inside intact insulation, found only when a branch is flexed under a continuity test

🛠️ Service Notes

  • Back-probe the connectors and wiggle-test each branch before condemning a loom this size, since a single corroded pin gives the same symptoms
  • Photograph the routing and every clip position before removal, then refit the new loom the same way so it cannot chafe in the same place
  • Cure whatever damaged the old loom first, or the replacement will fail at the same point

🔄 Supersession & Cross Reference

OEM Supersession Chain

  • 22427251 → Supersedes 21685902

OEM / Related Numbers

  • 21685902 earlier number superseded by this part

📦 Condition

  • Genuine Volvo Penta part
  • Brand new
  • Supplied in original or equivalent packaging
