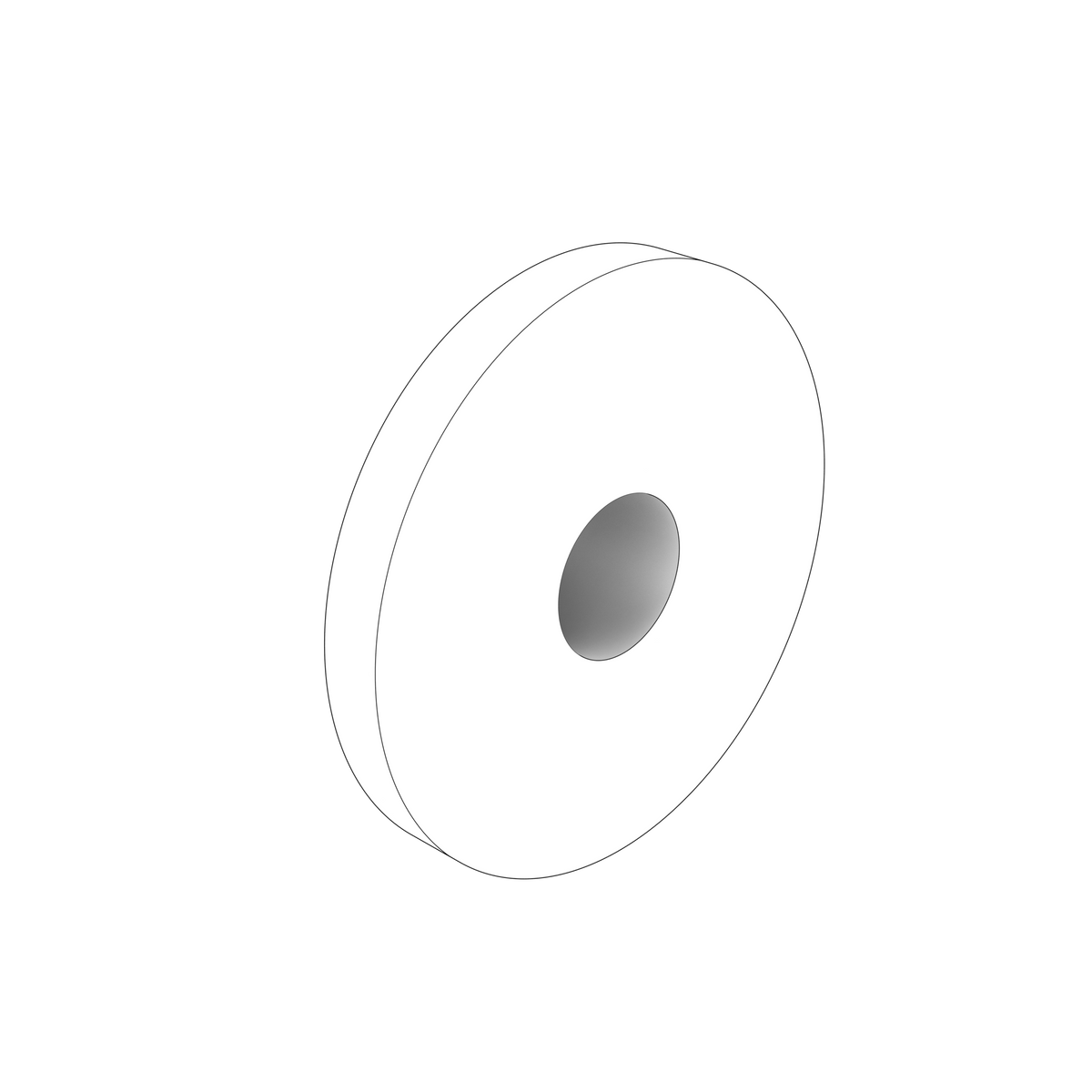

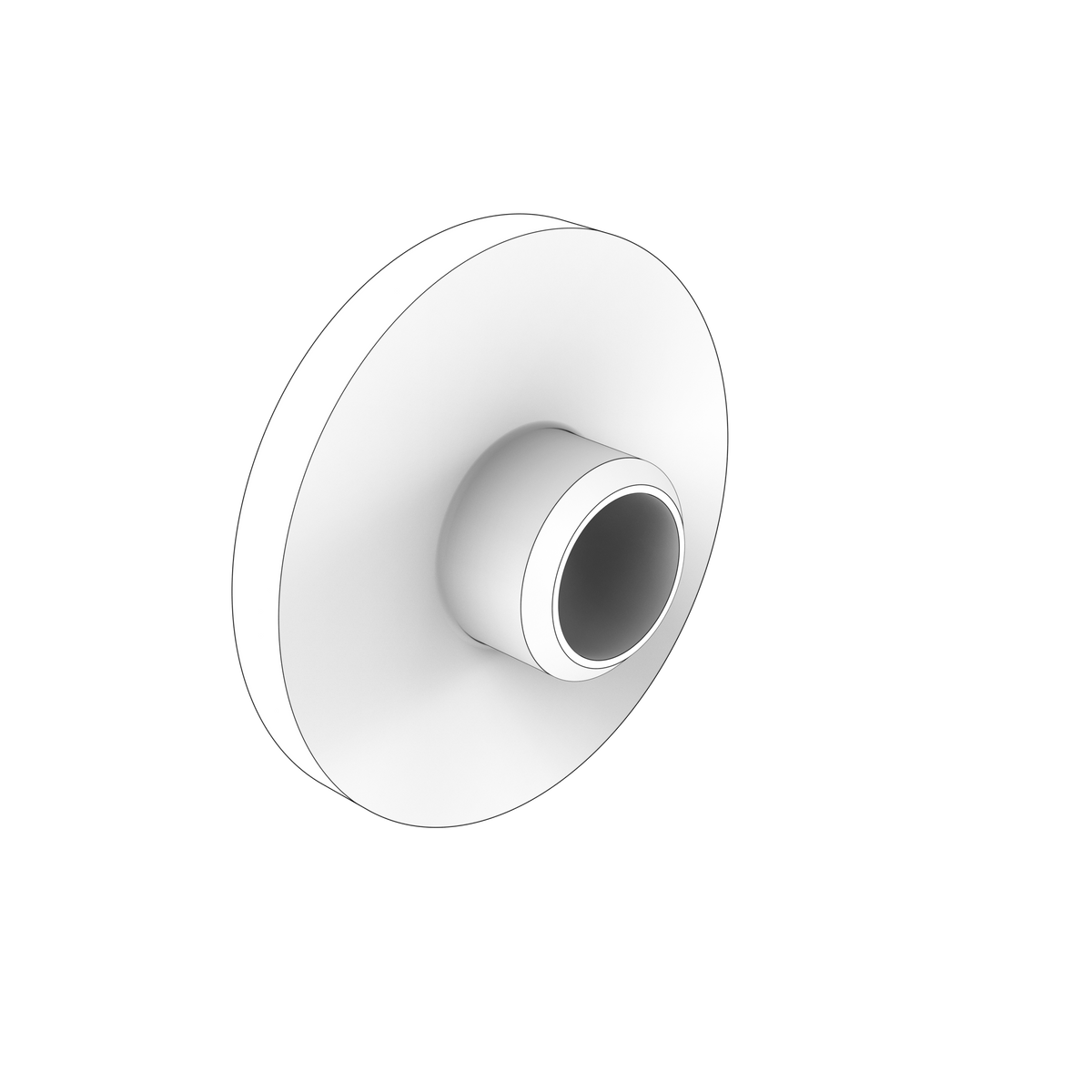

22430803 Spacer Sleeve | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta spacer sleeve from the Cooling System group, weighing 0.068 kg and listed for 26 applications across TAD and TWD series engines. It supersedes part number 22257075. The sleeve sets a fixed distance in a bolted joint and carries the clamping load.

🚤 Compatibility

• Engine Family: TAD, TWD

Full model list at the end of this description.

⚙️ Key Features

• 0.068 kg
• 26 applications across TAD and TWD series engines
• Supersedes 22257075
• Cooling System group
• 2 used per assembly

🔌 Function

Sets a fixed distance in a bolted joint and carries the clamping load between the faces.

⚠️ Common Signs of Failure

• Joint working loose, or the fastener losing tension
• Sleeve crushed, collapsed or bell-mouthed at one end
• Fretting or bright wear at the sleeve ends
• Corrosion pitting on the outside or in the bore
• The component it spaces sitting out of alignment

🛠️ Service Notes

• Check both bearing faces are clean and flat, and fit the sleeve the right way round if its ends differ
• A crushed sleeve means the joint has been over-tightened, so check the fastener and the torque figure for the installation

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22430803 → Supersedes 22257075

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta TAD1640-42GE-B, TAD1640GE, TAD1640VE-B, TAD1640-42VE-C
• Volvo Penta TAD1641VE-B, TAD1641GE, TAD1641VE
• Volvo Penta TAD1642VE-B, TAD1642GE, TAD1642VE
• Volvo Penta TAD1650VE-B/51VE, TAD1650GE, TAD1650VE
• Volvo Penta TAD1643VE-B, TAD1643VE
• Volvo Penta TAD1651GE
• Volvo Penta TAD1660-62VE
• Volvo Penta TAD1662VE EU5
• Volvo Penta TAD1670-72VE
• Volvo Penta TWD1643GE
• Volvo Penta TWD1644-45GE
• Volvo Penta TWD1652GE
• Volvo Penta TWD1653GE
• Volvo Penta TWD1663GE
• Volvo Penta TWD1672-1673GE
• Volvo Penta TWD1682-83GE
