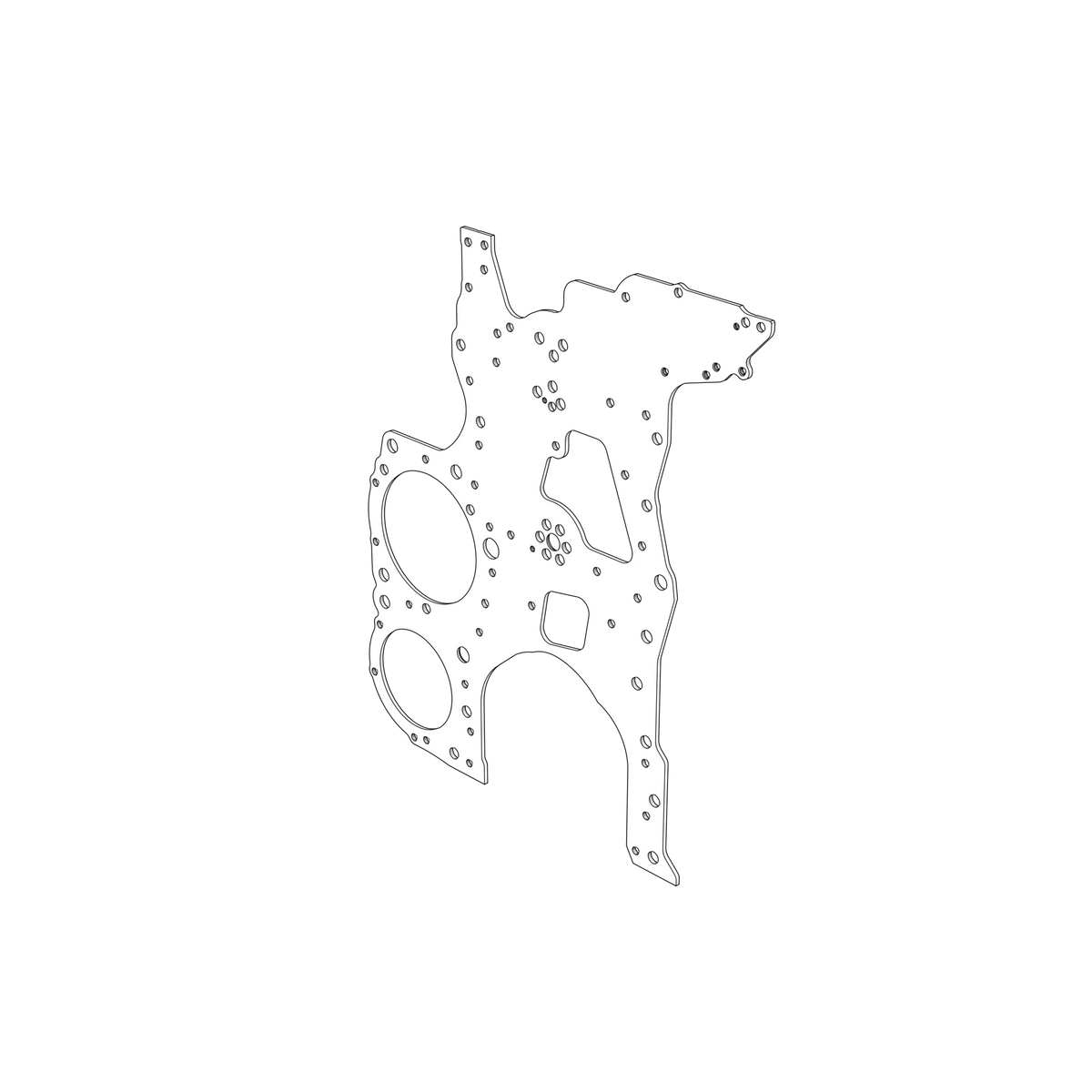

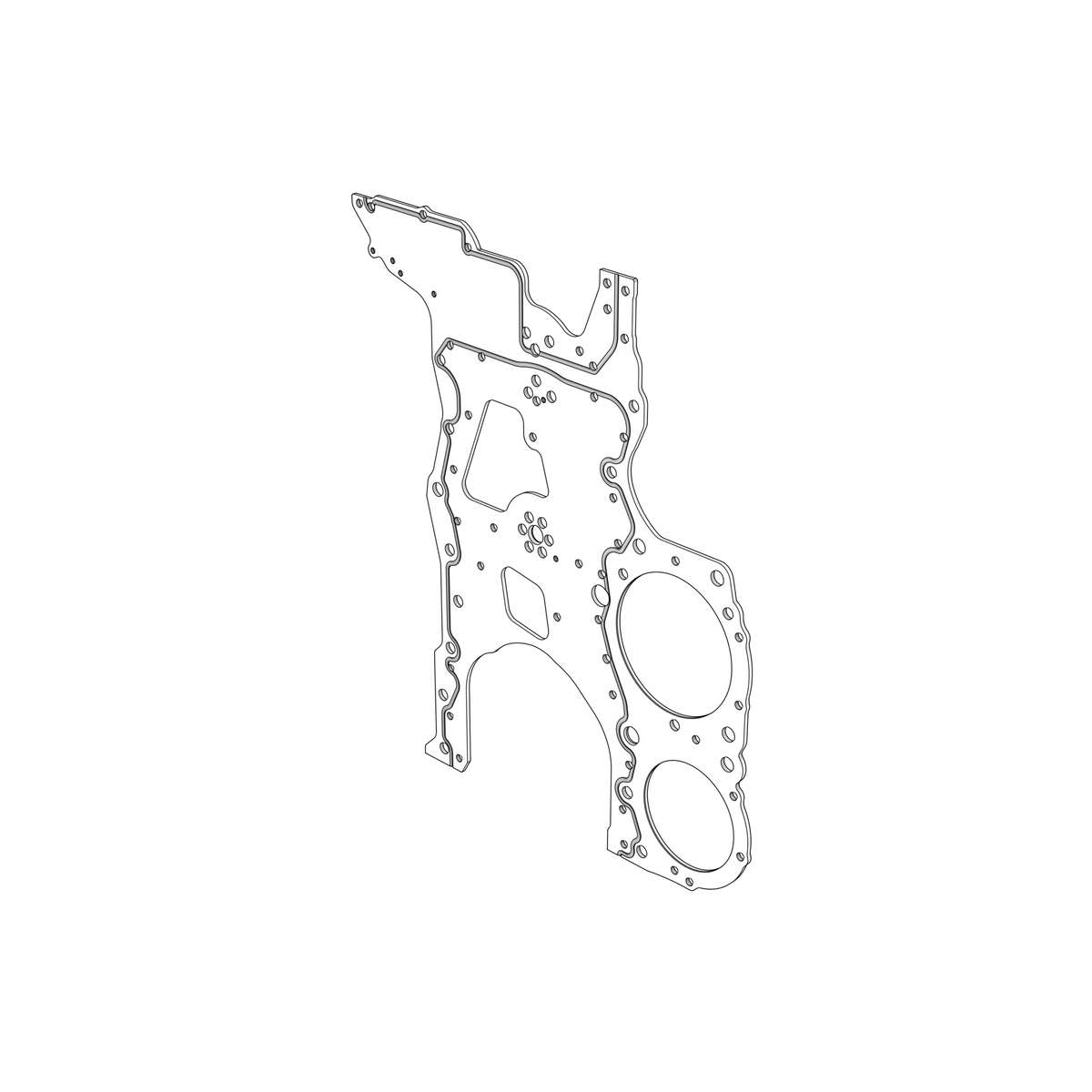

22438707 Timing Gear Plate | Genuine Volvo Penta Part

🔧 Product Description

Genuine Volvo Penta timing gear plate from the Engine group, weighing 9.072 kg and listed for 31 applications across TAD, TWD and D series engines. It supersedes part number 21892737 and its fitment is serial-controlled, so the engine serial number must be checked before ordering.

🚤 Compatibility

• Engine Family: TAD, TWD, D
• Serial Range: SN-2016198271

Full model list at the end of this description.

⚙️ Key Features

• For engines up to serial number 2016198271
• 9.072 kg
• 31 applications across TAD, TWD and D series engines
• Supersedes 21892737

🔌 Function

Carries and locates the timing gear train between the cylinder block and the timing cover.

⚠️ Common Signs of Failure

• Oil leak at the plate's joint faces
• Gear train noisy, or the backlash excessive
• Bearing bores or bushes worn in the plate
• Plate face scored, corroded or distorted
• Dowels or fixings loose, with the plate fretting

🛠️ Service Notes

• Fitment is split at serial number 2016198271, so check the engine's serial number against the parts listing before ordering
• Renew the gaskets, seals and any single-use fasteners, and check the gear bushes and dowels while the plate is off
• This is a timing-critical assembly, so set the gear train up to the engine's own timing marks on rebuild

🔄 Supersession & Cross Reference

OEM Supersession Chain

• 22438707 → Supersedes 21892737 → Supersedes 21208277 → Supersedes 20854044 → Supersedes 20760545 → Supersedes 20811989 → Supersedes 20522152

OEM / Related Numbers

• 21892737 earlier number superseded by this part
• 21208277 earlier number superseded by this part
• 20854044 earlier number superseded by this part
• 20760545 earlier number superseded by this part
• 20811989 earlier number superseded by this part
• 20522152 earlier number superseded by this part

📦 Condition

• Genuine Volvo Penta part
• Brand new
• Supplied in original or equivalent packaging

🔎 Full Model Compatibility

Typically suits:

• Volvo Penta D16C1-E MG, D16C1-F MG, D16C2-E MG, D16C2-F MG, D16C-D MH, D16C1-E MH, D16C1-F MH, D16C2-E MH, D16C2-F MH
• Volvo Penta TAD1640-42GE-B, TAD1640GE, TAD1640VE-B, TAD1640-42VE-C
• Volvo Penta TAD1641VE-B, TAD1641GE, TAD1641VE
• Volvo Penta TAD1642VE-B, TAD1642GE, TAD1642VE
• Volvo Penta TAD1643VE-B, TAD1643VE
• Volvo Penta TAD1650GE
• Volvo Penta TAD1651GE
• Volvo Penta TAD1660-62VE
• Volvo Penta TAD1662VE EU5
• Volvo Penta TWD1643GE
• Volvo Penta TWD1644-45GE
• Volvo Penta TWD1652GE
• Volvo Penta TWD1653GE
• Volvo Penta TWD1663GE
• Volvo Penta TWD1683VE
